Ortofon

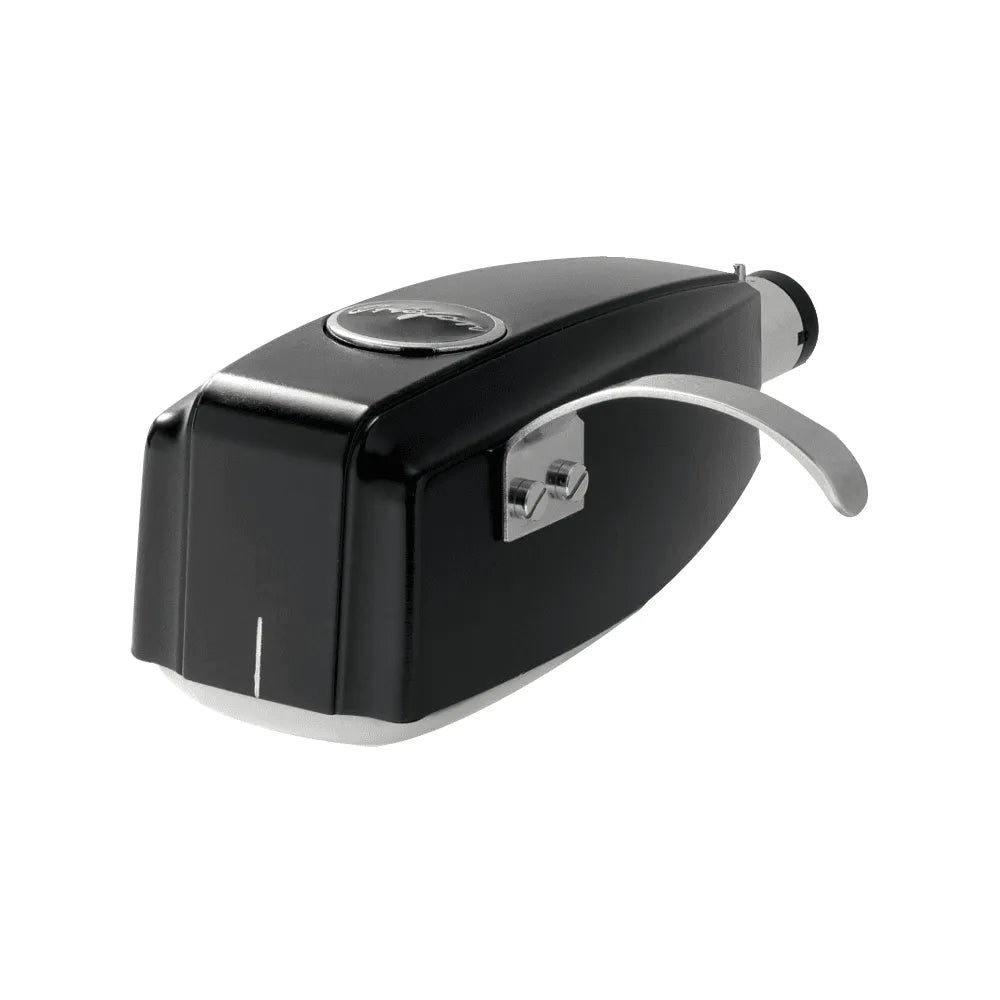

Ortofon SPU Mono CG 65 DI MKII, turntable cartridge

The Mono CG 65 Di MkII is an SPU type moving coil cartridge with a spherical pen profile.
€1,099.00 EUR

Ortofon SPU Mono CG 65 DI MKII, turntable cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. The CG 65 Di MkII provides an authentic way to reproduce these early recordings with incredible sonic fidelity, regardless of the materials used to make these discs.

  • Frequency range - 20-15,000 Hz + 3/- 1 dB .
  • Stylus type: Spherical .
  • The recommended tracking force is 4.0-5.0 g (40-50 mN) .
  • Tracking angle - 20°.

DESCRIPTION

The SPU Mono CG 65 Di MkII for the playback of early 65 µm mono and 78 rpm recordings

The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.

TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 1.5 mV
  • Frequency response - 20-15,000 Hz + 3/- 1 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 60 µm
  • Compliance, dynamic, lateral - 7 µm/mN
  • Stylus type - Spherical
  • Stylus tip radius - R 65 µm
  • Tracking force range - 4.0-5.0 g (40-50 mN)
  • Tracking force, recommended - 4.5 g (45 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance 6 ohm
  • Recommended load impedance > 100 ohm
  • *) Typical value
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge color - Black matte
  • Cartridge weight - 35 g

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
