Ortofon

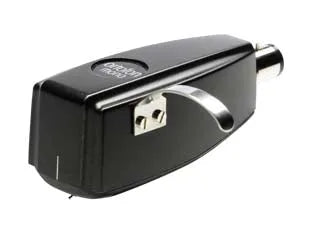

Ortofon SPU MONO G MKII, turntable head

€999.00 EUR

Ortofon SPU MONO G MKII, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

SPU MONO G MKII. it's an authentic way to reproduce these early vinyl records with incredible sonic fidelity and high output without the need for a moving coil transformer.

  • Frequency range - 3dB: 20-20,000 Hz .
  • Stylus type - Spherical.
  • The recommended tracking force is 3.0-5.0 g (30-50 mN) .
  • Tracking angle - 20°.

High output Moving Coil (MC) cartridge with a with a spherical stylus profile, for the playback of early 25 microm. mono recordings.

Provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer

SPECIFICATIONS

    • Output voltage at 1000 Hz, 5 cm/sec.: 3 mV

    • Frequency range at - 3dB: 20-20,000 Hz

    • Frequency response FIM distortion at recommended: 20-15.000 Hz + 2 / - 1 dB

    • Tracking ability at 315Hz at recommended tracking force (typical value): > 70 microm.

    • Compliance, dynamic, lateral: 12 microm./mN

    • Stylus type: Spherical

    • Stylus tip radius: R 25 microm.

    • Tracking force range: 3.0-5.0 g (30-50 mN)

    • Tracking force, recommended: 3.5 g (35 mN)

    • Tracking angle: 20 degrees

    • Internal impedance, DC resistance: 100 Ohm

    • Recommended load impedance: 47 kOhm

    • Cartridge body material: Grinded wood

    • Coilwire material: High Purity Copper (OFC)

    • Cartridge colour: Black

  • Cartridge weight: 30 g.

SPU MONO G MKII. it's an authentic way to reproduce these early vinyl records with incredible sonic fidelity and high output without the need for a moving coil transformer.

  • Frequency range - 3dB: 20-20,000 Hz .
  • Stylus type - Spherical.
  • The recommended tracking force is 3.0-5.0 g (30-50 mN) .
  • Tracking angle - 20°.

High output Moving Coil (MC) cartridge with a with a spherical stylus profile, for the playback of early 25 microm. mono recordings.

Provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer

SPECIFICATIONS

    • Output voltage at 1000 Hz, 5 cm/sec.: 3 mV

    • Frequency range at - 3dB: 20-20,000 Hz

    • Frequency response FIM distortion at recommended: 20-15.000 Hz + 2 / - 1 dB

    • Tracking ability at 315Hz at recommended tracking force (typical value): > 70 microm.

    • Compliance, dynamic, lateral: 12 microm./mN

    • Stylus type: Spherical

    • Stylus tip radius: R 25 microm.

    • Tracking force range: 3.0-5.0 g (30-50 mN)

    • Tracking force, recommended: 3.5 g (35 mN)

    • Tracking angle: 20 degrees

    • Internal impedance, DC resistance: 100 Ohm

    • Recommended load impedance: 47 kOhm

    • Cartridge body material: Grinded wood

    • Coilwire material: High Purity Copper (OFC)

    • Cartridge colour: Black

  • Cartridge weight: 30 g.
