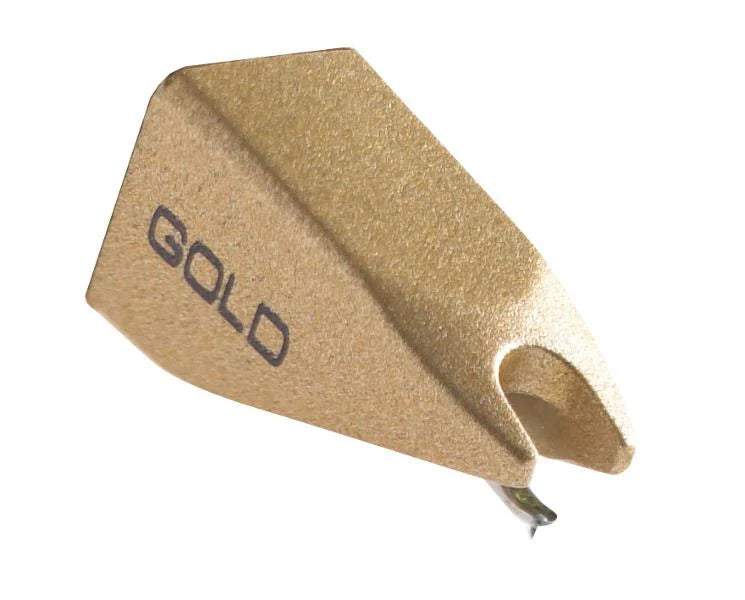

Ortofon Stylus Gold, replacement stylus
Ortofon Stylus Gold - is a premium stylus featuring a gold coating and a special Pro Elliptical diamond shape.
Ortofon Stylus Gold, replacement stylus - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. It provides the highest quality sound and 6 mV output voltage.DESCRIPTION
- The special shape of the Pro Elliptical stylus ensures accurate sound reproduction and detailed sound.
- Gold plating improves signal transmission quality.
- Suitable for high-quality vinyl playback with precise tracking.
TECHNICAL DATA
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5 cm/sec 6 mV
Channel separation at 1 kHz 23 dB
Tracking ability at 315Hz 80 μm
Compliance, dynamic, lateral 7 μm/m N
Stylus type Special Elliptical
Stylus tip radius r/R 13/25 μm
Tracking force range 2.0-5.0 g (20-50 mN)
Tracking force, recommended 3.0 g (30 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Cartridge weight stylus = 1 g
Recommended load resistance 47 kOhm
Internal inductance 450 mH
Recommended load capacitance 200-600 pF
