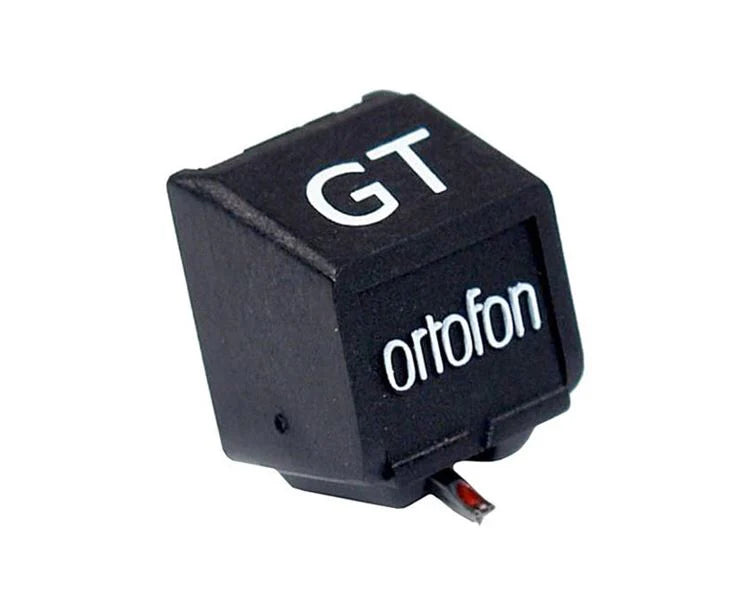

Ortofon Stylus GT, replacement stylus
The Ortofon Stylus GT is an especially robust and reliable choice for DJs who practice scratching and back-cueing techniques.
Ortofon Stylus GT, replacement stylus - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.DESCRIPTION
Developed in collaboration with SWS Audio GmbH, this model is not only rugged but also delivers high-quality sound reproduction. The GT (Great and Tough) cartridge is based on the trusted Ortofon Series 500 design, ensuring exceptional performance and durability.
- Rugged design: reinforced construction and improved rubber suspension, resistant to drops and accidental touches.
- High output signal: 8 mV, ensuring high resolution and better sound quality.
- Reliable components: uses proven Scratch series technology.
- Spherical needle: optimized for intensive use and minimal wear.
- Anti-skating tips: To avoid slipping problems, use less than half the normal anti-skating setting level corresponding to the tracking force.
Why choose Stylus GT?
- Perfect for professional DJs who value durability and precision.
- Ideal for scratching and back-cueing techniques that require high precision and stability.
- Attention to detail: improved design and exceptional sound reproduction.
TECHNICAL DATA
- Channel balance (1 kHz): 1.5 dB
- Output voltage (1 kHz, 5 cm/s): 8 mV
- Channel separation (1 kHz): 25 dB
- Frequency response: 20 Hz – 20 kHz (+/- 2 dB)
- Tracking capacity (315 Hz): 80 μm
- Dynamic lateral compliance: 6 μm/m N
- Needle type: Spherical
- Needle tip radius: R 18 μm
- Tracking force range: 3.0–5.0 g (30–50 mN)
- Recommended tracking force: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal resistance (DC): 1000 Ohm
- Recommended load resistance: 47 kOhm
- Internal inductance: 580 mH
- Recommended load capacitance: 200-400 pF
