Pandora Smart Pro, security system

INFORMACIJA

Pandora Smart is a package of comfort, vehicle monitoring and security system solutions with immobilizer function and owner identifier (card) (optional).

• Unique keyless car start.
• Keyless factory immobilizer bypass.
• Impossible electronic hacking - dialog algorithm with individual encryption for each system separately.
• Integrated code immobilizer.
• Integrated digital interfaces 2xCAN.

DESCRIPTION

Pandora Smart is a package of comfort, vehicle monitoring and security system solutions with immobilizer function and owner identifier (card) (optional). The system has an integrated latest 3G GSM modem for controlling the system with a smartphone and receiving car parameters, status, and information about events. The system has all security and remote starting solutions based on Pandora's modern technologies.


More about additional system equipment and options:

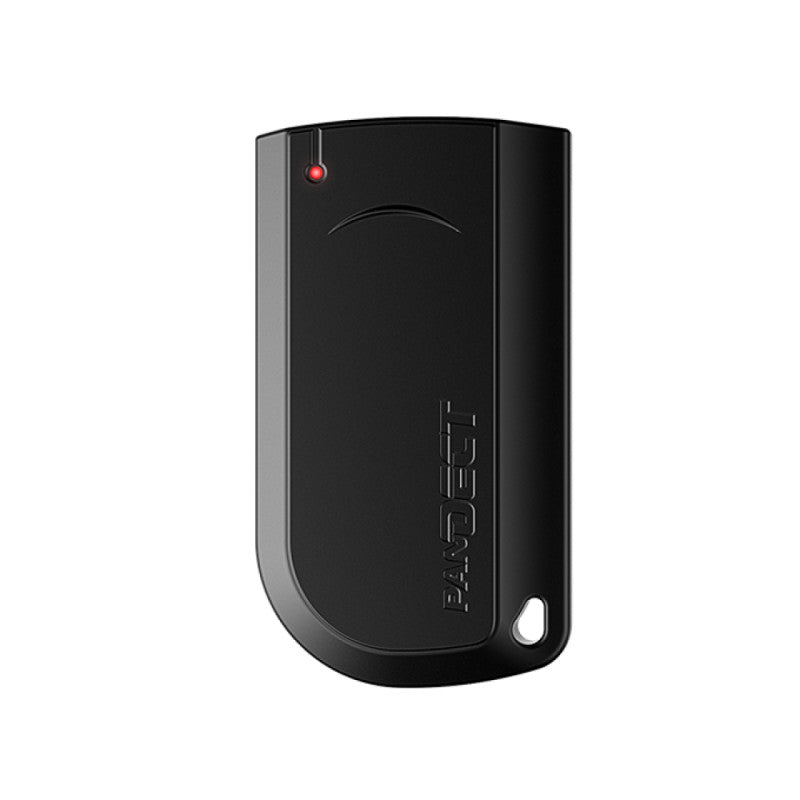

Identification cards

The main function of the identification card is to protect the car from theft by using the gaps in the "Keyless" system.

You can read more about it in the article: Security systems and useful tips for cars with the "Keyless" system

The system blocks the "Keyless" button and the OBD connector if, when starting the car, it does not detect the identification card in the setting range, which the car owner always has.

The card is always active, has its own code that cannot be decoded by the equipment mentioned in the article above, and works at a short distance.

It is integrated into the GSM/GPS security system.

The card can also be programmed with additional functions, such as automatic locking or unlocking of the car after approaching a certain distance.

The Pandora system has the ability to use a mobile phone as an identification card.

GPS Antenna

The GPS antenna is designed to determine the location of the car and track routes.

GSM modem

With the help of a GSM modem, it is possible to control the car's security system by phone, as well as remotely monitor the route and other important parameters such as the car's speed and fuel level. You can also watch it on the website.

In case of an alarm, the system notifies the owner by SMS or calls, and also provides the location of the car.

Remote car start

Flexible and simple engine automatic starting system:


- Using the smartphone app Pandora Pro (iOS), Pandora Online (Android);
- Through internet access www.pandora-on.com;
- Automatic start when the battery voltage drops ;
- Automatic start according to the set temperature;
- Automatic start according to the set date and time;
- Protection against engine overheating.


​

Additional wireless sensor DMS-100 (shock, tilt, contact)

Basically, it's three additional sensors in one.

• A blow
• Tilt
• Contact

Wireless installation expands the possibilities of use.

Can be used for: Car garage protection (additional protection zone), camper protection, roof rack protection, car headlight protection, etc.

Wireless secret interlock relay

To further protect the car, a secret interlock relay can be installed.

According to the number of blocked circuits, 2A or 20A can be selected.

Additional remote control

In addition, you can choose a remote control with a screen, which can also control the security system and monitor statuses.

D030 remote control works with Bluetooth distance.

The operating range of the D022 remote control is up to 2 kilometers.

SIM card

A SIM card is required to ensure the operation of the Pandora Smart system (calls, SMS and about 200Mb of mobile data per month are required)

We have special offers when purchasing a SIM card together with the installation of the Pandora Smart system.

SIM card subscription fee for a year 40 EUR in Lithuania.

SIM card subscription fee for a year 50 EUR in Lithuania and Europe.

Car protection



The system has all the necessary necessary protection functions:


- Connection to two CAN lines - minimal integration, high level of security;
- Impossible electronic hacking - dialog algorithm with individual encryption;
- Emergency disconnection with a PIN code known only to the owner (card with an obscured PIN code);
- Keyless theft protection and key theft protection. The system does not respond to the unlock command when the identification card is not in the operating zone;
- Integrated Bluetooth 4.2 technology also serves as a backup communication channel when GSM communication is not possible;
- With the help of a particularly small radio (bluethooth) relay, additional very secret blocking is possible (as needed);
- Eavesdropping of the car interior while calling.
- Internet service: www.pandora-on.com

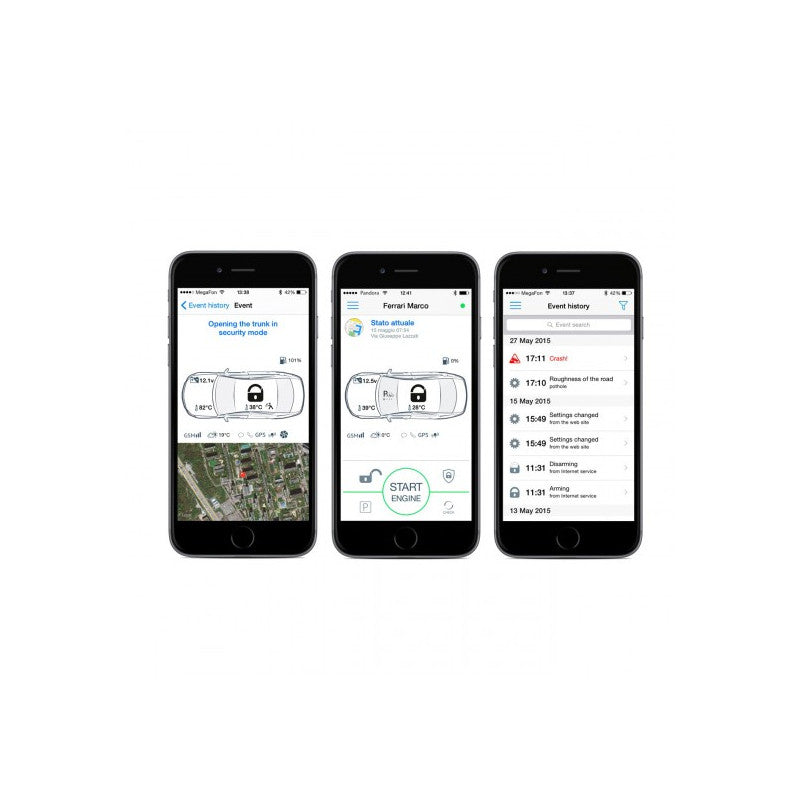

- Mobile applications: Pandora Pro (iOS),
Pandora Online (Android)


WHAT ELSE?


- Individual username, password when registering
- Multiple Pandora devices can be monitored and controlled under one username
- The individual PIN code used for registration is hidden on the card
- Temperature inside and outside, fuel control (via CAN or analogue)
- Instant notification of events via "Push" messages
- The actual coordinates of all registered cars, the history of the car's movement, when a GPS receiver is additionally installed (as needed)
- Battery charge monitoring

Advantages of integrated bluetooth 4.2 technology




How can the bluetooth interface be used?
- If you need accurate coordinates, the history of the car's movement, you will additionally need a GPS receiver NAV-035BT. You will only need to turn on the power, and the receiver will connect to the system via bluetooth;
- The connection of the BT-760 card is also realized via bluetooth connection, and with the help of the phone application you can change the settings, for example the distance of the card's operation
- With the help of Bluetooth technology, the phone can be used instead of the card (identifier) ​​BT-760
- The autonomous magnet DMS-100BT can be additionally connected to the system installed in the car via the bluetooth interface. The possibilities of using the magnet are very wide: for protecting the car garage (additional protection zone), camper protection, roof trunk protection, car headlight protection, etc.
- If it is difficult to pass the car wires to the hood area, the RHM-03BT module can be used. All necessary connections in the engine area are connected to this module, and information is transmitted to the main unit via bluetooth.
- With the help of Bluetooth relays, secret blocking is implemented, which is extremely difficult to find and undo the circuit.
- The remote control D-030BT has its own LCD screen, which is quite informative. You know if the protection is activated, what the battery charge is, etc. The remote control is equipped with a battery and is charged, and for some cars it can be in place of the original remote control.

What else is very important about Pandora Smart?

The size of the central unit is very small and it is not difficult to hide it well!


Power consumption is very low, even when all power users are turned on, including the GPS receiver

Warranty period, conditions.

The warranty for the installed Pandora system is valid as long as the owner uses the vehicle in which the system was installed (if the SIM card offered by us was used for the installation). If the system is installed, with the owner's preferred SIM card or the car's owner changes, the warranty applies for 2 years from the date of installation.

TECHNICAL DATA

SPECIFICATIONS

• Unique keyless car start.
• Keyless factory immobilizer bypass.
• Impossible electronic hacking - dialog algorithm with individual. encryption for each system separately.
• Integrated code immobilizer.
• Integrated digital interfaces 2xCAN.
• Integrated GSM modem.
• Internet service - www.pandora-on.com.
• Pandora Pro smartphone app (iOS), Pandora Online (Android);
• Integrated Bluetooth 4.2.
• Integrated shock, tilt, motion sensors.
• Fuel level control and other information.

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
