Paradigm

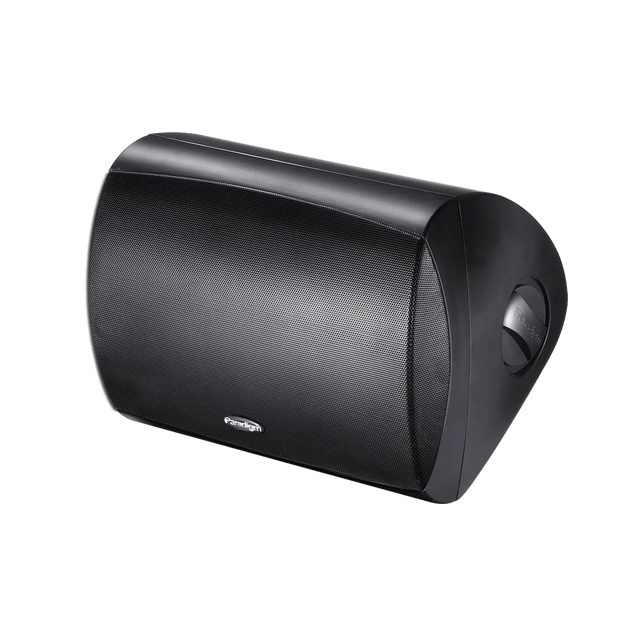

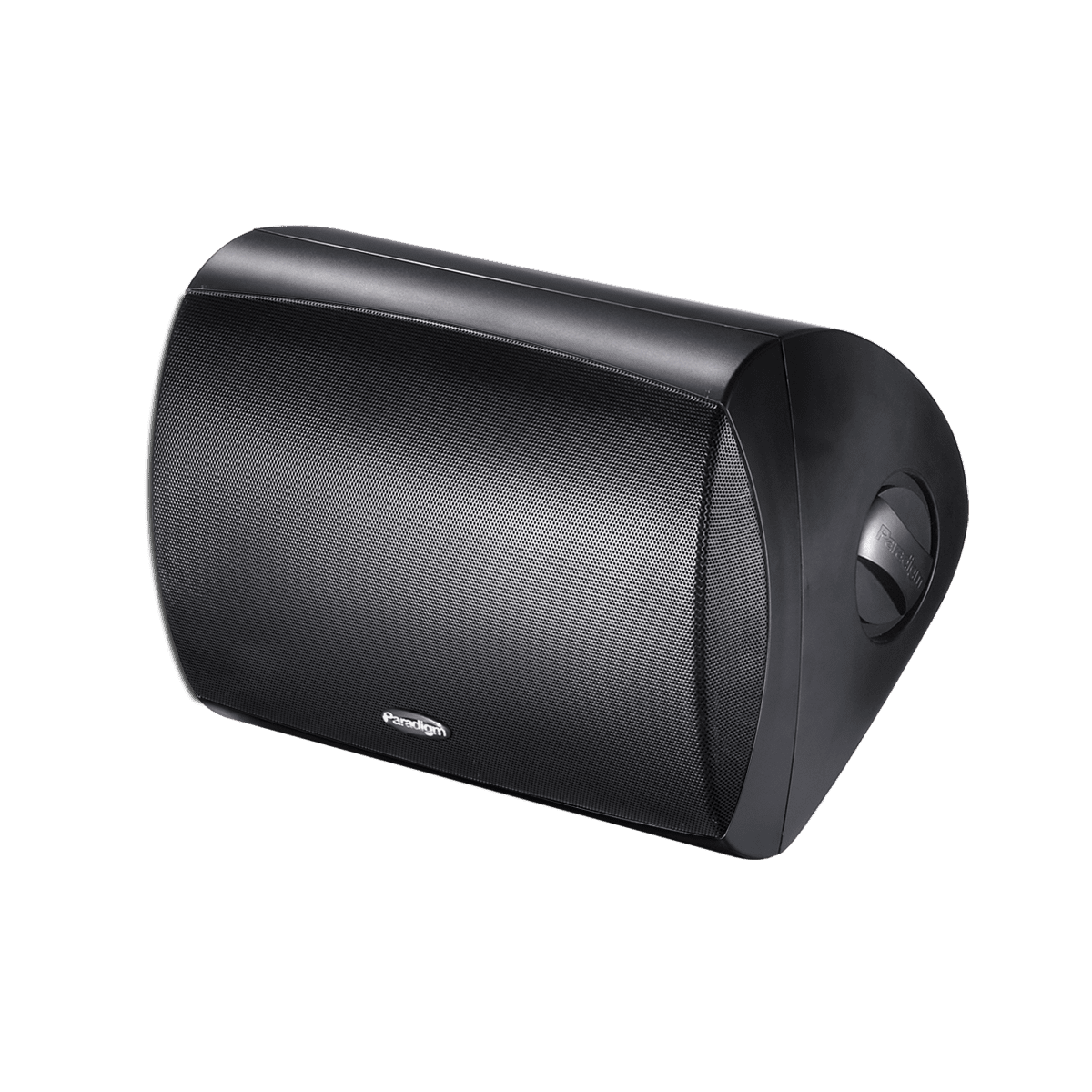

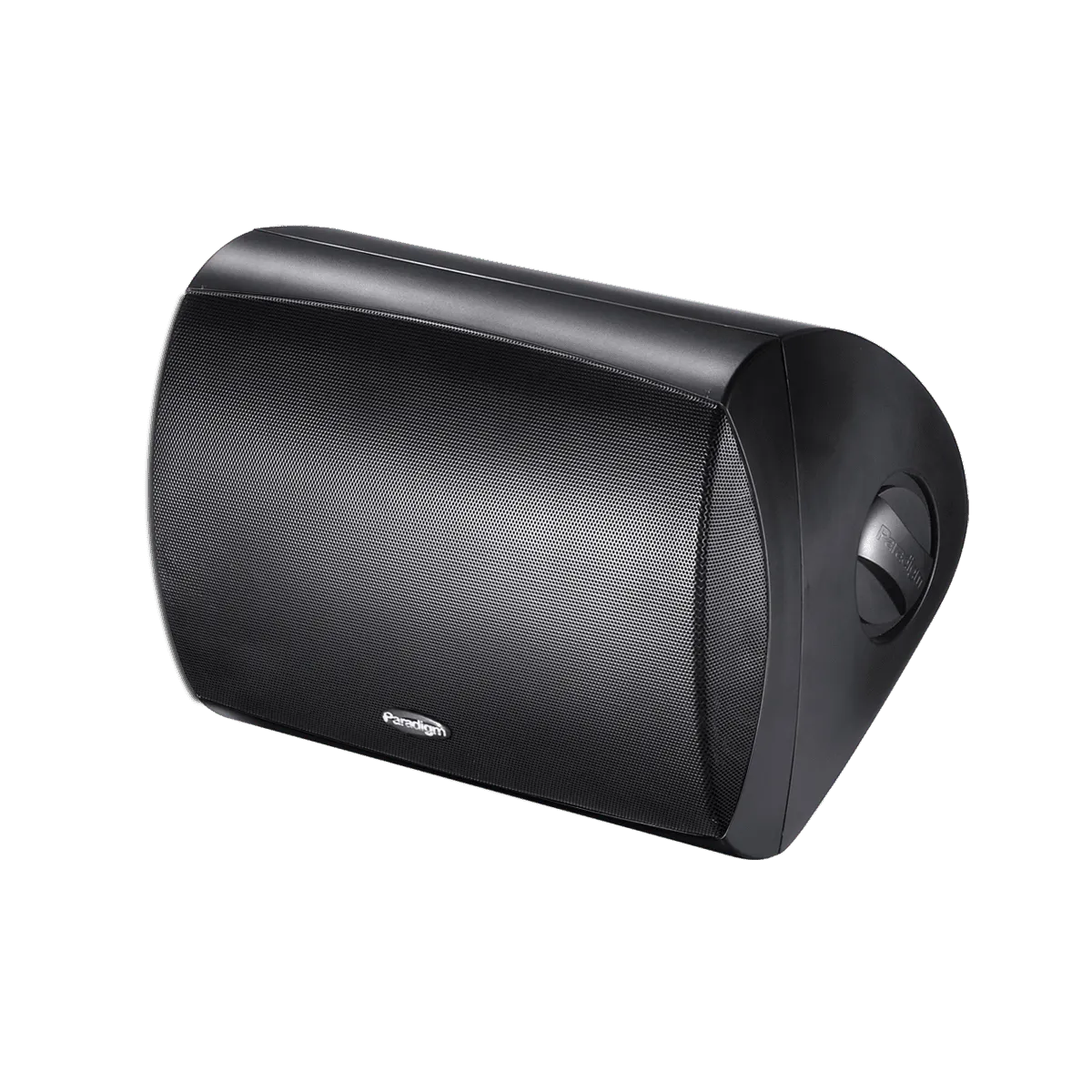

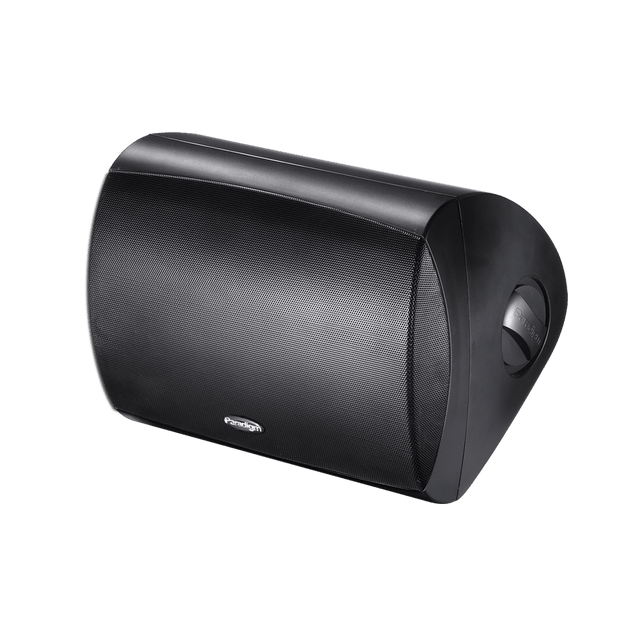

Paradigm Stylus 470-SM Outdoor Speaker (Various Colors)

Single speaker system with stereo L/R inputs, 3-speaker, 2 x 2-way acoustic suspension, weather, water and UV resistant PolyGlass™ enclosure.
€639.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Recommended amplifier power: 15-110W.
  • Frequency range: 75 Hz - 15 kHz.
  • Sensitivity: 93 dB.
  • Impedance: 4-8 Ohms.

DESCRIPTION

Partnered with the NRC

Paradigm is partnered with Canada's world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

TECHNICAL DATA

SPECIFICATIONS

DESIGN Single speaker system with stereo L/R inputs, 3-driver, 2 x 2-way acoustic suspension, weather,water, UV-resistant PolyGlass™ enclosure
CROSSOVER Two 3rd-order electro-acoustic at 2.3 kHz
FREQUENCY RESPONSE ON-AXIS ±2 dB from 75 Hz - 20 kHz

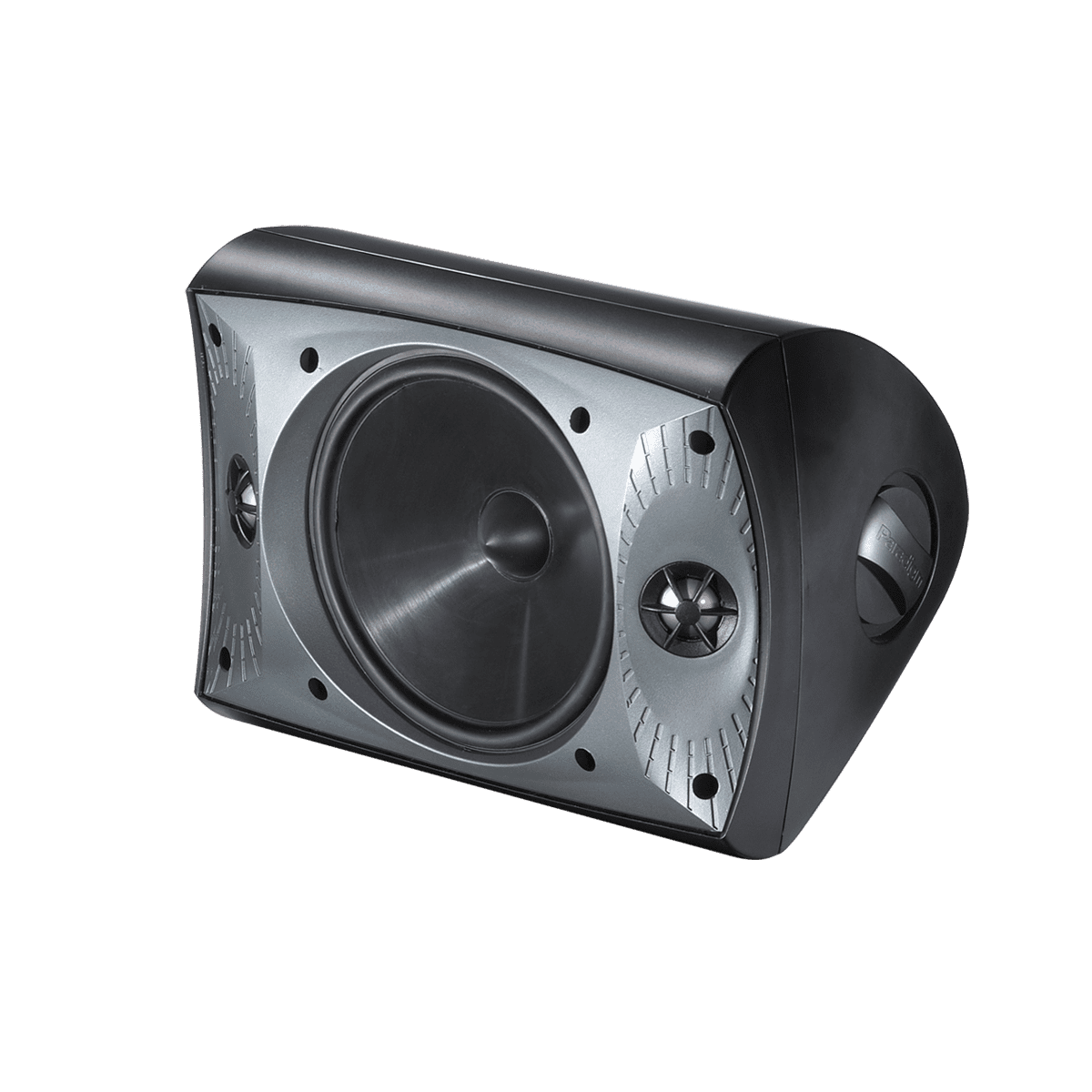

HIGH FREQUENCY DRIVER Two 25-mm (1 in) PTD™ domes
MID/BASS FREQUENCY DRIVER Dual voice-coil, 190-mm (7-1/2 in) ICP™ cone, die-cast chassis
LOW FREQUENCY EXTENSION 50 Hz (DIN)
SENSITIVITY ROOM / ANECHOIC 93 dB /
FREQUENCY RESPONSE 30° OFF-AXIS ±2 dB from 75 Hz - 15 kHz
SUITABLE AMPLIFIER POWER RANGE 15 - 110 watts Mono; 15 - 55 watts / channel Stereo Input
MAXIMUM INPUT POWER 80 watts Mono; 40 watts/channel Stereo Input
IMPEDANCE Compatible with 4 ohms Mono; 8 ohms/channel Stereo Input
DIMENSIONS HXWXD 12.625" × 8.875" × 8.75" (32.1cm × 22.5cm × 22.2cm)
WEIGHT 10.6 lbs. (4.8 kg)

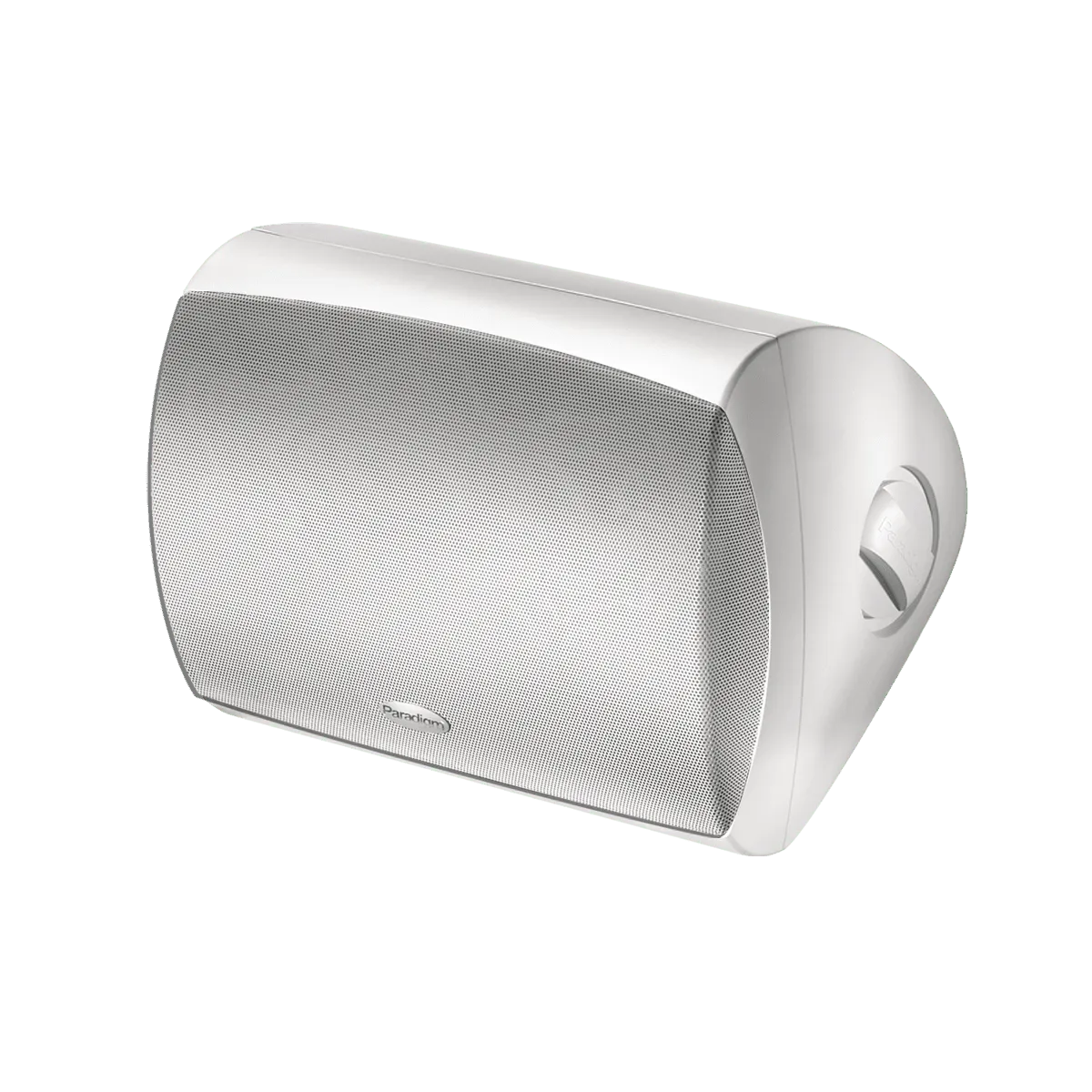

FINISHES Black, White




DOCUMENTS

INSTRUCTIONS

User Manual (EN).
