Bowers & Wilkins CT SW10 passive subwoofer for home theater system

INFORMACIJA

• Power: 1000W
• 25cm tweeter, 18Hz -6dB
• Dimensions: 36 x 34 x 26 cm / Weight: 14.9 kg

DESCRIPTION

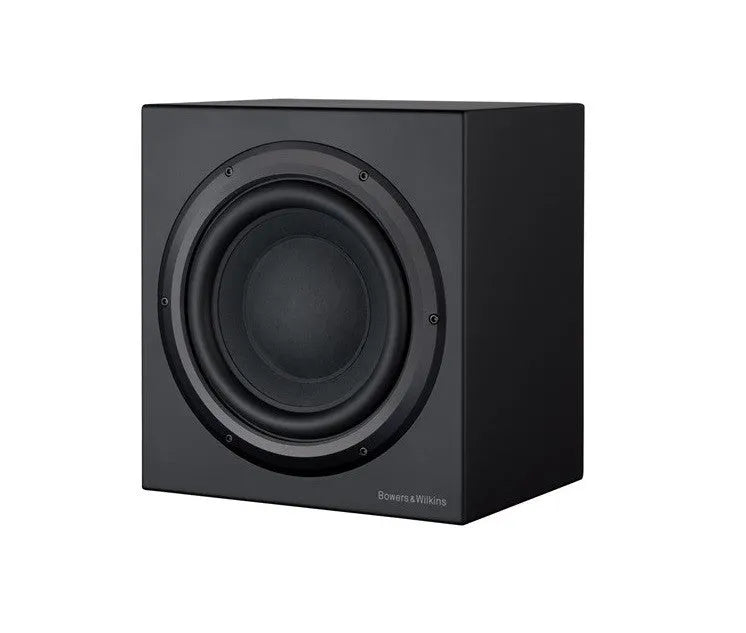

The CTSW10 is a passive subwoofer featuring a 10-inch paper drive unit. It is designed to be used with both the CT800 and CT700 ranges. All CT SW subwoofers have a closed-box design that makes them easy to install in cabinetry.

It might seem strange to many listeners that a material like paper could have much to do with a product as solid and powerful as a Custom Theater subwoofer. Nevertheless, paper plays a vital part in what they're hearing.

In our CT SW10, CT SW12 and CT SW15 subs, the bass driver diaphragms are constructed from a ?nely-tuned mix of paper pulp, Kevlar ?bres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the pressures inside the cabinet.

TECHNICAL DATA

• Technical features: Long throw paper/Kevlar® cone bass driver, Magnetically attached grille
• Description: Closed-box subwoofer system with external rackmount amplifier
• Drive units: ø250mm (10 in) Paper/Kevlar® cone long-throw
• Frequency range: -6dB at 18Hz and 25/140Hz adjustable (EQ at A)
• Frequency response: ±3dB 26Hz - 40/140Hz adjustable (EQ at A)
• Bass extension: -6dB at 18Hz (position A), -6dB at 23Hz (position B), -6dB at 29Hz (position C)
• Power handling: 1000W
• Dimensions Height: 360mm (14.2 in), Width: 340mm (13.4 in), Depth: 260mm (10.3 in)
• Depth with grille: 290mm (11.4 in)
• Net Weight 14.85kg (32.7lb)
• Finish Cabinet Black painted, Grille Black cloth

DOCUMENTS

More information

User Guide
