1 – 3000W SPL monoblock amplifier (Class D)

1 is a high-power monoblock (1-channel) SPL amplifier, designed for extreme audio projects and maximum power output. This model belongs to the professional ZP series, which is focused on high sound pressure level (SPL) systems and stable operation even under maximum loads.

Due to Class D technology and advanced "Full Bridge" architecture, the amplifier reaches up to 3000W RMS @ 1 Ohm, making it ideal for driving powerful subwoofers, midbass, or midrange speakers. It is a solution for those who seek maximum power and efficiency in one device.

Key advantages

• 3000W RMS @ 1Ω: extreme power for SPL systems
• Class D technology: high efficiency and lower energy loss
• Full Bridge construction: maximum power utilization
• Full-range amplifier: suitable for subwoofers, midbass, and midrange
• Adjustable filters: High-Pass and Low-Pass for precise sound control
• Bass Remote control: convenient bass adjustment from the driver's seat
• Clip LED indicator: easy gain setting without distortion
• Protection systems: against overheating, short circuits, and overloads

Technical specifications

• Class: Class D
• Channels: 1 (monoblock)
• Power (RMS @ 1Ω): 3000W
• Power (RMS @ 2Ω): 2000W
• Power (RMS @ 4Ω): 1000W
• Maximum power: 6000W
• Frequency range: 12 Hz – 17 kHz
• Signal-to-noise ratio: -87 dB
• Distortion (THD): <1%
• Low Pass filter: 50 Hz – 15 kHz
• High Pass filter: 15 Hz – 1 kHz
• Bass Boost: 0 – +18 dB
• Input sensitivity: 0.44V – 4V
• Max. current: up to 290A
• Efficiency (4Ω): ~84%
• Power terminals: 50 mm²
• Speaker terminals: 20 mm²
• Dimensions: 223.4 x 206.4 x 63.3 mm
• Weight: 2.58 kg

Reliability and construction

The ZP3000.1 is built for operation in extreme conditions – high-quality SMPS transformers and a large capacity capacitor bank ensure stable performance even during large power spikes. A reinforced PCB and high-current components guarantee durability and reliability.

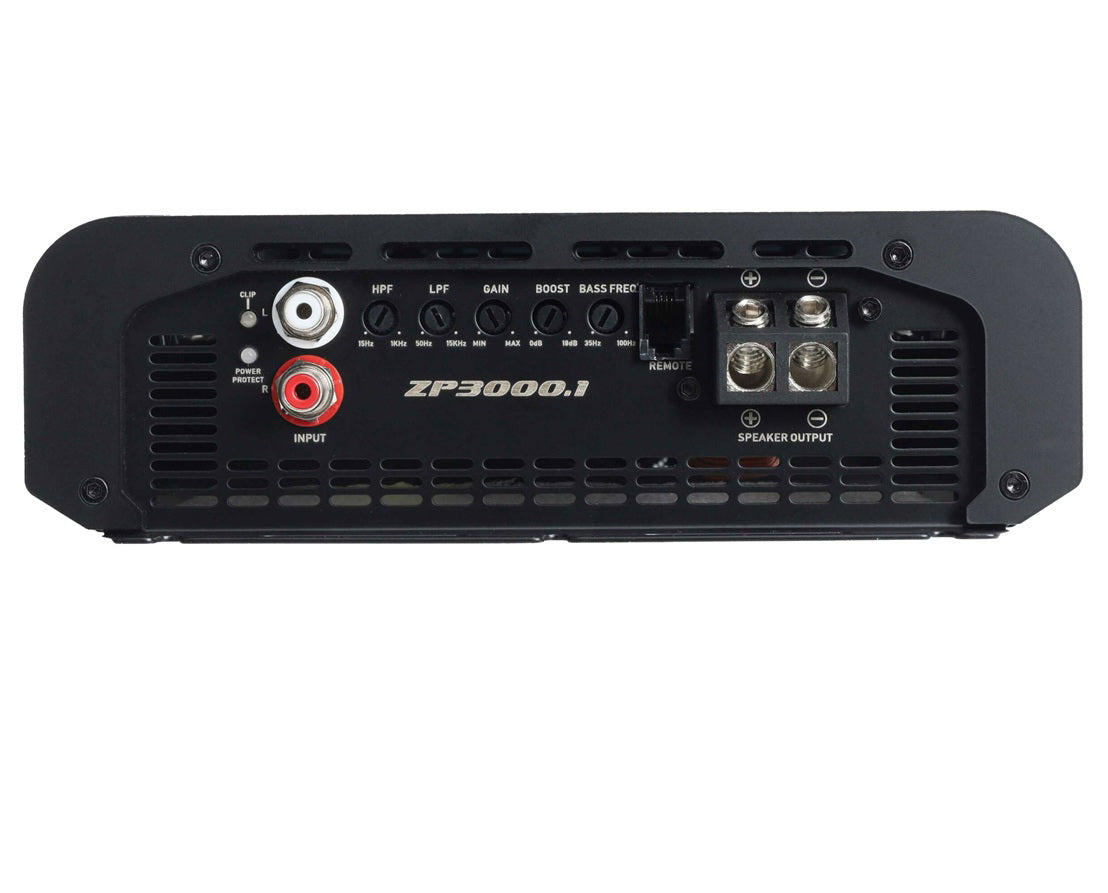

Sound control and flexibility

Integrated adjustable high-pass (HPF) and low-pass (LPF) filters allow you to precisely tune the system to your needs. The included remote bass controller provides the ability to adjust bass levels in real-time.

Package contents

• 1 x 1 amplifier
• 1 x remote bass controller
• 1 x 5 m control cable
• Mounting hardware and tools
• User manual

Why choose Phoenix Gold?

Phoenix Gold is a car audio manufacturer with years of experience, known for high-quality components and innovative solutions. The ZP series is designed for those who want maximum power, stability, and professional sound.
