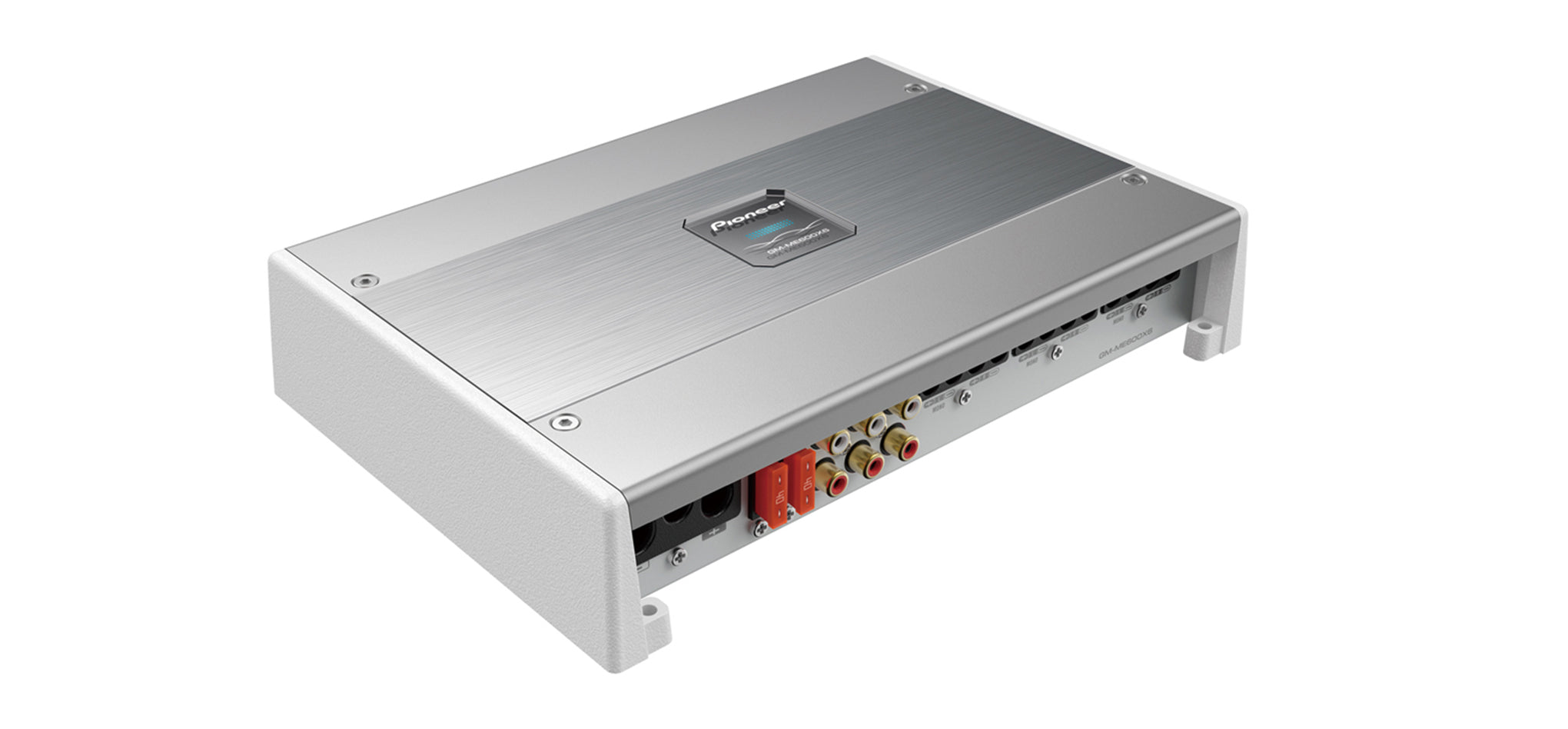

Pioneer GM-ME600X6

INFORMACIJA

The Pioneer GM-ME600X6 is a marine-grade Class-D digital amplifier, specially designed for marine environments, including features such as special coating, protective covers for side panels, and RCA terminal covers.

To prevent circuit shutdown, the Pioneer GM-ME600X6 digital amplifier circuit includes a "Protection Control System" that monitors its internal temperature and automatically adjusts the input level. This design increases flexibility for connecting multiple marine speakers and subwoofers to the system.

For additional flexibility, easy installation is guaranteed thanks to "Automatic Signal Sensing and Turn-On," which automatically detects the input signal and turns the amplifier on and off when connected via the speaker line input.

Adjustable High Pass Filters (HPF) and Low Pass Filter (LPF) allow you to tailor the audio frequency to the characteristics of the speaker, subwoofer, and personal listening preferences.

The GM-ME600X6 features a sleek, matte aluminum top cover, giving it a beautiful look and feel.

Specifications

Speaker line input sensorTurn-on sensor
Variable LPF
D-class
Channel(s)6/5/3
Speaker TerminalsBlock-type
Continuous Power OutputNormal Mode: 6 x 75W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 150W RMS (4Ω)
High Power Mode: 6 x 100W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 200W RMS (4Ω)
Frequency response10Hz～240Hz (+0dB,-3dB)
Input level controlRCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion 0.05 %
S/N ratio 95 dB
Max. current consumption56A (High Power Mode)
Size260(W) X 50.6(H) X 180(D) mm
Unit weight2.6kg
Crossover Frequency50-500Hz, (-12dB/oct) Hz
Load impedance capability2 ～8Ω
Audio
Variable HPF
RCA Terminals
Low Pass Filter
High Pass Filter
Connections
Multi-block Terminal.
