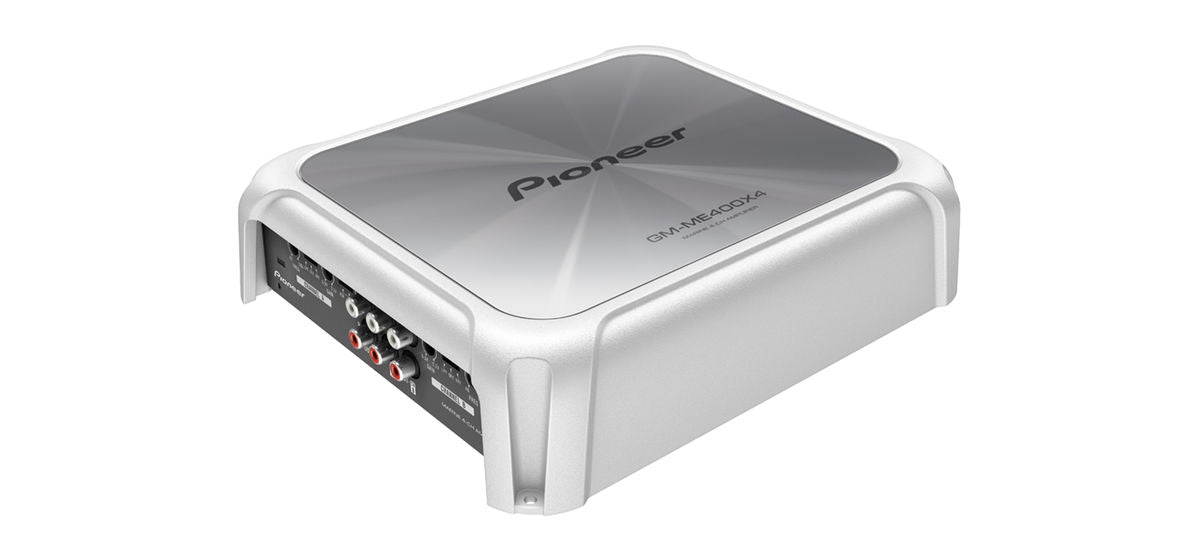

Pioneer Marine GM-ME400X4

INFORMACIJA

The Pioneer GM-ME400X4 is a marine-grade Class-D digital amplifier, specially designed for the marine environment, including features such as special painting, protective covers for side panels, and RCA terminal covers.

To prevent circuit shutdown, the Pioneer GM-ME400X4 digital amplifier circuit includes a "Protection Control System" that monitors its internal temperature and automatically adjusts the input level. This design increases flexibility for connecting multiple subwoofers to the system.

For added flexibility, easy installation is guaranteed thanks to "Automatic Signal Sensing and Turn-On," which automatically detects the input signal and turns the amplifier on and off when connected via the speaker line input.

Adjustable high-pass filters (HPF) and low-pass filter (LPF) allow you to adjust the audio frequency according to the speaker, subwoofer characteristics, and personal listening preferences.

The GM-ME400X4 features an elegant design, thanks to its white color and slim top cover, which emphasizes the high-quality design feel and a total of 800W.

Specifications

Channels: 4/2/1
Low-pass filter: Yes
High-pass filter: Yes
Peak power: 4 x 150W (4Ω), 4 x 200W (2Ω)
Continuous power: 4 x 75W (4Ω), 4 x 100W (2Ω), 4 x 150W (1Ω),
2 x 300W 4Ω (bridged)
Frequency response: 10 Hz - 50 Hz
Input sensitivity (RCA): 0.2V - 6.5V
Input sensitivity (speaker level): 0.8V - 16V
THD: 0.05
Signal-to-noise ratio: 100 dB
Dimensions (WxHxD): 252 mm x 215 mm x 60 mm
Filters: 40 - 500Hz (12 dB/oct).
