PIONEER MARINE GM-ME500X1

INFORMACIJA

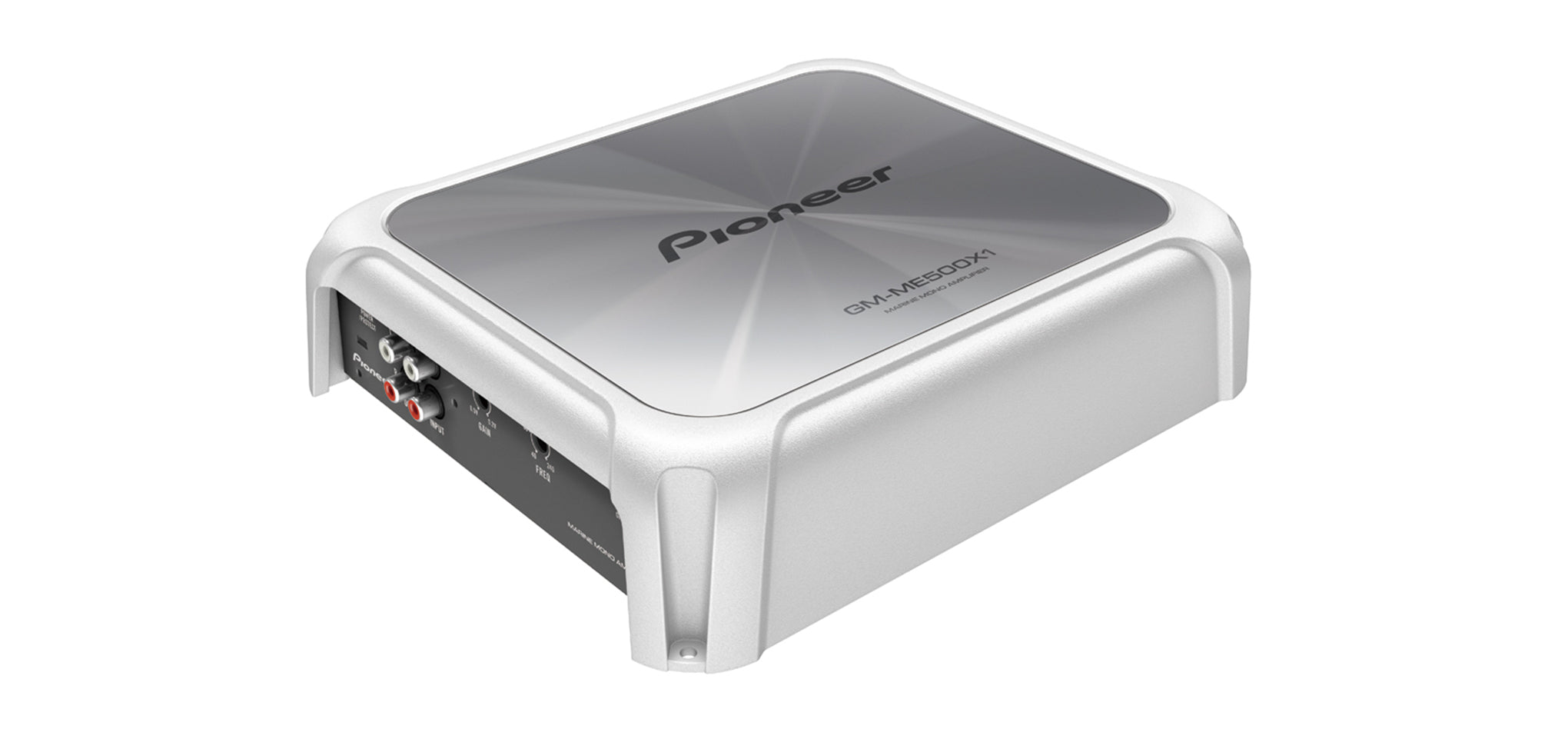

The Pioneer GM-ME500X1 is a marine-grade Class-D digital amplifier specifically designed for the marine environment, including features such as special paint, protective covers for the side panels, and RCA terminal covers.

To prevent circuit shutdown, the Pioneer GM-ME500X1 digital amplifier circuit includes a "Protection Control System" that monitors its internal temperature and automatically adjusts the input level. The stable, durable circuit reduces the risk of high voltage, allowing the unit to reach 1 Ω connection. This design increases flexibility for connecting multiple subwoofers to the system.

For additional flexibility, easy installation is guaranteed thanks to "Automatic Signal Sensing and Turn-On," which automatically detects the input signal and turns the amplifier on and off when connected via the speaker line input.

The adjustable low-pass filter (LPF) allows you to adjust the audio frequency according to the subwoofer's characteristics and personal listening preferences. The GM-ME500X1 also includes a wired Bass Boost remote control.

The GM-ME500X1 features an elegant design, thanks to its white color and slim top cover, which emphasizes the high-quality design feel and overall 1600W.

Specifications

Channel(s)1
Speaker TerminalsBlock-type
LPFYes
Maximum power1 x 600W (4Ω)
1 x 1000W (2Ω)
1600W Total
Continuous power output1 x 300W RMS (4Ω)
1 x 500W RMS (2Ω)
1 x 800W RMS (1Ω)
Frequency response10 Hz - 240 Hz
Input level controlRCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion 0.05 %
S/N ratio 100 dB
Chassis size (W x H x D)265 mm x 215 mm x 60 mm
Bass BoostYes
Speaker line input sensorTurn-on sensor
Bass Boost Remote
Crossover Frequency40 - 240Hz (-12 dB/oct) Hz
Mono
Audio
RCA Terminals.
