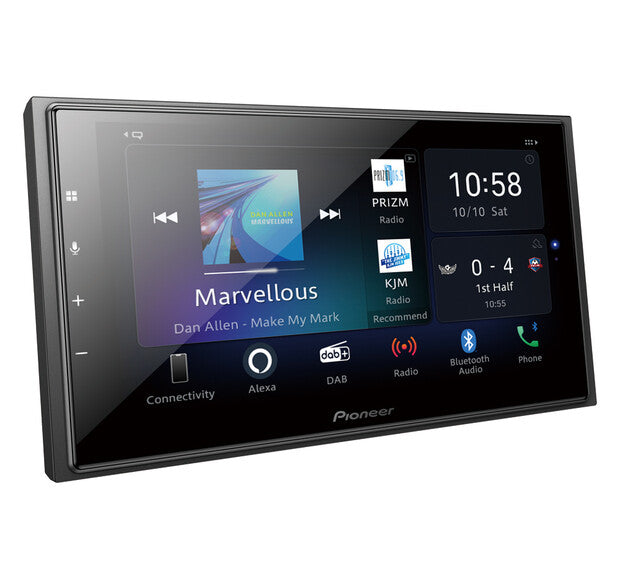

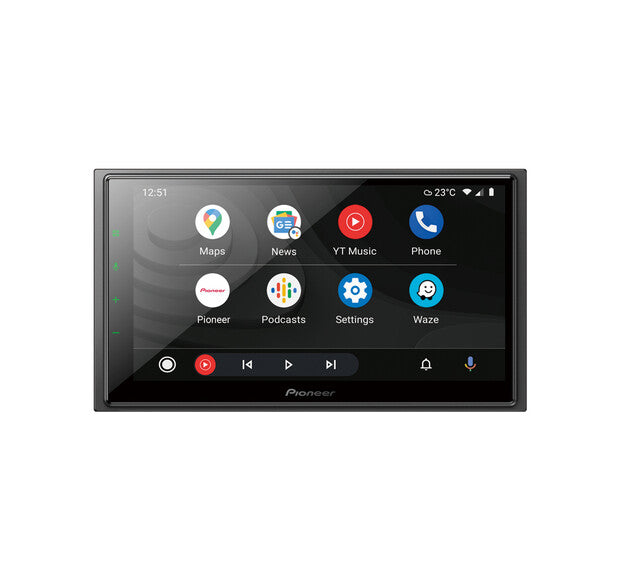

Pioneer SPH-EVO64DAB

INFORMACIJA

8-inch touchscreen with a hidden control unit that installers can conceal in separate areas of the car, providing vehicles with limited dashboard space a premium upgrade solution for drivers' entertainment needs. It can also be installed in vehicles with a standard 2DIN slot.



This new receiver offers smartphone connectivity – Android Auto™ and Apple CarPlay™ (via wired or wireless connection), voice commands (integrated Alexa), as well as entertainment features such as Spotify®, Bluetooth® streaming, hybrid radio, FLAC file playback, and more.

Specifications

Main Features
Android Auto
CarAVAssist AppiPhone / Android
WazeYes. (via Apple CarPlay /Android Auto)
DAB+
Digital Radio Tick Mark Approved product
Bluetooth®
Spotify
USB Input
Wi-Fi®
Apple CarPlay ConnectionWireless connection or USB connection
HDMI Input
Dual Camera Input
Modular design
Navigation ReadyYes. (via AVIC-F160-2 & AVIC-F260-2, sold separately)
FM Radio
Screen6.8” Capacitive multi-touchscreen with Smart UI
Cellular telephone auto muting
Installation TypeModular and 2-DIN
Front PanelMulti-colour display and screen
Button IlluminationRGB Colour Customisation (210,000 Colours)
Plays• Your iPod, iPhone, Android Smartphone
• Bluetooth audio

Via USB:
• MP3, WMA, AAC, WAV , DSD and FLAC audio files
• H.264, MKV, FLV and MPEG4 video files in Full HD
• DivX video files
• JPEG image files

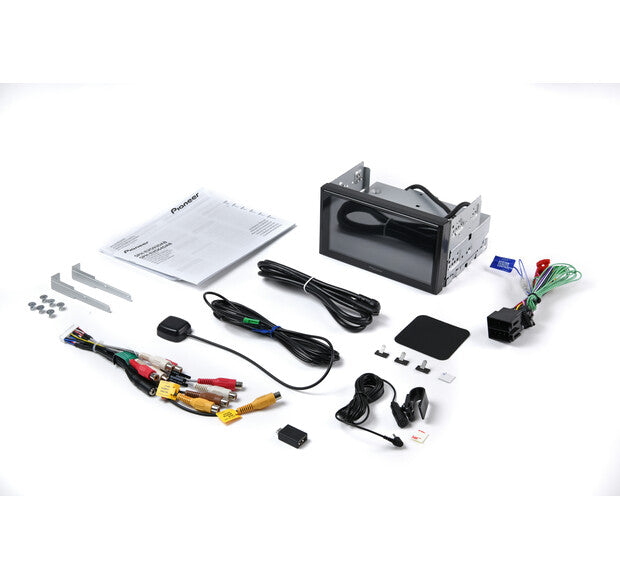

AccessoriesIncluded:
• 1 x USB extension cable
• 1 x External Bluetooth mic

Optional:
• CA-AN-DAB.001 (DAB antenna)
• CD-RGB150E (1.5m Extension Cable)
• ND-BC8 (Reverse camera)
USB InputRear USB(-C)
Connections
Hybrid Radio• Metadata for every Radio Source
• Recommended Radio Station
• Network Following (DAB+ / FM / IP Radio)
Aux-in1 rear AV Aux-In
Video outputAnalog
Hard Wired Remote Ready
ISO connector
RGB inputYes
High Voltage Output5V
Screen Features
6.8″ Capacitive Touchscreen
Display IlluminationYes
Apple Compatibility
Made for iPod / iPhone
Siri Eyes Free
Works with iPhone
Android Compatibility
Compatible with Android
Audio
FLAC
13-band Graphical EQ
MOSFET 50 W x 4 Amplifier
RCA Pre-Outs3 (Front, Rear, Subwoofer) 5V
3-Way Network Mode
Source Level Adjuster
High Pass Filter
Low Pass Filter
Loudness
Graphic Equaliser13-band
Time Alignment
Subwoofer Control
Advanced Sound Retriever
Auto EQ (Equaliser)
Bluetooth
Pioneer Bluetooth
Additional Bluetooth Features• Audio streaming
• Automatic Phone book Transfer (5 x 1000 contacts)
• 2 Phones full time connect
• Autopairing via USB
CompatibilityHFP/A2DP/AVRCP
Hands-free calls
Tuner Features
RDS FM Radio.
