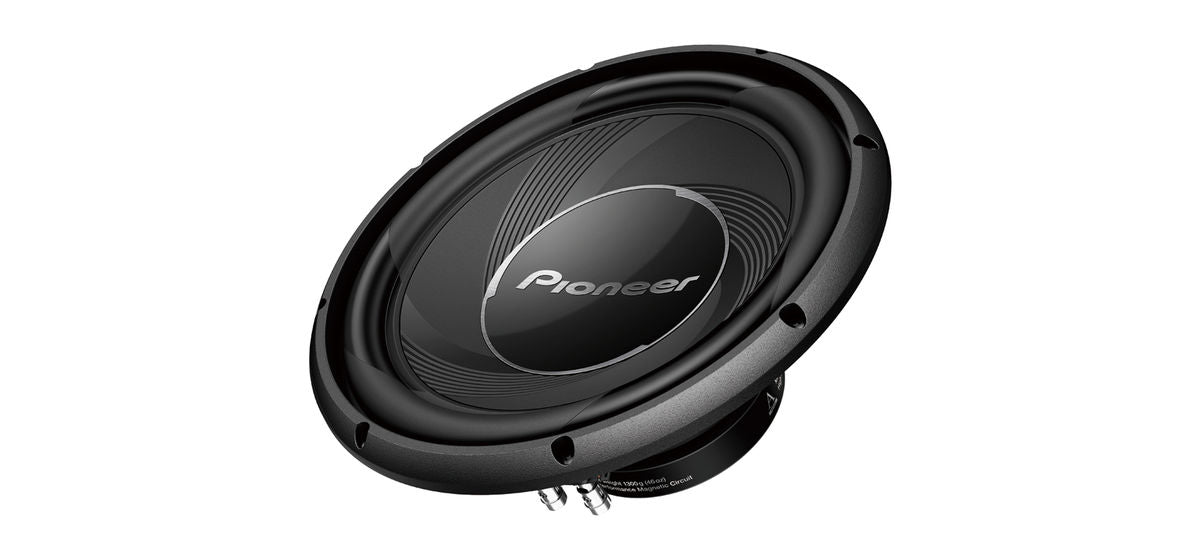

Pioneer TS-A30S4 Subwoofer

INFORMACIJA

A-Series Subwoofer
Upgrade to high performance car audio with Pioneer’s A-series sound design, which acoustically matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Glass Fibre & Mica Reinforced IMPP™
Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone due to its low mass and high damping properties. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high performance and extreme bass. To solve this, Pioneer engineers used advanced computer manufacturing to develop a process to blend glass fibers and mica with polypropylene resin during the injection molding process. The resulting reinforced IMPP™ cone is thinner and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.

Deep & Powerful Bass

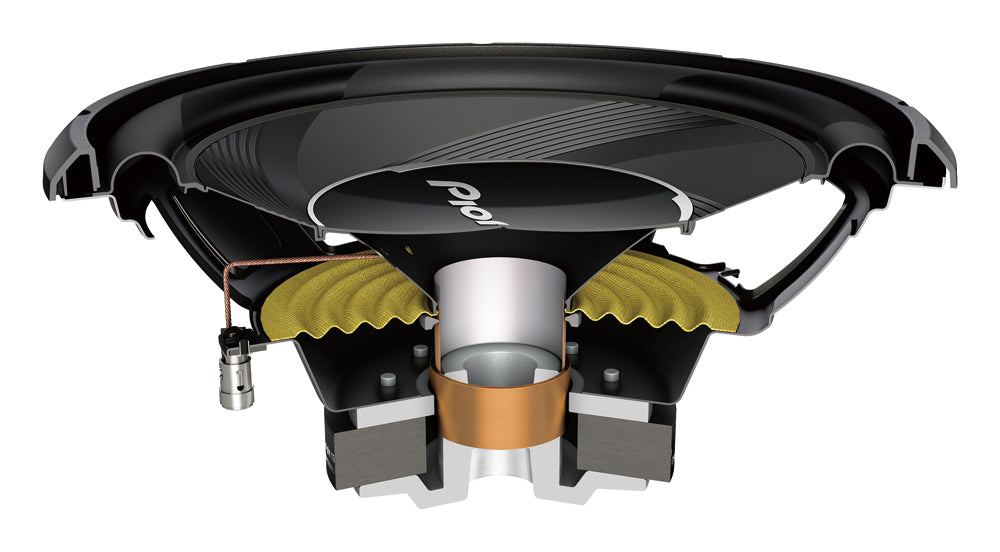

To achieve deep and powerful bass, a rigid and light cone is essential. However, without the proper motor structure, it is worthless if you are looking for good bass impact. This subwoofer utilizes a strontium magnet matched with a large voice coil and aluminum voice coil bobbin for better control of low-frequency at high excursion. This also helps with better heat dissipation.

CarSoundfit
Pioneer’s Car Sound Fit application is actually a car sound simulator that allows you to experience car sound with your smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: Make up your own mind which quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, please download the free Pioneer CarSoundFit application.

Specifications

Features

CarSoundFit AppYes
IMPP™Yes
Size30 cm
TypeCone
Maximum power1,400W
Continuous power output400 W
Frequency response22 Hz – 1.6 kHz
Sensitivity87 dB
Impedance4 Ω
Mounting Depth136 mm
Woofer materialIMPP
Voice Coil typeSingle Voice Coil
Voice Coil bobbin typeAluminum
TerminalsPush
MagnetsFERRITE
Cut-out Hole281 mm
30cm / 12″Yes
Rec. Enclosure [l]35.4 L
Recom. Enclosure [ft3]1.25 ft3
Weight3.55 kg
Dimensions318 (Dia.) X 152 mm
