Pioneer  |  Bar code: 0884938502368

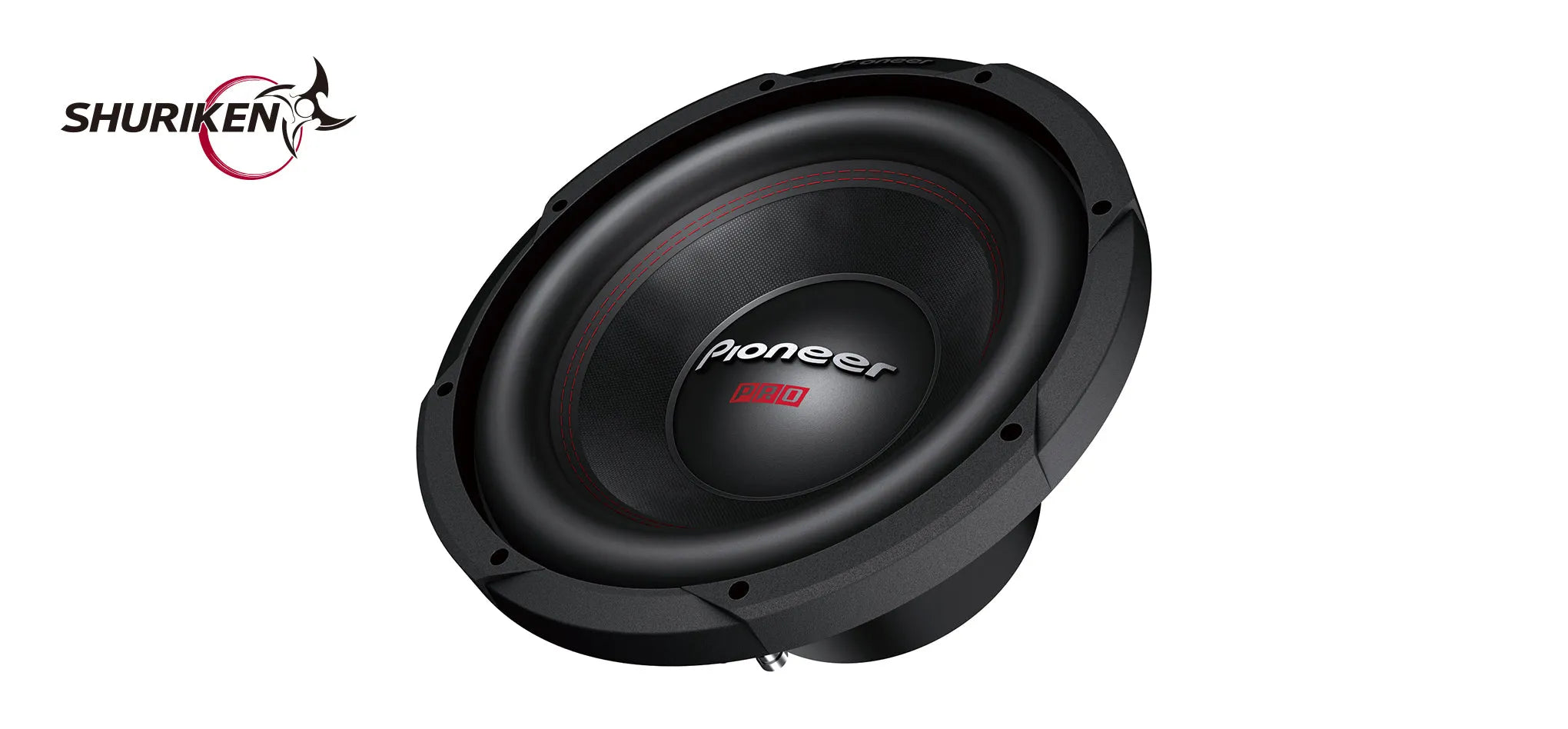

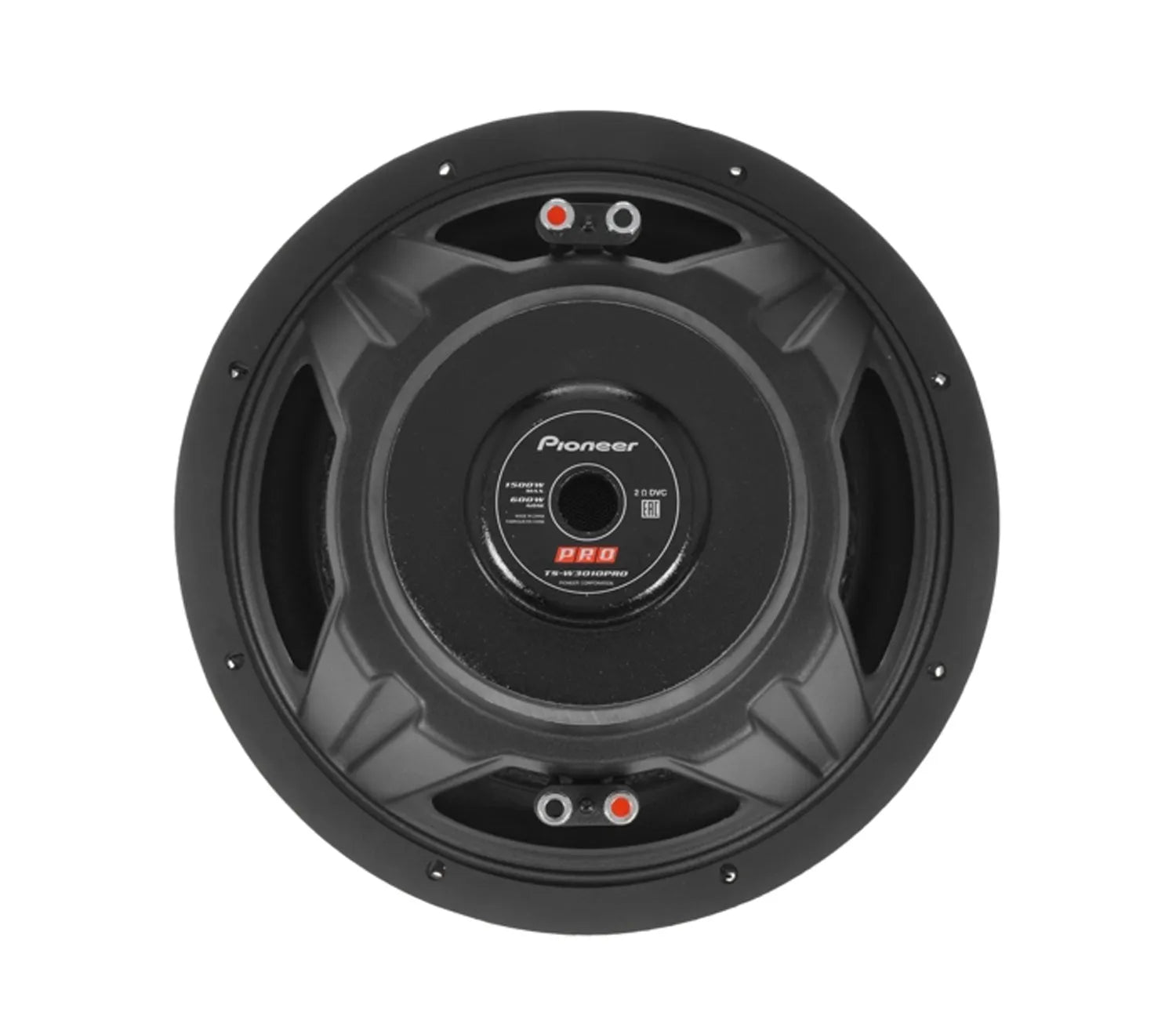

Pioneer TS-W3010PRO, subwoofer, 30cm, 1500W

Pioneer PRO Samurai Series TS-W3010PRO Subwoofer is 30cm with 1500W maximum power and dual voice coil.
€229.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

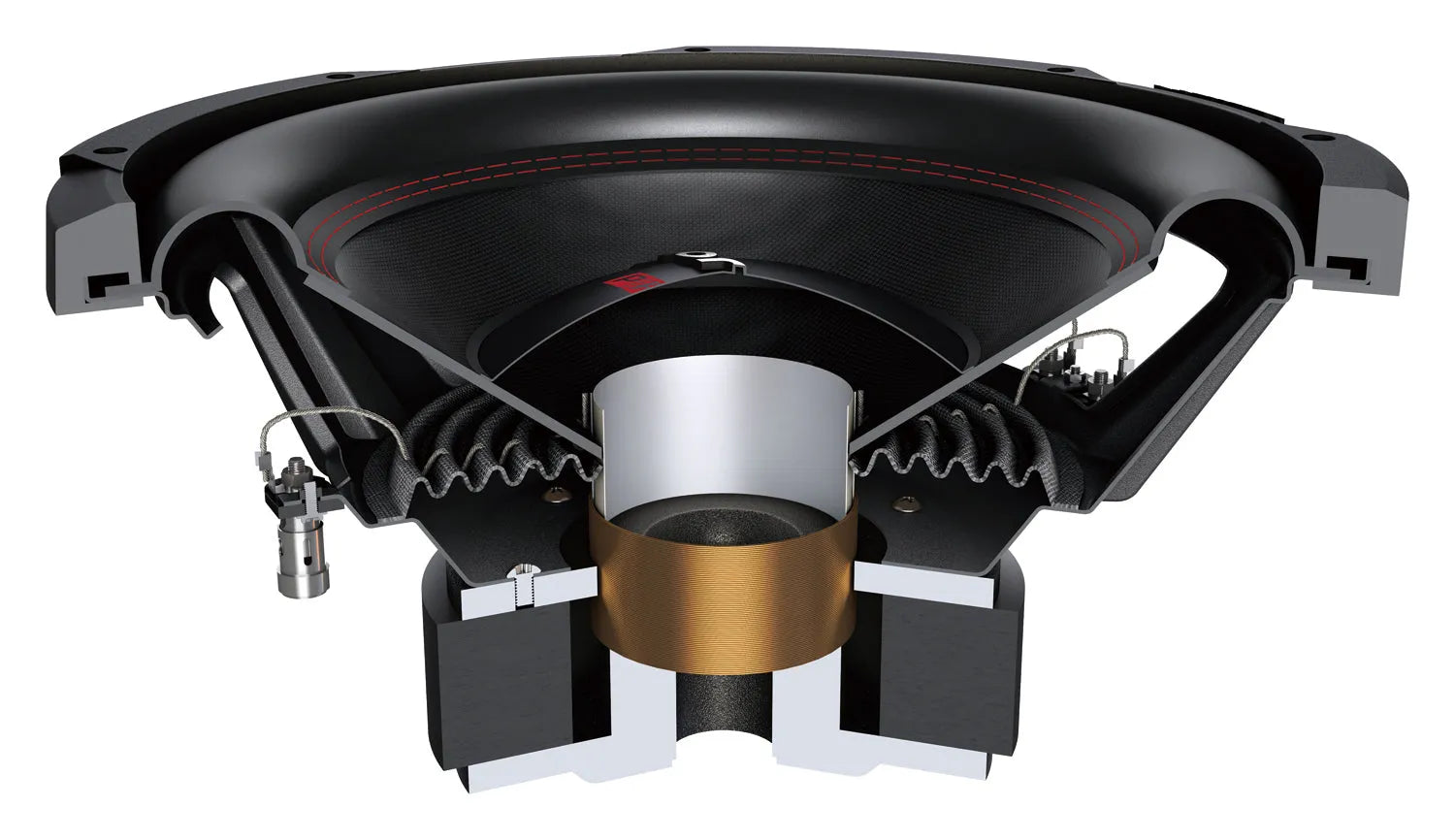

. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high-quality steel basket construction dissipates heat away from the voice coil. Large double magnet provides more power.

  • Maximum power: 1500W
  • Frequency range 20 Hz - 200 Hz (in the car)
  • Sensitivity 90 (1 W/car) dB
  • Installation depth 142 mm
  • Resistance 1 Ω or 4 Ω


DESCRIPTION

The Pioneer Reference Series for Open Show loudspeakers are designed specifically for those looking to generate serious sound pressure levels. Inspired by Pioneer's history of record-breaking SPL competitions, the new PRO Series speaker line is designed for loud sound pressure levels in open spaces. PRO Samurai Series TS-W3010PRO Subwoofer has 1500W maximum power and dual voice coil. A wide quilted reinforced urethane rim provides long cone travel and a secure fit for big sounds. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high quality steel basket construction dissipates heat away from the voice coil. Large double magnet provides high power.


TECHNICAL DATA

SPECIFICATIONS


  • Size 30 cm
  • Type: Subwoofer
  • Maximum power 1500 W
  • Continuous power 600 W
  • Frequency range from 20 Hz to 200 Hz (in car)
  • Sensitivity 90 (1 W/car) dB
  • Resistance 1 Ω or 4 Ω
  • Dual Voice Coil (DVC)
  • Installation depth 142 mm
  • Subwoofer cutout Φ282mm
  • Subwoofer Material: Paper
  • Around: Urethane
  • Spider Polyester fiber
  • Voice coil type: 4 layer long copper
  • Voice coil coil type: Aluminum
  • Terminal Push
  • Magnets Ferrite
  • Rec. Housing [l]35 (sealed housing)
  • 50 (ported body)
  • Rec. Enclosure [ft3] 1.24 (sealed enclosure)
  • 1.77 (ported body)
  • Weight 7.1 (without accessories) kg
  • Dimensions Φ322 x 166 mm
  • Accessories: Subwoofer mounting screws
  • Thiele / small parameters: Qts0.84 ; Fs [Hz] 35.7 Hz ; Feb [ft3]8.86 ; February [l]24.3; Xmax [mm] 15.
