Pioneer  |  Bar code: 0884938502375

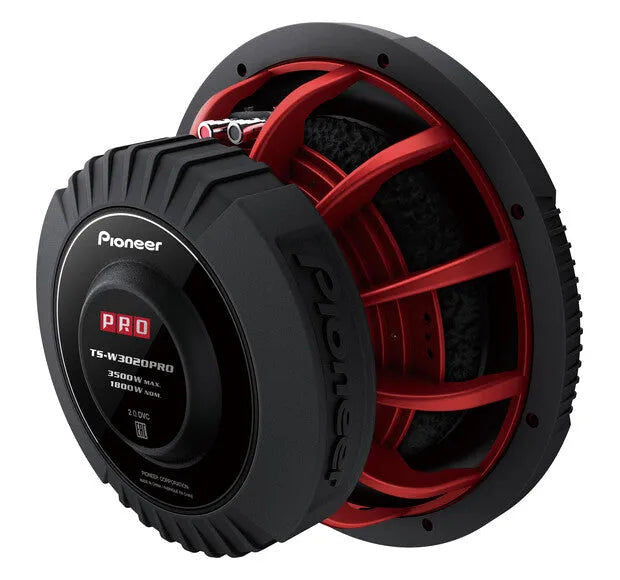

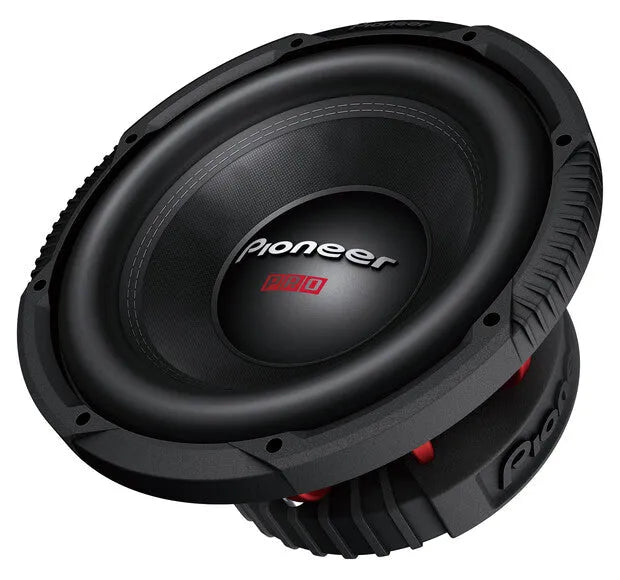

Pioneer TS-W3020PRO, subwoofer, 30cm, 3500W

Pioneer PRO Samurai Series TS-W3020PRO Subwoofer has 3500W maximum power and dual coil with 2 + 2 ohm impedance.
€349.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. A wide quilted reinforced urethane hem provides a secure fit for big sounds. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high-quality aluminum basket construction dissipates heat away from the voice coil.

  • Maximum power: 3500W
  • Frequency range 20 Hz - 200 Hz (in the car)
  • Sensitivity 86 (1 W/car) dB
  • Installation depth 154 mm
  • Resistance 1 Ω or 4 Ω


DESCRIPTION

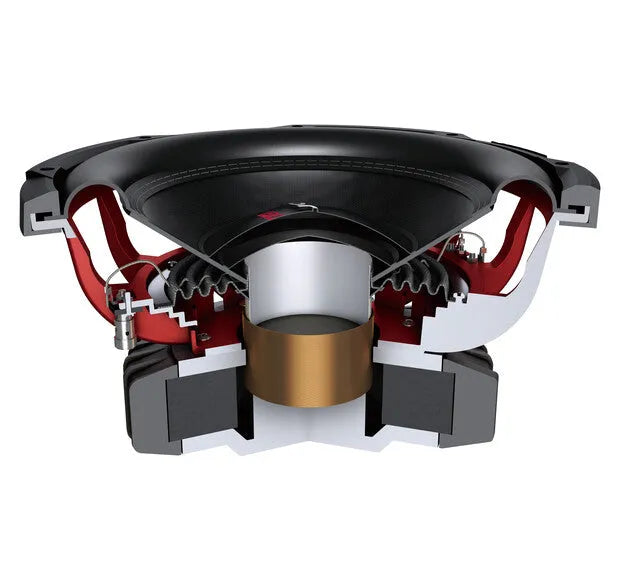

PRO Samurai series TS-W3020PRO subwoofer has 3500W maximum power and dual coil with 2 + 2 ohm impedance. A wide quilted reinforced urethane rim provides long cone travel and a secure fit for big sounds. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high-quality aluminum basket construction dissipates heat away from the voice coil. Large double magnet provides high power.


TECHNICAL DATA

SPECIFICATIONS


  • Size 30 cm
  • Type: Subwoofer
  • Maximum power 3500 W
  • Continuous power 1800 W
  • Frequency range from 20 Hz to 200 Hz (in car)
  • Sensitivity86 (1 W/car) dB
  • Resistance 1 Ω or 4 Ω
  • Dual Voice Coil (DVC)
  • Installation depth 154 mm
  • Subwoofer cutout Φ282mm
  • Subwoofer Material: Paper
  • All around Urethane
  • Spider Polyester fiber
  • Voice coil type: 4 layer long copper
  • Voice coil coil type: Aluminum
  • Terminal Push
  • Magnets: Ferrite
  • 30 cm / 12 inches
  • Rec. Housing [l]35 (sealed housing)
  • 50 (ported body)
  • Rec. Enclosure [ft3] 1.24 (sealed enclosure)
  • 1.77 (ported body)
  • Weight 10.9 (without accessories) kg
  • Dimensions: Φ322 x 180 mm
  • Accessories: Subwoofer mounting screws
  • Thiele/small parameters: Qts1.3; Fs [Hz] 47.9 Hz; Vas [ft3]0.29; February [l]8.30; Xmax [mm] 22.8.
