Pioneer TS-W3820PRO, subwoofer, 38cm, 3500W

Pioneer PRO Samurai Series TS-W3820PRO Subwoofer has 3500W maximum power and dual coil with 2 + 2 ohm impedance.
€449.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

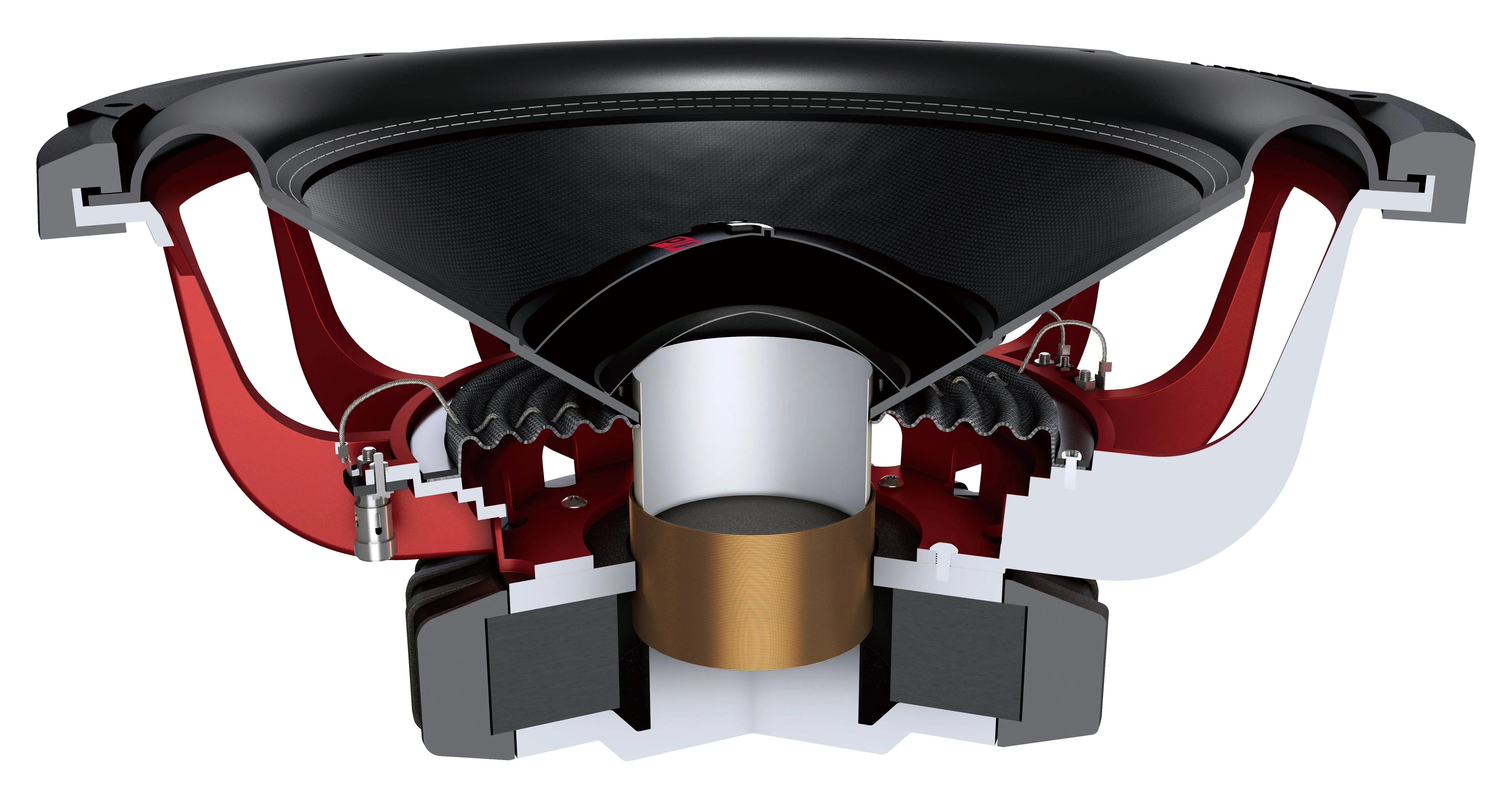

. A wide quilted reinforced urethane hem provides a secure fit for big sounds. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high-quality aluminum basket construction dissipates heat away from the voice coil.

  • Maximum power: 3500W
  • Frequency range 20 Hz - 200 Hz (in the car)
  • Sensitivity 88 (1 W/car) dB
  • Installation depth 154 mm
  • Resistance 1 Ω or 4 Ω


DESCRIPTION

PRO Samurai series TS- W3820PRO subwoofer has 3500W maximum power and dual coil with 2 + 2 ohm impedance. A wide quilted reinforced urethane rim provides long cone travel and a secure fit for big sounds. 4-layer copper-clad aluminum voice coil reduces weight and increases sensitivity. The high-quality aluminum basket construction dissipates heat away from the voice coil. Large double magnet provides high power.


TECHNICAL DATA

SPECIFICATIONS


  • Size 30 cm
  • Type Subwoofer
  • Maximum power 3500 W
  • Continuous power 1800 W
  • Frequency response 20Hz to 200Hz (in car)
  • Sensitivity 88 (1 W/car) dB
  • Resistance 1 Ω or 4 Ω
  • Dual Voice Coil (DVC)
  • Installation depth 154 mm
  • Subwoofer cutout Φ352mm
  • Subwoofer material Paper
  • All around Urethane
  • Spider Polyester fiber
  • Voice coil type: 4 layer long copper
  • Voice coil coil typeAluminum
  • Terminal Push
  • Magnets Ferrite
  • 38 cm / 15 inches
  • Rec. Enclosure [l]57 (sealed housing)
  • 90 (ported body)
  • Rec. Casing [ft3] 2.01 (sealed casing)
  • 3.18 (ported case)
  • Weight 11.7 (without accessories) kg
  • DimensionsΦ405 x 216 mm
  • Accessories Subwoofer mounting screws
  • Thiele / small parameters: Qts0.8; Fs [Hz] 27.1 Hz; Feb [ft3]2.69; February [l]76.20; Xmax [mm] 22.8.
