Pioneer  |  Bar code: 4988028208270

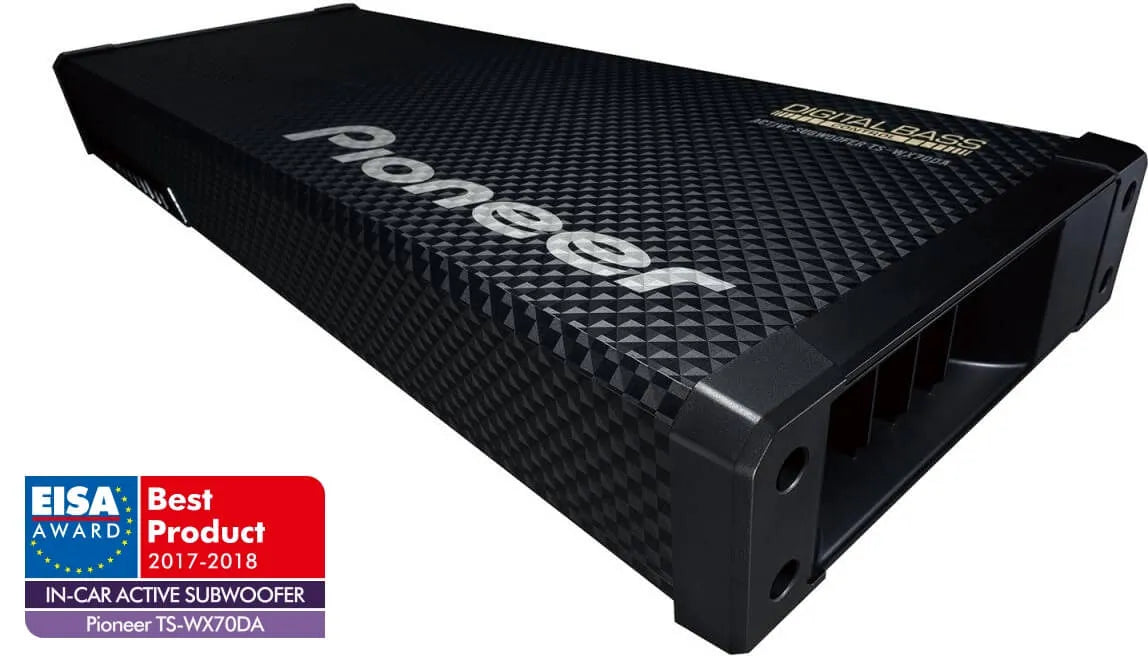

Pioneer TS-WX70DA, active subwoofer

€599.00 EUR

Pioneer TS-WX70DA, active subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Compact and powerful subwoofer.

  • Recommended amplifier power: 100-200W.
  • Frequency band: 40 - 250 Hz .
  • Built-in class D amplifier.
  • Sensitivity: 104 dB.


DESCRIPTION

Pioneer launches a new generation Class-D amplified subwoofer integrating DIGITAL BASS CONTROL . This unique feature generates two selectable Bass Modes: DEEP and DYNAMIC, producing 200 Watts of strong, rich, deep bass that you can feel, without giving up your boot space. Users can easily control and customize the two bass modes directly from the supplied wired remote control.


Thanks to the inclusion of Class-D technology, Pioneer's TS-WX70DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals.


TECHNICAL DATA

SPECIFICATIONS

Main Features

Amplified Subwoofer
Space Saving
Impedance 4 Ω
Frequency response • DEEP Bass Mode: 20 - 250 Hz
• DYNAMIC Bass Mode: 40 - 250
Sensitivity • DEEP Bass Mode: 104 dB
• DYNAMIC Bass Mode: 110 dB
Maximum power (100W x 2) 200W
Nominal input power (50W x 2) 100W
Built-in variable LPF (50-125 Hz, -12dB/oct.) Yes (variable)
Recommended sealed enclosure (Litres) 13.5 liters
Dimensions 850 x 97 x 323 mm
Magnets strontium
Weight (accessory parts included) 10.4 kg
Woofer Size 2 x 16 cm

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
