Pro-Ject DAC Box S2 +, Hi-End DAC with 32bit and DSD256 support (various colors)

The DAC Box S2+ is fully equipped to meet the highest demands of today's audiophiles.

€299.00 EUR

Pro-Ject DAC Box S2 +, Hi-End DAC with 32bit and DSD256 support (various colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • High-end ESS Saber ESS9038 DAC.
  • Patented clock circuit design.
  • Organic polymer capacitors and thin-film miniMELF resistors.
  • 32-bit/768kHz PCM support.
  • DSD64, DSD128 and DSD256 (DSD over PCM).
  • Up to 24bit/192kHz for optical and coaxial inputs.
  • 5 selectable digital filter characteristics.

DESCRIPTION

DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for sound shaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution data up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can't affect audio. The new aluminum/metal casing ensures the highest aesthetics and protects against vibration and interference!

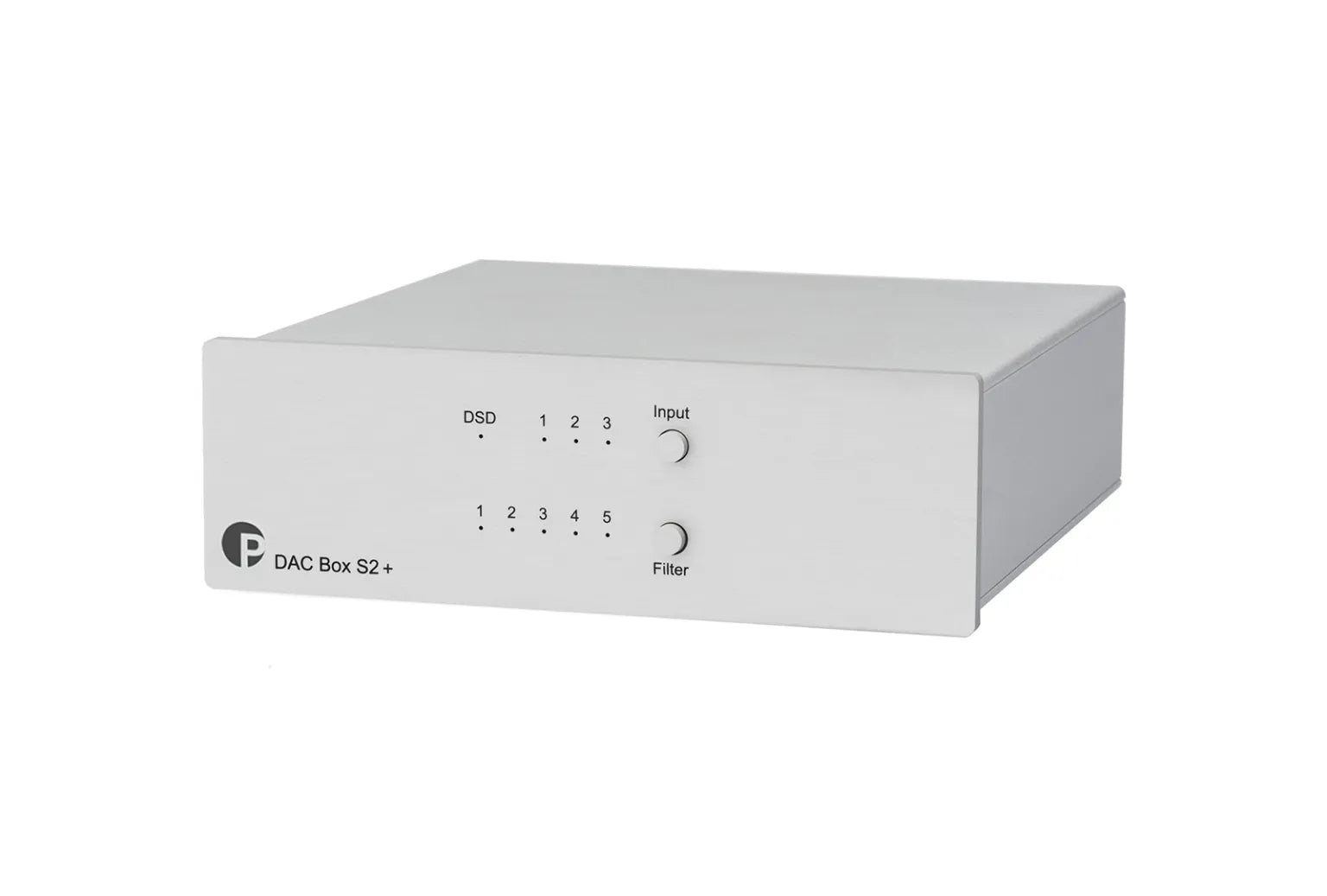

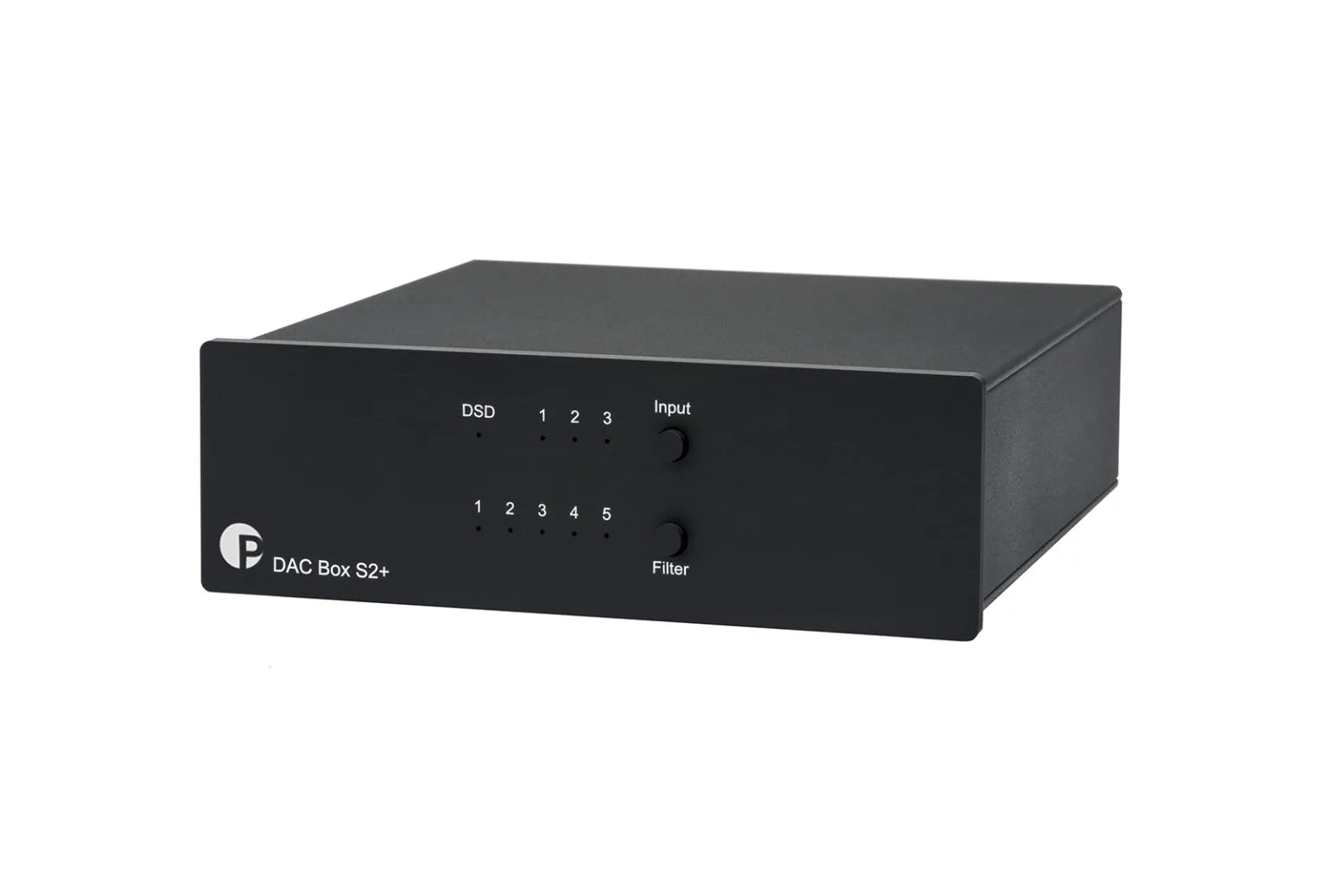

DAC Box S2 + comes in silver or black.

Features

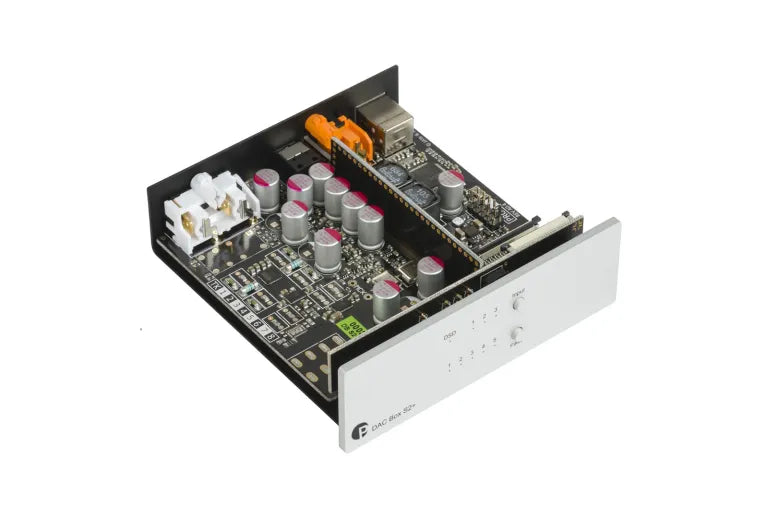

  • High end ESS Saber ESS9038 DAC
  • Proprietary clock circuitry design
  • Organic polymer capacitors and thin film miniMELF resistors
  • 32bit/768kHz PCM support
  • DSD64, DSD128 & DSD256(DSD over PCM)
  • Up to 24bit/192kHz for optical & coax inputs
  • 5 selectable digital filter characteristics
  • 1 proprietary optimum transient digital filter
  • Synchronization of all internal oscillators
  • Jitter as low as 100 Femtoseconds!
  • Gold plated four layer PCB
  • Full alu/metal sandwich casing in silver or black

      TECHNICAL DATA

      SPECIFICATIONS

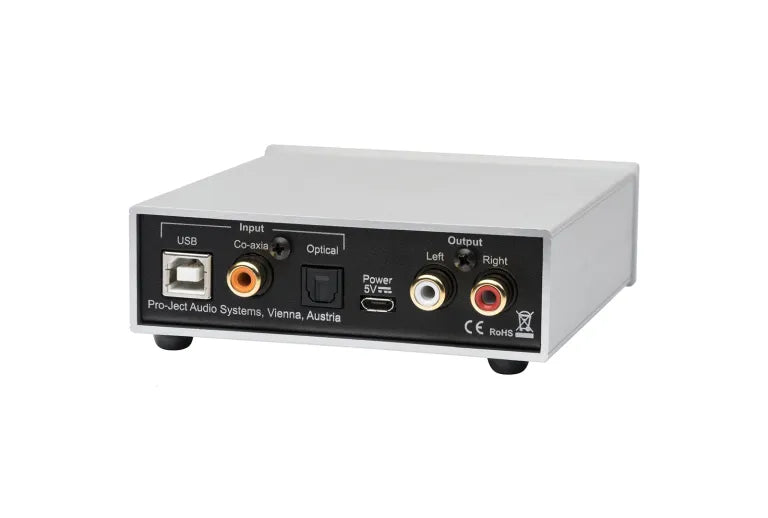

      Digital inputs 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
      D/A converter 1x ESS9038Q2M 32-bit Playback formats
      Filter settings 5 different selectable on front
      USB up to DSD256, PCM up to 32b/768kHz
      Coaxial PCM up to 24 b /192 kHz
      Optical PCM up to 24 b / 192 kHz
      Frequency response 20 Hz - 20 kHz
      THD 0.0007% and 0dB, 2V RMS, 1kHz
      Dynamic range 120 dB
      Output 1 pair of RCA/Cinch-sockets
      Outboard Power supply 5V/1A DC (included)
      Dimensions W x H x D 103 x 37 x 122 mm 2 (including knob and connectors)
      Weight 355g without power supply
