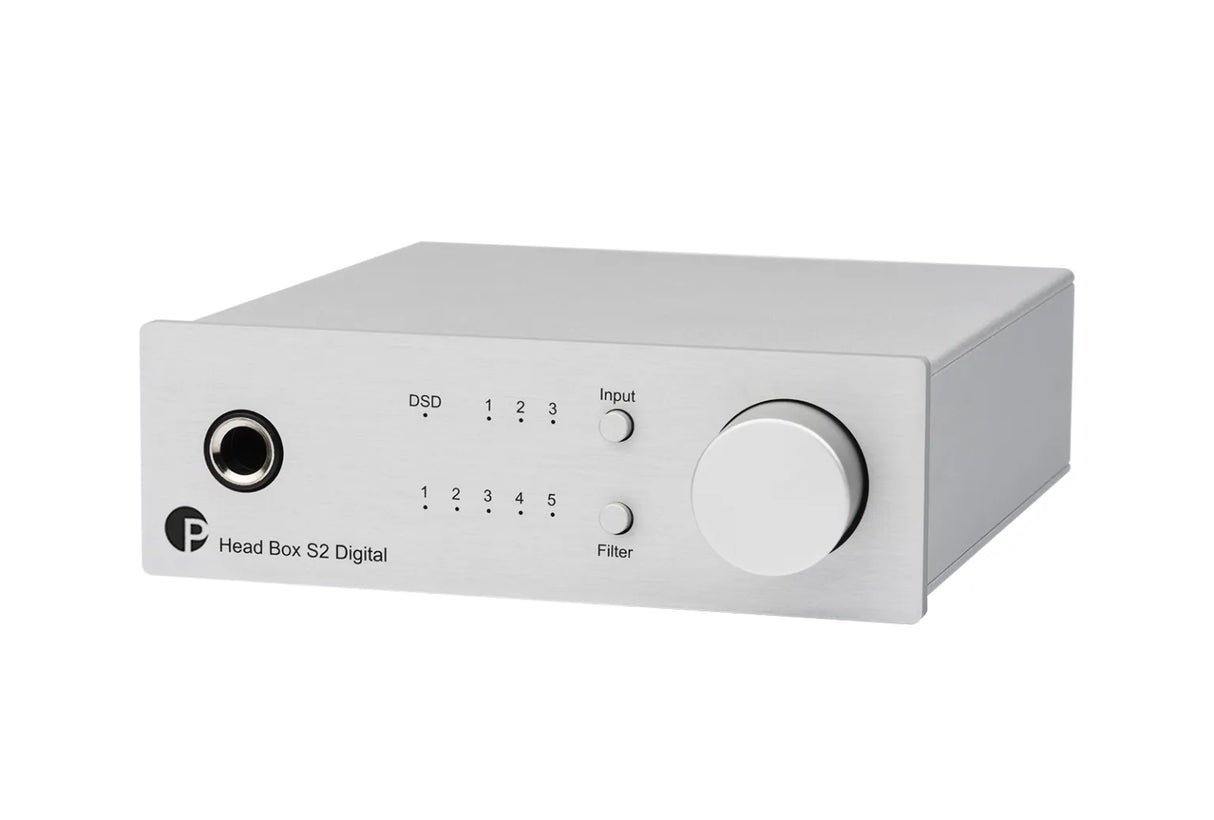

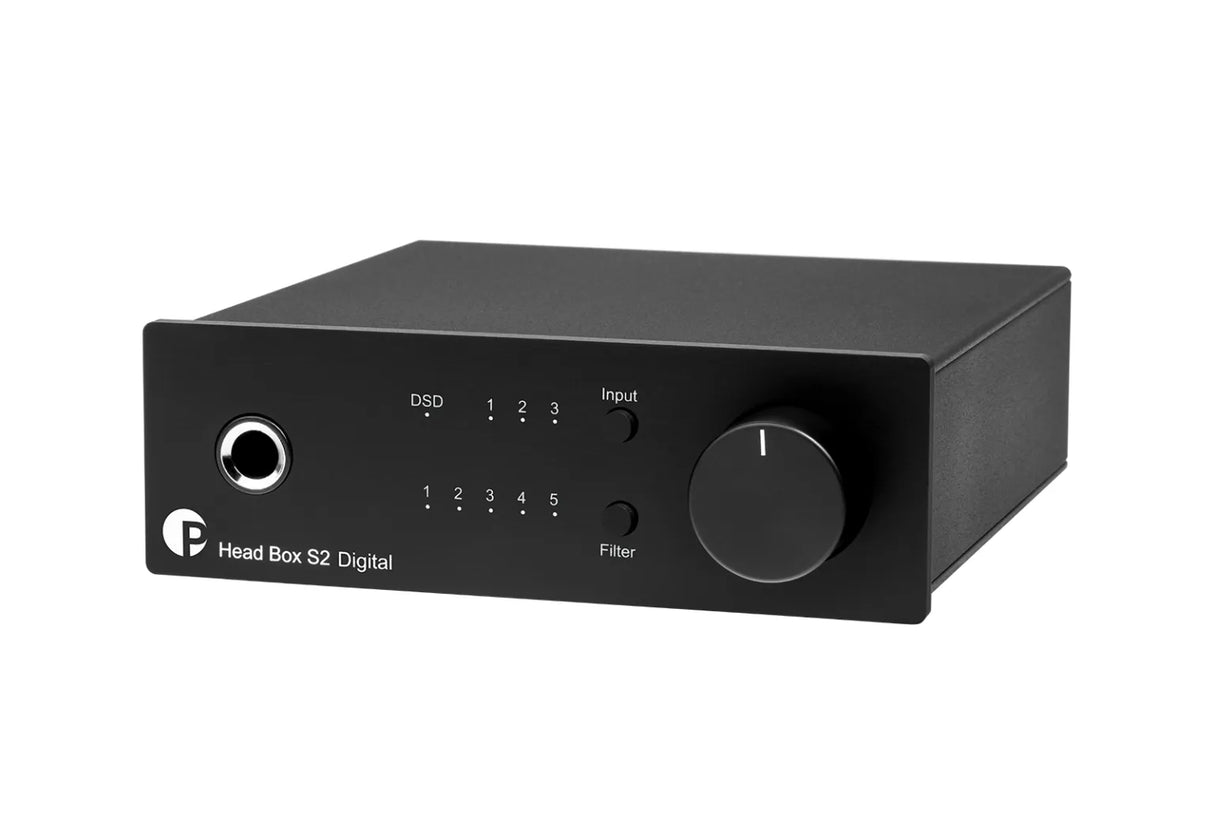

Pro-Ject Head Box S2 Digital, headphone amplifier with DAC and DSD256

The Head Box S2 Digital is fully equipped to meet the highest demands of today's audiophiles.
€329.00 EUR

Pro-Ject Head Box S2 Digital, headphone amplifier with DAC and DSD256 - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The Head Box S2 Digital is fully equipped to meet the highest demands of today's audiophiles.

  • High-end ESS Saber ESS9038 DAC.
  • Patented clock circuit design.
  • Organic polymer capacitors and thin-film miniMELF resistors.
  • 32-bit/768kHz decoding.
  • DSD64, DSD128 and DSD256 (DSD over PCM).

DESCRIPTION

Head Box S2 Digital comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). Head Box S2 Digital also comes with five digital filters for sound shaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution data up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. The front seated 6.35mm headphone output delivers a clean and precise sound with a musical touch. Unwanted noise coming in through USB is double filtered to surprise them to a level where it can't affect audio to realize an undisturbed listening experience. The new aluminum/metal casing ensures the highest aesthetics and protects against vibration and interference! Head Box S2 Digital comes in silver or black.

Features

  • High end ESS Saber ESS9038 DAC
  • Proprietary clock circuitry design
  • Organic polymer capacitors and thin film miniMELF resistors
  • 32bit/768kHz decoding
  • DSD64, DSD128 & DSD256 (DSD over PCM)
  • Up to 24bit/192kHz for optical & coax inputs
  • 5 selectable digital filter characteristics
  • 1 proprietary optimum transient digital filter
  • Headphone output on the front (6.3mm)
  • Synchronization of all internal oscillators
  • Jitter as low as 100 Femtoseconds!

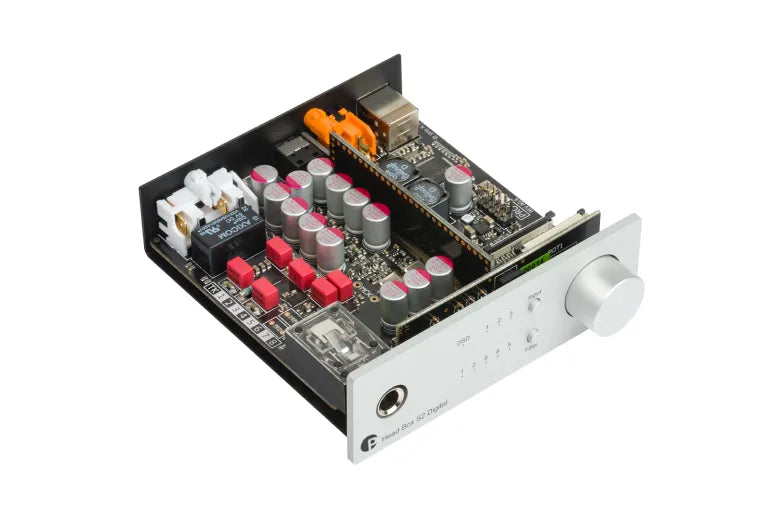

  • Gold plated four layer PCB
  • Full alu/metal sandwich casing in silver or black


          TECHNICAL DATA

          SPECIFICATIONS

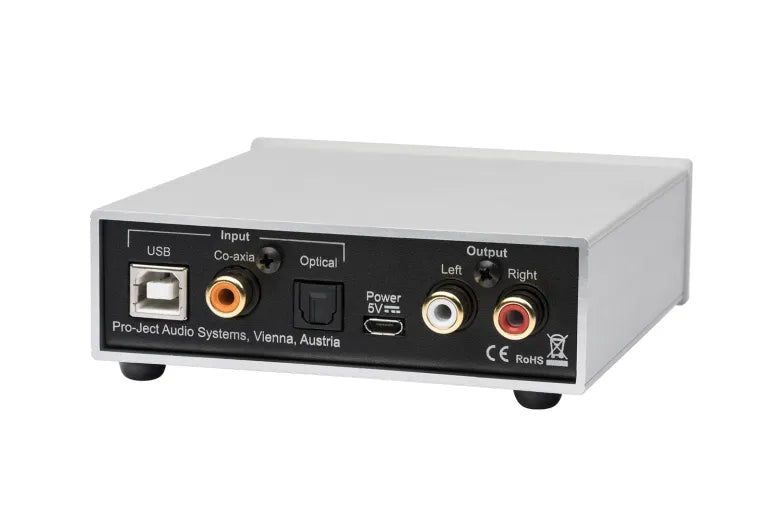

          Digital inputs 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
          D/A converter 1x ESS9038Q2M 32 bit
          USB up to DSD256, PCM up to 32b/768kHz
          Coaxial PCM bis 24 b / 192 kHz
          Optical PCM bis 24 b / 192 kHz
          Filter settings 5 different selectable on front
          Frequency response 20 Hz - 20 kHz
          Analog outputs 6.3mm Headphone (front), 1x Pre Out (RCA)
          Output voltage 2.05 Veff
          Headphone output power 68 mW / 32 Ohm, 6.6 mW / 600 Ohm
          THD 0.0007% at 0 dB, 2 V RMS, 1 kHz
          Dynamic range 120 dBA
          Outboard Power supply 5 V / 1 A DC (included)
          Dimensions W x H x D 103 x 37 x 122 (including knob and connectors)
          Weight 360 g without power supply


          DOCUMENTS

          INSTRUCTIONS

          User Manual (EN).
