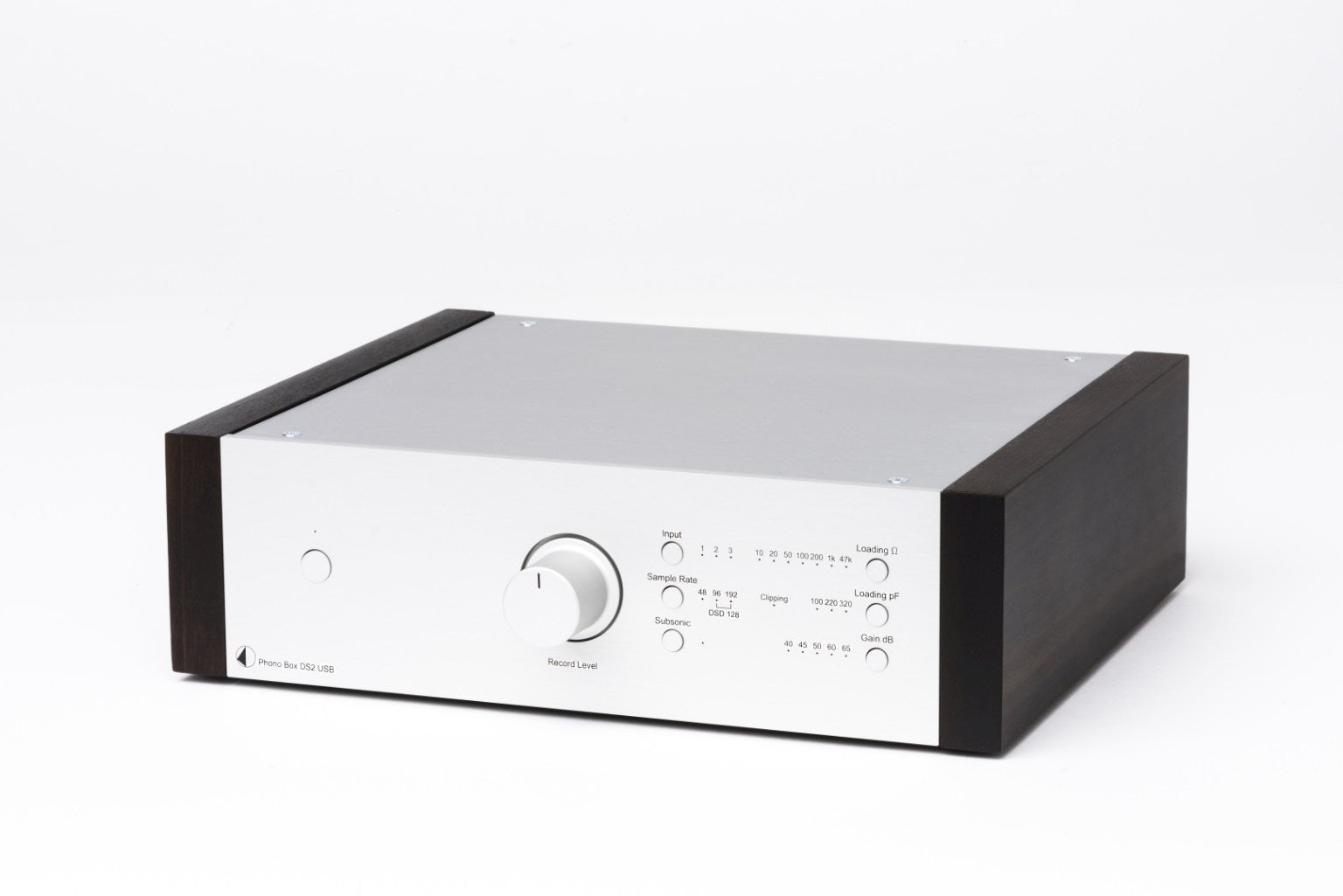

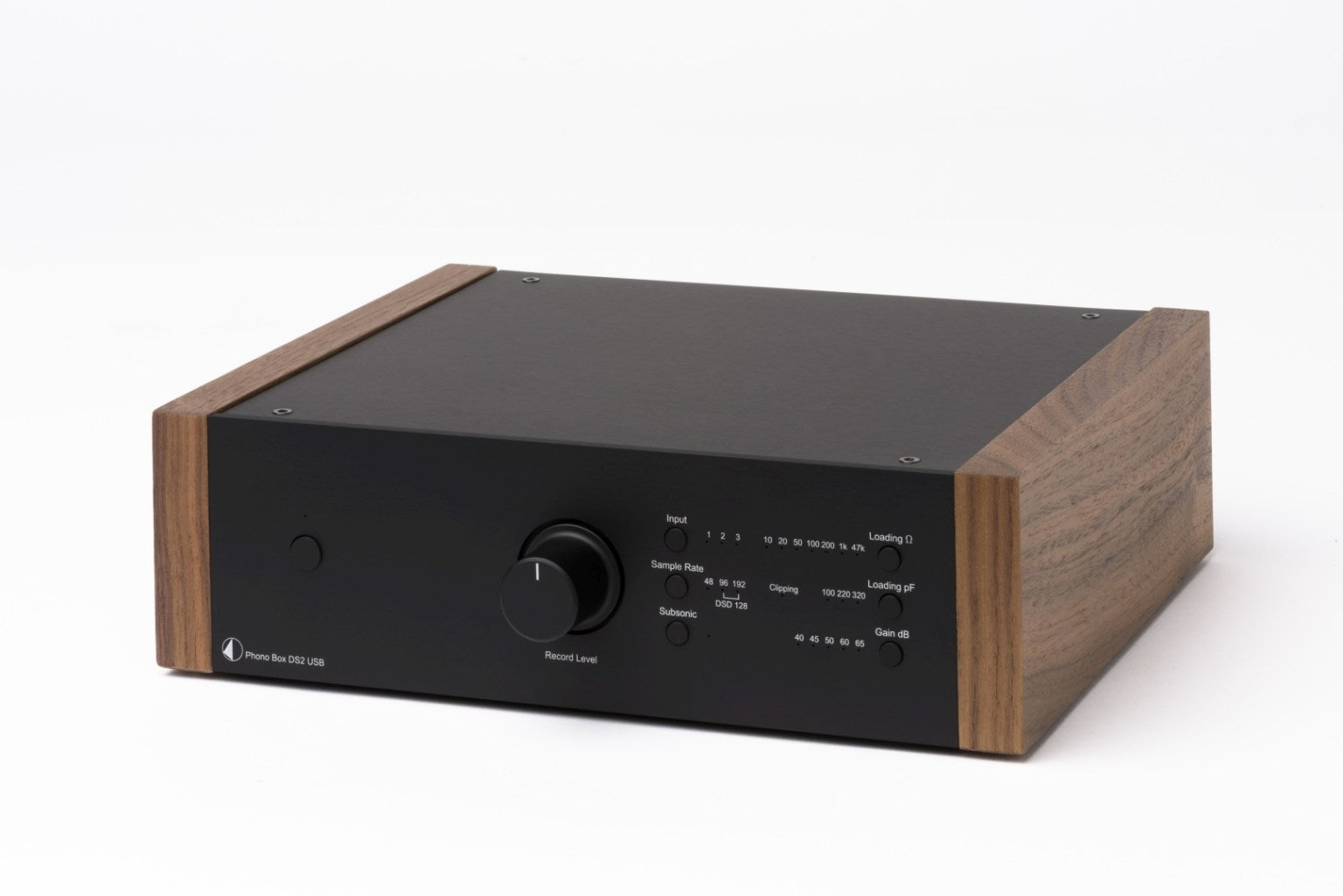

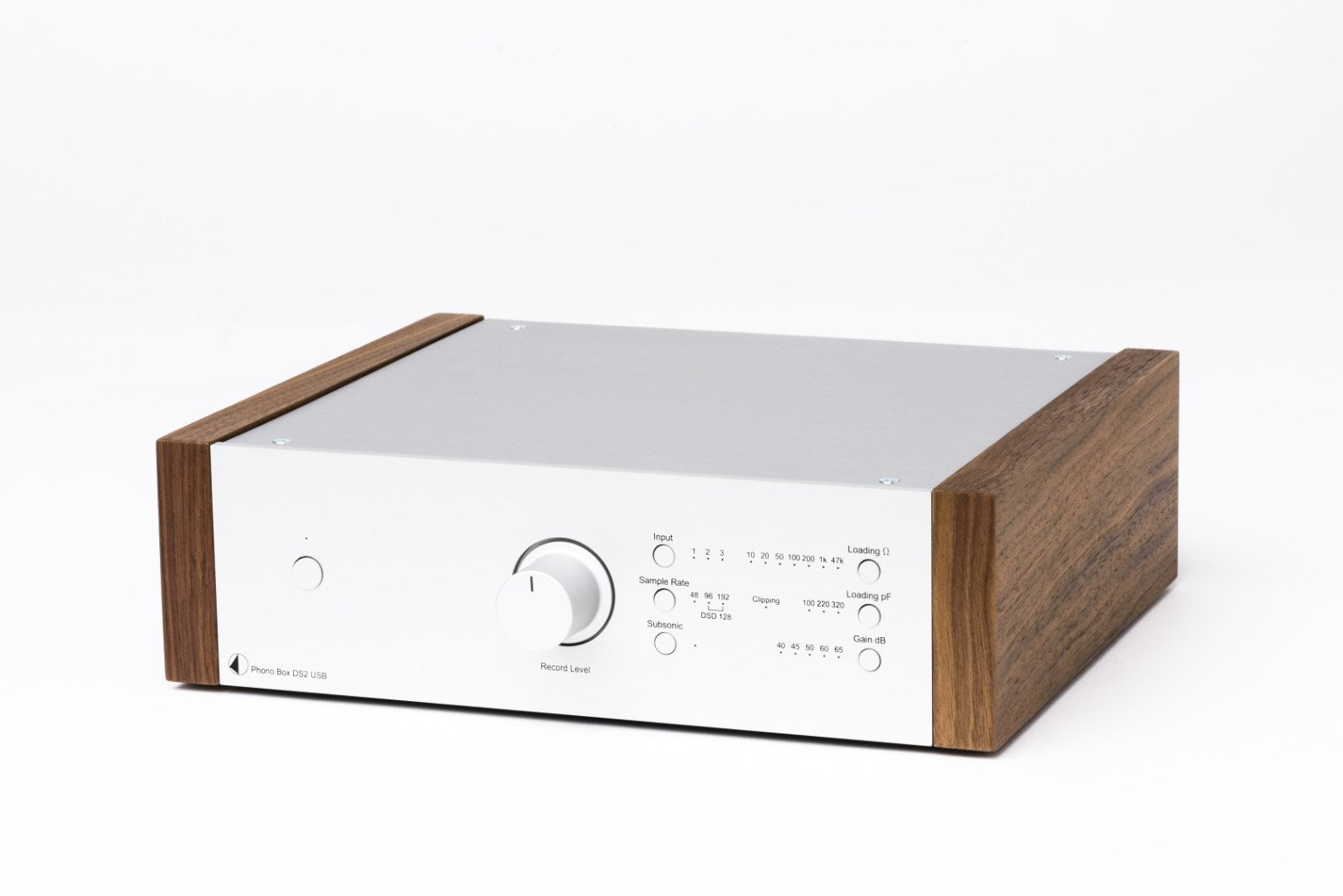

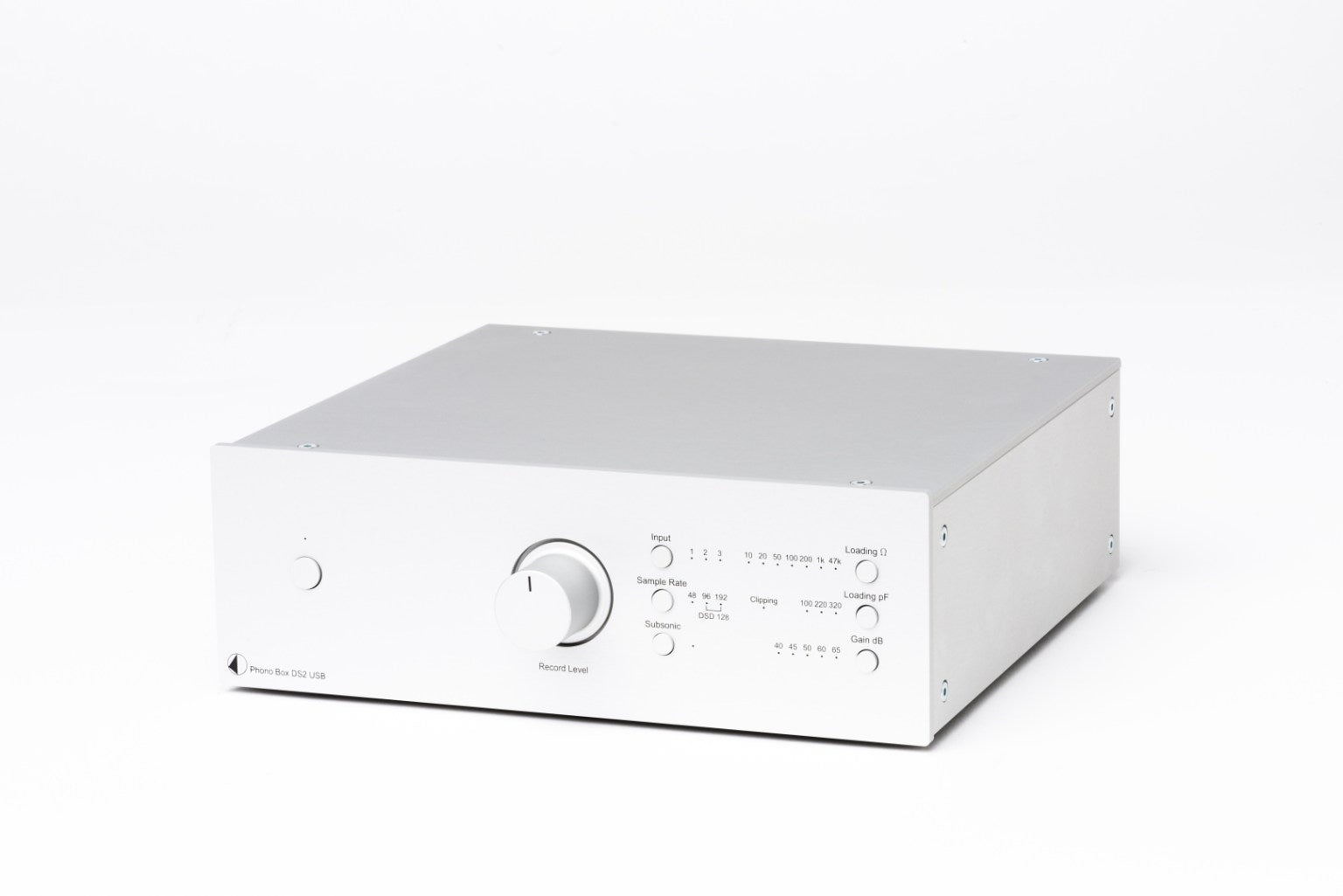

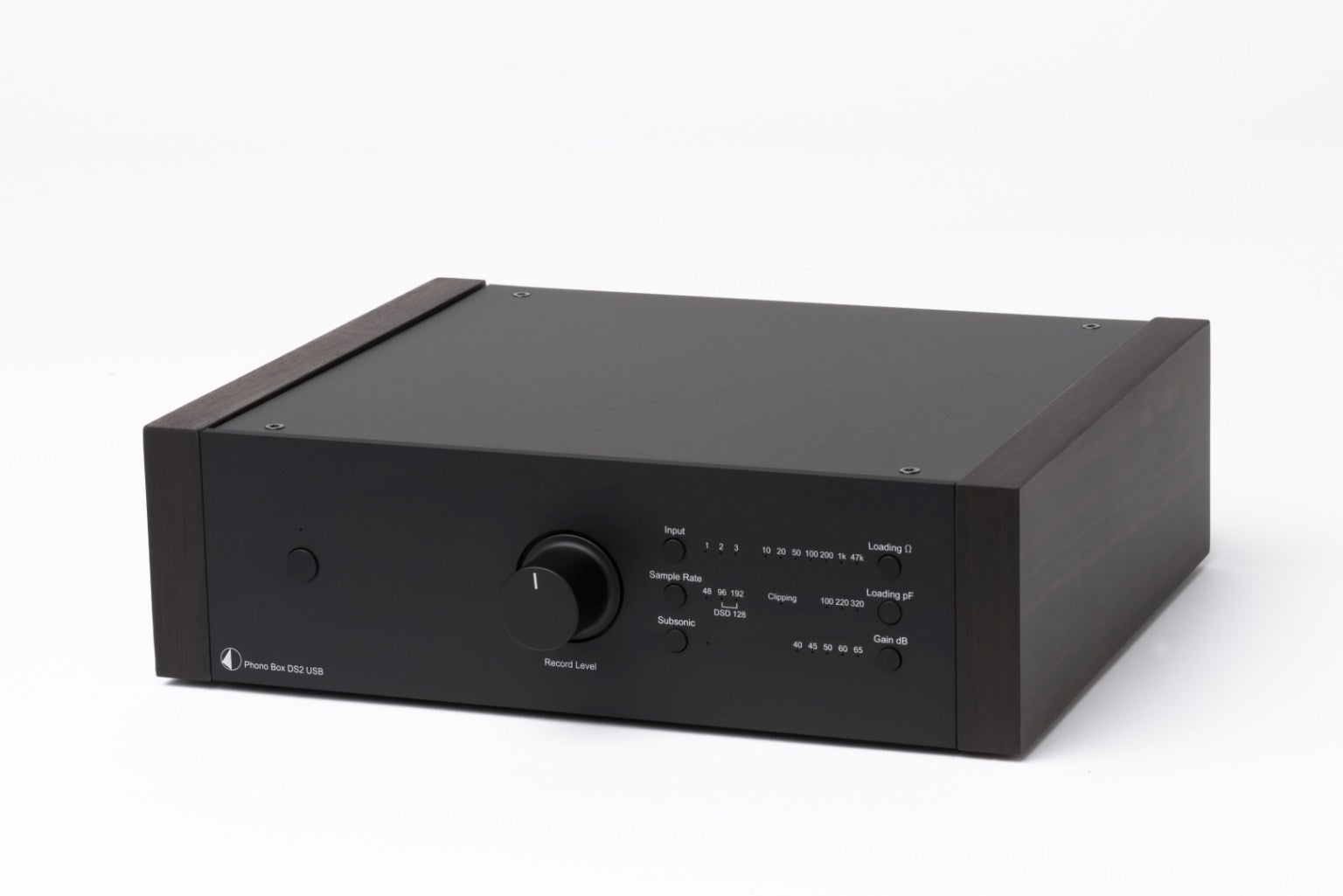

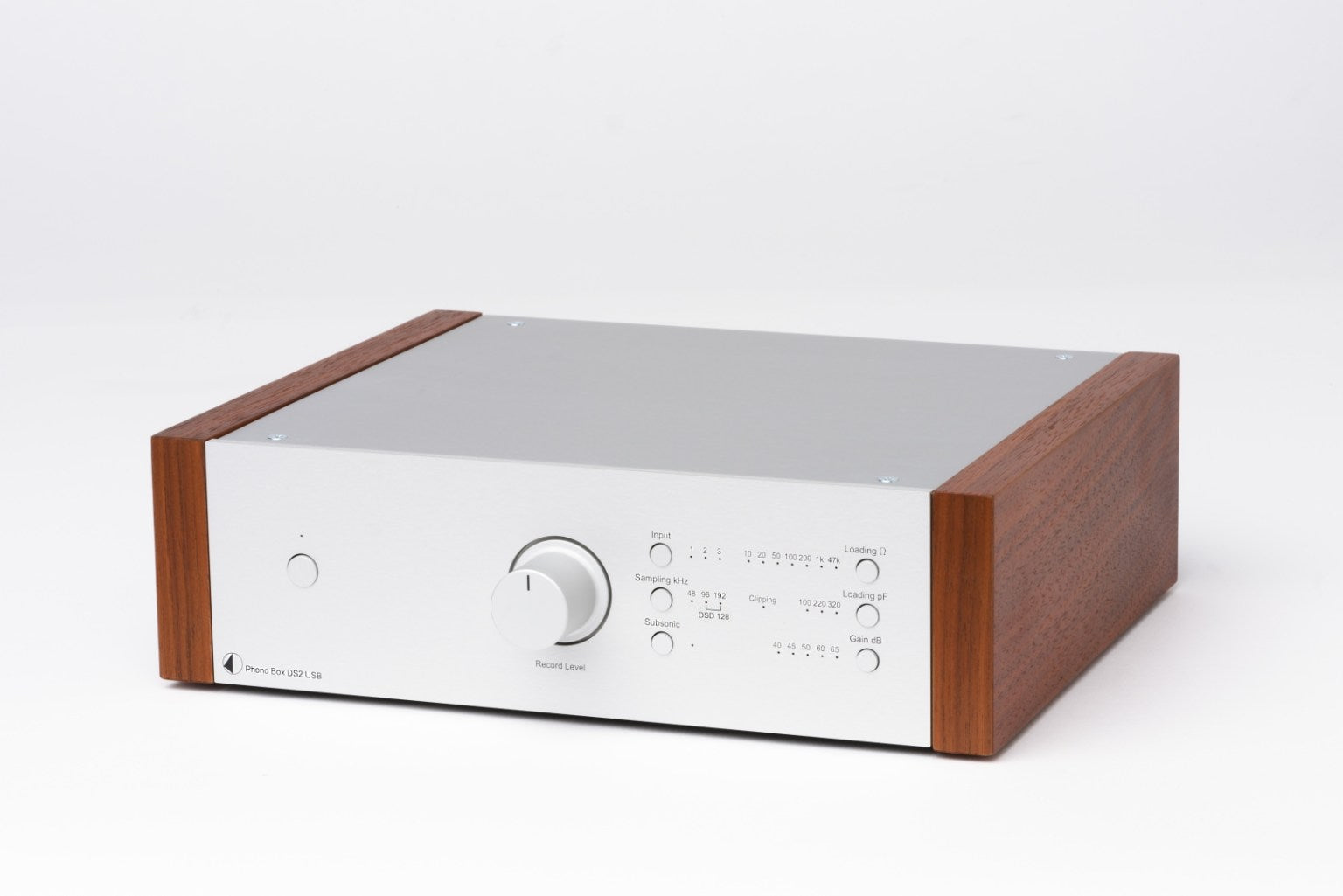

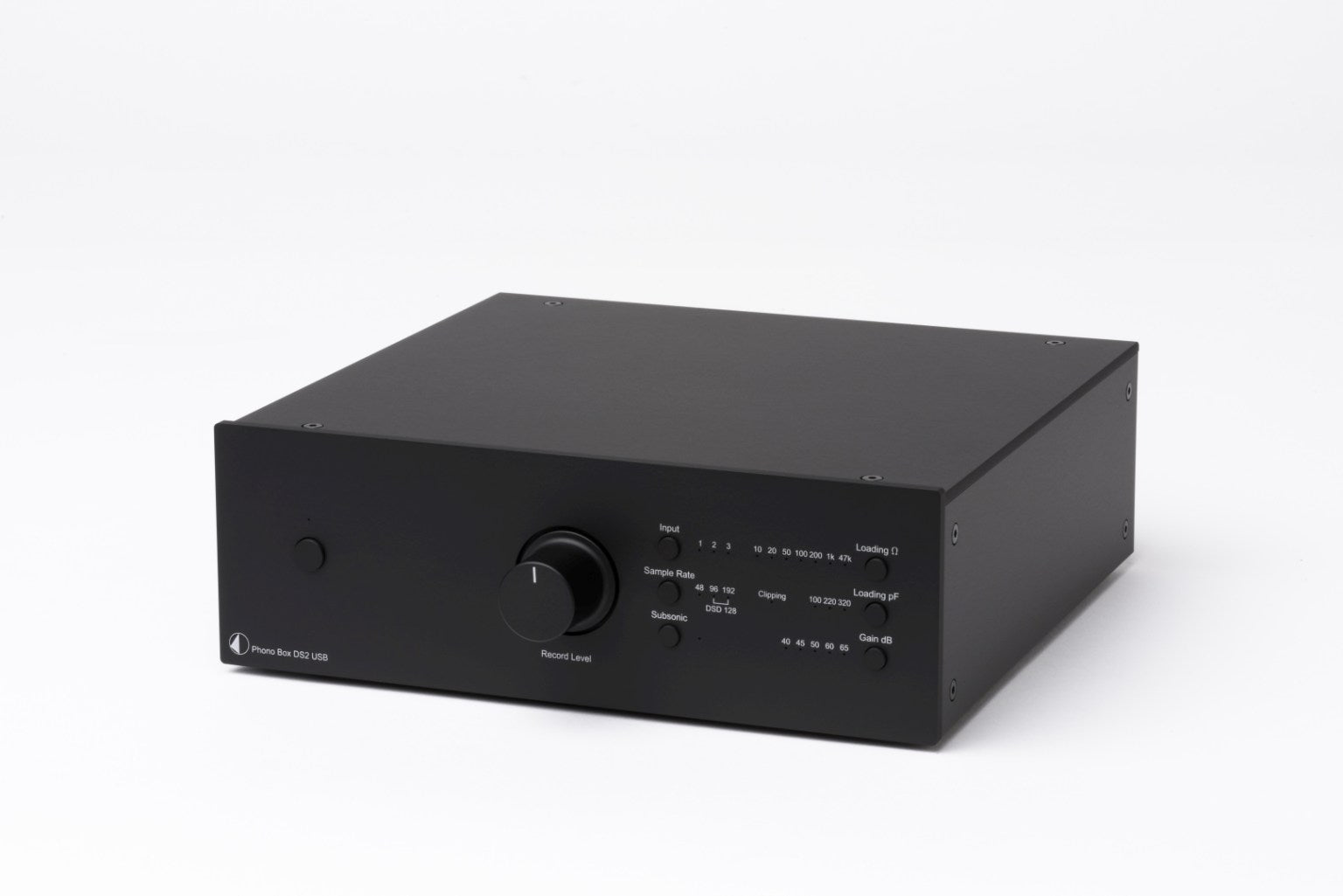

Pro-Ject Phono Box DS2 USB, Starter Amplifier with Hi-Res USB Interface (Various Colors)
The Phono Box DS2 USB is an entry-level Phono amplifier with a Hi-Res USB interface that is highly adjustable and compatible with all MM and MC type cartridges.
Pro-Ject Phono Box DS2 USB, Starter Amplifier with Hi-Res USB Interface (Various Colors) - White - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.- Super accurate RIAA equalization.
- Input resistance: 10-47 kOhm.
- Gold-plated RCA inputs and outputs.
DESCRIPTION
Phono preamplifier with HiRes digital USB output
Phono preamplifier for MM/MC cartridges with analogue, digital optical and USB output!
A lot of people already have or plan to buy a very high quality turntable, driven by the fascination of the analogue sound. Many of them also want to record their vinyl in a simple, yet high-end way. The Phono Box DS2 USB is the perfect solution. It is a sophisticated phono stage, based on a high-end passive/active ultra linear phono equalization. MM and MC capability as well as extensive variable impedance and capacitance settings allow to match any cartridge, even of the highest class for optimum performance. Two individual phono inputs allow you to use two different turntables or tonearm / cartridge combinations with different sound characteristics to perfectly match your preferred type of music.
A very low noise and jitter free A/D converter transfers the analogue signal into high resolution digital format (PCM up to 192kHz or DSD 128). Via its USB output you can record your vinyl on any computer. There is also an analogue line input to digitize other analogue audio sources. A standard line output to connect the unit to your hifi system isn't missed. The Phono Box DS2 USB is manufactured in a beautiful chassis made of aluminum and metal, which gives an elegant functional look and avoids the influence of mechanical or electromagnetic interference.
Magnetic real wood side panels in walnut, rosenut & eucalyptus are available separately & not included in the scope of delivery.
Features
- Suitable for MM and MC cartridges
- Analog RCA, USB and optical out on back
- 3 Inputs (2 Phono, 1 Line)
- Precise RIAA equalization
- Dual mono circuitry for optimized channel separation
- Selectable input impedance on front
- Selectable input capacitance on front
- Digital output sampling frequency adjustable
- Low noise circuitry
- Gold-plated RCA in & outputs
- Sandwich alu/metal casing protects from vibrations and electromagnetic interference
- Magnetic side panels in eucalyptus, rosenut and walnut available separately
TECHNICAL DATA
SPECIFICATIONS
Phono input impedance | 10-47 kOhm |
Phono capacitance | 100/220/320 pF |
Gain phono | 40/45/50/60/65 dB |
Inputs | 2 x Phono (RCA) |
1 x Line (RCA) | |
Outputs | 1 x Line Out (RCA) |
1 x USB B | |
1 x Optical | |
Digital output sampling frequencies | 48/96/192 kHz, DSD128 (USB) |
Noise floor | 80 dB A (40 dB gain) |
THD | < 0.02% |
RIAA equalization curve accuracy | within 0.3dB/20Hz - 20kHz |
Trigger in/out | 12V, 2.5 mm jack |
Power supply | 18V/500mA DC; 220 - 240V, 50Hz |
Power consumption | 100 mA DC, < 1 watt standby |
Dimensions W x H x D | 206 x 71 x 226 mm (Alu) |
240 x 72 x 227 mm (Wood) | |
Weight | 1340 g (Alu) without power supply |
1780 g (Wood) without power supply |
