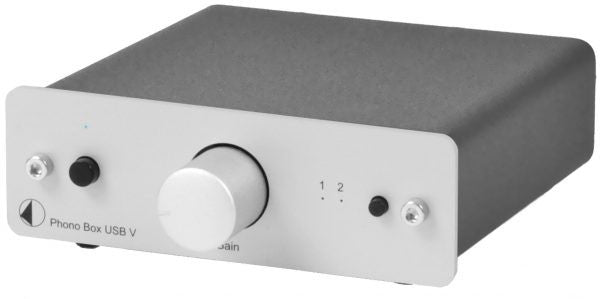

Pro-Ject PHONO BOX USB, MM/MC Starter Amplifier (various colors)
PHONO BOX USB is an entry-level Phono amplifier with USB outputs that is characterized by high functionality and performance.
Pro-Ject PHONO BOX USB, MM/MC Starter Amplifier (various colors) - Silver - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.- Accurate RIAA equalization.
- High-end A/D conversion.
- Switchable Sub-sonic filter: -18 dB @ 20Hz.
- THD MM/MC: 0.01% / 0.05%.
DESCRIPTION
MM/MC preamplifier with USB outputs
Phono Box USB V: Top specialist for recording vinyl & line level sources and listening pleasure!
Phono Box USB V is an ideal phono preamplifier for both your hifi system and vinyl or line-level recording to PC or Mac. MM and MC cartridges will be welcome. Input volume can be set to avoid override. The analogue output of Phono Box USB V can easily be connected to a line-input (AUX,...) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.
Properties
- Preamplifier for MM or MC with switch on rear panel
- Precise RIAA equalization
- Phono/line selector on front
- Record level adjustment
- High quality A/D conversion with USB out to PC/Mac
- Compatible with Windows®, MacOS® & Linux
- SMD technology for shortest signal paths
- Output stage with ultra-low impedance
- DC power supply (< 1 watt standby power)
- Faceplate available in black and silver
TECHNICAL DATA
Specifications
| Load capacitance / impedance | MM: 47K ohms / 120pF MC: 100 ohms / 120pF |
| Gain, MM | 40 dB |
| Output voltage typically | 300 mV / 1 kHz @ 3 mV / 1 kHz (MM input) |
| Gain, MC | 60 dB |
| Gain, line level input | 11 dB |
| Max. output | 9.5 Vrms (1kHz) |
| Noise floor, MM | 94 dB (94 dB - A weighted) |
| Noise floor, MC | 75 dB (75 dB - A weighted) |
| THD, MM/MC | 0.01% / 0.05% |
| RIAA-equalization curve accuracy | 20 Hz - 20 kHz / max. 0.5 dB |
| Phono Input / line output | 1 pair RCA phono sockets |
| Line input | 3.5 mm jack |
| Output voltage | 0.775 Veff |
| A/D converter | 16-Bit Delta Sigma |
| Sampling round | 32, 44, 1 and 48 kHz |
| USB output | digital serial data protocol USB 1.1 |
| Operating systems | Windows®, MacOS® & Linux |
| Standby power consumption | < 1 Watt |
| Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
| Weight | 580 g |
