Quad

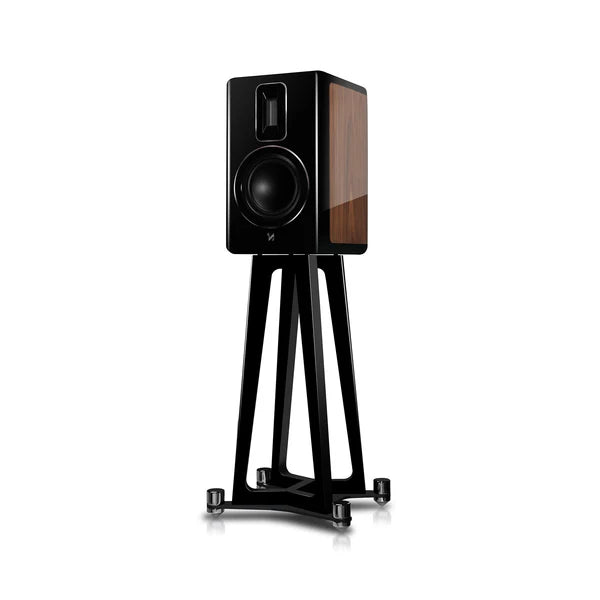

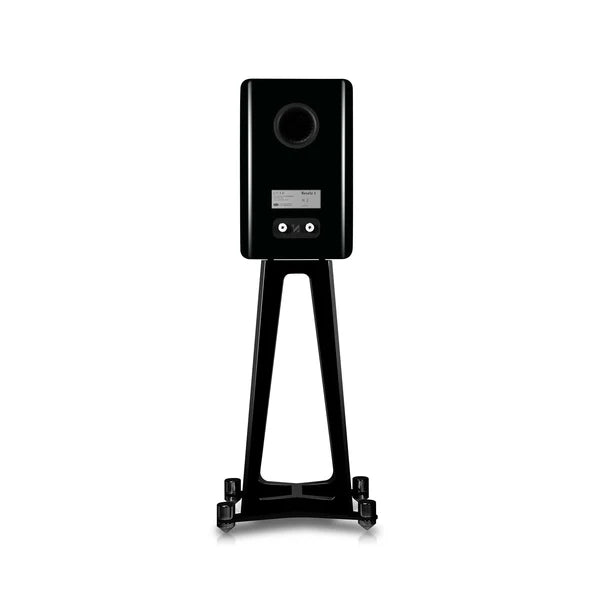

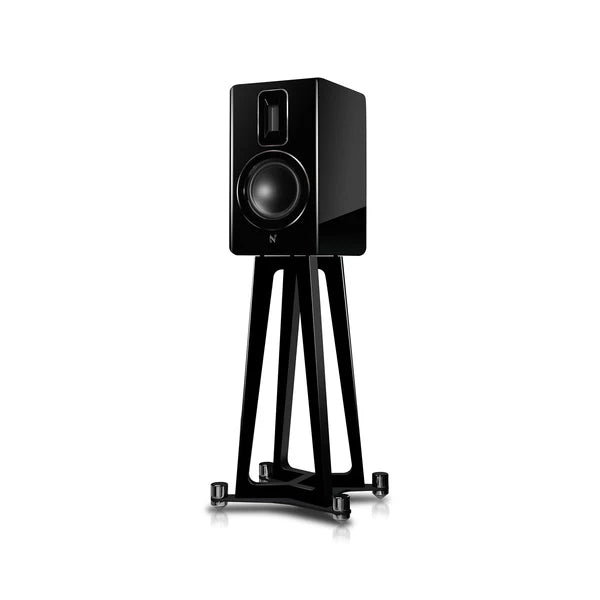

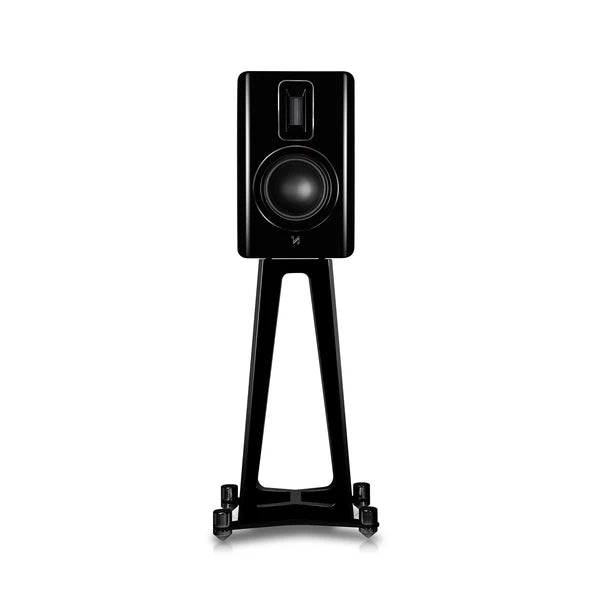

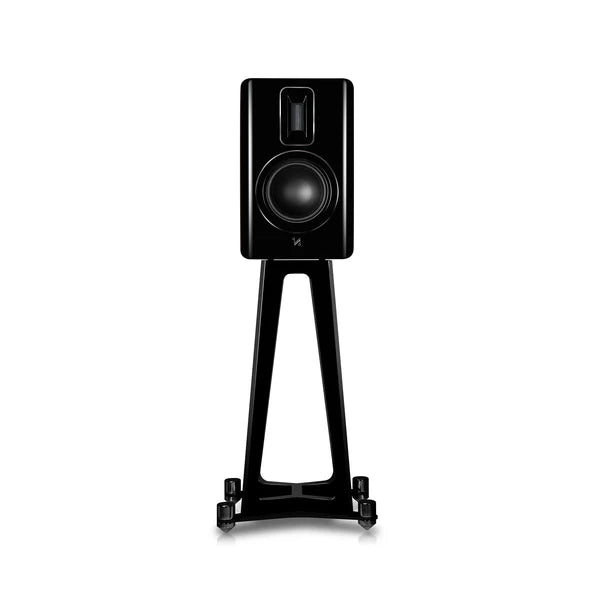

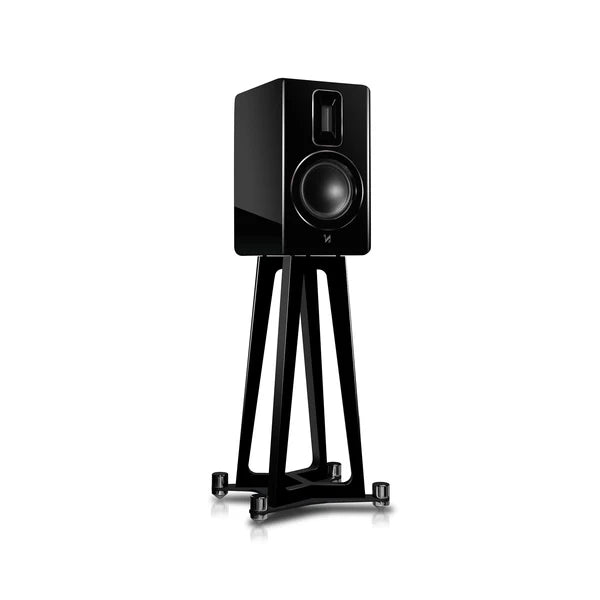

Quad Revela 1, bookshelf speakers


When music becomes a feeling and design a work of art, Quad Revela 1 is born. These premium bookshelf speakers not only deliver exceptional sound, but also elegance that adorns every interior.

€1,999.00 EUR

Quad Revela 1, bookshelf speakers - Piano Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Quad Revela 1 is a unique bookshelf speaker system that combines advanced acoustic engineering with sophisticated design. Precisely designed by legendary sound expert Peter Comeau, these speakers deliver incredibly detailed, dynamic and emotionally impactful sound. Completed with specially designed Revela Stands, they not only ensure optimal listening height, but also become an interior accent, radiating refined luxury.

Sensitivity: 86 dB (2.83 V/1 m)
Frequency range: 45 Hz - 24 kHz
Nominal impedance: 6 Ω
Recommended amplifier power: 25-150 W

The price is per pair.

Stands are sold separately.

DESCRIPTION

The Revela 1 is a classic bookshelf/stand-mount monitor equipped with a 6.5″ woofer and offered with an optional custom-engineered stand of equally striking design. The stand is finished in the same high-gloss paint standards as the speaker and provides the perfect mounting option and display solution for the stand-mount offering in the series.

QUAD's Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF with over four years of research to bring a new level of musical delicacy, smoothness and 'hear-through' performance, thus revealing beautiful details of your music collection with a truly breath-taking performance.

Reveal™

The advanced 'True Ribbon' unit is married to equally high-performance bass and midrange drivers. Again, subject to many years of research, development, testing and continuous innovation, the mid and bass drivers feature a new advanced fiber composition, aptly labeled 'Reveal™'. Refined for seamless integration with the 'True Ribbon' HF, the smooth diaphragm drivers were purpose selected based on their rigidity and excellent self-damping properties. This new diaphragm, combined with a new, specially developed custom rubber surround, for a greater excursion and a new high-power motor system, means that the result is a superb bass performance, with power, depth, speed and articulation in abundance. And, of course, putting it all together is a phase-compensated Acoustic Butterworth crossover resulting from not only Computer-Aided Design but also hundreds of hours of critical listening tests using all types and flavors of music to achieve perfection.

Polished to Perfection

The Revela series continues QUAD's industrial design evolution, sported in the models of recent years – such as the Vena and Artera series. The Revela series cabinets are skillfully hand-finished to a quality far exceeding that of relative competitors in this class. The Revela series is available in options of a polished real-wood veneer and seamless polished-paint finish or a simple and uber-classy 'all-black' glossy paint finish. In either finish, the Revela cabinets are a sight to behold! The precision-fitted baffle is seamlessly joined, also with a polished finish, for a presentation of the highest order. More than just a genuinely stunning furniture-quality piece of craftsmanship, the cabinet is internally braced, using a purpose-engineered structure connected to the cabinet panels in a manner that dissipates unwanted vibrations and resonances, thus maintaining structural rigidity, even under the most strenuous of performances. More than just a photobook-quality design!

TECHNICAL DATA


Model REVELA 1
General Description Bookshelf
Enclosure Type Bass reflex
Transducer Complement 2-way
Bass Driver 165mm advanced fiber cone
Midrange Driver
Treble Driver 27 x 60mm true ribbon
AV Shield No
Sensitivity (2.83V @lm) 86dB
Recommended Amplifier power 30-120w
Peak Power Handling 120w
Peak SPL 102dB
Nominal Impedance 6Ω
Minimum Impedance 4.1Ω
Frequency Response (+ / -3dB) 54Hz - 24kHz
Bass Extension (-6dB) 40Hz
Crossover Frequency 2.9kHz
Cabinet Volume (in liters) 17.6L
Dimensions
Height (on plinth & spikes) 395mm
Width 246mm
Depth (inc Grille and Terminals) 312mm
Carton Size 650mm x 400mm x 515mm
Net Weight 24.6kg/ctn
Finish Piano Walnut / Piano Black, Piano Black
Standard Accessories User manual, certificate, rubber feet

DOCUMENTS

User manual (EN)
