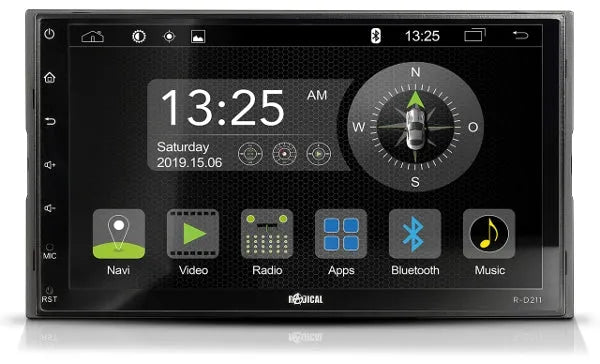

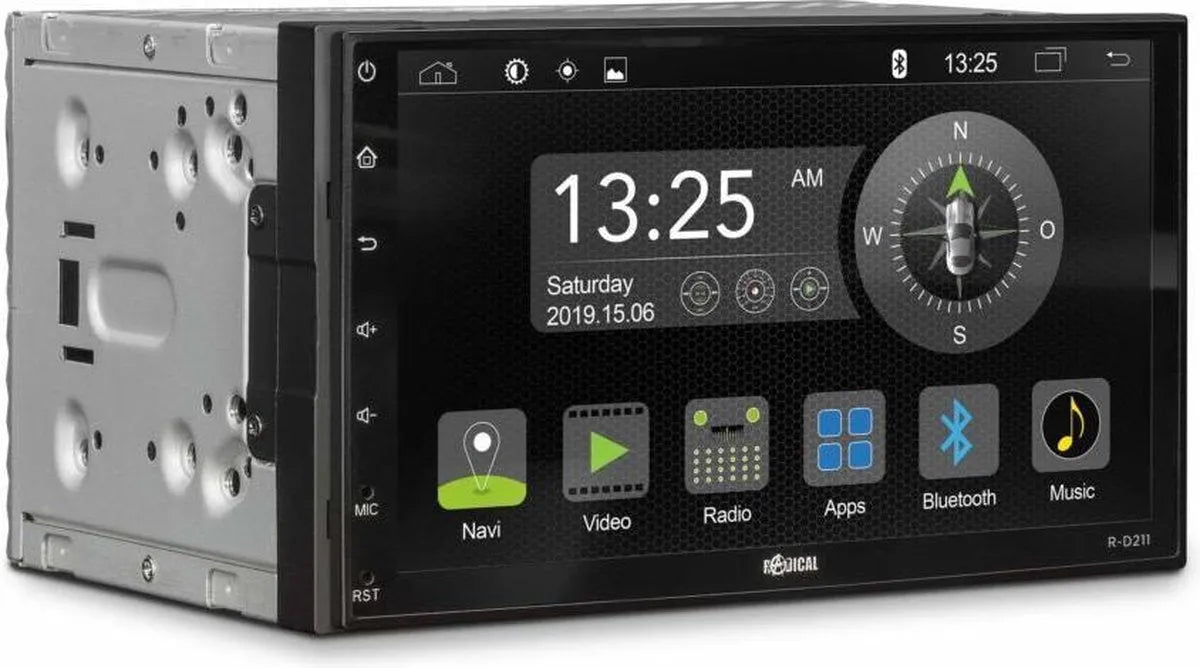

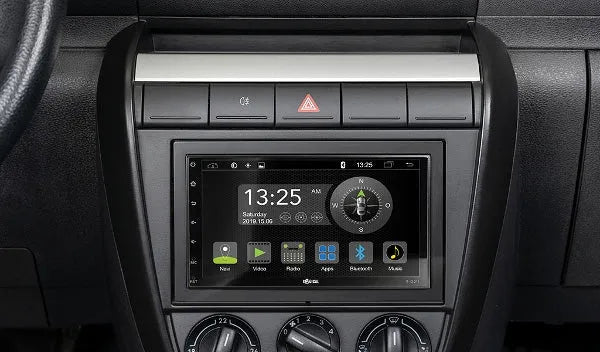

RADICAL R-D211, car multimedia

The R-D211 is a modern 2-DIN multimedia system with a wide range of functions.
€279.00 EUR 399.00 €

RADICAL R-D211, car multimedia - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

View allmultimedia.

INFORMACIJA

The R-D211 is a modern 2-DIN multimedia system with a wide range of functions. The R-D211 uses the open Android 9.0 operating system, which allows direct installation of Android applications.

  • Android apps (e.g. Google Maps) can be used for navigation)*1
  • Large, touch-sensitive 7” / 17.8 cm screen with 1024 x 600 pixel resolution
  • Multilingual menu (German, English, Italian, French, Spanish, etc.)
  • DAB+ receiver
  • FM RDS radio receiver with 18 programmable stations on FM1/FM2/FM3 bands
  • Bluetooth hands-free and A2DP music streaming

DESCRIPTION

Universal multimedia system with "Android OS" and 17.8 cm / 7 inch touchscreen.

The "R-D211" has 2 GB RAM and 16 GB memory.

The R-D211 is a modern 2-DIN multimedia system with a wide range of functions. The R-D211 uses the open "Android 9.0" operating system, which allows direct installation of Android applications. This also includes navigation applications, and with its 1.3 GHz quad-core processor and 2 GB RAM, the "RADICAL" operates seamlessly. The R-D211 has an integrated Wi-Fi module for pairing with smartphone hotspots, using online Android applications like Spotify and Youtube, or listening to internet radio.

TECHNICAL DATA

SPECIFICATIONS

  • 2-DIN DAB+
  • Processor AC8227L Quad-Core ARM Cortex A7 1.3 GHz CPU with 2 GB RAM and 16 GB internal memory
  • Android 9.0 OS
  • Android apps (e.g., Google Maps) can be used for navigation)*1
  • Large, touch-sensitive 7” / 17.8 cm screen with 1024 x 600 pixel resolution
  • Multilingual menu (German, English, Italian, French, Spanish, etc.)
  • DAB+ receiver
  • FM RDS radio receiver with 18 programmable stations on FM1/FM2/FM3 bands
  • Bluetooth hands-free and A2DP music streaming
  • 3x USB 2.0 ports for A/V file playback*2 and connecting Android smartphones*3
  • Two cameras can be connected and easily switched between.
  • CAN connection*4
  • "Screen mirroring" function which allows mirroring an Android or iOS phone screen to the multimedia system
  • RGB multi-illumination
  • Integrated 4 x 45W amplifier
  • Integrated WIFI module (WLAN IEEE 802.11 b/g/n)

* 1 R-D211 navigation can use, for example, Google Maps or iGo navigation.
* 2 Supported A/V formats: MP3, FLAC, AAC, WMA, AVI, MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p, XviD
* 3 Phone charging 700mA
* 4 CAN adapter must be purchased separately according to the car
* 5 External microphone is included

Bluetooth

  • WI-FI antenna MUST BE CONNECTED
  • MTK6625 Bluetooth 4.0 hands-free module
  • Synchronizes up to 1000 phone contacts
  • Phonebook contact search
  • A2DP BT-Music streaming with iD3-Tag and AVRCP 1.3
  • External and internal microphones

Multimedia + Audio

  • DAB+ tuner
  • FM RDS radio with 18 programmable stations
  • 3x USB ports
  • EasyConnect function allowing mirroring of the phone screen to the multimedia system.
  • Audio DSP software:
    • Delay for front and rear speakers from 0 to 20 mS
    • 10-band graphic equalizer, 4 preset profiles (jazz, pop, etc.).
    • Balance, Fader, loudness, and SmartBass
    • High-pass crossover
  • A2DP BT music streaming AVRCP 1.3
  • HDMI input
  • Integrated 4 x 45W amplifier

Connections

  • 4.2 RCA outputs (3V)
  • 2x RCA A / V inputs for audio or video (CVBS)
  • 1x FM antenna input
  • 1x SMA DAB antenna output with 12V power supply
  • 1x RCA output (CVBS, NTSC)
  • 1 x RCA A/V input NTSC/PAL with auto switching (CVBS) for rear view camera
  • 3 x USB 2.0 inputs with 700 mA charging for each phone.
  • 1x HDMI input
  • 1 x 3.5 mm jack for external microphone
  • Input for SWC CAN adapter
  • 1 x IR-In input for connecting an external SWC/CAN adapter
  • 1 x SMA input for GPS antenna

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
