Rega

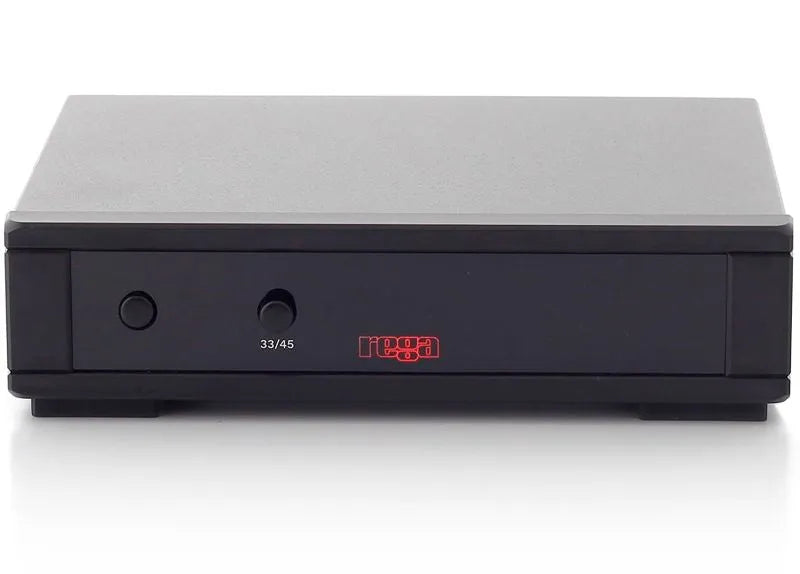

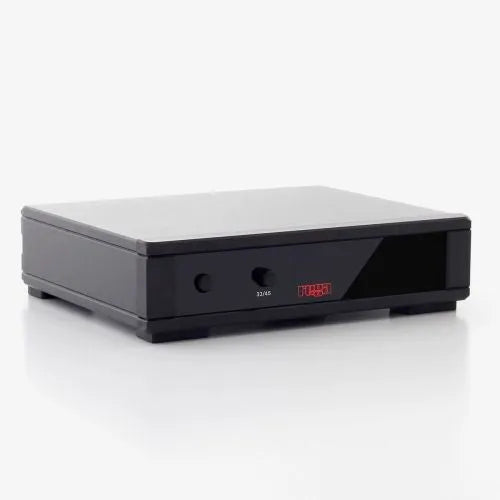

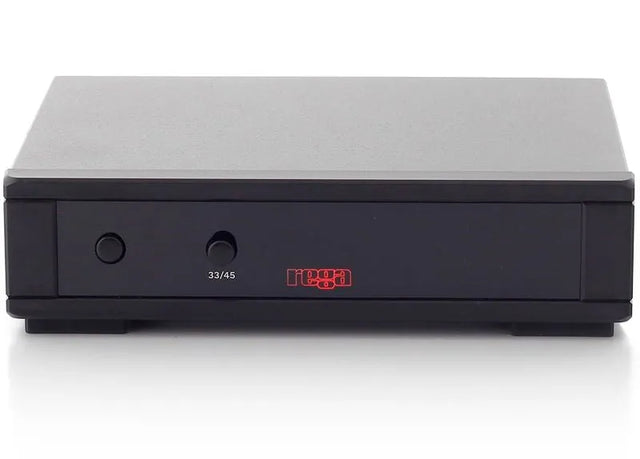

Rega NEO PSU MK2, external power supply for turntable

€299.00 EUR

Rega NEO PSU MK2, external power supply for turntable - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

The new Neo MK2 is housed in a redesigned cabinet to match the rest of the range and perfectly complement Rega products.

  • The output to the motor is two-phase 24 V AC voltage, protected by a reset fuse.
  • Power consumption 7.2 W.
  • Voltage 24 V.
  • Speed ​​adjustment step size 0.01 APS/MIN.

The new Neo MK2 is housed in a redesigned case to bring it in line with other products in the range creating an improved family feel. The Neo MK2 PSU is an advanced turntable power supply providing user controllable fine speed adjustment, an advanced anti-vibration motor circuit and the convenience of electronic speed change. The Neo MK2 will make a welcome addition to any compatible Rega turntable by reducing motor noise, improving speed stability and rotational speed accuracy.

The Neo MK2 PSU is compatible with the following Rega turntable models:

P3-24 / RP3 / Planar 3 2016-current / RP6 / P5 / P7 / RP40 special edition / RP8 Or any older Rega turntable fitted with our aftermarket 24v upgrade kit.

Using the same DSP (digital signal processing) generator found in the Planar 10 power supply, the Neo MK2 is built upon a high stability crystal.

The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed while producing a near perfect sinusoidal waveform to drive the 24v motor. Fine speed adjustment is made via the rear panel using the supplied custom Neo trim tool (supplied).

Planar 6 and Planar 8 turntable models which include the Neo will now ship with the MK2 Neo supplied as standard.

SPECIFICATIONS

Output to motor bi-phase
24 V AC protected by resettable fuse
Power consumption
7.2 W
Voltage
24 V AC
Power supply
Rega PS1 only
Speed ​​control step size
0.01 RPM
PS1 (UK)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (EU - Euro 2 pin)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1
Input 115-120 V ~ 60 Hz / Output 24 V ~ 350 mA AC
PS1 (Australian)
Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC
PS1 (Japan)
Input 100 V ~ 50/60 Hz / Output 24 V ~ 350 mA AC
PS1 (Korea)
Input 220 V ~ 60 Hz 0.07 A / Output 24 V ~ 350 mA AC

INSTRUCTIONS

User Manual (EN).
