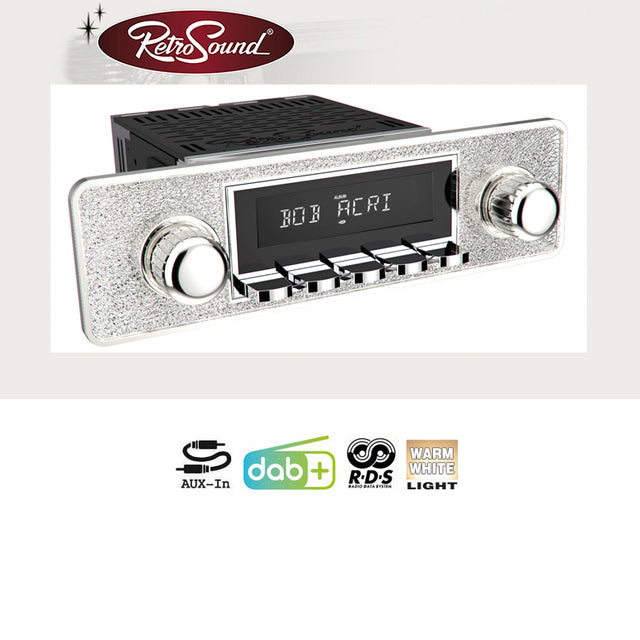

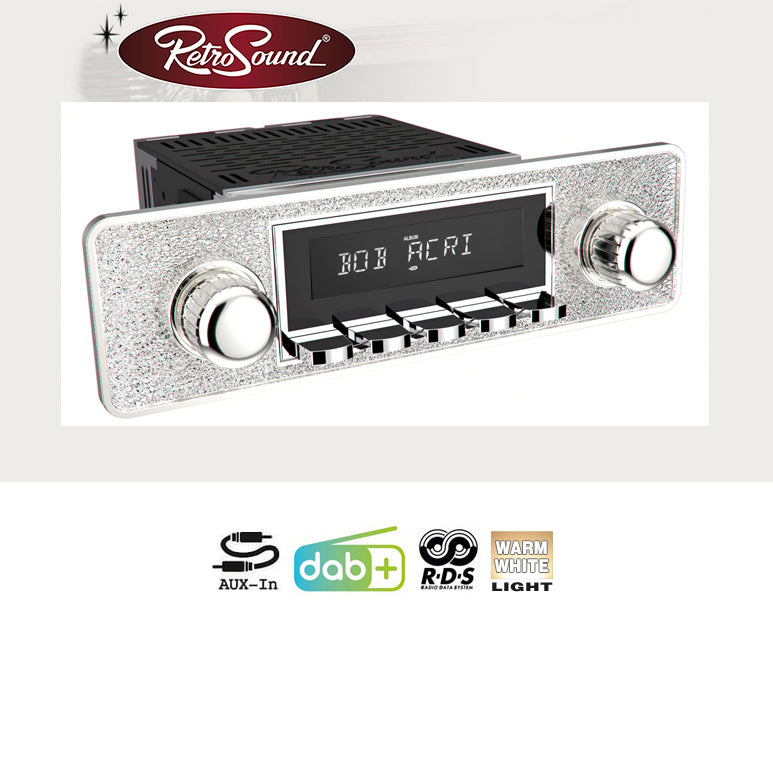

RETROSOUND RSD-SILVER-1DAB, car stereo

INFORMATION

It is visually identical to the cheaper models and, in addition to their equipment, has certified Apple iPod / iPhone control via USB cable or wirelessly via Bluetooth.

• Warm white LCD lighting.

• DAB+/UKW/MW radio receiver with RDS and 30 station memory.

• European odd and even radio frequency receiver.

• Integrated 4-channel amplifier (4 x 24 W RMS / 45 W max.).

• 3 equalizer programs and individual bass/treble/controller/balance setting.

• XBAS volume function.

DESCRIPTION

RETROSOUND "MOTOR-1DAB" DAB+ complete set "Silver" with many accessories

The "Model MOTOR-1DAB" is the entry-level model with DAB+ digital radio from RetroSound. It is optically identical to the cheaper models and has DAB+ and RDS in addition to their equipment.

EQUIPMENT
- DAB+ digital radio
- FM radio with RDS functions
- AUX input (3.5mm) on the back of the device

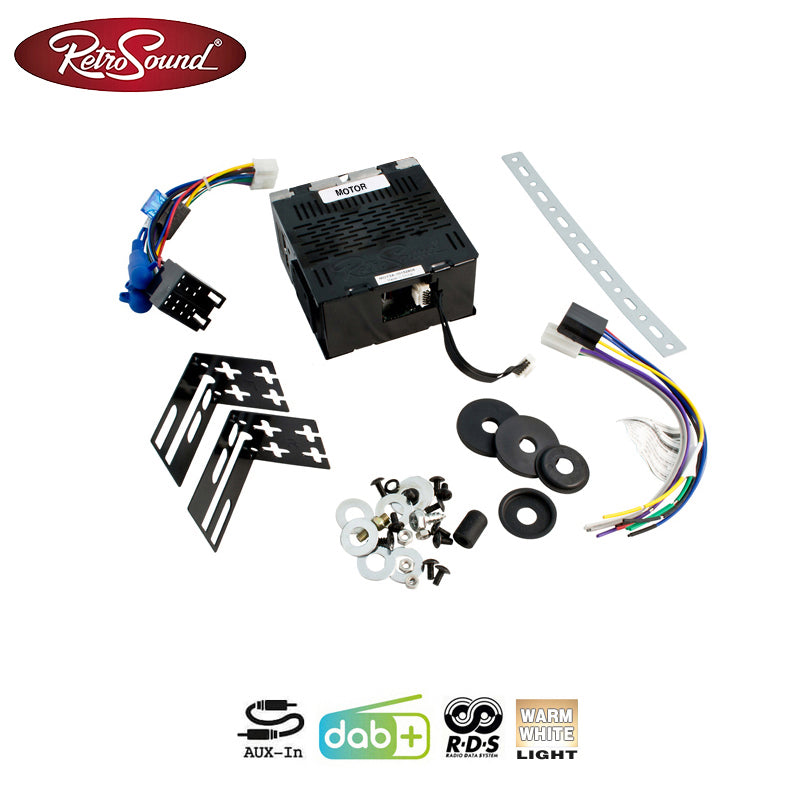

SCOPE OF DELIVERY
- MOTOR-1DAB RETROSOUND DAB+ radio module

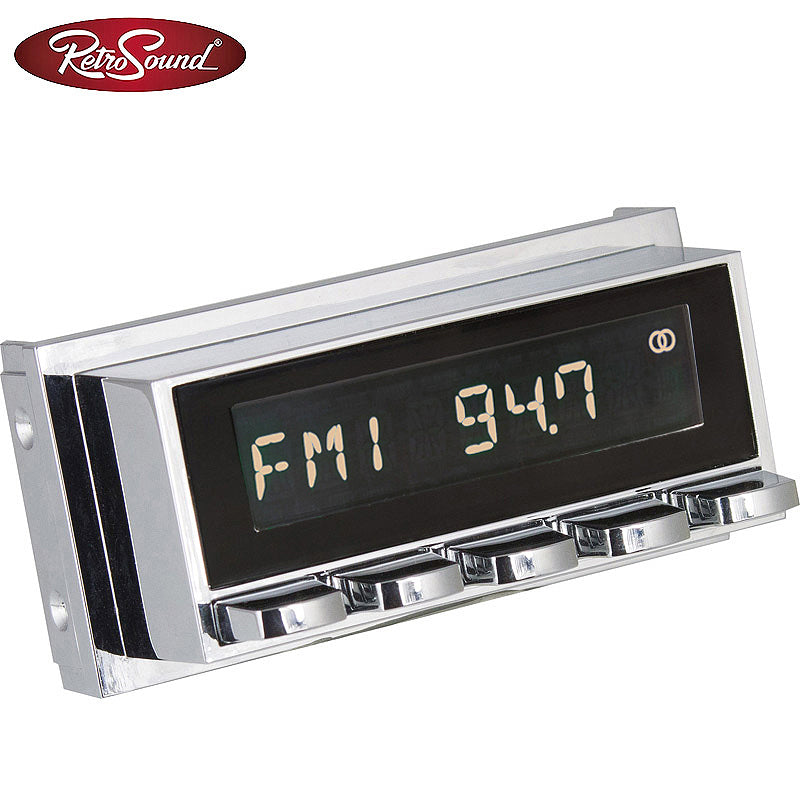

- RETRO-RADIO-C RETROSOUND display unit (chrome)
- RSP-302 RETROSOUND front panel plastic (silver)
- RSP-006 RETROSOUND control knob metal (chrome)
- RSP-076 RETROSOUND control ring metal (chrome)
- RSP-294 RETROSOUND ISO installation kit for DIN slot
- H-CERTIFICATION Confirmation from TÜV Süd

OPTIONAL ACCESSORIES
DAB1 - AMPIRE DAB+ antenna splitter
In most classic vehicles passive rod or telescopic antennas were installed. These are also suitable for DAB+ radio reception. In this case, order the DAB1 antenna splitter at the same time. In the case of window antennas or electronically amplified roof antennas, you must install a separate DAB+ antenna.
BTR200 - AMPIRE Bluetooth receiver for 3.5mm AUX input
To be able to connect your smartphone to the car radio via Bluetooth, you need the BTR200 receiver. This is plugged into the AUX input on the back of the device. The music selection is then done via the smartphone.
RS-TOOL - AMPIRE 1/2" tool for RetroSound control knobs
The cap nuts of the two control knobs have 1/2 inch wrench size. The matching tool is not common in Europe. So that you do not cause any damage when installing with the wrong tool, you should order the RS-TOOL at the same time.

H-KNOWN
Any concerns that your H license plate might be in danger due to the installation of a RetroSound car radio are unfounded. In the download you will find a confirmation with the approval of the complete AKE working group (TÜV SÜD, TÜV Rheinland, TÜV Nord, Dekra, KÜS, GTÜ) which states that the RetroSound Model Zuma" and the RetroSound Model Two" including vehicle- specific panel and control buttons may be installed in classic cars with H-plates or do not prevent the award of the H-plate!

EQUIPMENT
- warm white LCD lighting
- DAB+/UKW/MW radio receiver with RDS and 30 station memory
- Tuner with European even and odd radio frequencies
- Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
- 3 equalizer programs plus individual bass/treble/fader/balance adjustment
- XBAS loudness function
- Non-volatile memory

EXPANSION OPTIONS
- AUX input (stereo)
- Separate power line for motorized antenna and amplifier

TECHNICAL DATA RADIO PART
- FM European broadcasting frequency range 87.5-107.9 MHz. (0.05 MHz. in steps)
- MW frequency range 530-1710 kHz (9 kHz. in steps)
- DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATE
- Dimensions radio 101x51x136mm
- Power supply 10.5 to 14.4 Volt
- Maximum current consumption 15 Ampere
- Quiescent current 3.5 mA
- Output power 12V, 4 Ohm, <1% distortion: 4x15 watts sinusoidal
- Impedance loudspeaker 4-8 Ohm
- Input sensitivity AUX1 >300 mV / 6 kOhm

E-APPROVAL
- E-approval e13 03 10006 e13*72/245*2006/96*10006*00

OTHER SEARCH TERMS
RetroSound, Long Beach, LONG BEACH, Model Two, MODEL TWO, Model One, MODEL ONE

TECHNICAL DATA

SPECIFICATIONS

EQUIPMENT
- warm white LCD lighting
- DAB+/UKW/MW radio receiver with RDS and 30 station memory
- Tuner with European even and odd radio frequencies
- Integrated 4-channel amplifier (4 x 24 watts RMS / 45 watts max.)
- 3 equalizer programs plus individual bass/treble/fader/balance adjustment
- XBAS loudness function
- Non-volatile memory

EXPANSION OPTIONS
- AUX input (stereo)
- Separate power line for motorized antenna and amplifier

TECHNICAL DATA RADIO PART
- FM European broadcasting frequency range 87.5-107.9 MHz. (0.05 MHz. in steps)
- MW frequency range 530-1710 kHz (9 kHz. in steps)
- DAB+ reception via SMB antenna input for passive DAB+ antennas

GENERAL DATE
- Dimensions radio 101x51x136mm
- Power supply 10.5 to 14.4 Volt
- Maximum current consumption 15 Ampere
- Quiescent current 3.5 mA
- Output power 12V, 4 Ohm, <1% distortion: 4x15 watts sinusoidal
- Impedance loudspeaker 4-8 Ohm
- Input sensitivity AUX1 >300 mV / 6 kOhm

E-APPROVAL
- E-approval e13 03 10006 e13*72/245*2006/96*10006*00

DOCUMENTS

INSTRUCTIONS

User Manual (EN),
