Rotel

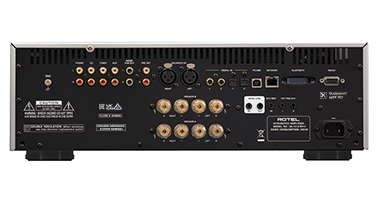

Rotel RA-1572MKII, integrated audio amplifier (various colors)

The RA-1572MKII integrated amplifier is an essential component for music lovers, using Rotel's best analog and digital technologies to ensure exceptional musical fidelity.
€2,149.00 EUR

Rotel RA-1572MKII, integrated audio amplifier (various colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The RA-1572MKII integrated amplifier is an essential component for music lovers, using Rotel's best analog and digital technologies to ensure exceptional musical fidelity.

  • Power: 2 x 200W at 4 Ohms.
  • Class AB amplifier.
  • Supported: MQA and MQA Studio.
  • Wireless aptX™ and AAC Bluetooth.

DESCRIPTION

The RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel's analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

As typical of Rotel amplifiers, the RA-1572MKII utilizes an in-house manufactured oversized toroidal transformer. The toroidal transformer's shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.

The RA-1572MKII supports digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensure connection to your favorite sources.

The RA-1572MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

The front panel includes a status display, source and volume controls, Speaker AB selection for Zone 2, and 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.

TECHNICAL DATA

SPECIFICATIONS

ra1572MKII guts

DIMENSIONS (W × H × D)
431 × 144 × 358mm
17" × 5.7" × 14.1"
FRONT PANEL HEIGHT
3U / 132.6mm (5.25")
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
400W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
13.63kg (30.05lbs.)
BTU RATING (4Ω, 1/8th power)
810 BTU/h

Components

MAXIMUM POWER OUTPUT
200W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
120W/Ch (8Ω)
TOTAL HARMONIC DISTORTION
(THD)
<0.018%
FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2dB
Phono Input:
20Hz - 20kHz, ±0.5dB
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 100dB
Phono Input: 80dB
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
300
INPUT SENSITIVITY
Line Level Inputs (RCA): 270mV
Line Level Inputs (XLR): 440mV
Digital Inputs: 0 dBFs
Phono Input (MM): 2.1mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 32mV
PREOUT LEVEL
1.5V
OUTPUT IMPEDANCE
470Ω
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/192kHz)
USB Audio Class 2 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz)
Roon Tested

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
