RVC CAM-E-DOBLO NTSC CMOS 150°, rear camera

Name: RVC CAM-E-DOBLO NTSC CMOS 150°, rear camera
Brand: RVC
SKU: CAM-E-DOBLO
Price: 145.00 EUR
Availability: InStock

€145.00 EUR

RVC CAM-E-DOBLO NTSC CMOS 150°, rear camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

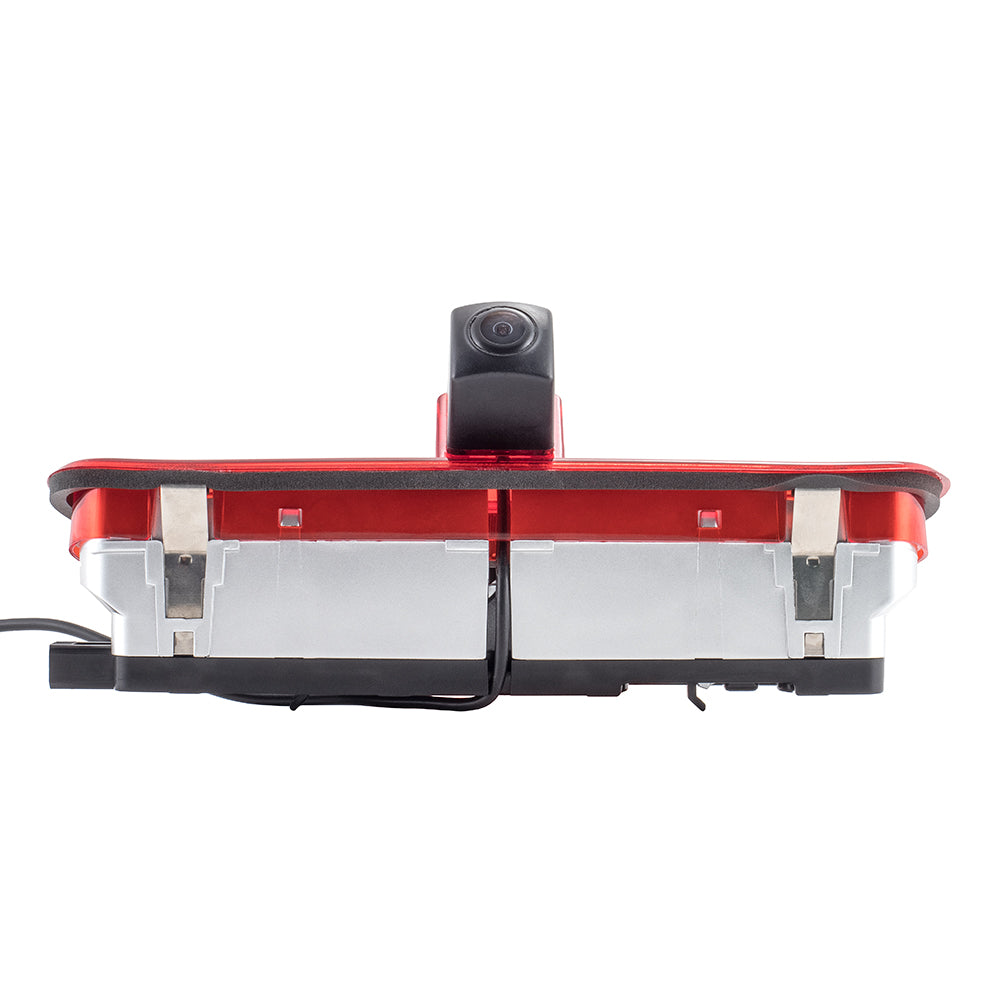

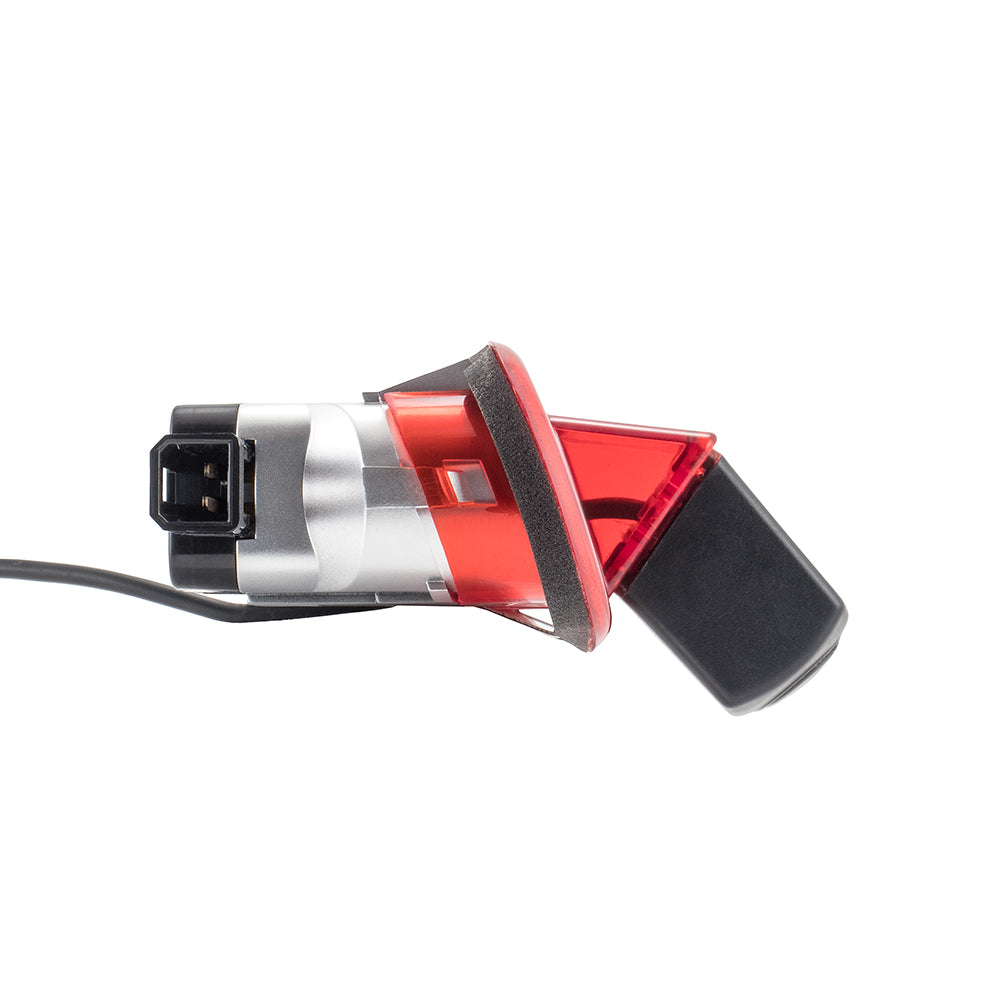

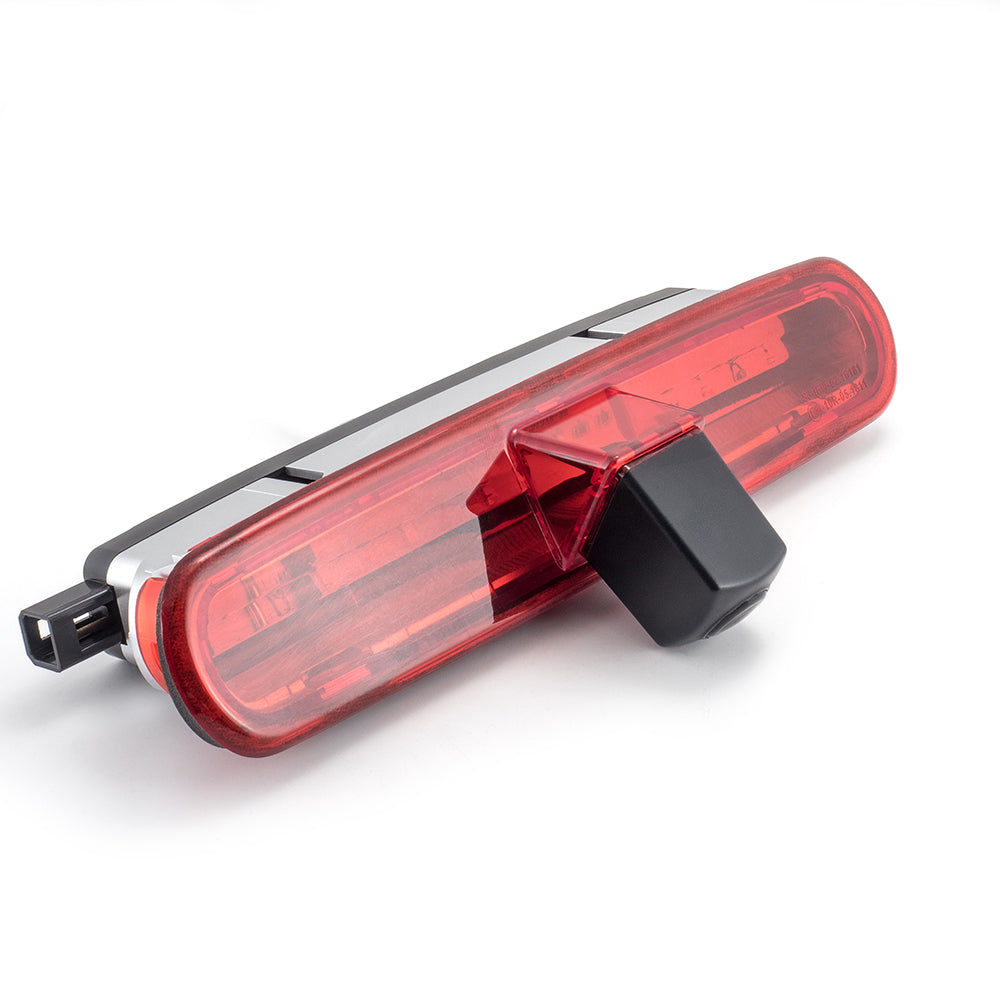

The rear camera is built into the brake light. Suitable for Doblo 2 (2010-2019) and Opel Combo D (2011-2018).

Sensor: 1/4inch CMOS NTSC
Resistance standard IP 68.
Resolution: 720 x 480 px .
Cable length: 10 m.

DESCRIPTION

Vehicle-specific exchange brake light illumination-glass with rear-view camera. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

TECHNICAL DATA

1/4 inch CMOS NTSC sensor
Resolution 720 x 480 pixel (580 TV lines)
0.1 LUX min illumination
Angle diagonal 150°, horizontal 120°
Mirrored image (fixed)
Parking guide lines, optional switchable
Protection class IP68
Black camera
0.8m camera cable with 4pin-KO system-female connector (diameter 5.9mm)
10m extension cable (4pin-KO)
System-connector cable 4pin-KO with RCA connector

Compatibility

Mature	Model
Fiat	Doblo 2 manufacture years from 2010 to 2019
Opel	Combo D manufacture years from 2011 to 2018

NOTICE: Please make sure to check if the size of the camera fits the vehicle!

Specifications

Operating voltage	12V DC (9~16V)
Current consumption	max. 150mA
Operating temperature	-20°C to +70°C
