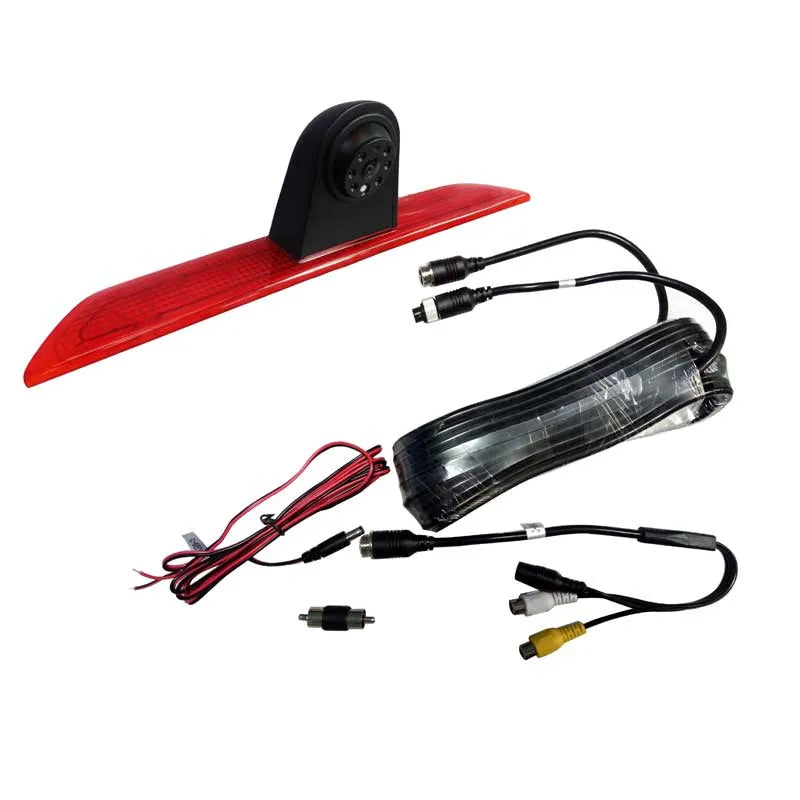

- RVC CAM-E-TRAN CMOS 170°, galinė kamera su laikikliu - komplektas
- RVC CAM-E-TRAN CMOS 170°, galinė kamera su laikikliu - montavimas
RVC CAM-E-TRAN CMOS 170°, rear camera
Rear camera camera built into the brake light is intended for commercial transport.
RVC CAM-E-TRAN CMOS 170°, rear camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. Suitable for Ford Transit 7th generation from 2014.- Sensor: 1/4inch CMOS NTSC.
- Resistance standard IP 68.
- Resolution: 648 x 488 px .
- Cable length: 10 m.
DESCRIPTION

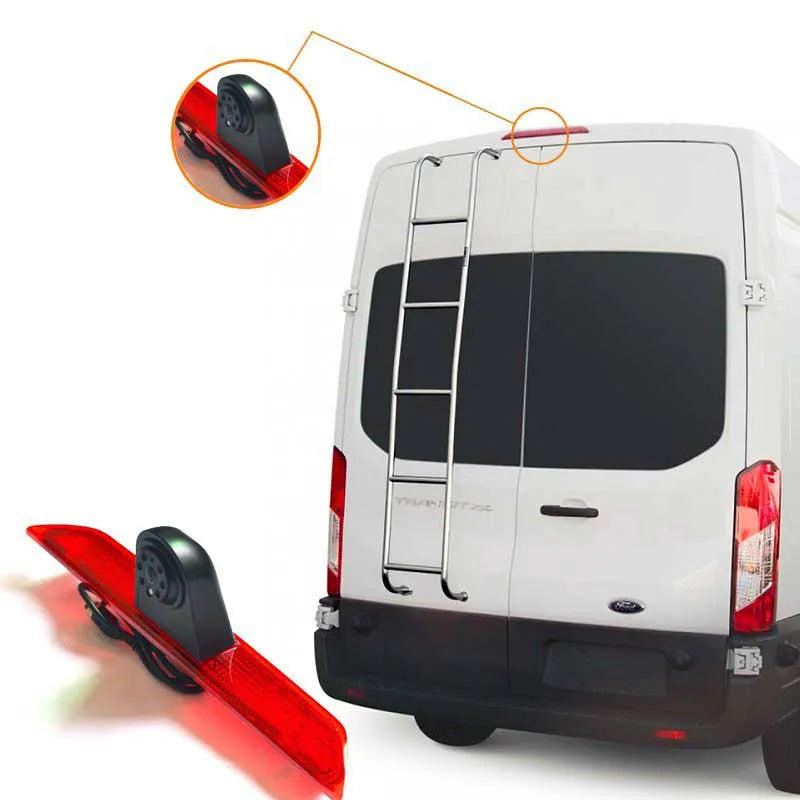

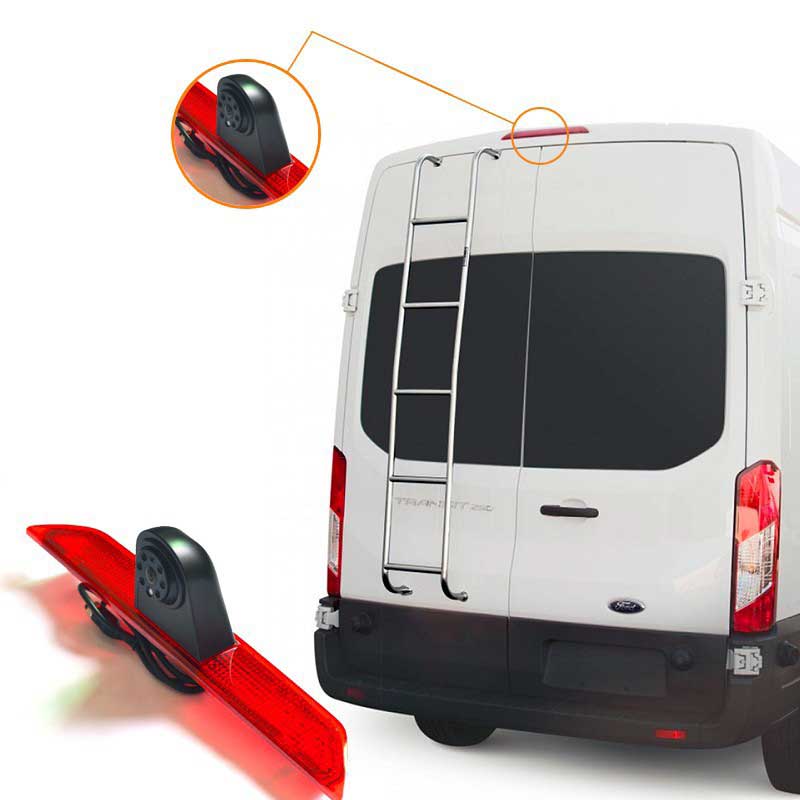

Vehicle-specific exchange brake light illumination-glass with rear-view camera. Integrated IR-lighting for sufficient light in the dark. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.
TECHNICAL DATA
TECHNICAL DATA
-
- 1/4 inch CMOS NTSC sensor
- Resolution 648 x 488 pixel (580 TV lines)
- 0 LUX min illumination (IR on)
- 8 IR night vision LEDs
- Angle diagonal 170°, horizontal 120°
- Vertical camera adjustability 20°
- Mirrored image (fixed)
- Parking guide lines, optional switchable
- Protection class IP68
- Black camera
- Integrated microphone
- 0.8m camera cable with 4pin-KO system-female connector (diameter 5.9mm)
- 10m extension cable (4pin-KO)
- System-connector cable 4pin-KO with RCA connector
Compatibility
Mature Model Ford Transit Bus 7th generation from manufacture years 2014

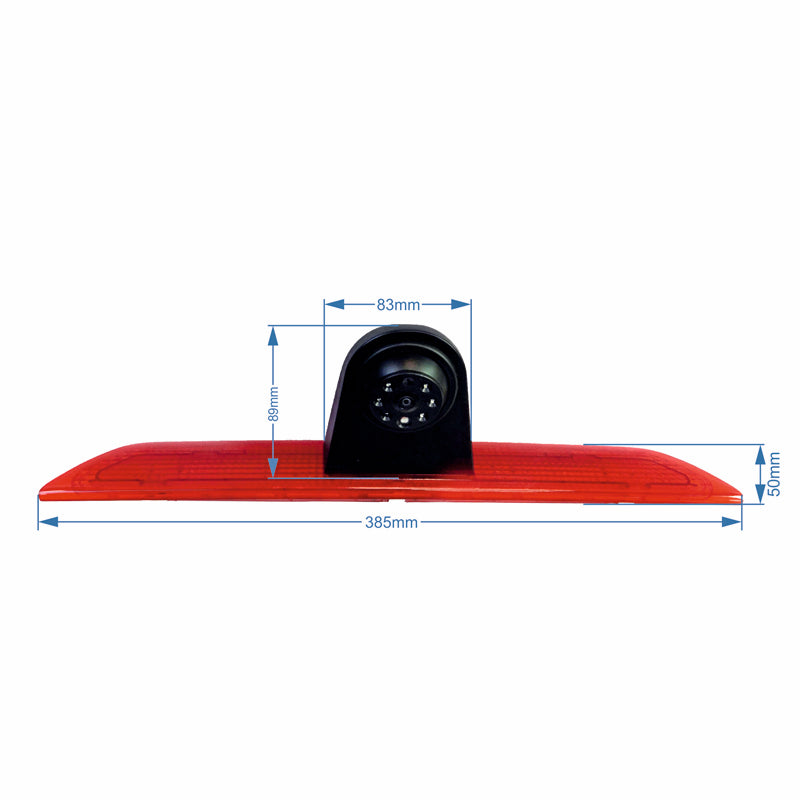

Dimensions
Brake light illumination-glass 385 x 50mm (W x H) Overhang length camera
(from brake light)89 mm
NOTICE: Please make sure to check if the size of the camera fits the vehicle!
Specifications
Operating voltage 12V DC (9~16V) Current consumption max. 150mA Operating temperature -30°C to +70°C
