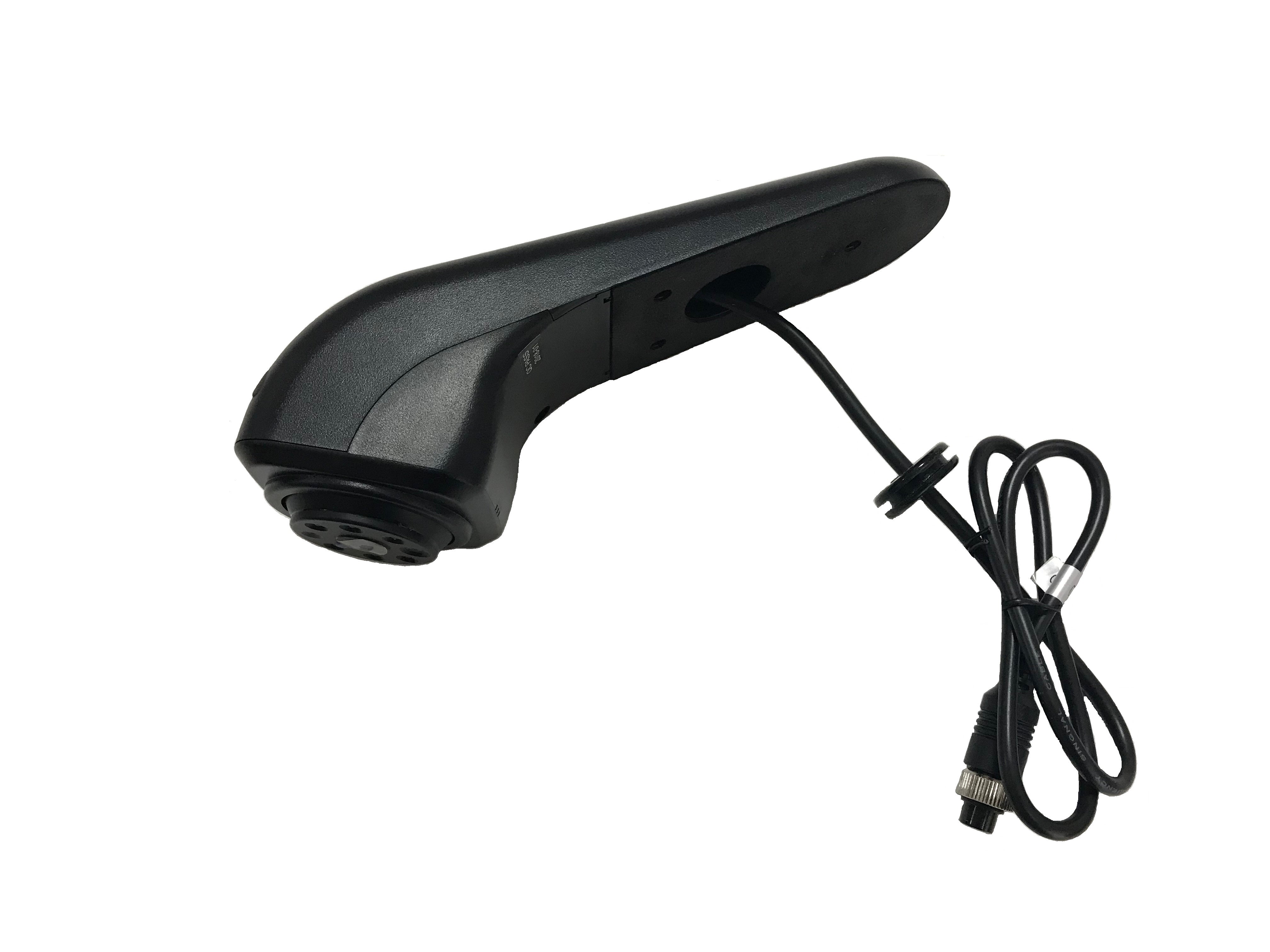

RVC CAM-E-VN01 CMOS 120° rear camera with bracket

Rear camera camera built into the brake light is intended for commercial transport.

€135.00 EUR

RVC CAM-E-VN01 CMOS 120° rear camera with bracket - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Suitable for VW Crafter 2 and MAN TGE from 2017.

  • Sensor: CMD-III.
  • Resistance standard IP 68.
  • Resolution: 752 x 582 px .
  • Cable length: 10 m.


DESCRIPTION

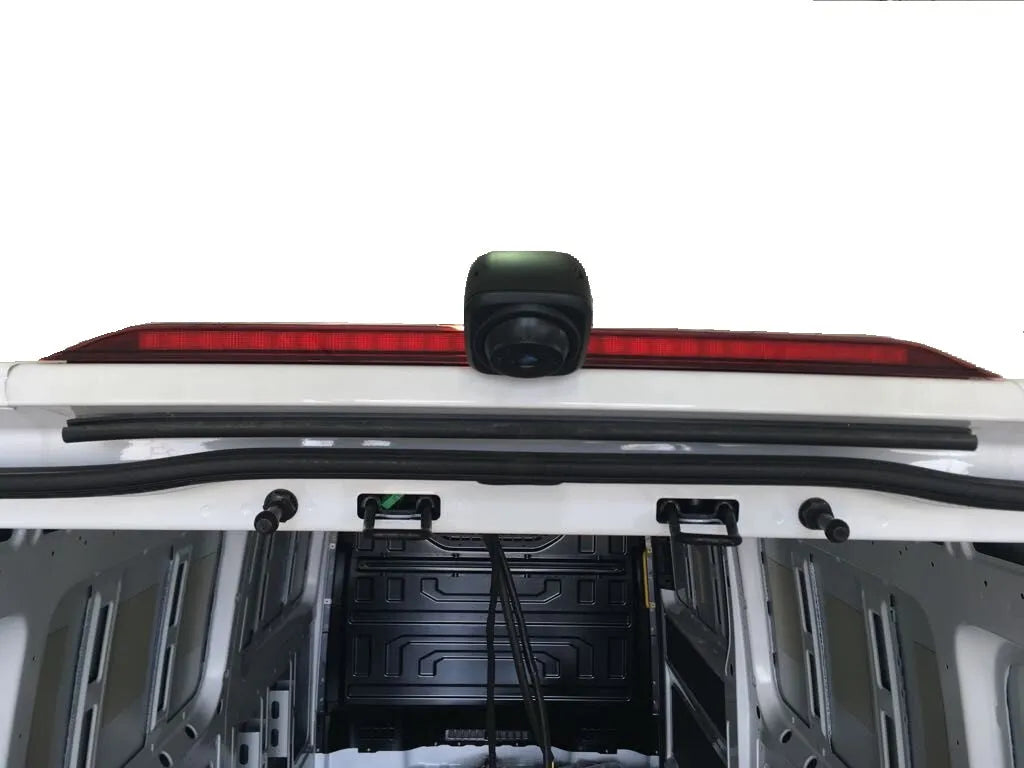

Vehicle-specific mounting rear-view camera with integrated IR-lighting for sufficient light in the dark. Easy assembling on top of the factory brake light. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNICAL DATA

TECHNICAL DATA

  • Camera with vehicle-specific exchange brake light
  • Sensor-type CMD-III
  • NTSC format (420 TV lines)
  • Resolution: 480i (752 x 582 pixels)
  • Min illumination: 0 LUX (IR on)
  • 6 IR night vision LEDs
  • Angle horizontal 120°, vertical 103°, diagonal 133°
  • 20° vertical adjustable angle (mechanical)
  • Mirroring (fixed)
  • Protection class IP68
  • Camera color: black
  • 10m extension cable



Compatibility

Mature Model
Volkswagen Crafter 2 from model year 2017
MAN TGE from model year 2017


Specifications

Operating voltage 9~16V DC
Current consumption <100mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C
INFORMACIJA

Rear camera camera built into the brake light is intended for commercial transport. Suitable for VW Crafter 2 and MAN TGE from 2017.

  • Sensor: CMD-III.
  • Resistance standard IP 68.
  • Resolution: 752 x 582 px .
  • Cable length: 10 m.


DESCRIPTION

Vehicle-specific mounting rear-view camera with integrated IR-lighting for sufficient light in the dark. Easy assembling on top of the factory brake light. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNICAL DATA

TECHNICAL DATA

  • Camera with vehicle-specific exchange brake light
  • Sensor-type CMD-III
  • NTSC format (420 TV lines)
  • Resolution: 480i (752 x 582 pixels)
  • Min illumination: 0 LUX (IR on)
  • 6 IR night vision LEDs
  • Angle horizontal 120°, vertical 103°, diagonal 133°
  • 20° vertical adjustable angle (mechanical)
  • Mirroring (fixed)
  • Protection class IP68
  • Camera color: black
  • 10m extension cable



Compatibility

Mature Model
Volkswagen Crafter 2 from model year 2017
MAN TGE from model year 2017


Specifications

Operating voltage 9~16V DC
Current consumption <100mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C
