RVC NTSC CMOS 175°, front camera

Mini NTSC screw-on front camera.
€145.00 EUR

RVC NTSC CMOS 175°, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Mini NTSC screw-on front camera. Diagonal viewing angle: 175°.

  • Sensor: 1/4inch CMOS.
  • Resistance standard IP 69K.
  • Cable length: 10 m.
  • Video RCA connector.


DESCRIPTION

Very small mini dual-head camera NTSC CMOS with wide 175° diagonal angle. Usable as butterfly or installation camera - screwable exchange head. Can also be used as front or side camera (mirroring switchable). With guide lines which can be switched off.


Water resistance - IP69K.

TECHNICAL DATA

TECHNICAL DATA

Product features

  • Mini dual-head camera NTSC

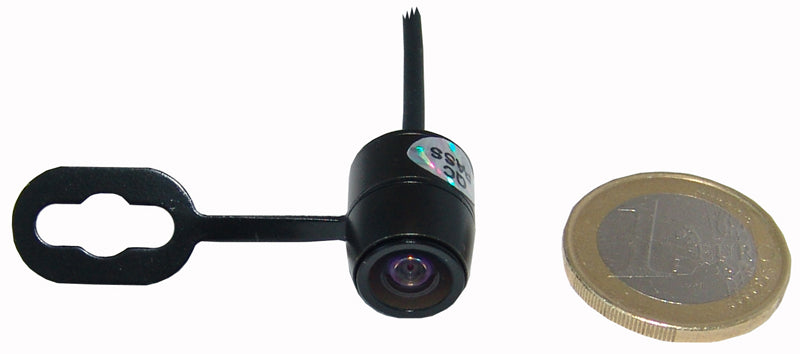

  • Very small diameter - only 12.5mm

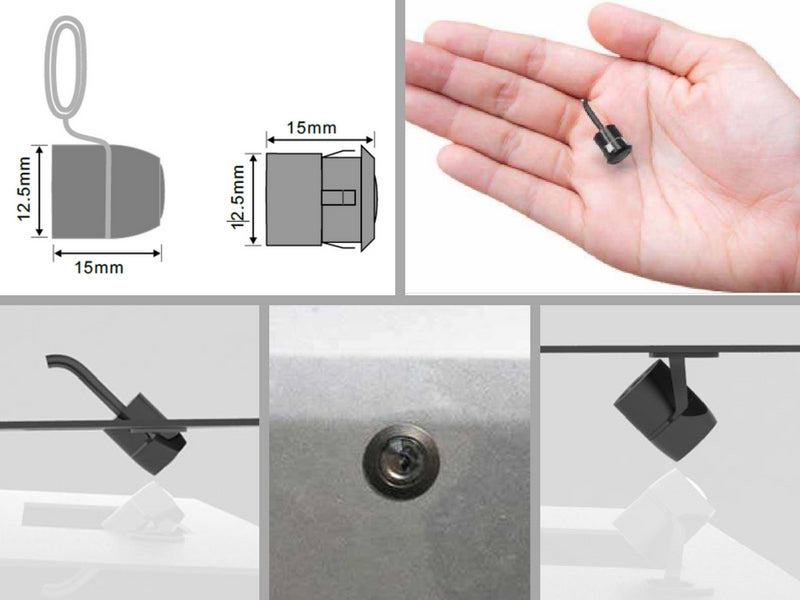

  • Usable as butterfly or installation camera - screwable exchange head

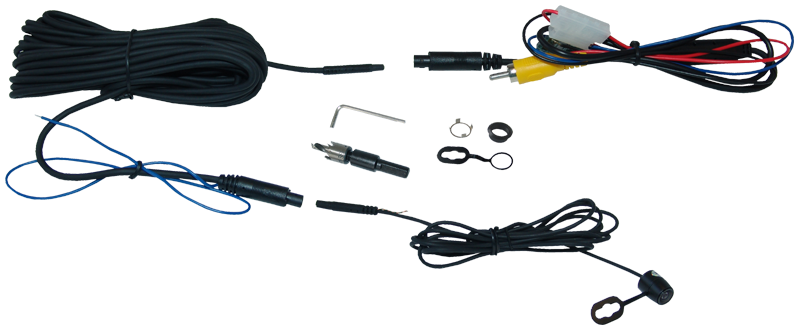

  • Various mounts and a drill are included
  • As front or side camera usable (mirroring switchable)
  • 1/4 inch CMOS low-light sensitive sensor
  • Wide 175° angle
  • Angle H=135°, V=105°, D=175°
  • Guide lines, optional disengageable
  • Water resistance IP69K
  • Video-output male RCA connector
  • Cable length 10m


Specifications

Operating voltage 12V DC (6~16V)
Current consumption 35-55mAh
Video input format NTSC
Operating temperature -30°C to +70°C
Storage temperature 15 x 12.5 x 12.5mm (W x H x D)
Weight incl. cable approx. 15 years
