RVC NTSC CMOS140°, front camera

A front camera that can work in mirror mode.
€145.00 EUR

RVC NTSC CMOS140°, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

A front camera that can work in mirror mode. The camera can also be used as a rear camera.

  • Sensor: NTSC 1/4 inch CMOS.
  • Resistance standard IP 68.
  • Cable length: 10 m.
  • Video RCA connector.


DESCRIPTION

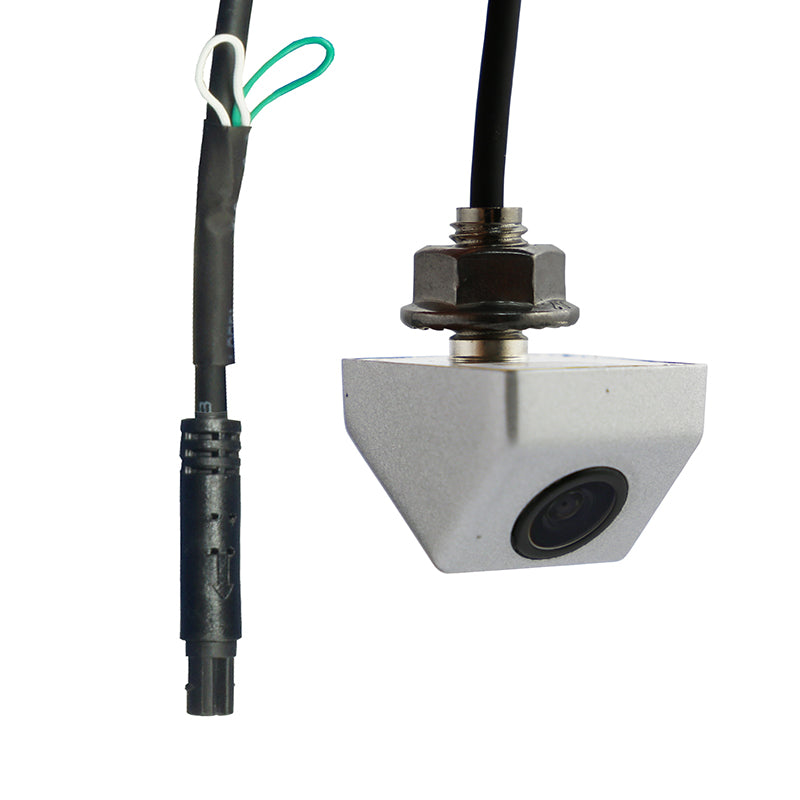

1/4 NTSC CMOS Mini-camera silver with wide angle and guide lines. Vertical angle of camera 55°. Horizontal base frame and vertical mount possible. Easy mounting due to cable guided screwed tube.

TECHNICAL DATA

TECHNICAL DATA

Product features

  • Mini-camera in metal housing (silver)
  • Cable guided screwed tube 8mm with counternut
  • Horizontal base frame and vertical mount possible
  • Switchable image mirror function - usable as front camera, too
  • Sensor-type 1/4inch CMOS NTSC color
  • Vertical tilt angle 55°
  • Angle H=110°, V=90°, D=140°
  • Guide lines, optionally disengageable
  • IP 68
  • Power supply 10V ~ 15V
  • Power 1.5W/200mAh

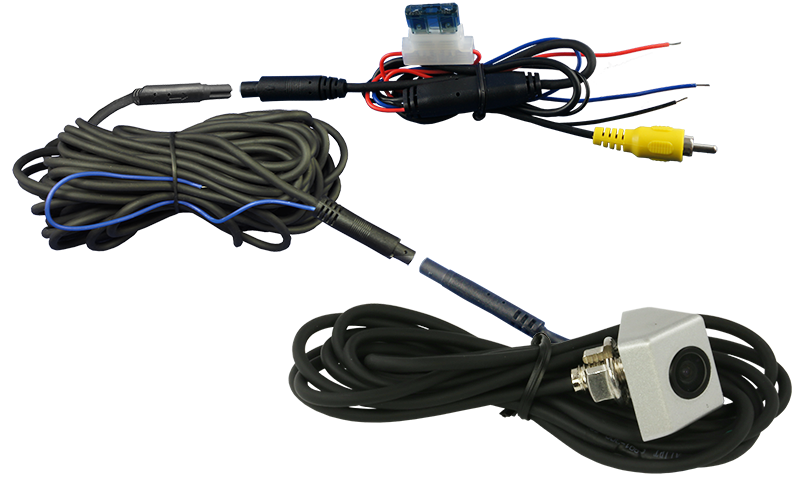

  • Video connection RCA male connector
  • Cable-length 10m
  • System cable with throughput, eg for reverse signal
  • Dimensions of housing without screwed tube WxDxH 25x26x19mm
  • Weight 180g
