RVC NTSC CMOS180°, front camera

Mini NTSC front camera with adjustable ball head and 2 bodies.
€126.00 EUR

RVC NTSC CMOS180°, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Mini NTSC front camera with adjustable ball head and 2 bodies. Diagonal viewing angle: 180°.

  • Sensor: CMOS 1/4 inch HD NTSC.
  • Resistance standard IP 69K.
  • Cable length: 9 m.
  • Video RCA connector.


DESCRIPTION

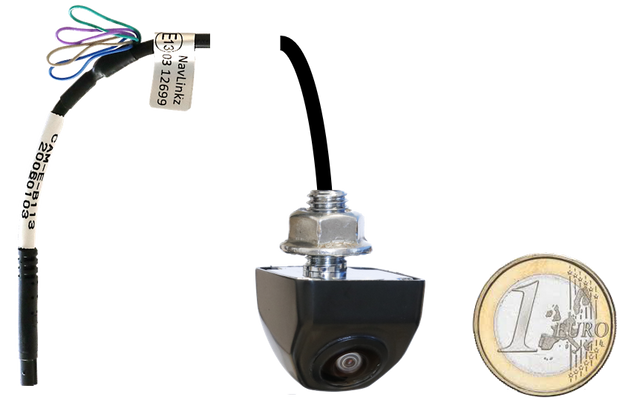

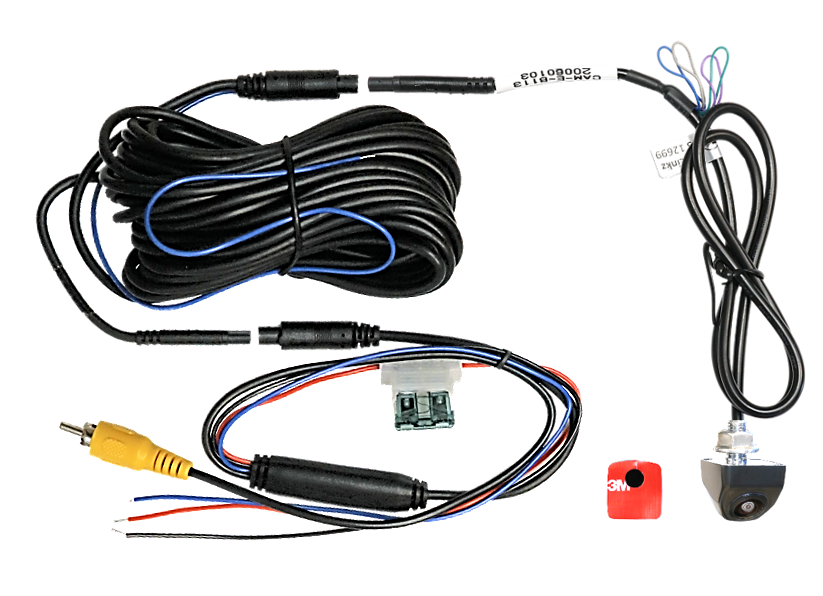

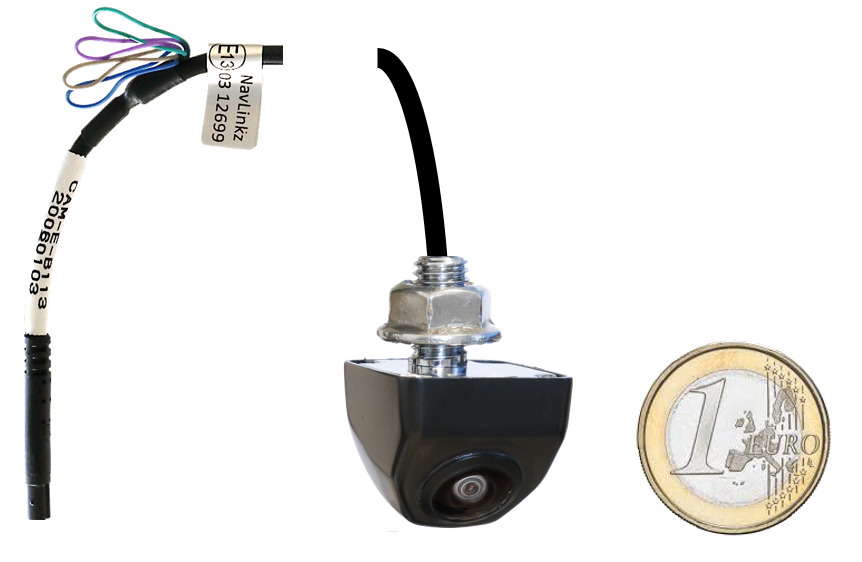

Mini NTSC mount-under-front- and rear-view camera in black metal housing. Simple installation through threaded tube with cable guide and counter nut. Horizontal base frame and vertical mounting possible. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

TECHNICAL DATA

TECHNICAL DATA

Product features

  • Mini camera NTSC in metal housing (black)
  • Cable-guided thread tube with counternut
  • System cable with throughput, eg for reverse signal
  • Horizontal mount-under and vertical mount-on possible
  • Mirroring can be switched off - suitable also as front camera
  • Sensor type CMOS 1/4 inch HD NTSC low-light sensitive
  • Bezel F1.2
  • Minimum illumination 0.01Lux, 800 TV lines
  • Angle horizontal=140°, vertical=105°, diagonal=180°
  • Guide-lines‘ width selectable between car and truck
  • Guide-lines can be switched off
  • Protection class IP 69K
  • Suitable for permanent operation (ACC)
  • Video connection: RCA male connector
  • System cable of camera: 4pin 3V


Dimensions

Camera housing (without thread tube) 25 x 27.7 x 22mm (W x D x H)
Diameter camera connector 4.5 mm
Total cable length 9.00am



Specifications

Operating voltage +12V/24V DC (6~28V)
Current consumption 50mA
Operating temperature -30°C to +75°C
Storage temperature -40°C to +80°C
