RVC NTSC CMOS210°, front camera

Mini NTSC front camera with adjustable ball head and 2 bodies.
€145.00 EUR

RVC NTSC CMOS210°, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

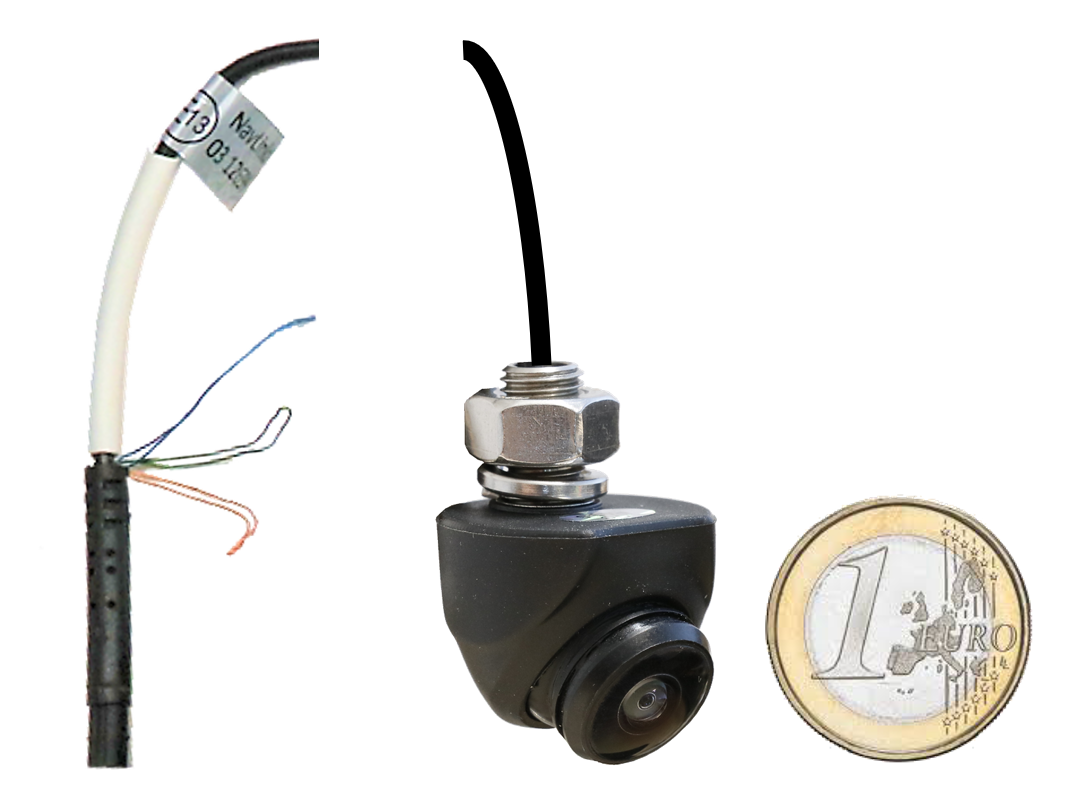

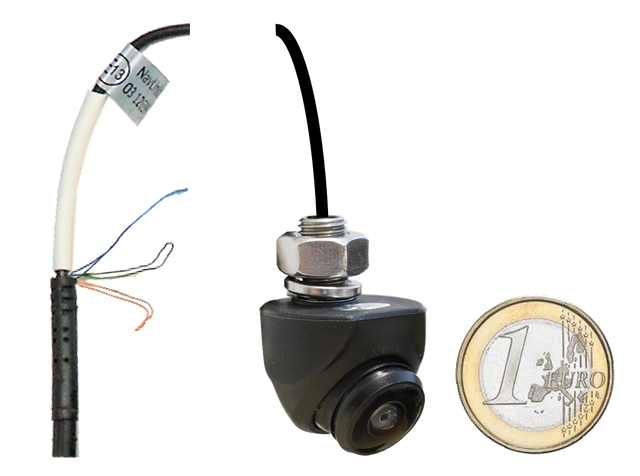

Mini NTSC front camera with adjustable ball head and 2 bodies. Diagonal viewing angle: 210°.

  • Sensor: CMOS 1/4 inch HD.
  • Resistance standard IP 69K.
  • Cable length: 8.7 m.
  • Video RCA connector.


DESCRIPTION

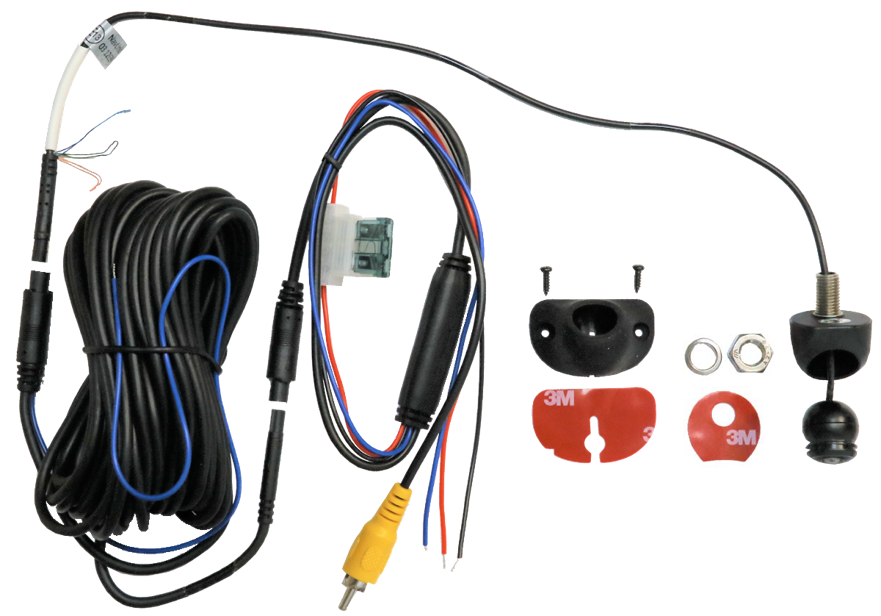

Mini NTSC front and rear-view camera with adjustable ball head with 2 housings. Simple installation through threaded tube with cable guide and counternut (housing 1) or screw or adhesive housing (housing 2). Horizontal mount-under and vertical mount-on possible by rotating the ball. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

TECHNICAL DATA

TECHNICAL DATA

Product features

  • Mini ball camera NTSC (black) with 2 housings
  • Housing 1: Cable-guided thread tube with counternut
  • Housing 2: Screw or glue fixing
  • Optional housing 3: Rubber ring for in-mount (Article No. HD-B168-02 must be ordered separately)
  • Horizontal mount-under and vertical mount-on possible (by rotating the ball)
  • System cable with throughput wire, eg for reverse signal
  • Mirroring can be switched off - suitable also as front camera
  • Sensor type CMOS 1/4 inch HD low-light sensitive
  • Bezel F1.2
  • Minimum illumination 0.01Lux, 800 TV lines
  • Angle horizontal=180°, vertical=125°, diagonal=210°
  • Guide-lines can be switched off
  • Guide-lines‘ width selectable between car or truck
  • Protection class IP 69K
  • Suitable for permanent operation (connection to ACC)
  • Video connection: RCA male connector
  • System cable of camera: 4pin 3V

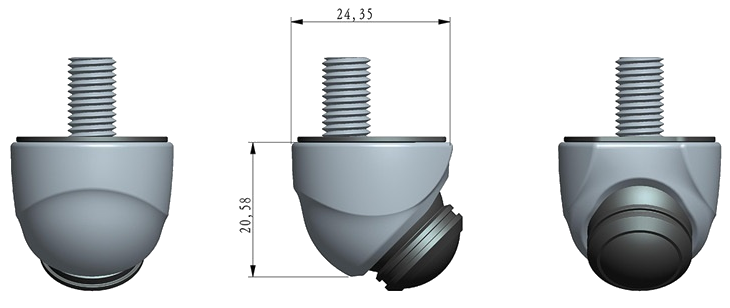

Dimensions

Camera housing without thread tube (housing 1) 24.2 x 24.35 x 22mm (W x D x H)
Diameter camera connector 4.5 mm
Total cable length 8.70 years



Specifications

Operating voltage +12V/24V DC (6~28V)
Current consumption 50mA
Operating temperature -30°C to +75°C
Storage temperature -40°C to +80°C
