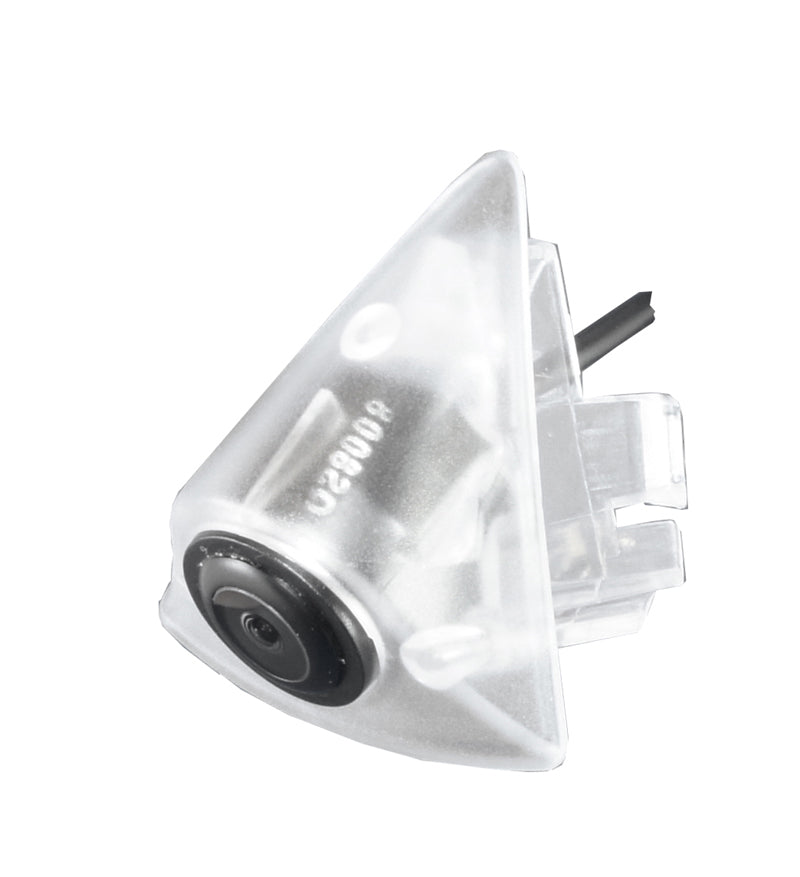

RVC VSC-E-VN100, front camera for VW cars

Super small front camera for VW cars.
€165.00 EUR

RVC VSC-E-VN100, front camera for VW cars - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Super small front camera for VW cars.

  • Sensor: 1/4 CMOS.
  • Viewing angle: 140 degrees.
  • Resistance standard IP68.
  • Video RCA connector.

DESCRIPTION

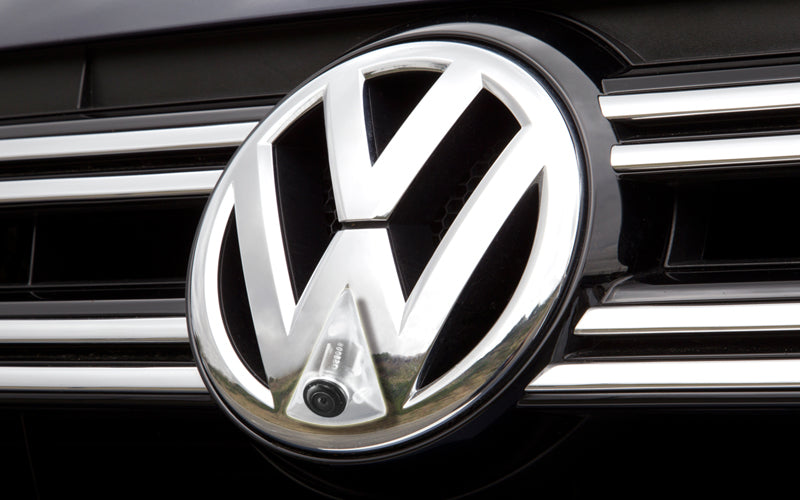

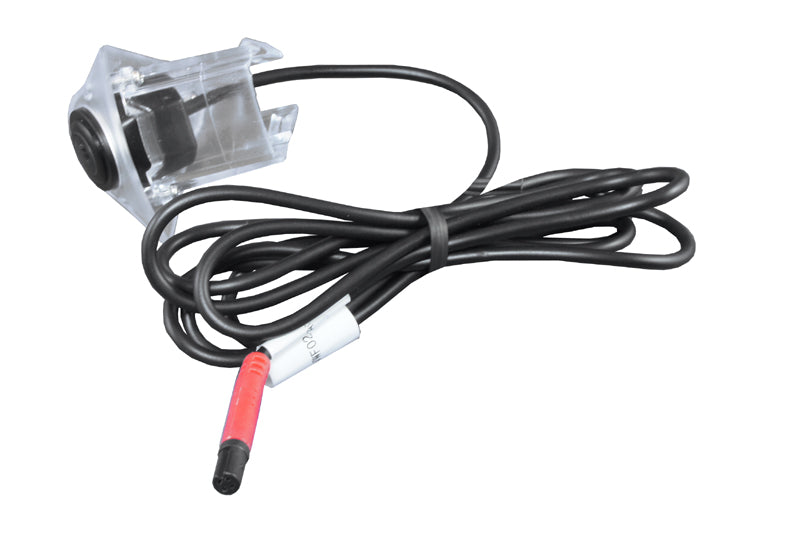

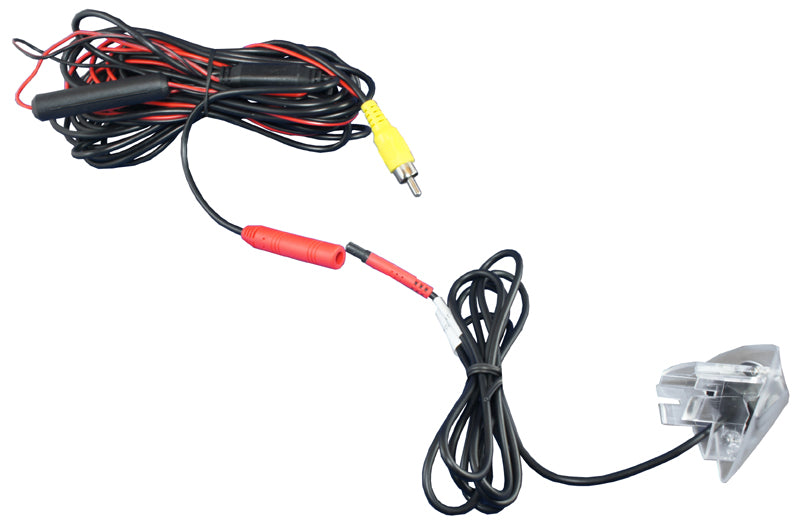

NavLinkz vehicle-specific front camera for integration into the VW logo of the front grill. Compatible with many newer VW vehicles with open spaces in the logo. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, eg power supply or rear-view camera signal.

TECHNICAL DATA

TECHNICAL DATA

  • Sensor-type 1/4 CMOS
  • NTSC format
  • Mirroring (fixed)
  • Parking guide lines switchable
  • Angle horizontal 110°, vertical 90°, diagonal 140°
  • Water resistance IP68
  • Connector cable approx. 7 years
  • Video input RCA connector
  • Fuse 2A



Compatibility


Mature Model
VW many new VW-models with backfill at the emblem


Dimensions


Overall
 43 x 49 x 47 mm (W x H x D)
Build in hole
 27 x 33mm (W x H)


NOTICE: Please make sure to check if the size and attachment points of the camera fit the vehicle!


Specifications


BATT/ACCrange 10V - 15V
Power 0.2A@12V
Power consumption 1.5W
Weight incl. cable approx. 78 years
Temperature range -20°C to +85°C
