Helix

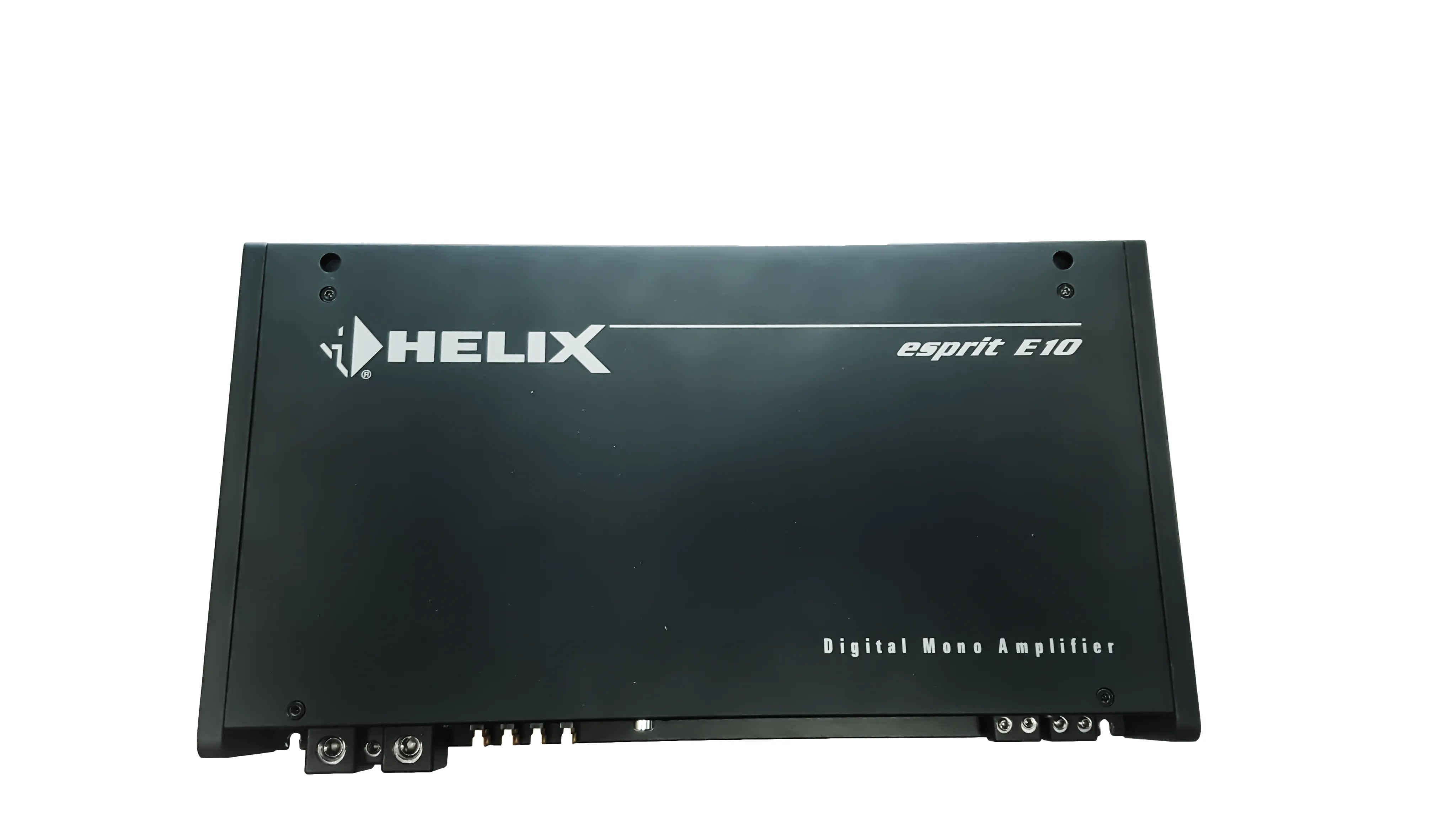

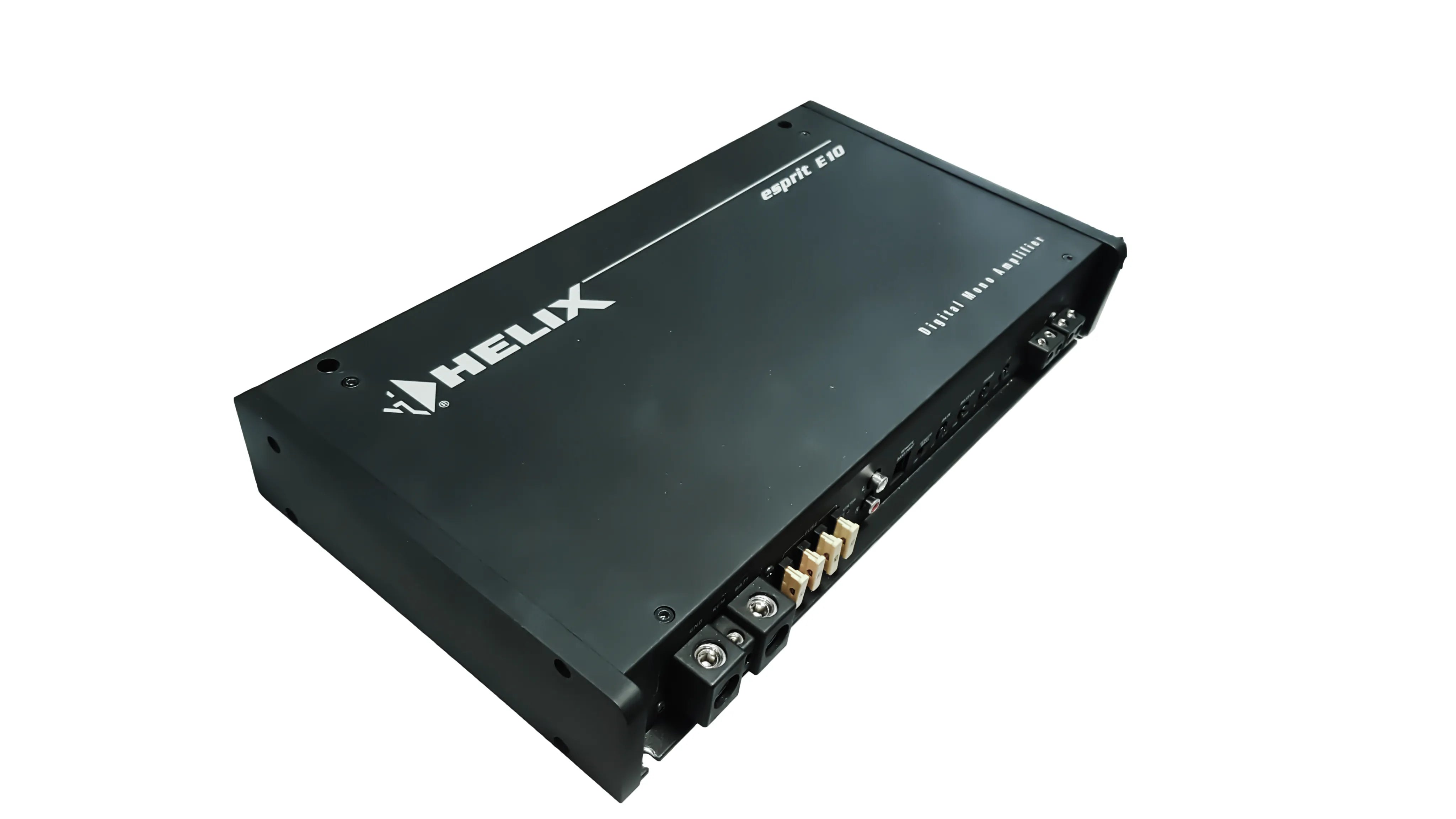

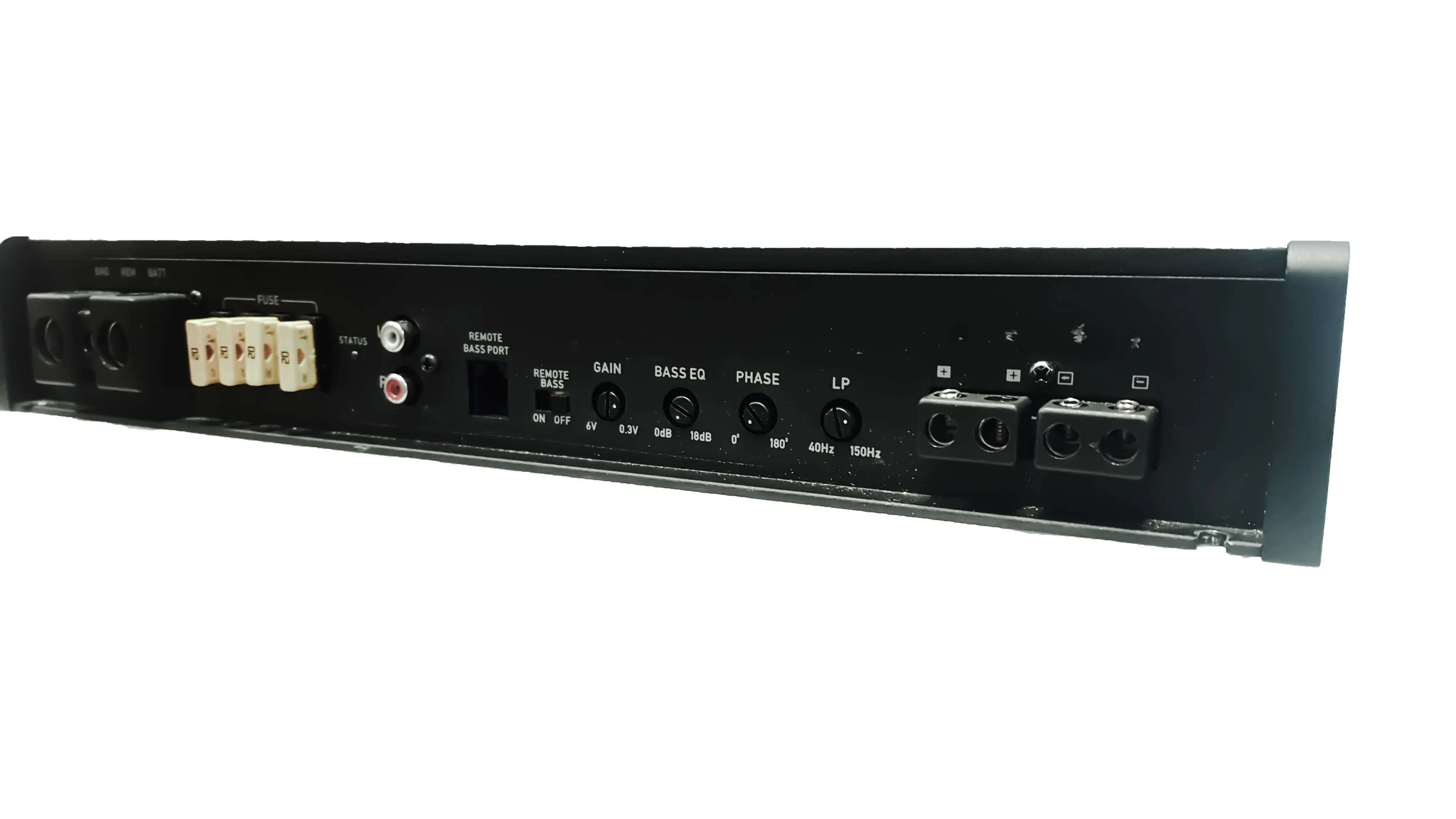

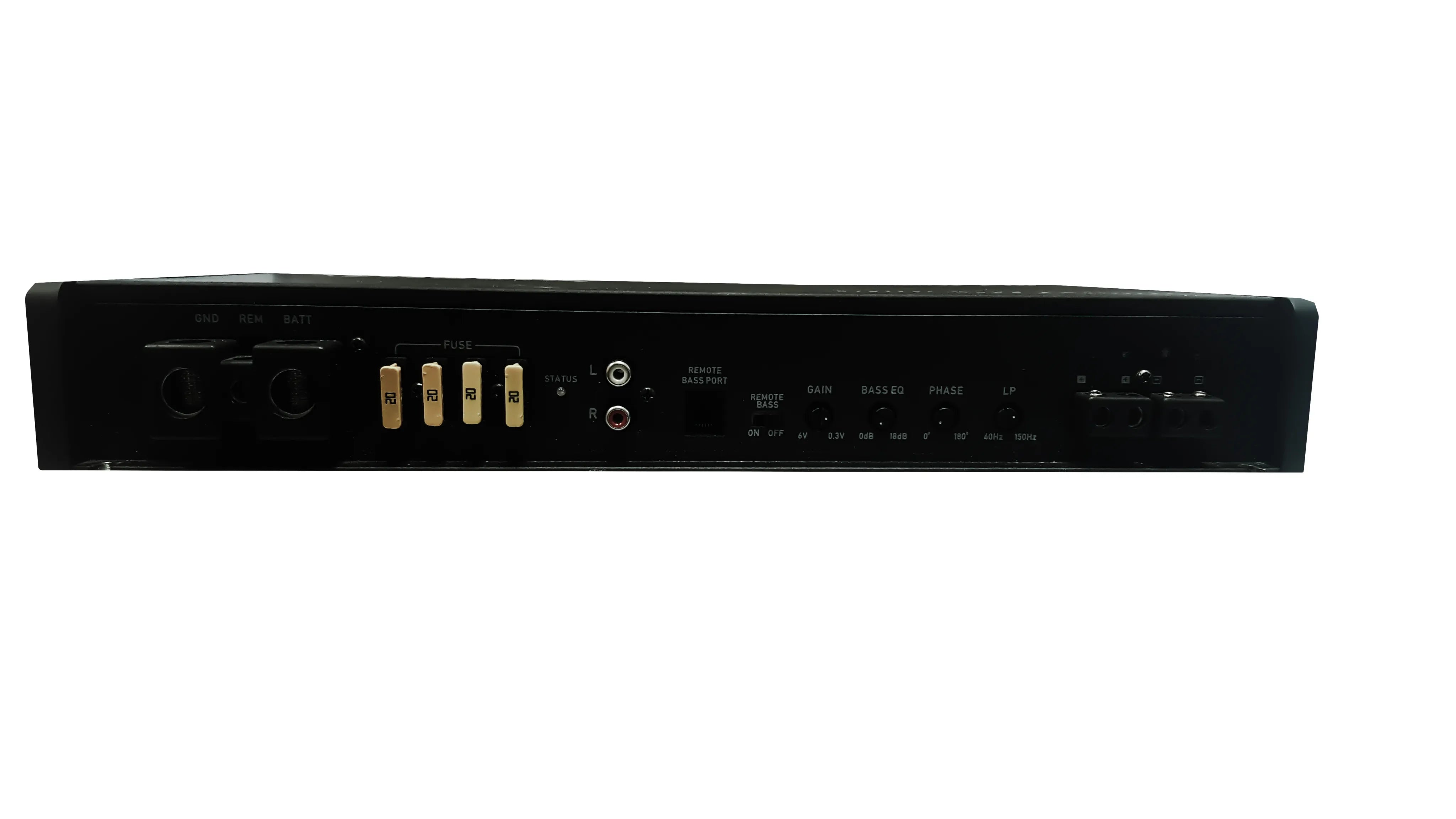

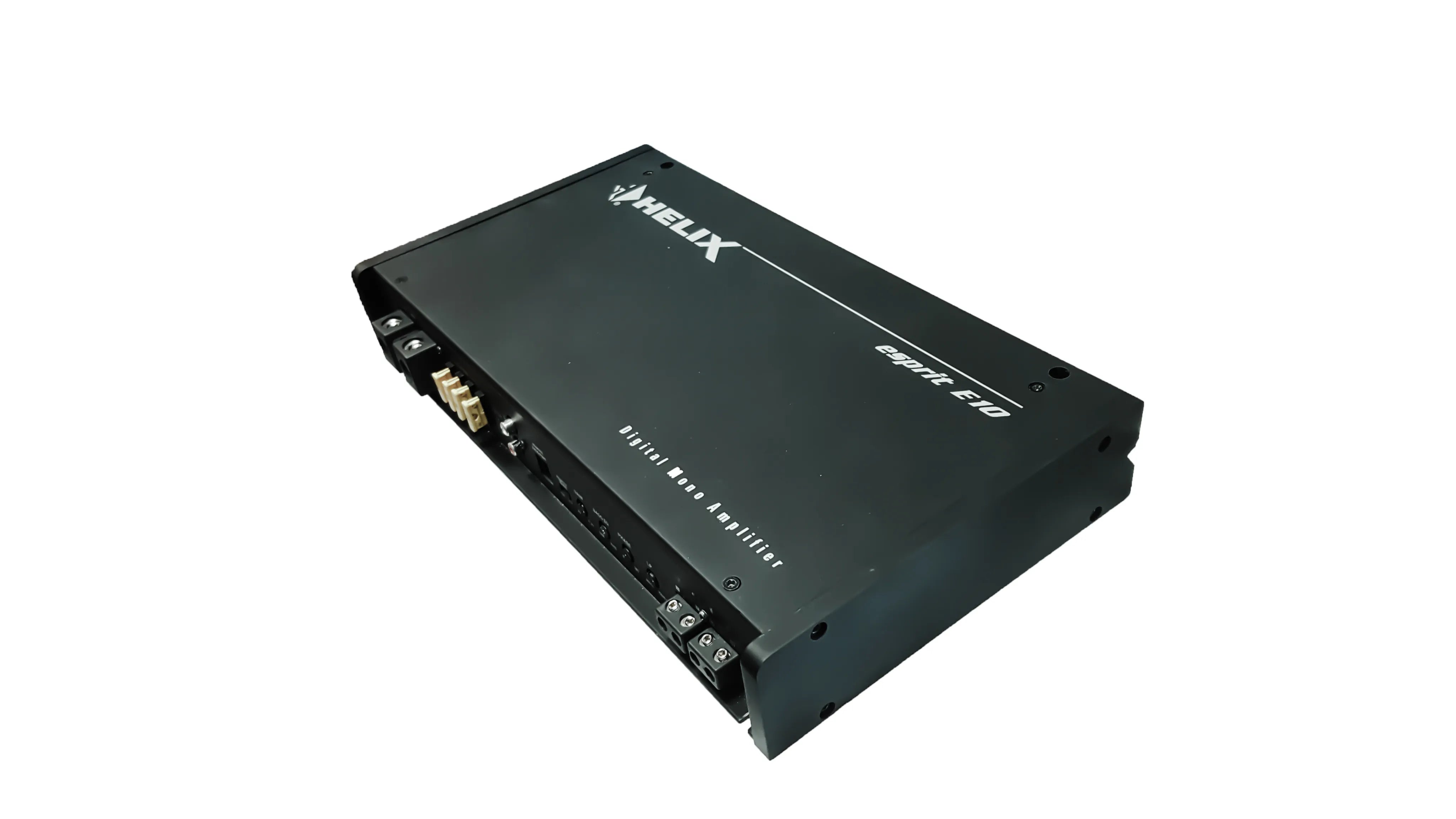

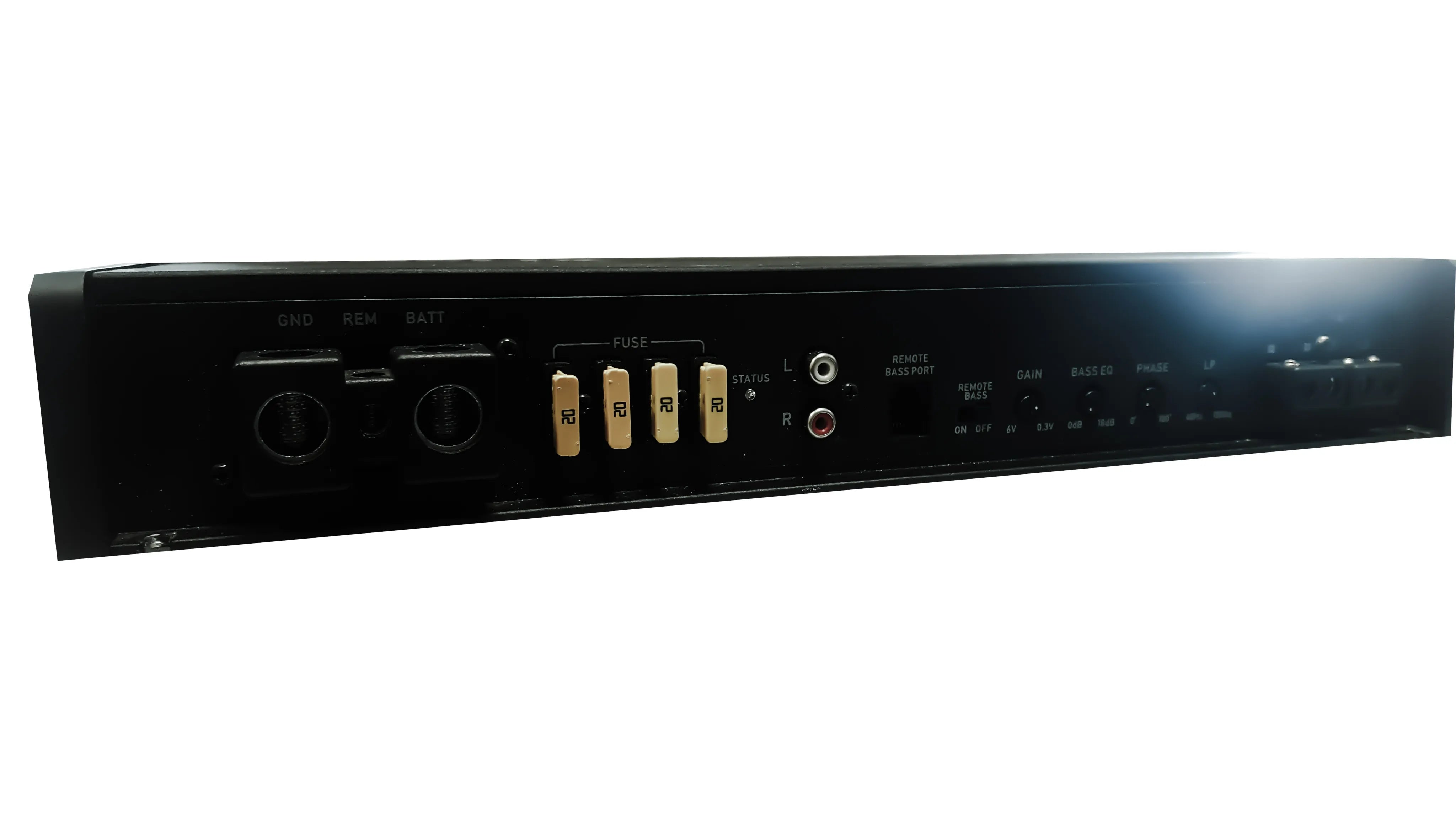

Digital 1-channel sound amplifier Helix Esprit E10

Power RMS/MAX: @ at 4 ohms / 13.
€387.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Power RMS/MAX:
    @ at 4 ohms / 13.8V - 1 x 350W
    @ at 2 ohms / 13.8V - 1 x 550W
    @ at 1 ohm / 13.8V - 1 x 700W
  • Frequency range: 27 Hz - 150 kHz
  • Damping factor: > 150
  • Input sensitivity: 0.3 - 6 Volts
  • Dimensions: 58 x 395 x 217 mm / Weight: 4.5 kg

FUNCTIONS

  • RMI - Real Mixed Input, the system for forming an optimized input signal from the left and right channels;
  • Built-in electronic crossover;
  • Input 4 V / 6 V for connection of various signal sources;
  • Power source for the production of powerful sound within a small space;
  • Silent "smart" on / off prevents transients, even if there are other connected devices;
  • The system protects against overloads in temperature and current, as well as from voltage drops;
  • Separate loudspeaker protection system with current limiter to protect against short circuit to the car body, reduce impedance and improper connection;
  • PCB with double-sided copper coating for improved transmission of powerful and weak signals and protection from vibrations;
  • ADC - Anti Distortion Choke. System of distortion suppression;
  • Precision components with 1% tolerance for high sound quality and maximum power;
  • Connectors with gold coating 24 carats to reduce signal loss and supply voltage;
  • CPS (Color Protection System) - color indication of protection systems;
  • Optimized heatsink for increased efficiency;
  • LPF 40 - 150 Hz;

        TECHNICAL DATA

        • Total harmonic distortion (THD) < 0.02 %
        • Signal-to-noise ratio > 90 dB
