Sonoff

SONOFF SPM-4RELAY, Smart energy metering system module with 4 relays

The SPM-MAIN is the main unit required to interface with the SPM-4RELAY relay units.
€59.00 EUR

SONOFF SPM-4RELAY, Smart energy metering system module with 4 relays - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. SPM instruments are excellent power meters, especially for use in larger buildings such as shopping centers or offices.

  • Dimensions: 143 × 90 × 67 mm.
  • Brand: Sonoff.
  • WiFi standard: 2.4 GHz, 802.11b, 802.11g, 802.11n.
  • Power supply: 100 - 240V, 50 Hz, 60 Hz, alternating current.
  • Accessories: Ethernet, LAN, power measurement, power measurement, power monitoring, SD card slot.

DESCRIPTION

The SPM-MAIN is the main unit required to interface with the SPM-4RELAY relay units. SPM instruments are excellent power meters, especially for use in larger buildings such as shopping centers or offices.

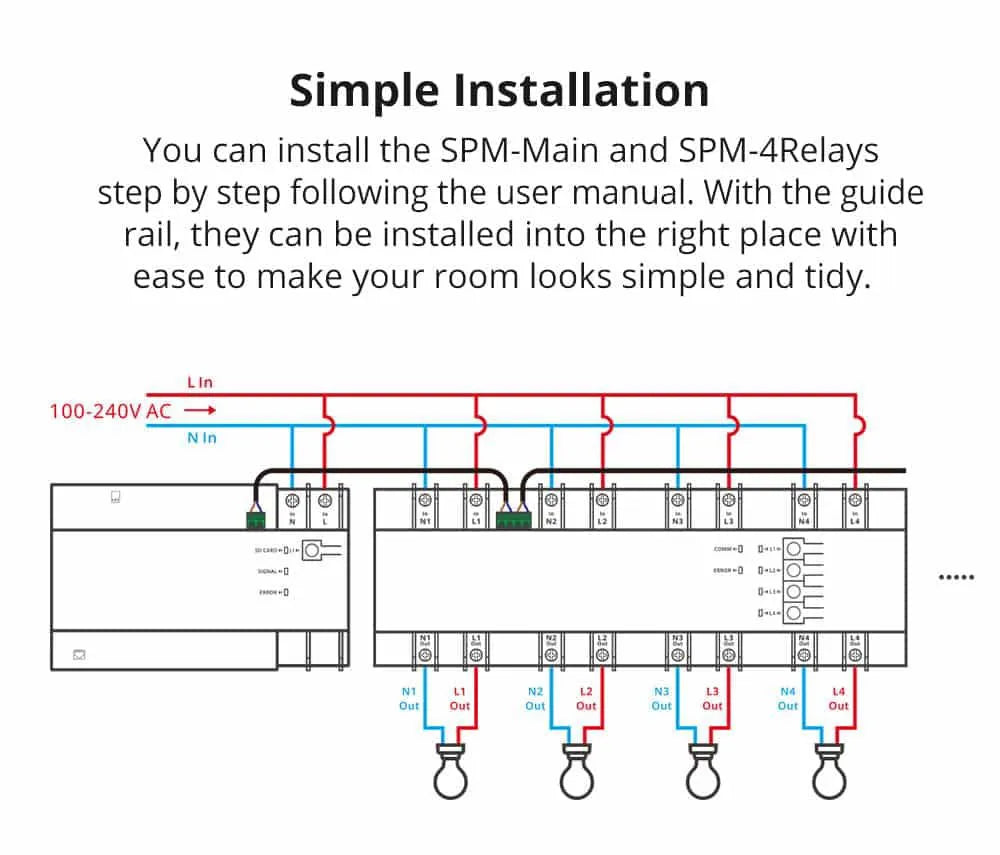

  • Power measurement (current, power, voltage) and switch for easy installation in fuse box
  • Compatible with DIN rail
  • Do not use this device as a fuse!
  • Up to 32 SPM-4RELAY units can be stacked with 4 relays each (so a total of 128 channels)
  • At least one 4-group relay block ( SPM-4RELAY ) is required
  • Each channel of the SPM-4RELAY device supports a maximum of 20 A
  • Can be connected via WiFi or Ethernet

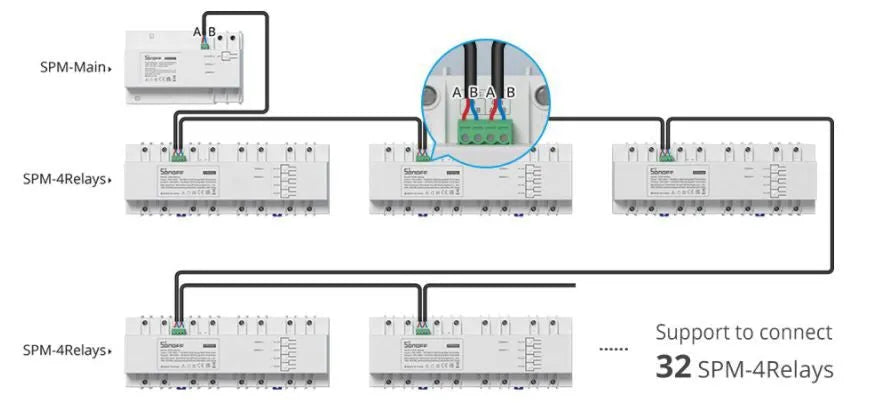

  • RS-485 communication between host and SPM-4RELAY devices
  • SD card slot for automatic power history storage (8-32GB SDHC card supported, not included). Can be retrieved via HTTP API.
  • Supported functions: LAN mode
