SounDigital

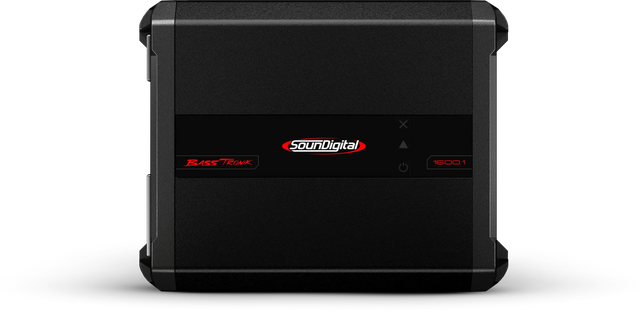

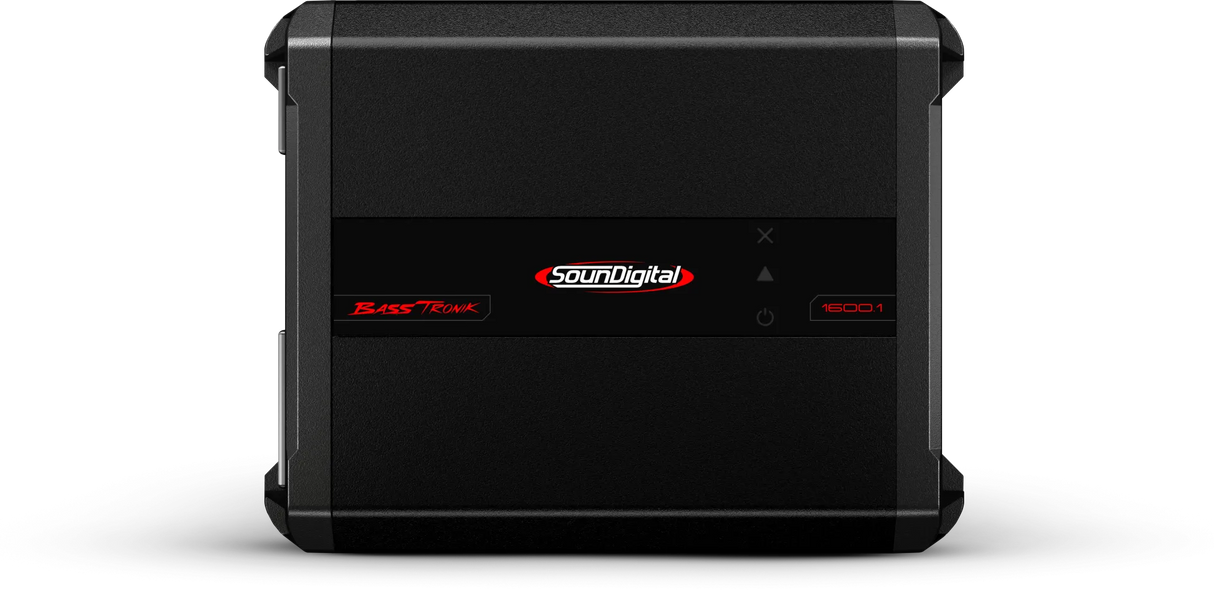

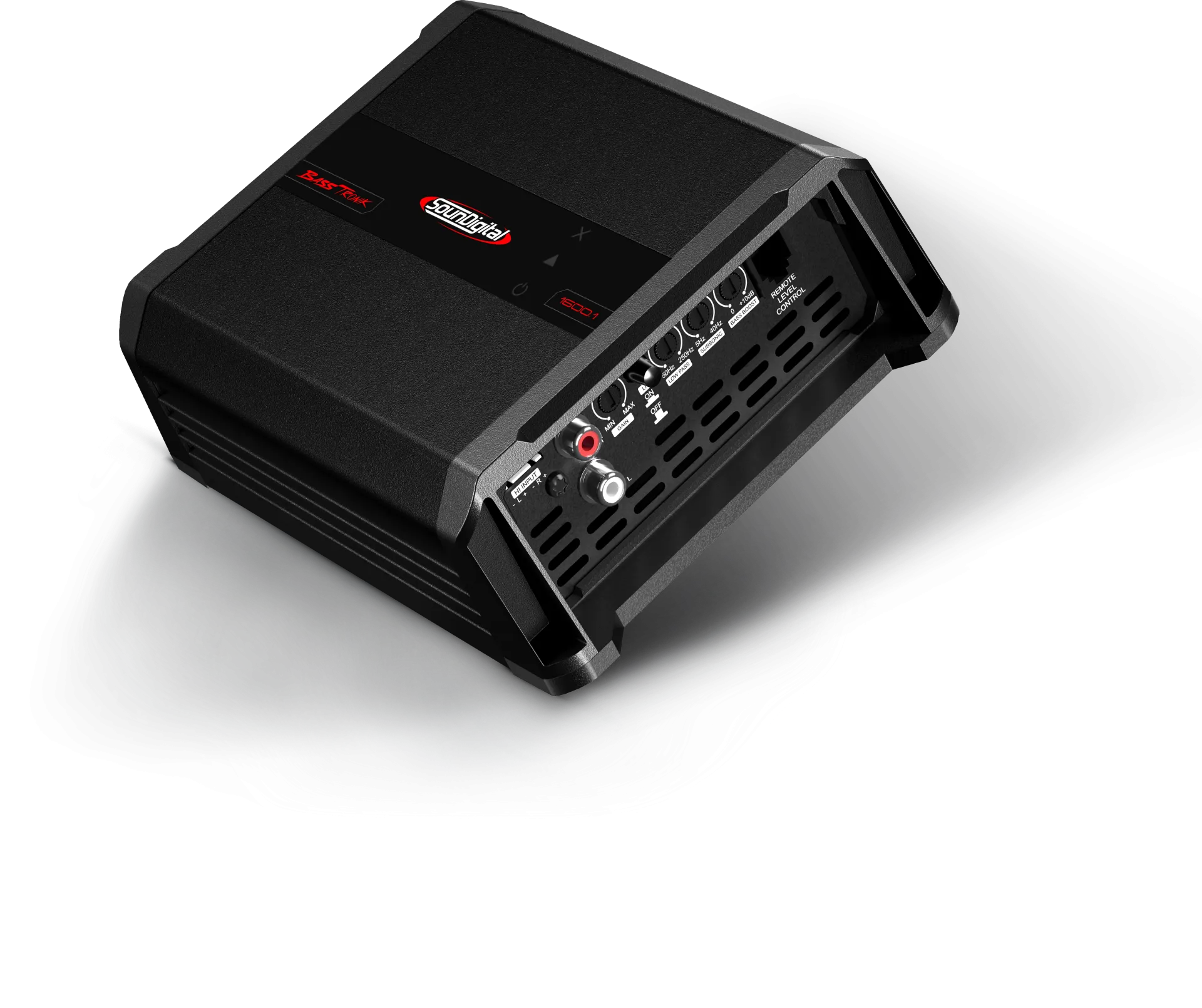

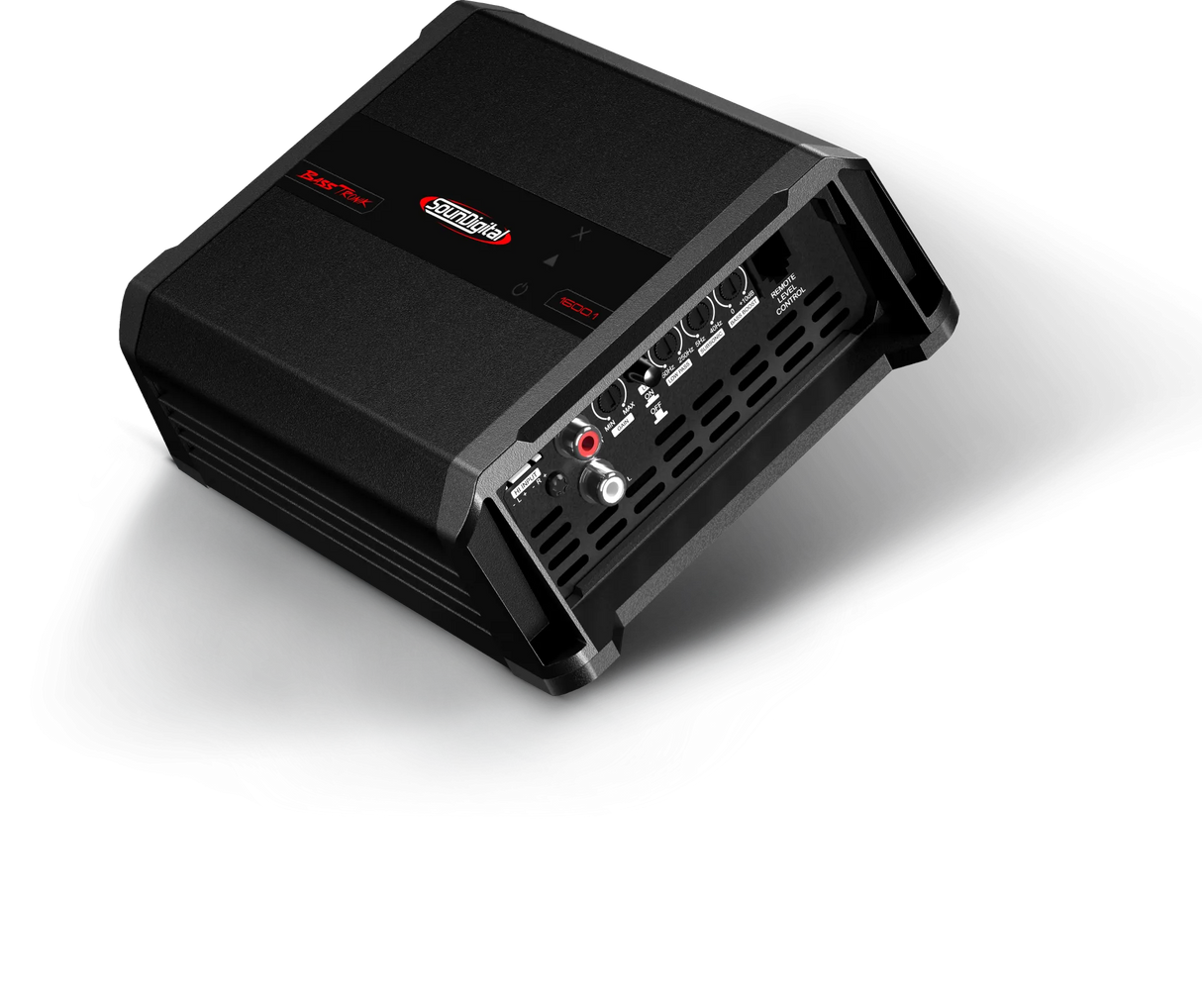

SounDigital 1600.1 BASSTRONIK - 1 Ohm

The Basstronik series is designed for more powerful and direct bass reproduction.
€329.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

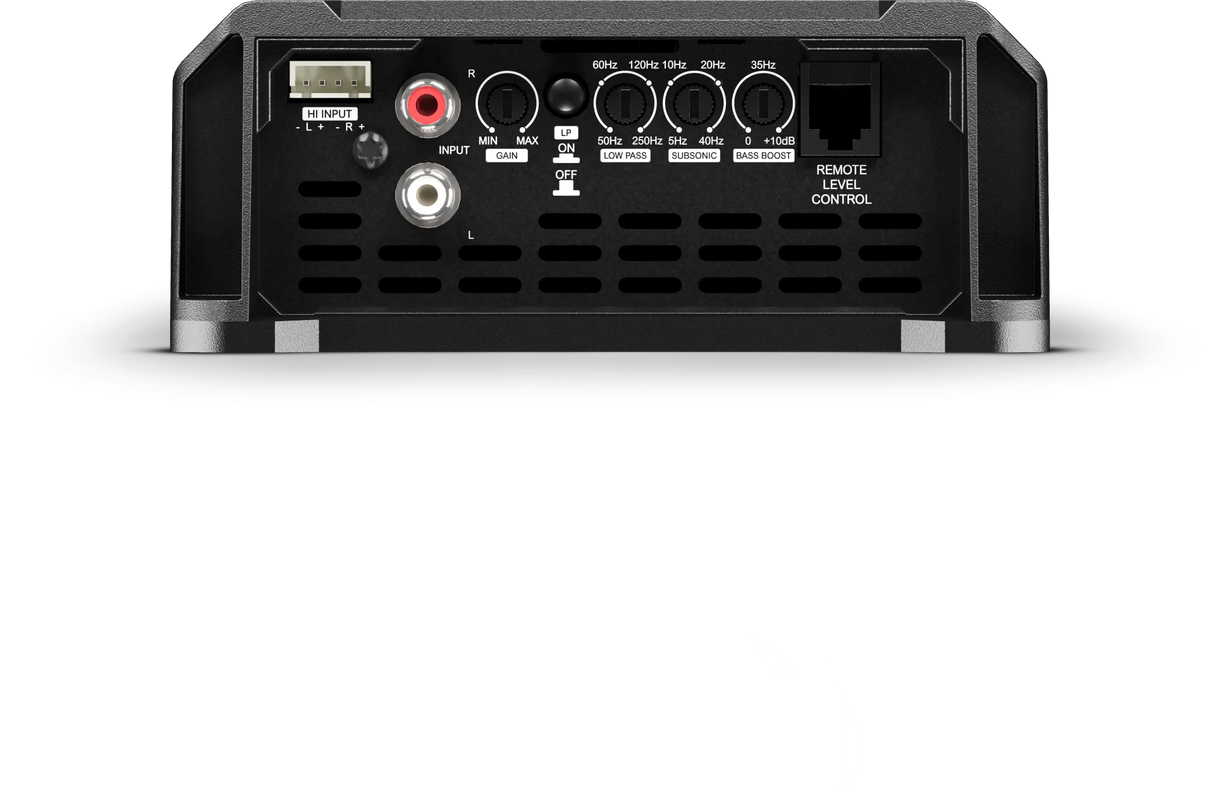

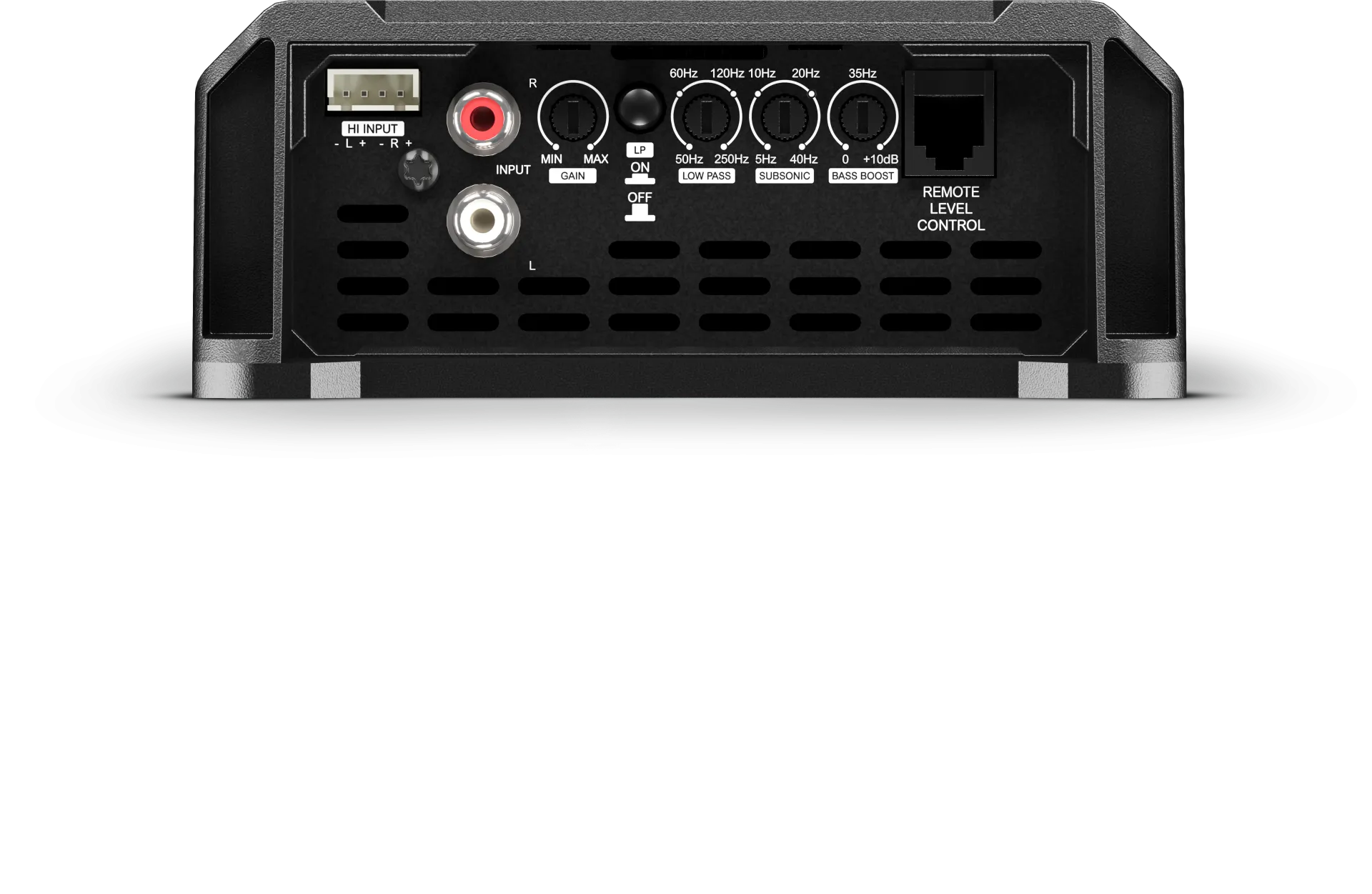

The new series includes, among other things, fixed adjustable low-pass and subsonic filters, which significantly facilitate control of the crossover frequency in the bass range.

With the bypass button, the amplifier can still be used for large speaker systems in full-range mode. SounDigital amplifiers deliver high power in a compact space, are easy to install, simple to use, and fit anywhere. These amplifiers are immune to heat issues; a well-thought-out cooling system and extremely high efficiency prevent overheating during music playback.

Specifications

Power @ 4Ω: 1 X 650 WRMS
Power @ 2Ω: 1 X 1000 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):
5Hz ~ 20kHz

Subsonic Filter:
5Hz ~ 40Hz

Low Pass Filter (12dB/octave):
50Hz ~ 250Hz

Bass Boost:
0dB ~ 10dB @ 35Hz

Input Sensitivity (RCA):
0.2V ~ 2V

Input Sensitivity (High Level input):
1.5V ~ 15V

Operating Voltage:
10V ~ 16V

Signal-Noise Ratio:
90.2dB

Current Draw (Music):
82A

Current Draw (Max):
164

Total Efficiency:
85%

Damping Factor:
2000

Recommended Fuse (Music):
100A

Recommended Battery:
120Ah

Power cable size:
35mm²

Speaker Cable size:
4.0mm²

Remote Cable size:
1.5mm²

Width:
136.2 / 5.4 in

Length:
180.1mm / 7.1 in

Height:
54.8 / 2.2 in
