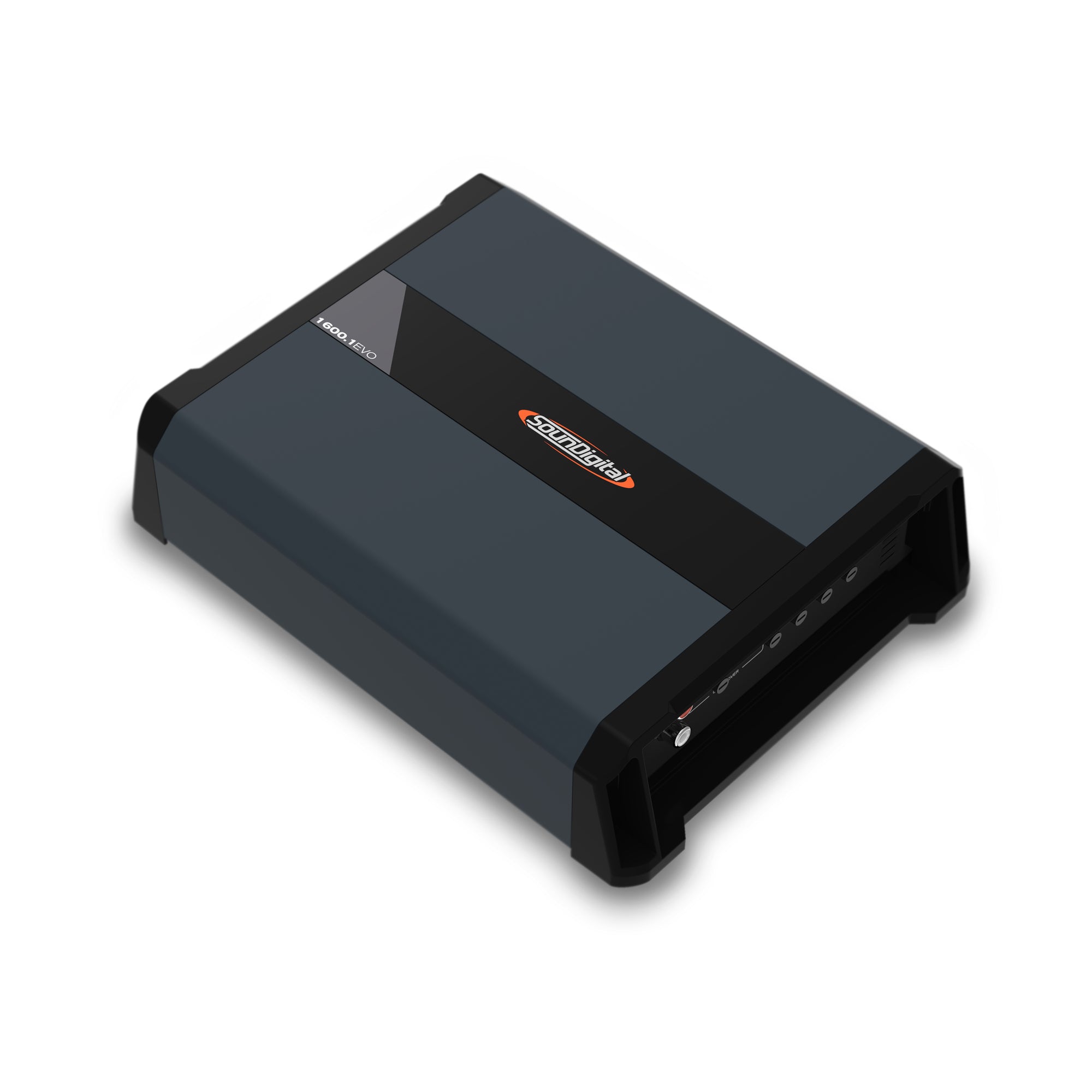

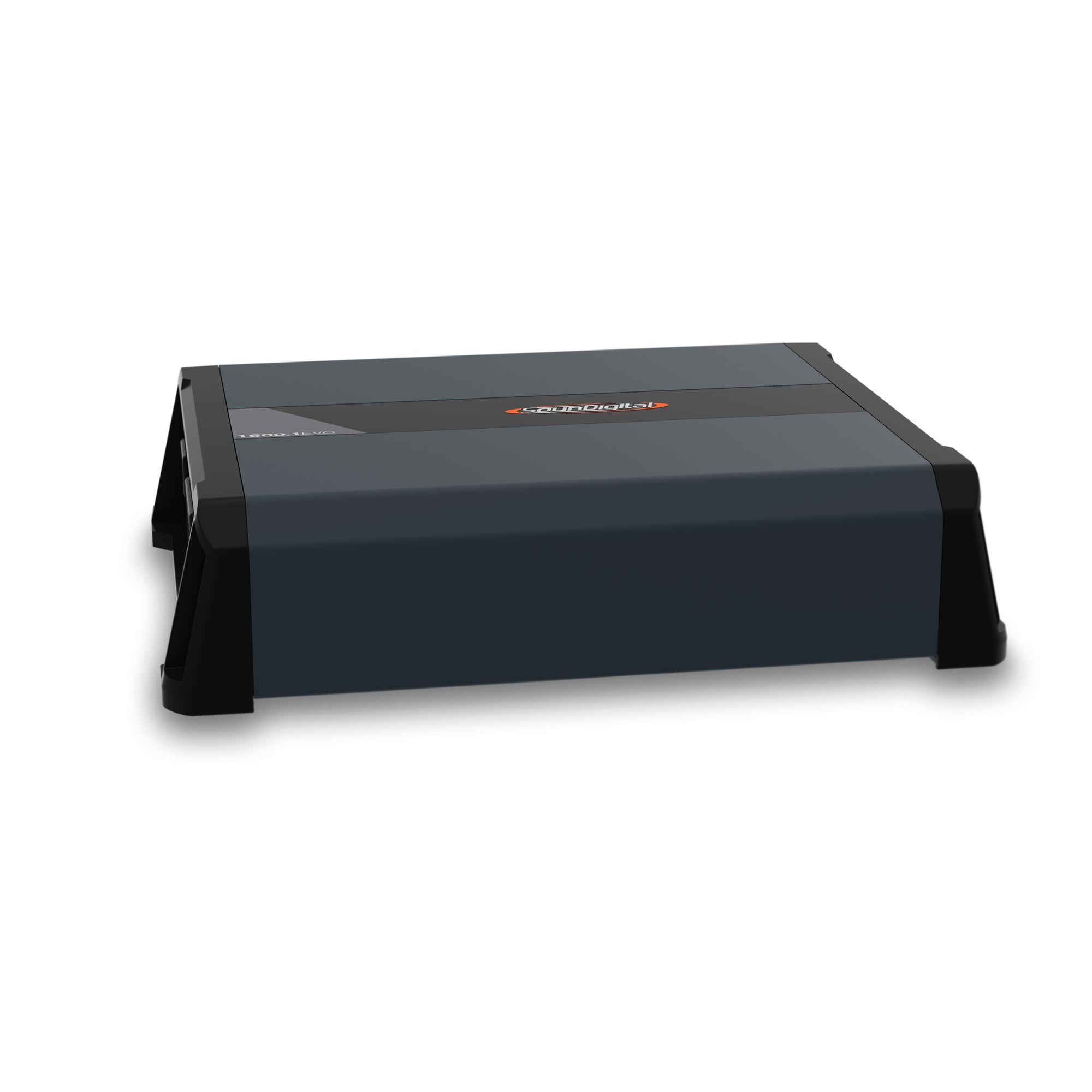

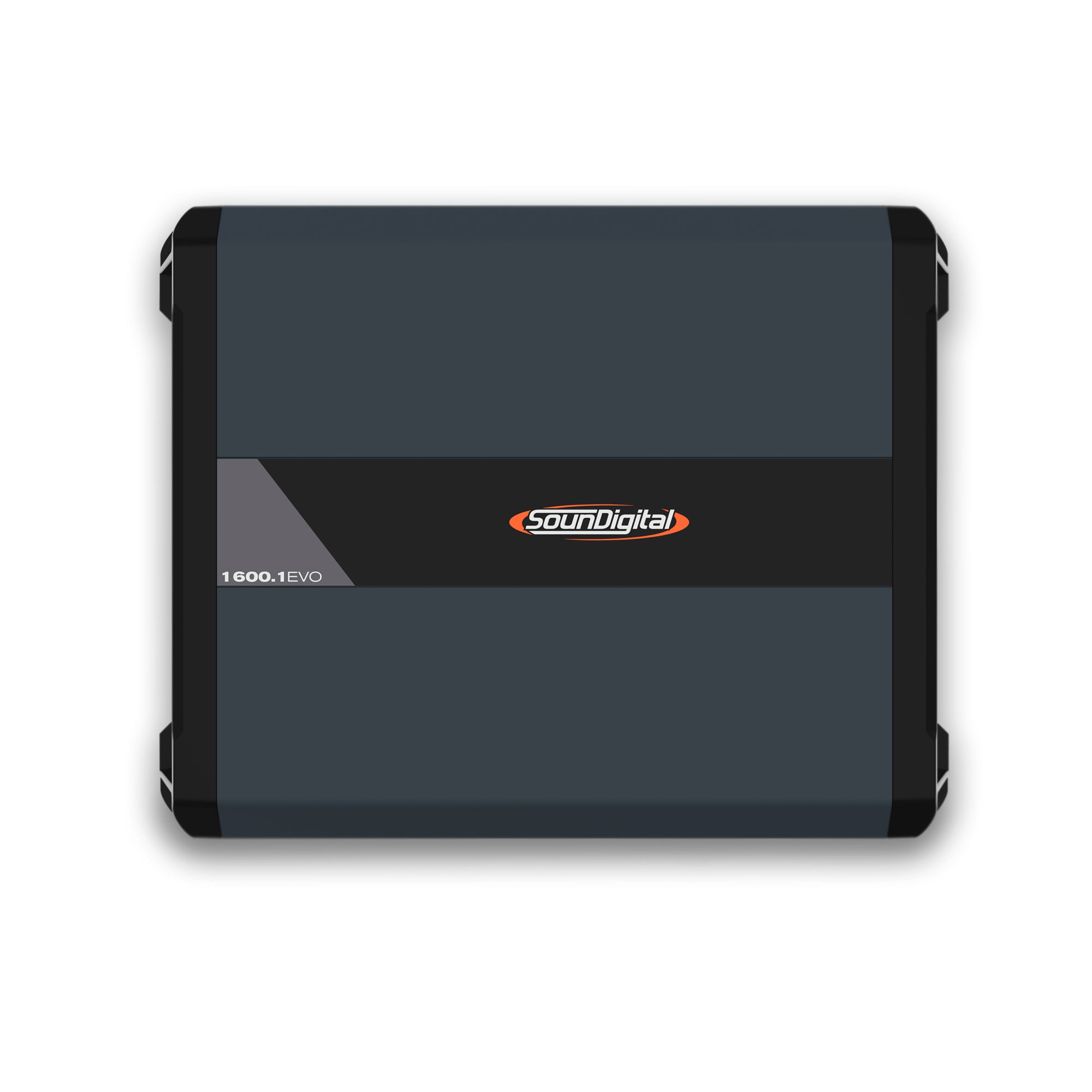

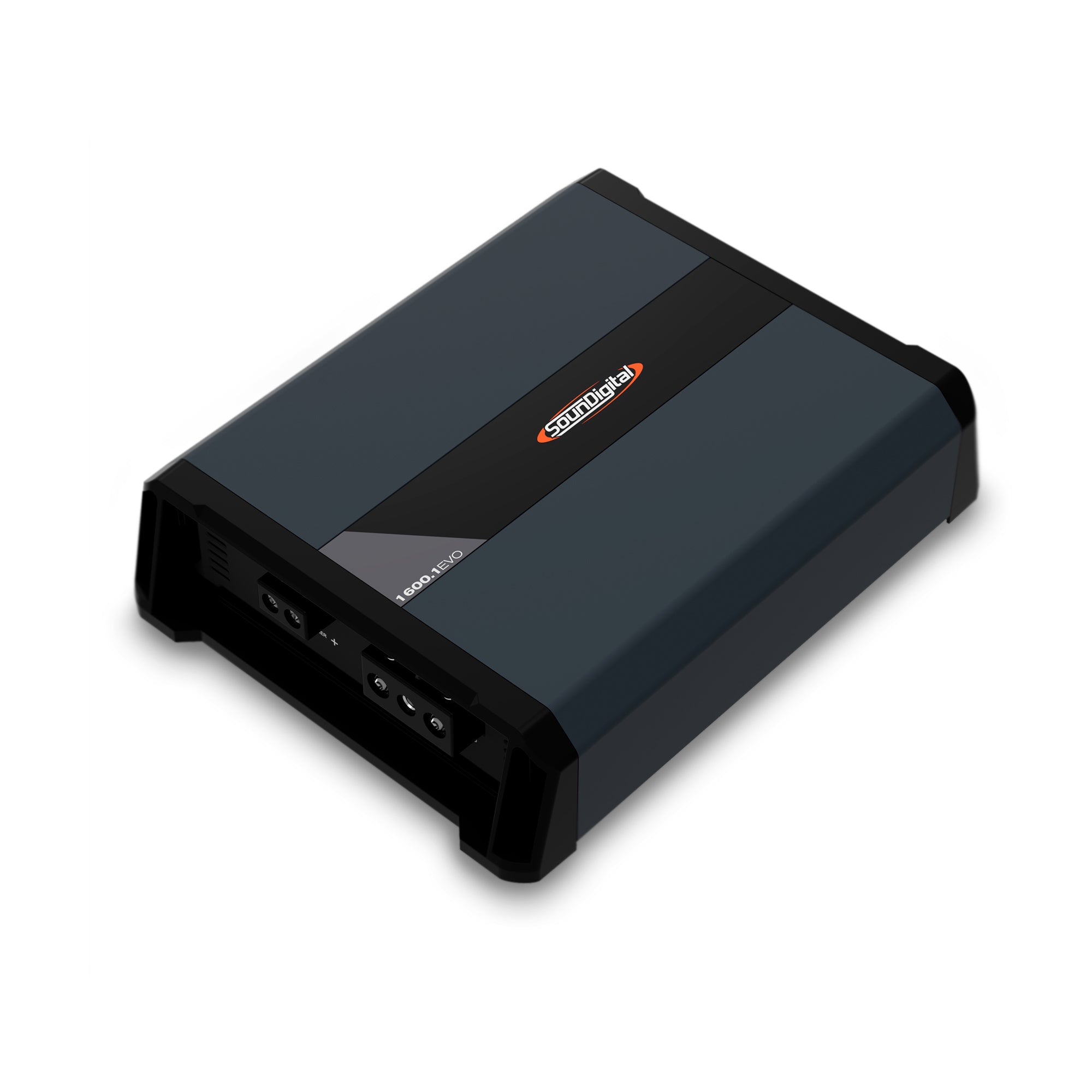

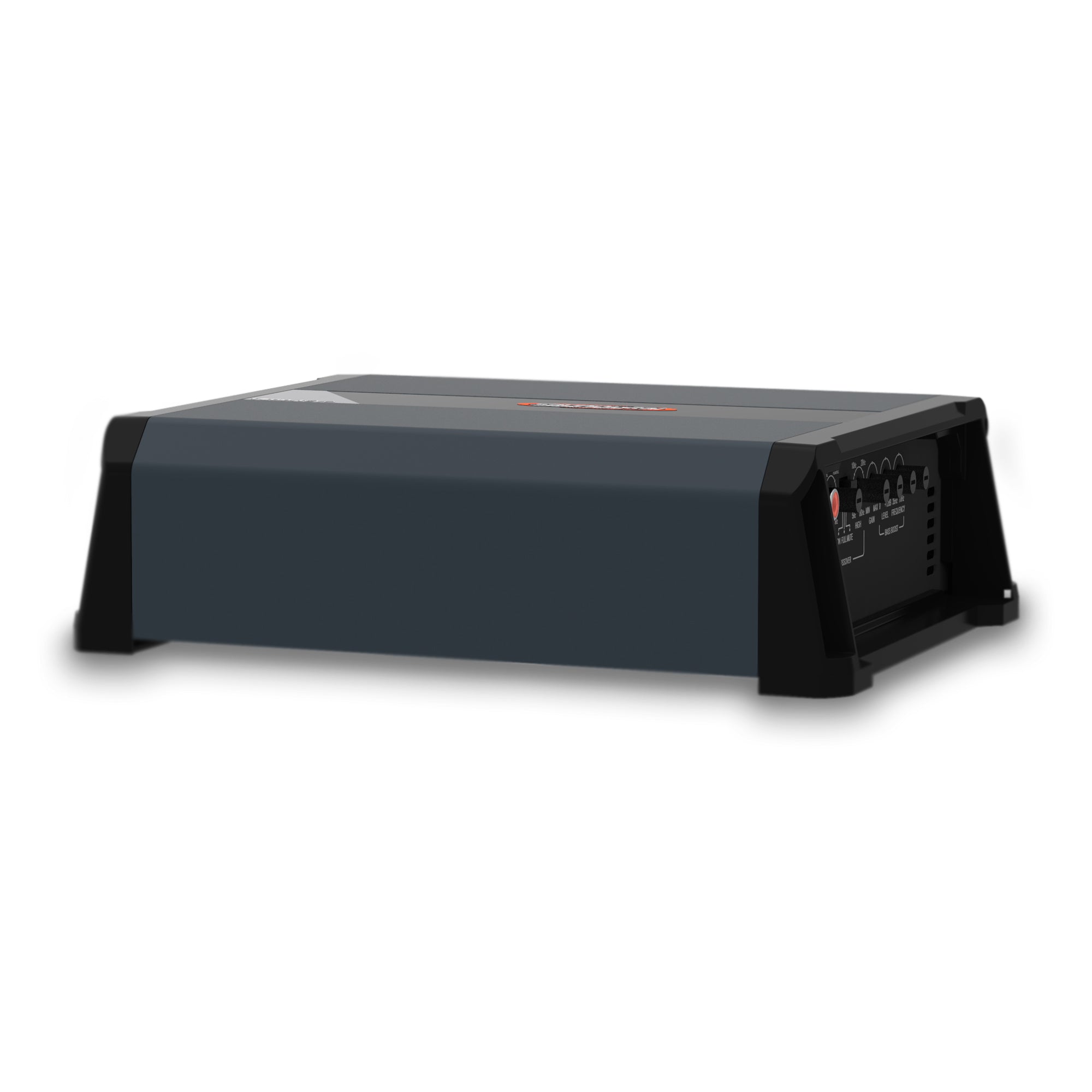

SounDigital 1600.1 EVO 4.0 - 1ohm

INFORMACIJA

SounDigital Evolution series amplifiers are changing the understanding of SOUND playback!
This amplifier brand quickly became one of the largest manufacturers in Brazil.
And it's no surprise, as every amplifier is designed and manufactured in their own factory.
The design team includes many well-known names from the so-called "Pancadao" builders, which are cars that play continuously and very loudly at outdoor events for extended periods.
This hobby presents significant challenges for amplifiers, and no compromises in the design are an option.
Also, Brazilian Hal Dos Reis holds the world sound pressure record of 184.6 dB, using the world's most powerful SD35000.1 12V amplifiers.

Special features:

- New Twin Source 2.0 power supply, which responds even faster to frequency changes, and a microprocessor-controlled protection circuit.
- NST microprocessor-controlled signal delivery, which further improved noise rejection and sound quality.
- Damping factor in all models above 1000, which is an important feature for a subwoofer amplifier.
- All models operate across the entire frequency range.
- Most models with power less than 3000W have less than 0.025% total harmonic distortion, making them suitable for use with both mid-range and high-frequency speakers.
- Models with power exceeding 3000W are recommended for subwoofers only, as the total harmonic distortion in these models rises to the level of a normal Class D amplifier.

Technical data

POWER RATING
12,6V: @ 1Ω: 1 x 1600 W RMS
12,6V: @ 2Ω: 1 x 880 W RMS
12,6V: @ 4Ω: 1 x 484 W RMS
14,4V: @ 1Ω: 1 x 2090 W RMS
14,4V: @ 2Ω: 1 x 1149 W RMS
14,4V: @ 4Ω: 1 x 632 W RMS

CROSSOVER
HPF: 5Hz - 80Hz
LPF: 50Hz - 500Hz

DIMENSIONS
L: 23,6cm
W: 18,1cm
H: 5,7cm

FREQUENCY
(-3dB): 5Hz-50Khz

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
