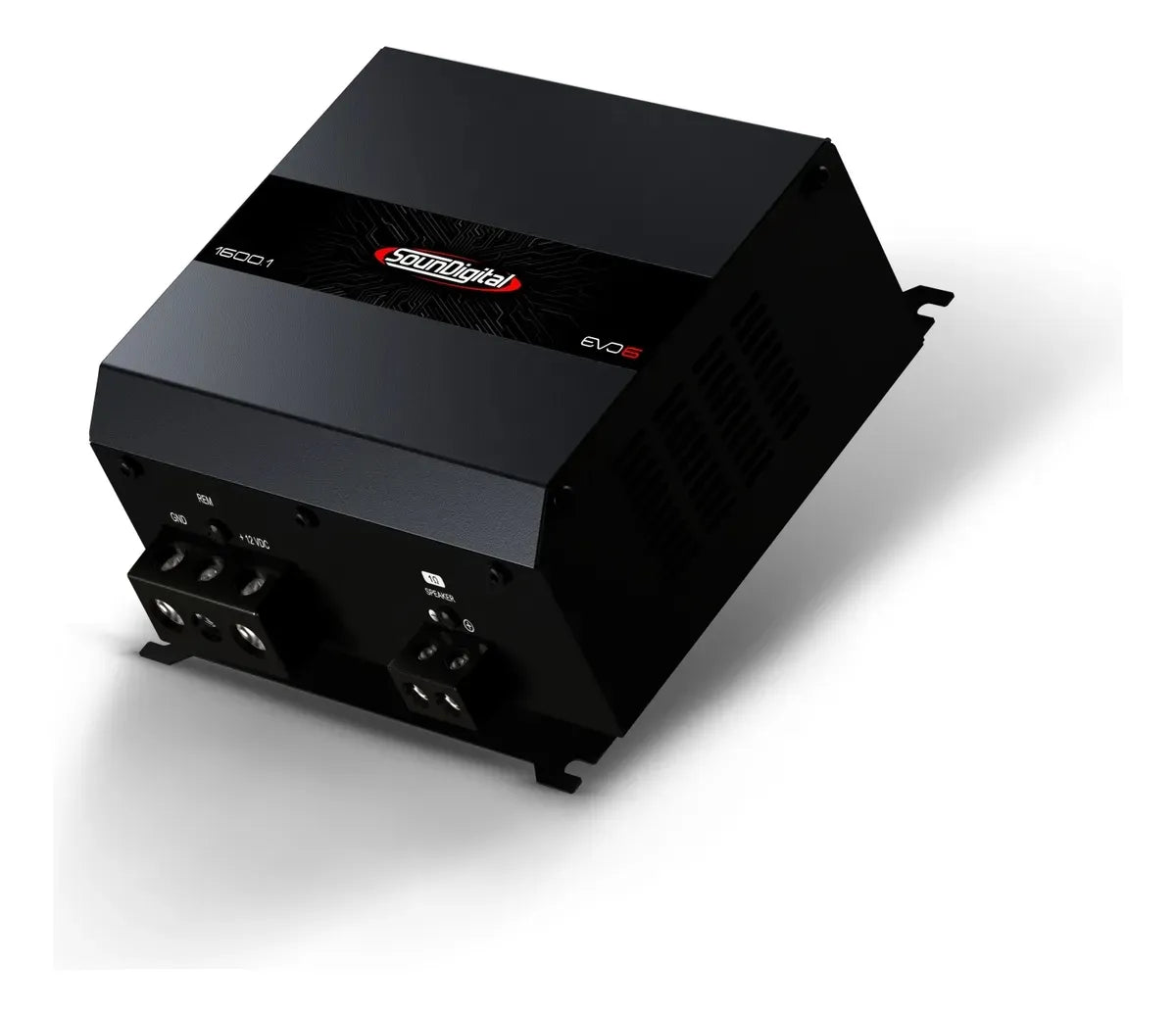

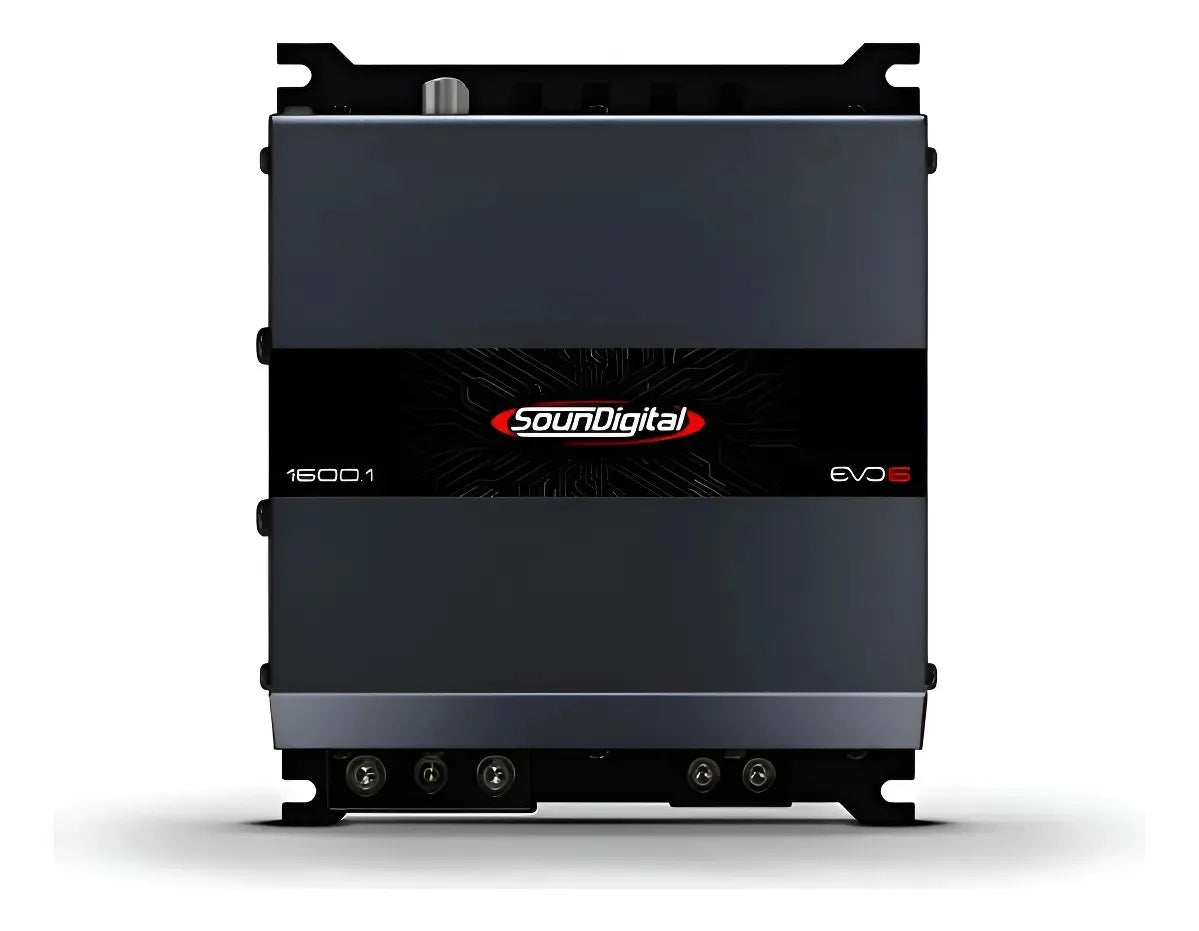

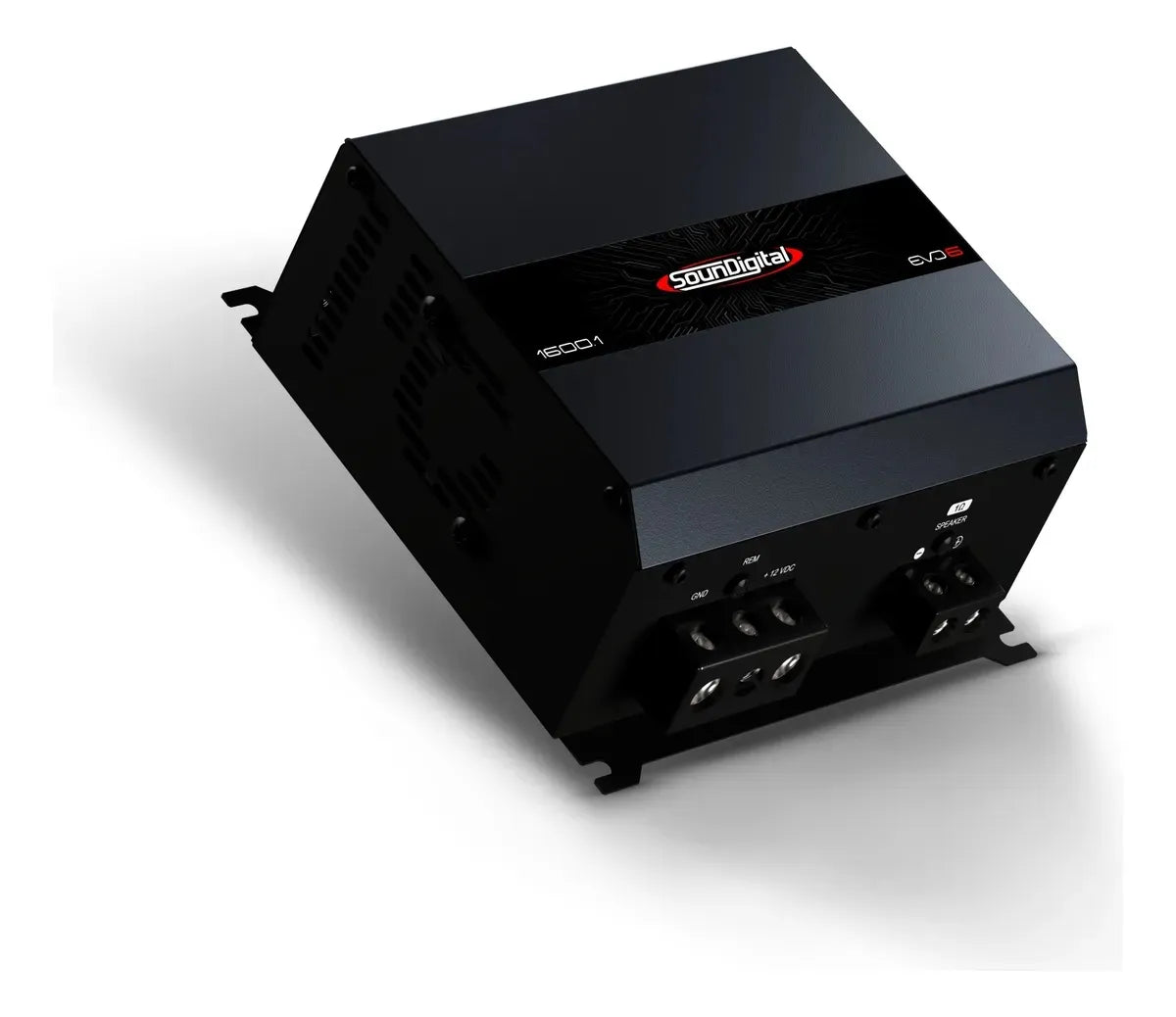

SounDigital 1600.1 EVO 6 - 1 Ohm

INFORMACIJA

Take your sound system to the next level with SounDigital EVO6 series amplifiers – compact size and high power in one package!

Never before has such high power been achieved from such small external dimensions. And still at a very affordable price!

The damping factor of all EVO 6 models exceeds 1000!

High power levels consume a lot of current, and in many cars, voltage drops during music peaks and when playing loudly become a problem.

Soundigital amplifiers have taken this practical situation into account, allowing the operating voltage of the amplifiers to be as low as 9 volts!

SounDigital today operates very rarely as an amplifier manufacturer,
ALL models are designed and manufactured in their own production facility in Brazil.

Technical specifications

Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

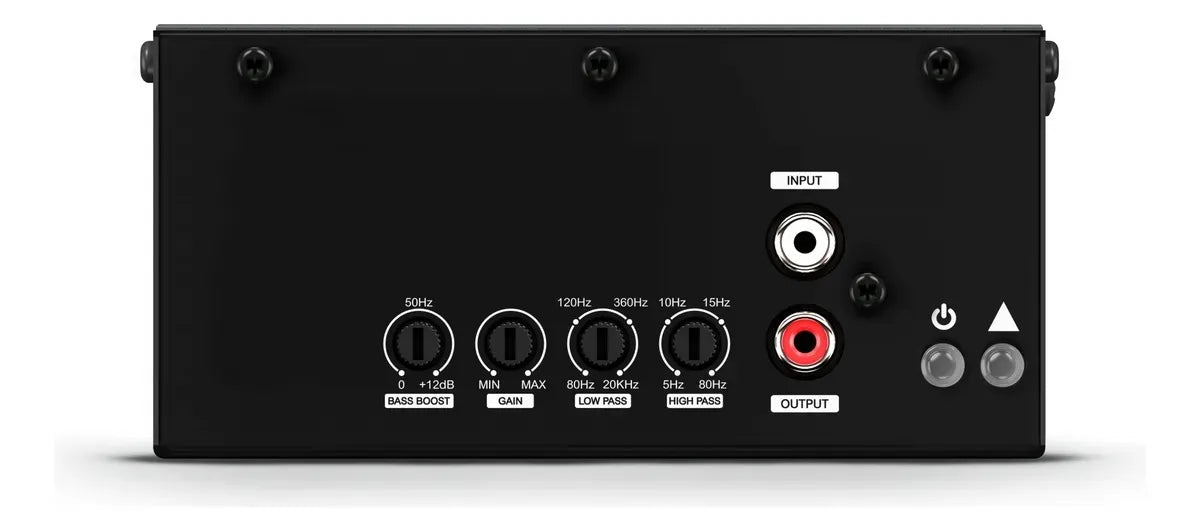

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

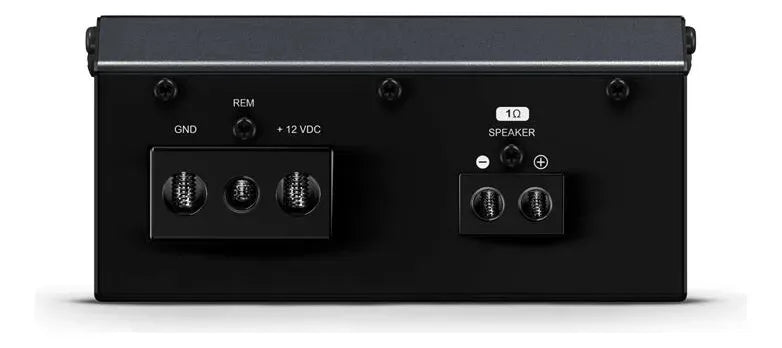

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
