SounDigital  |  Bar code: 7898644522438

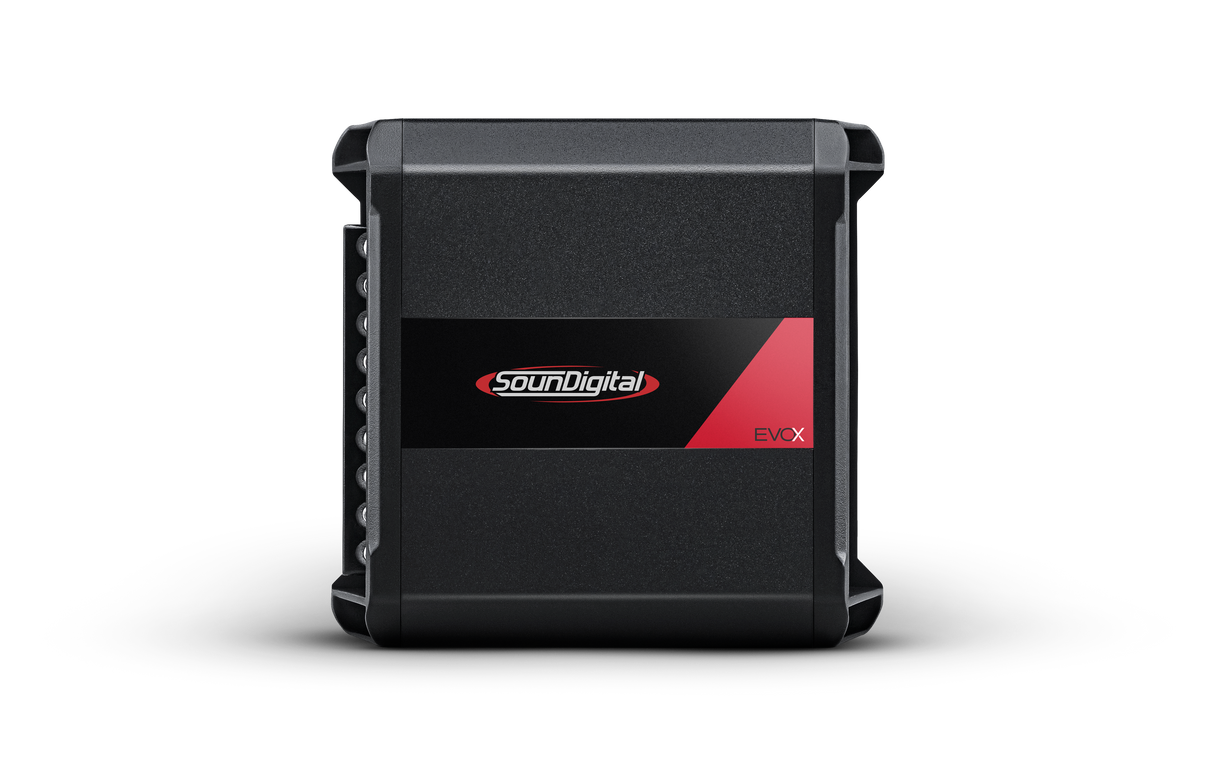

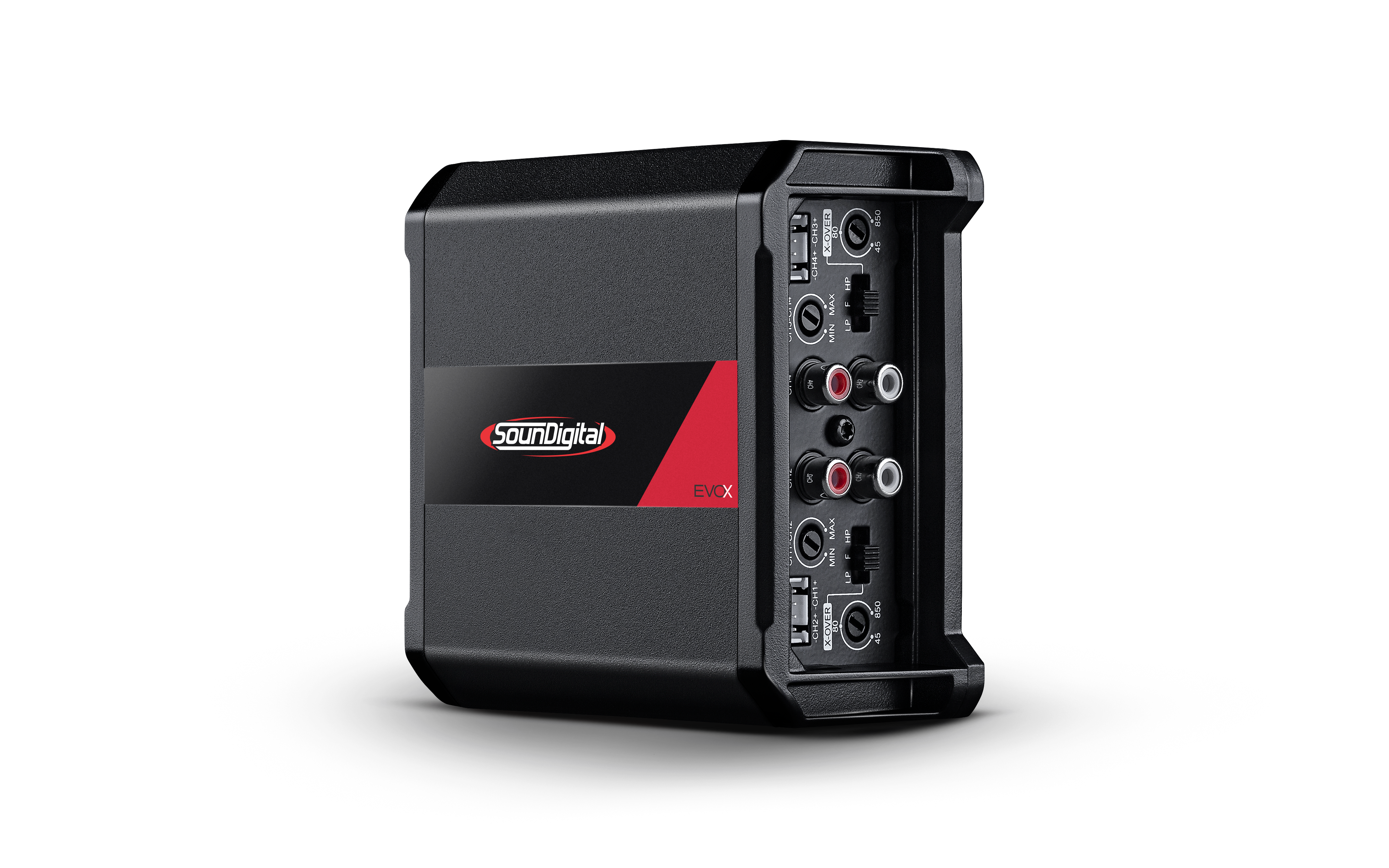

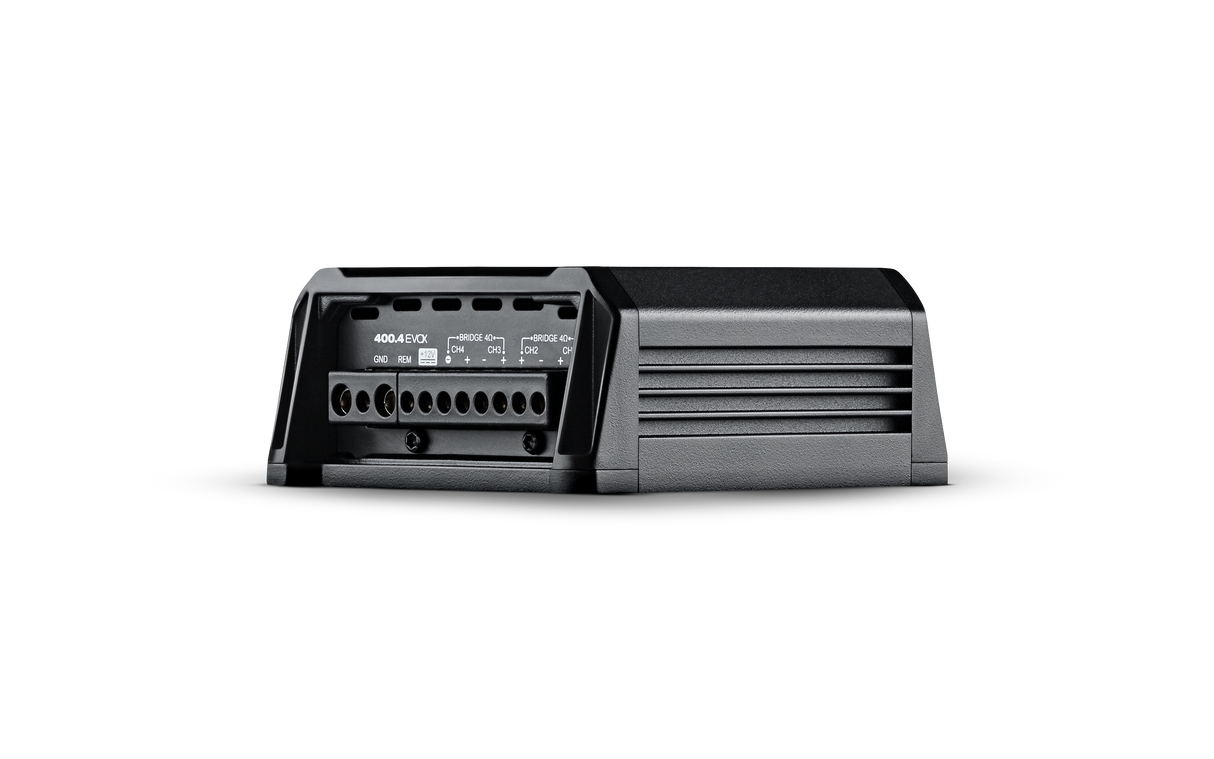

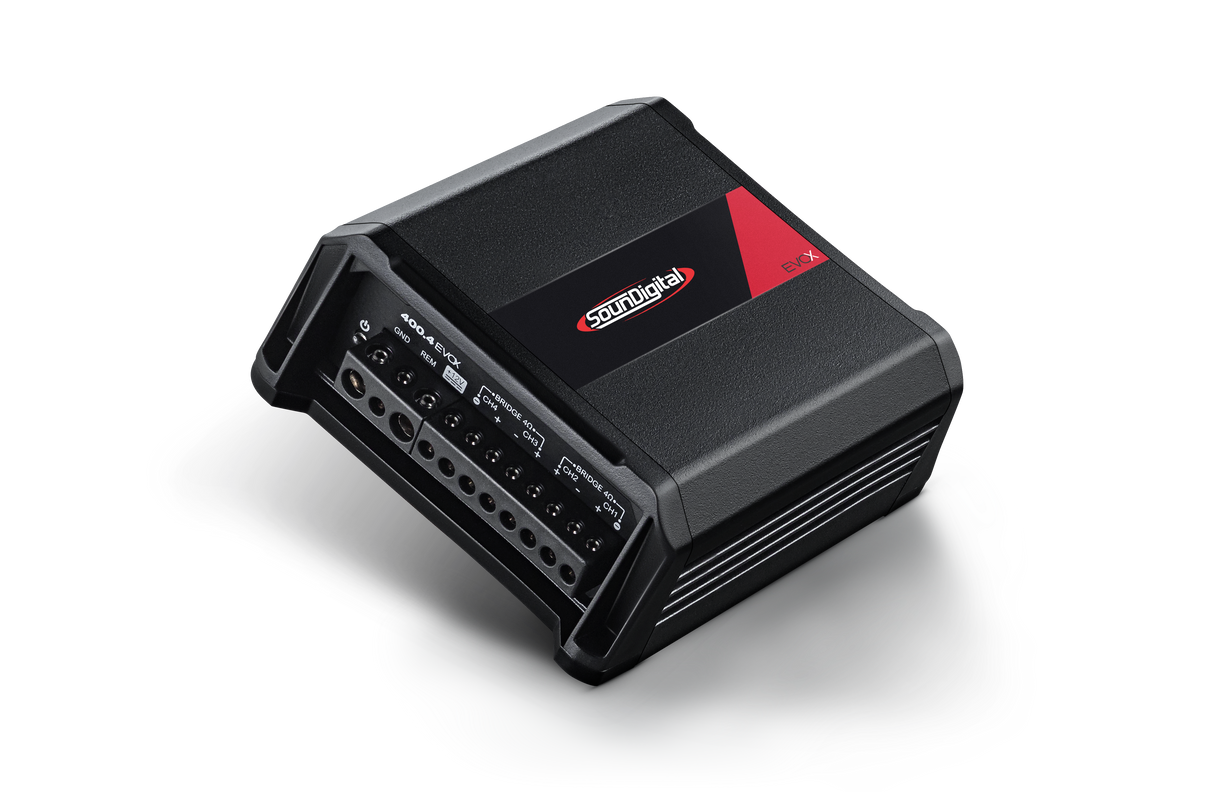

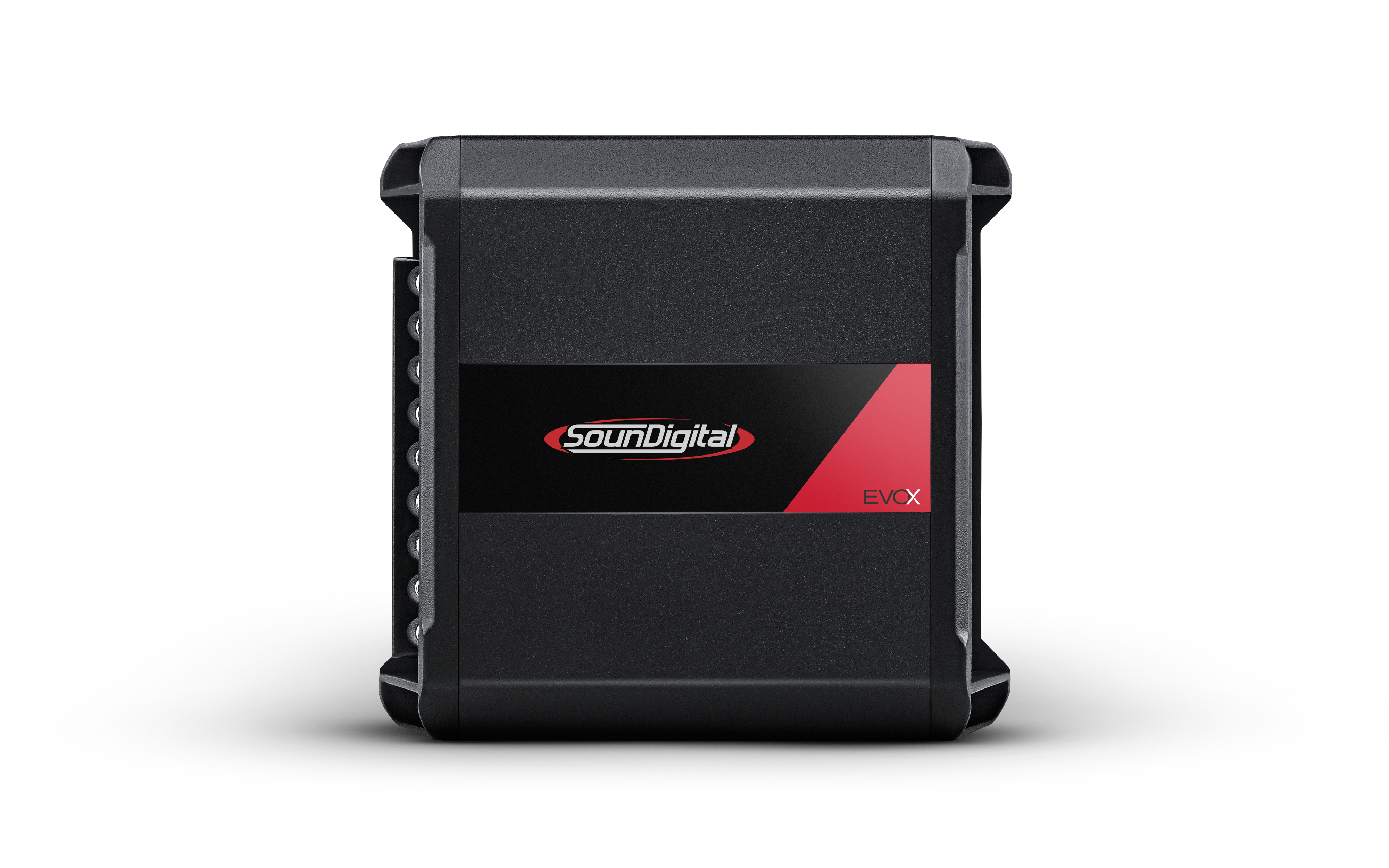

Soundigital 400.2 EVOX 4 ohm

The latest technology and highest quality components in a compact design. The unique RTGP system ensures greater thermal efficiency and robustness.

€236.63 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The EVO X series presents the latest technology in a compact design with premium components. From innovative technology, SounDigital has introduced something to car audio amplifiers that has not yet been explored. Thermal coupling through the RTGP system.

The exclusive RTGP system (Thermal Recovery for Power Generation) ensures greater thermal efficiency and robustness for SounDigital products with increased stability.

Technical Specifications

Power @ 12.6V @ 4Ω: 2 X 132 WRMS
Power @ 12.6V @ 2Ω: 2 X 200 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: 1 X 400 WRMS
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 2 X 147 WRMS
Power @ 14.4V @ 2Ω: 2 X 223 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: 1 X 446 WRMS
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 18 A
Current Draw (Max): 36 A
Recommended Fuse (Music): 20A
Total Efficiency: 88%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 88dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 4.8 x 4.4 x 2.0 in
Product Dimensions: 12.3 x 11.3 x 5.1 cm

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
