SounDigital

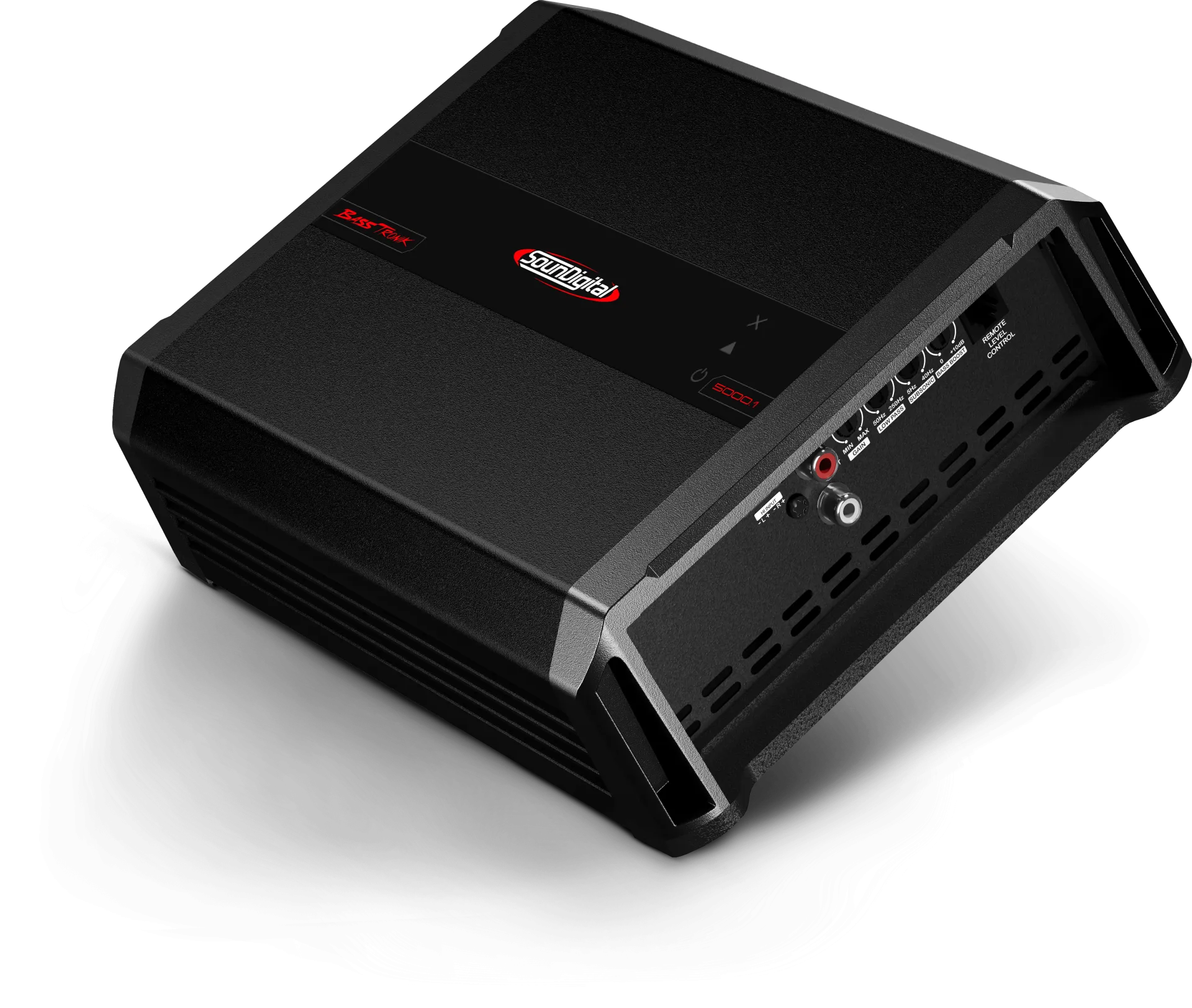

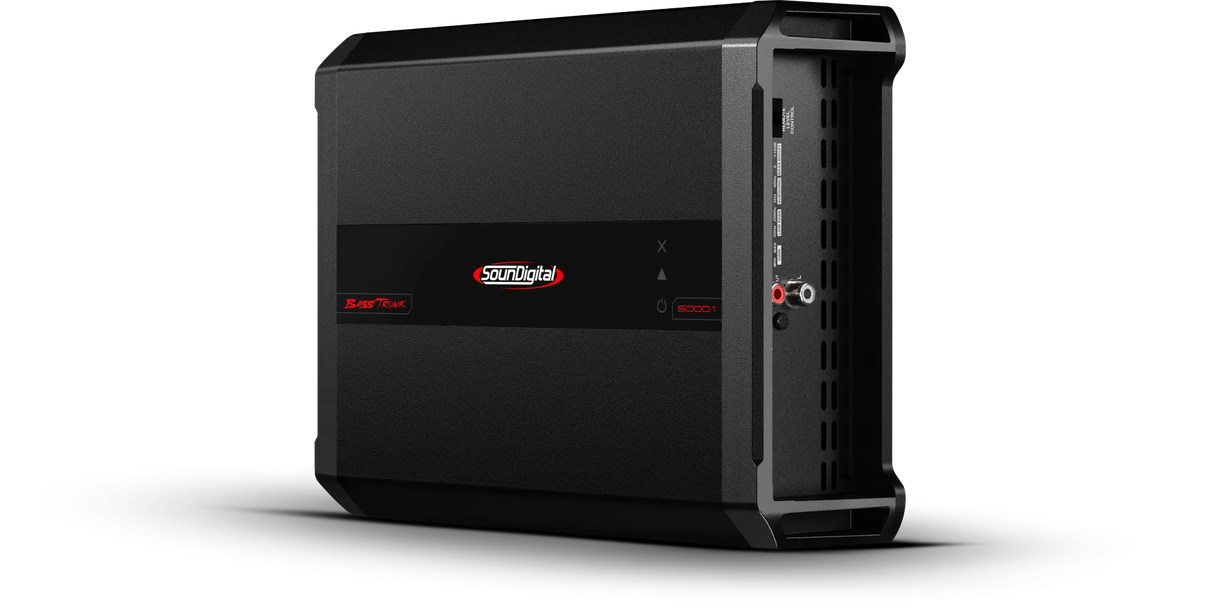

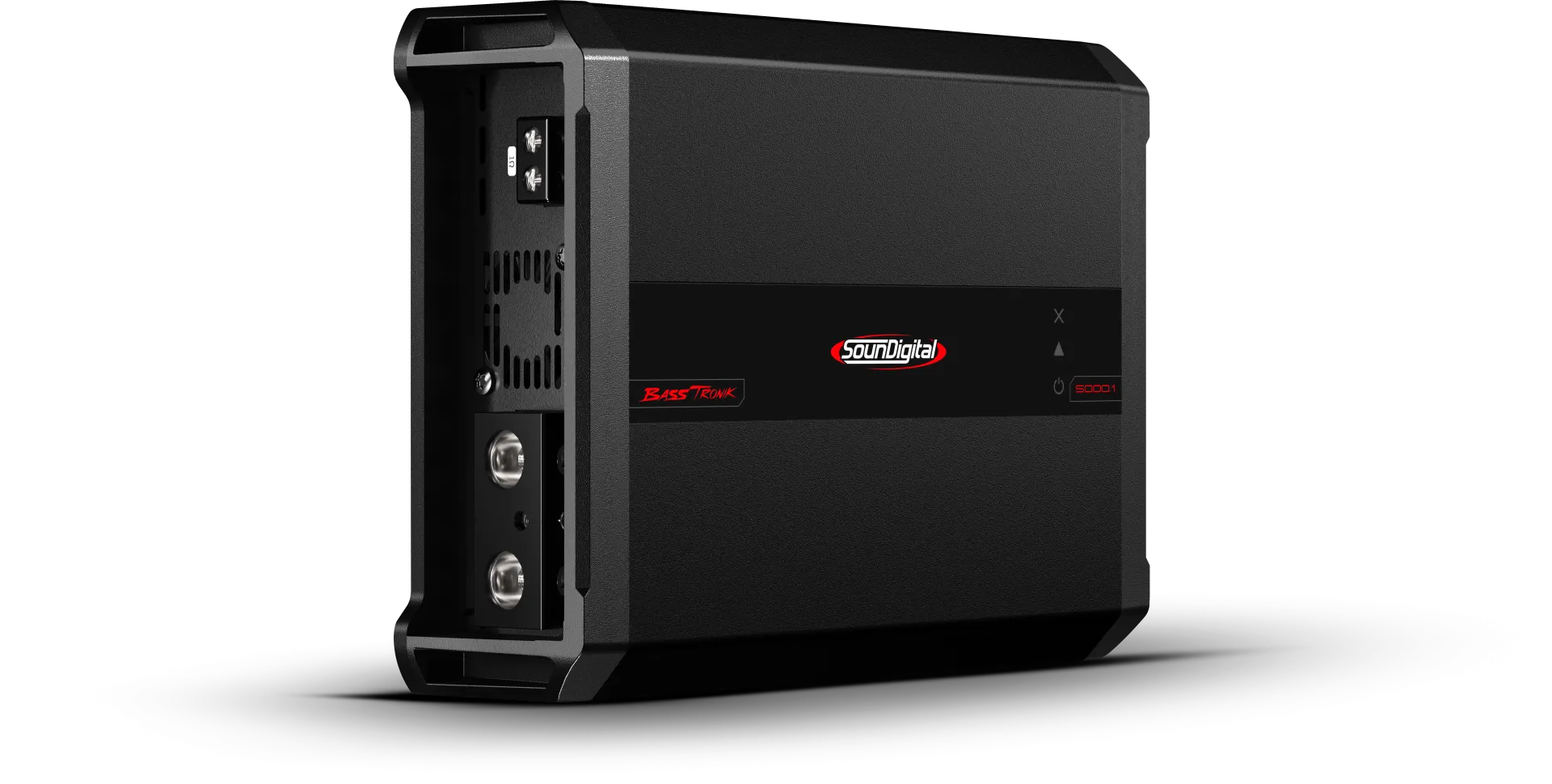

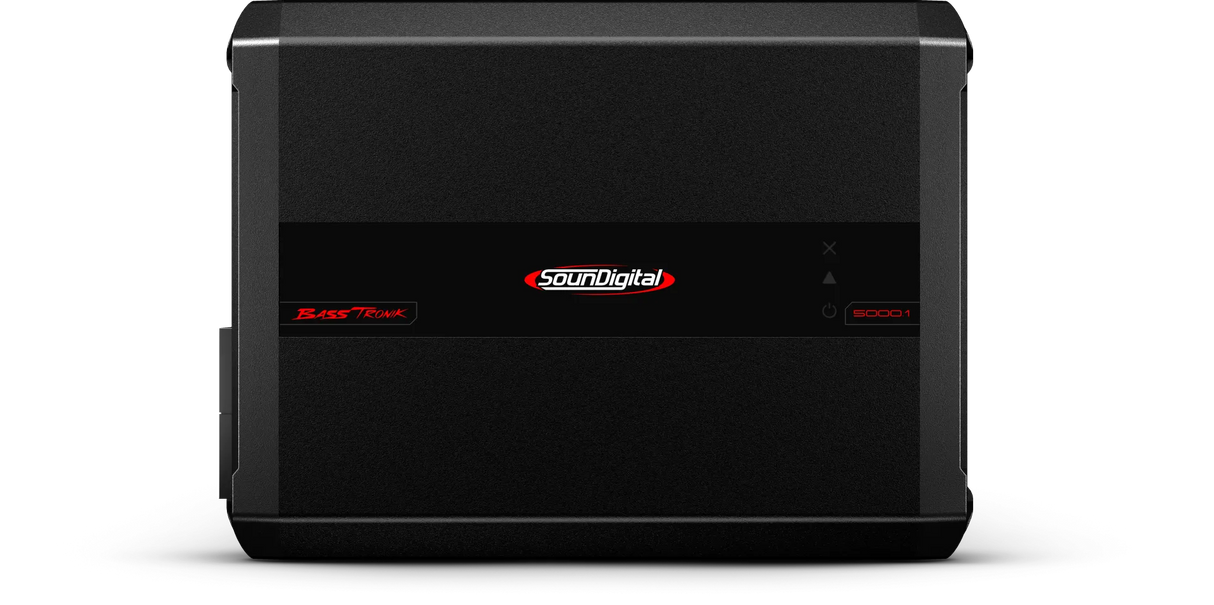

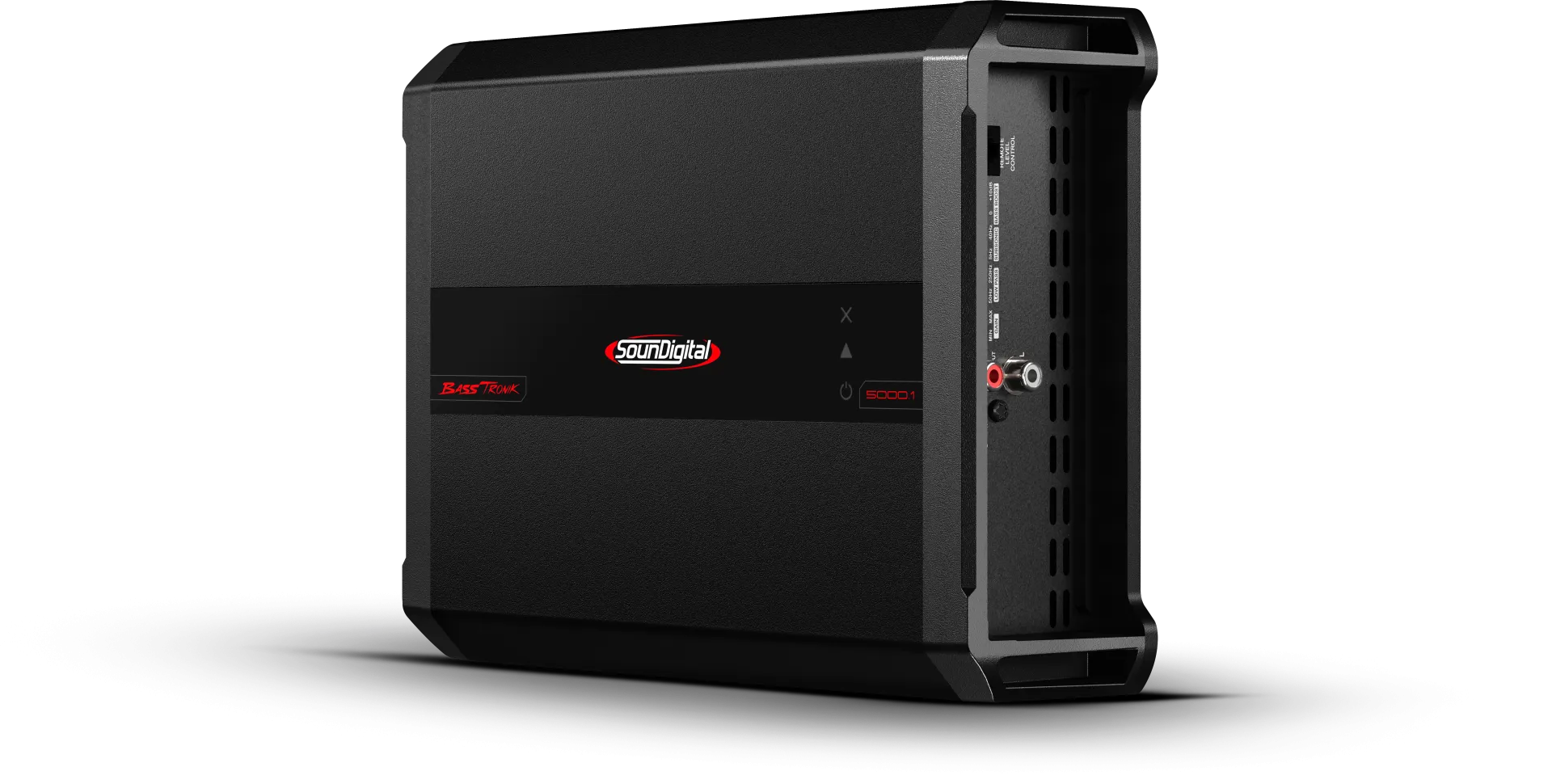

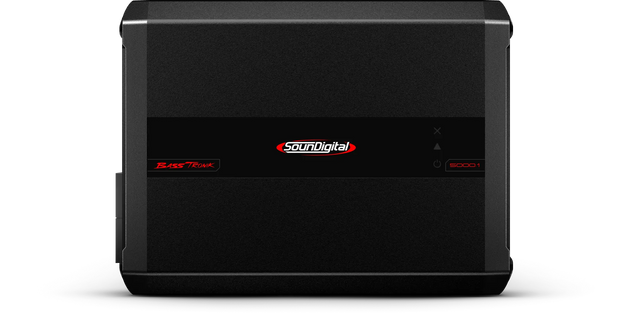

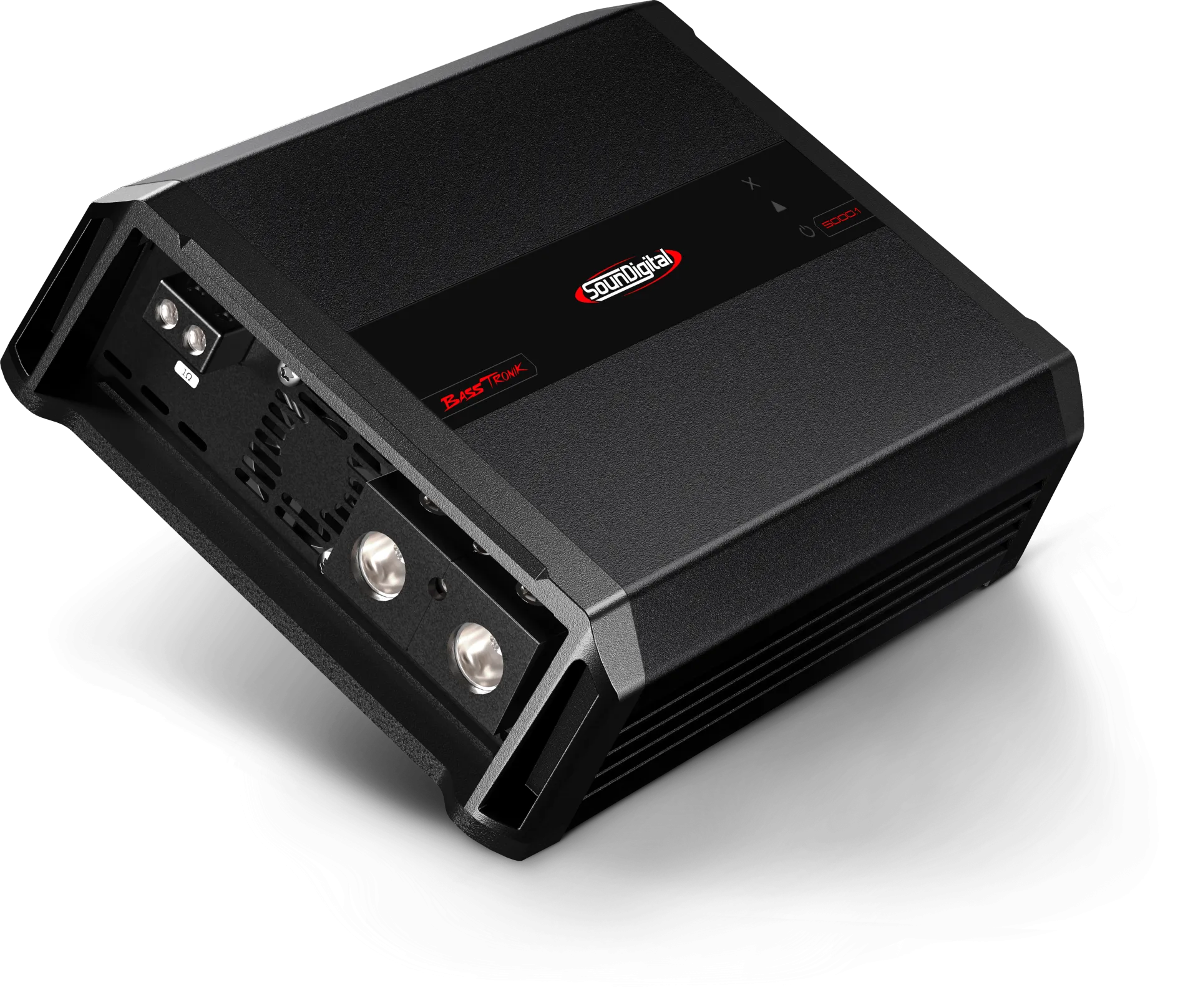

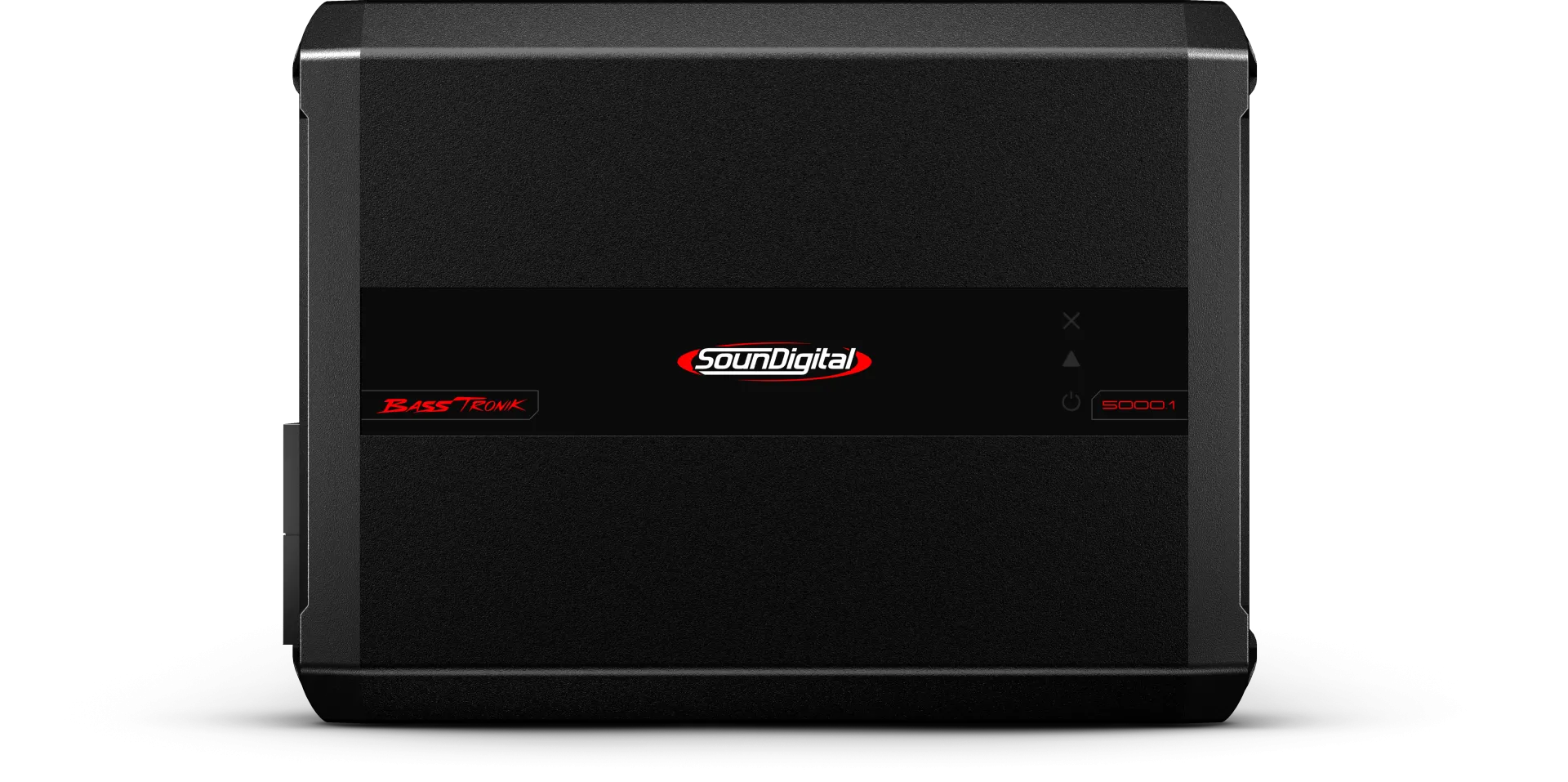

SounDigital 5000.1 BASSTRONIK - 1 Ohm

The Basstronik series is designed for more powerful and direct bass reproduction.
€699.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

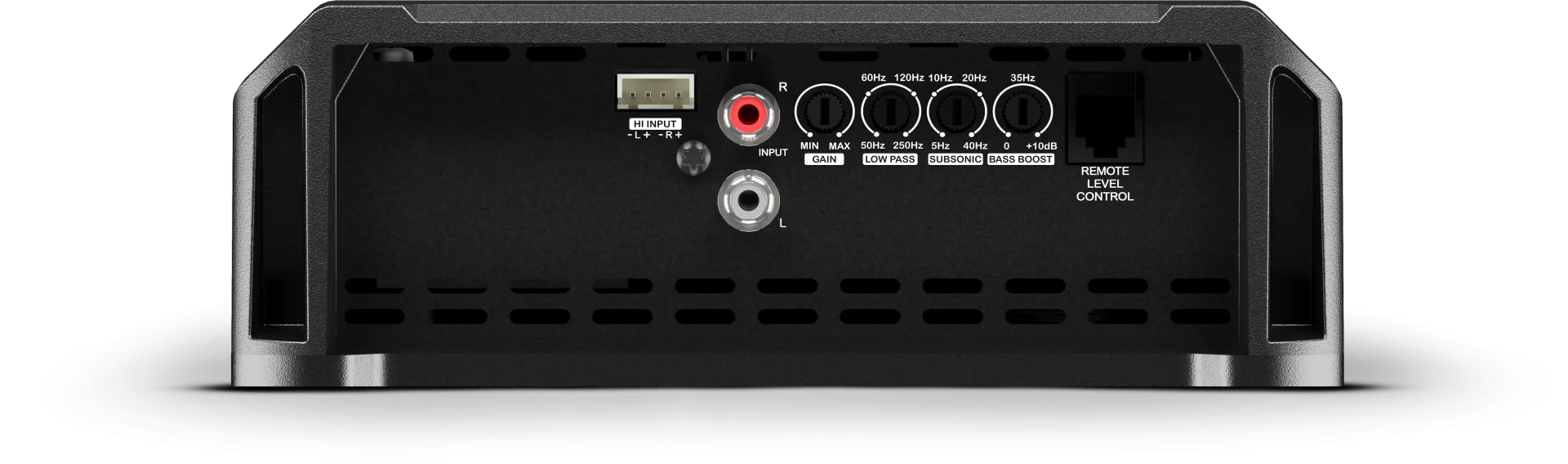

The new series features, among other things, a fixed adjustable low-pass and subsonic filter, which significantly facilitates the control of the crossover frequency of the bass range.

With the bypass button, the amplifier can still be used for large speaker systems in full-range operation.

SounDigital amplifiers offer high power in a compact space, are easy to install, simple to use, and fit anywhere. These amplifiers are unfamiliar with heat problems; a well-thought-out cooling system and extremely high efficiency prevent overheating during music playback.

Technical data

Power @ 4Ω: 1 X 2100 WRMS
Power @ 2Ω: 1 X 3300 WRMS
Power @ 1Ω: 1 X 5000 WRMS

Frequency Response (-3dB):
5Hz ~ 250Hz

Subsonic Filter:
5Hz ~ 40Hz

Low Pass Filter (12dB/octave):
50Hz ~ 250Hz

Bass Boost:
0dB ~ 10dB @ 30Hz

Operating Voltage:
10V ~ 16V

Signal-Noise Ratio:
100dB

Input Sensitivity (RCA):
0.2V ~ 2V

Input Sensitivity (High Level input):
1.5V ~ 15V

Current Draw (Music):
248A

Current Draw (Max):
496A

Total Efficiency:
80%

Damping Factor:
2000

Power Cable size:
95mm²

Speaker Cable size:
10mm²

Remote Cable size:
1.5mm²

Recommended Fuse (Music):
250A

Recommended Battery:
250Ah

Width:
180.6 / 7.1 in

Length:
254mm / 9.9 in

Height 63.2mm / 2.5 in
