SounDigital  |  Bar code: 7898644526900

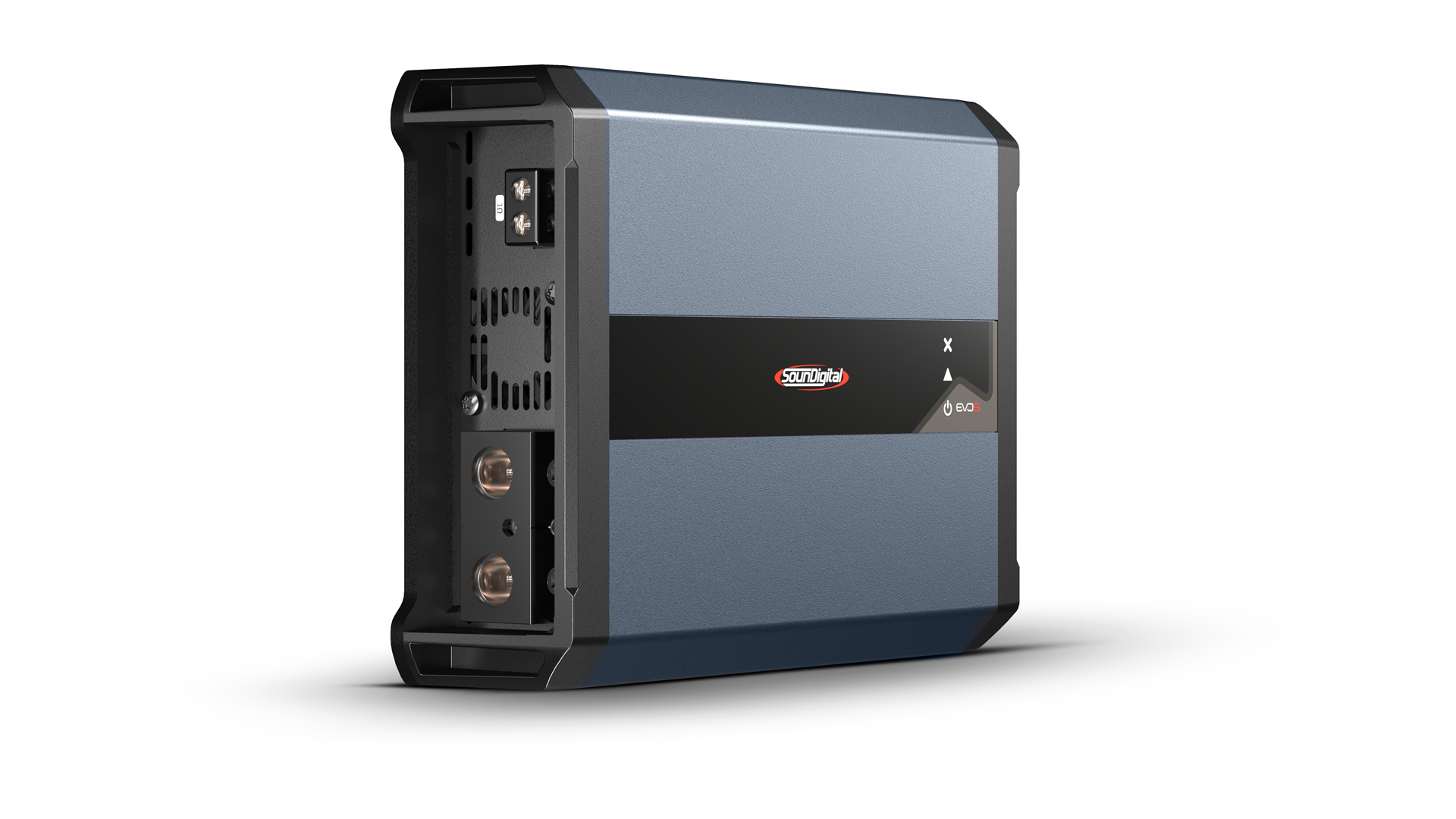

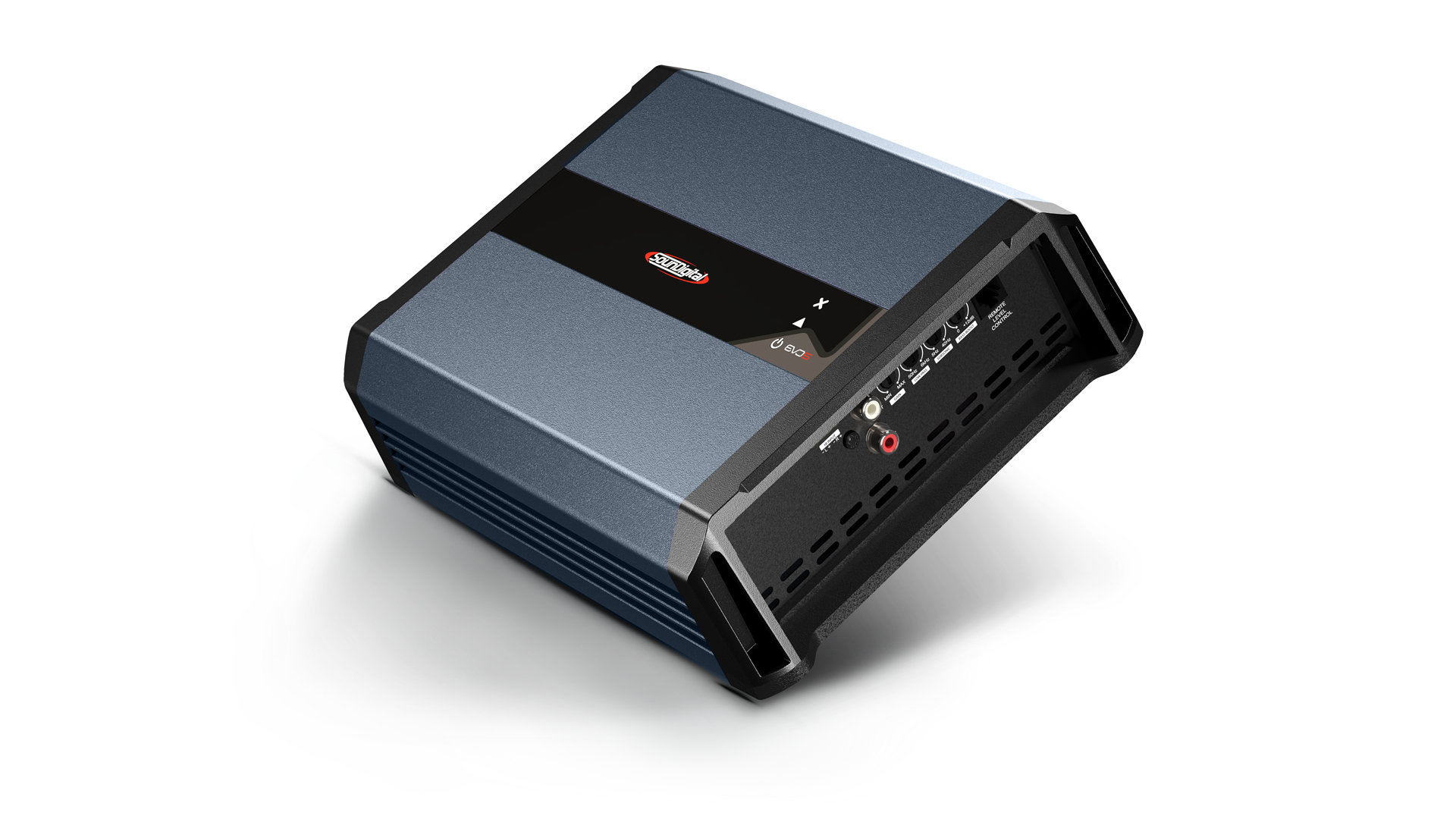

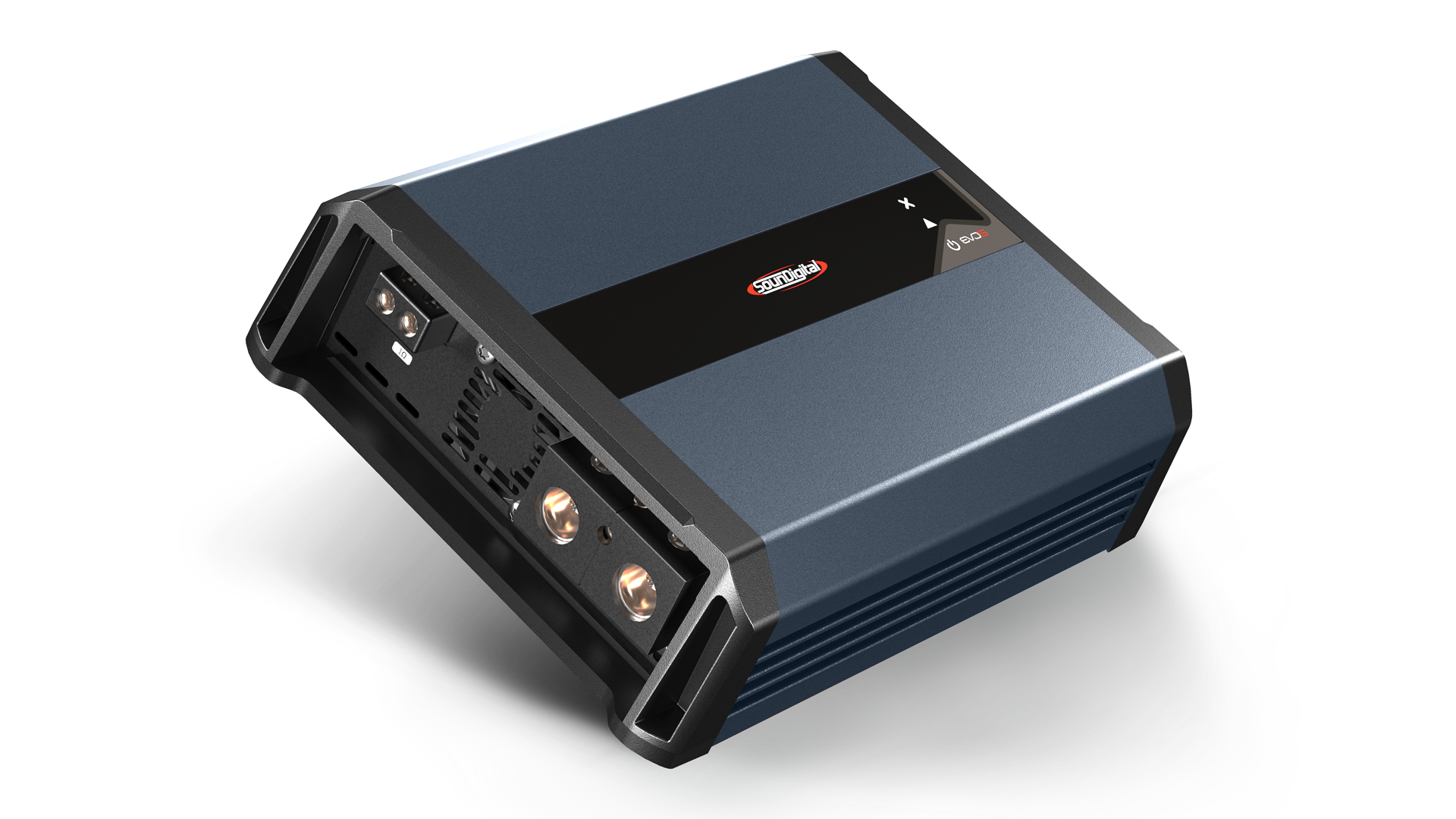

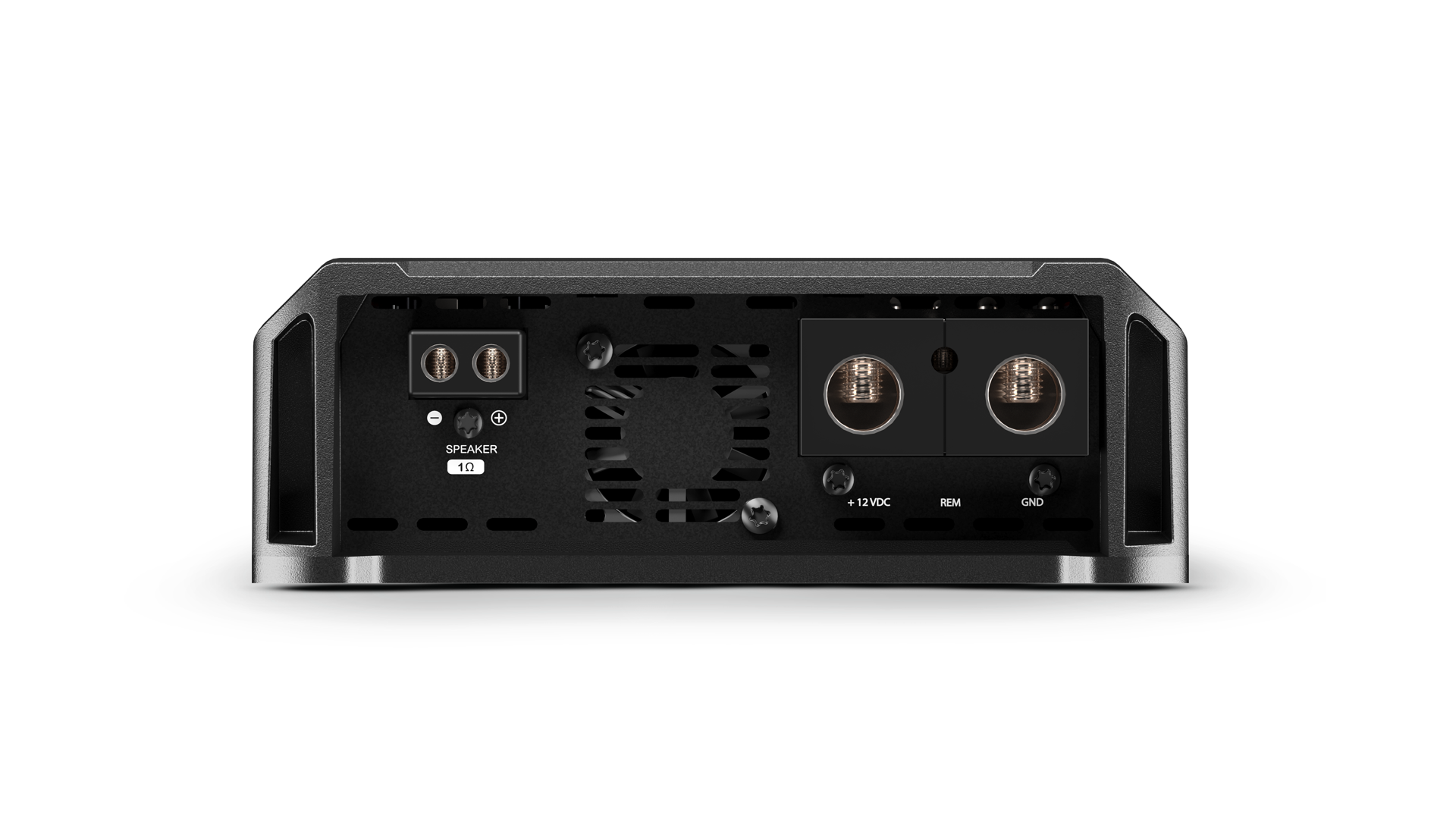

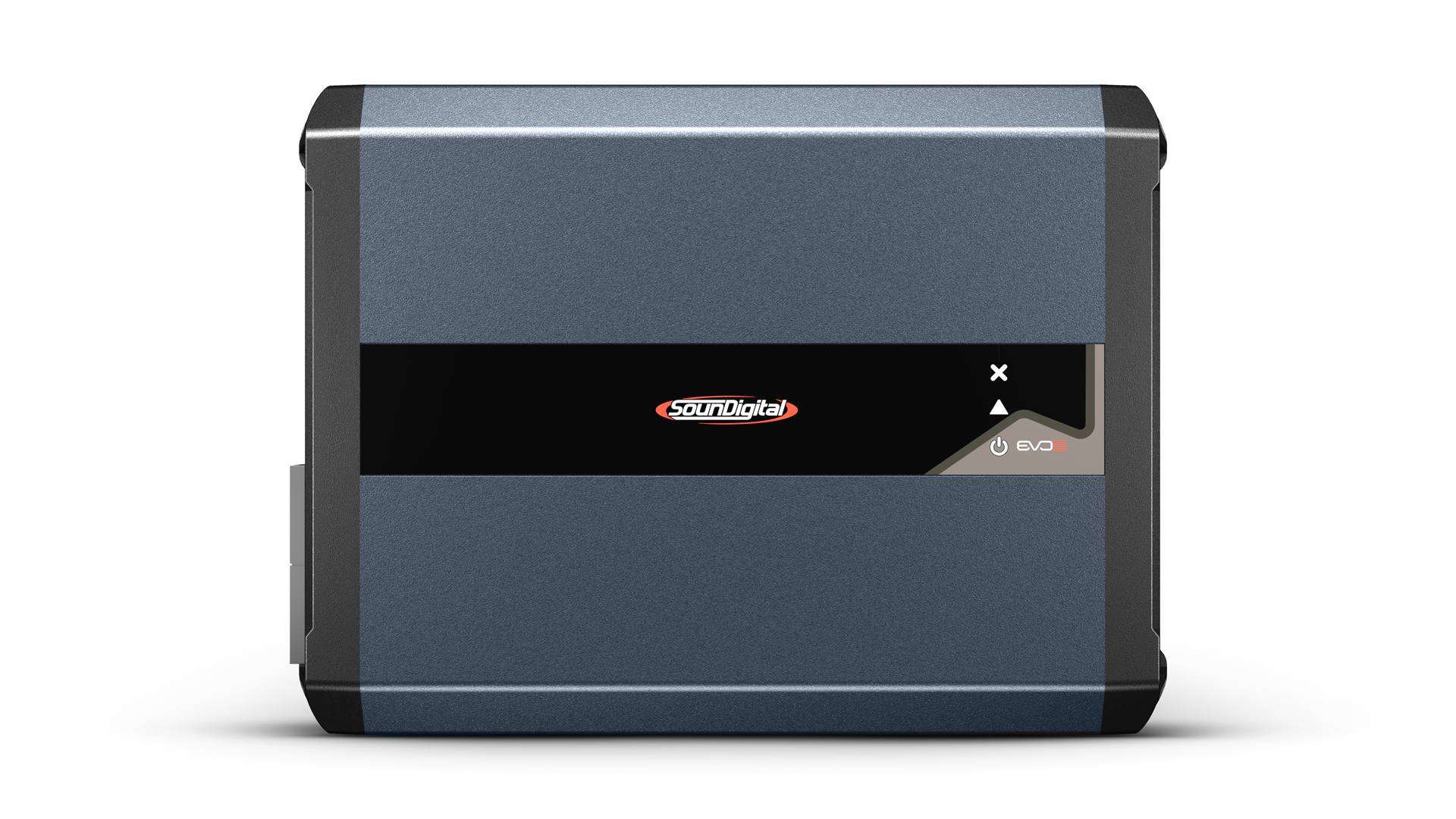

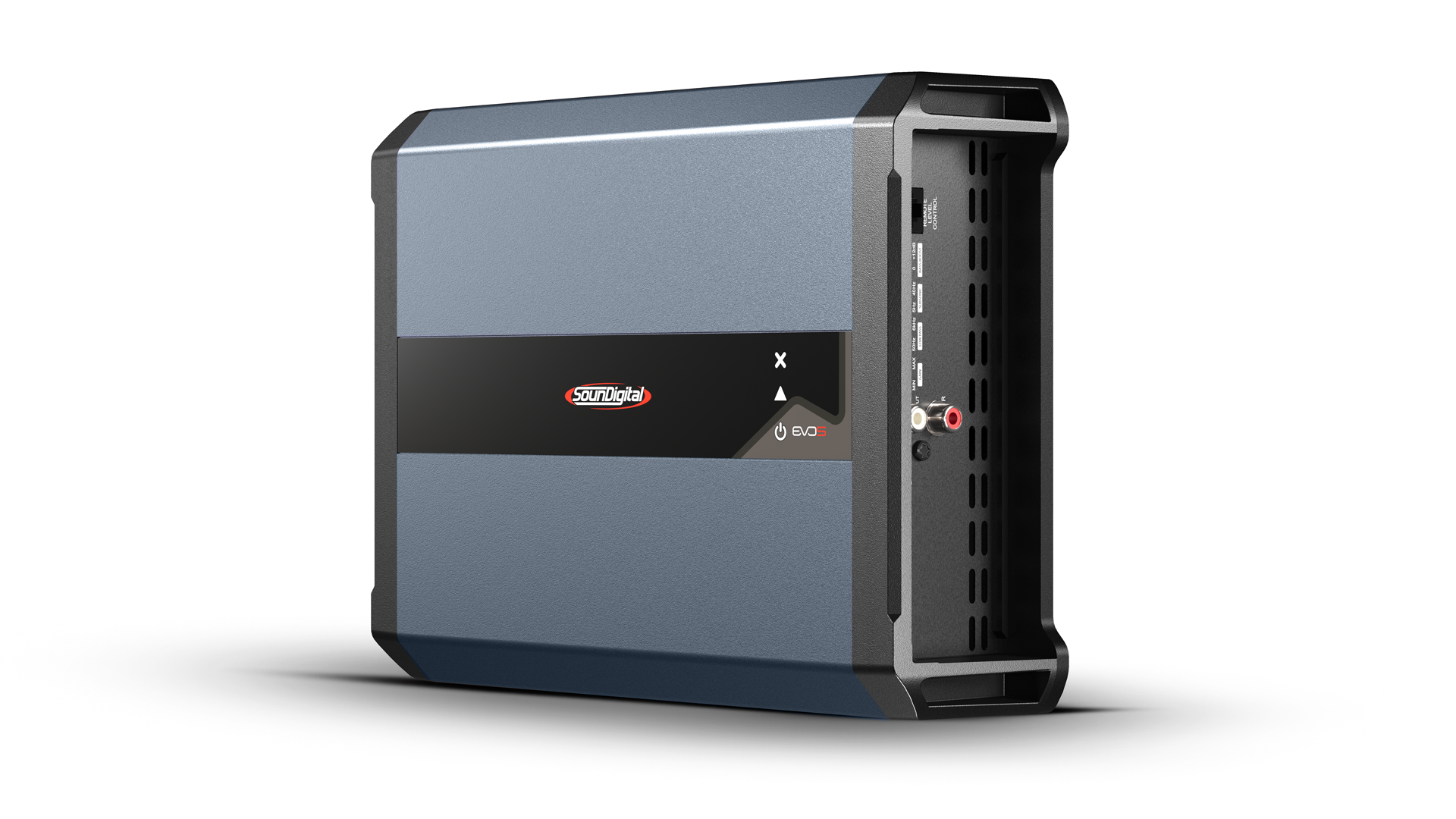

SounDigital 5000.1 EVO 5 - 1ohm

Compact, modern amplifier with 5000W power per channel. Patented technologies ensure cleaner sound and excellent performance for the most ambitious projects

€549.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The 5000.1EVO 5 is a compact, modern amplifier that delivers 5000W RMS of power, distributed over 1 channel. The amplifier features exclusive and patented technologies that ensure a cleaner and more authentic sound experience, as well as providing better performance and efficiency for the most ambitious projects.

Technical specifications

Power @ 1Ω: 1 X 5000 WRMS
Power @ 2Ω: 1 X 3300 WRMS
Power @ 4Ω: 1 X 2178 WRMS

Frequency Response (-3dB):

5Hz ~ 6kHz

Low Pass filter (12dB/oct):

50Hz ~ 6kHz

Subsonic (12dB/oct):

5Hz ~ 80Hz

Operating Voltage:

8V ~ 16V

SNR:

90dB

Input Sensitivity (RCA):

0.2V ~ 2V

Input Sensitivity (High Level input):

1.2V ~ 12V

Current Draw (music):

230A

Current Draw (max.):

461A

Total Efficiency:

86%

Damping Factor (@100Hz nominal impedance):

2000

Power Cable:

50mm² (0 AWG)

Speaker Cable:

2 x 10mm² (7 AWG)

Recommended Fuse (music):

250A

Recommended battery (minimum):

250Ah

Width:

7.1″ / 18 cm

Length:

9.9″ / 25 cm

Height:

2.5″ / 6.32 cm

Weight:

6.06 lb / 2,75 kg
