SounDigital  |  Bar code: 7898644522407

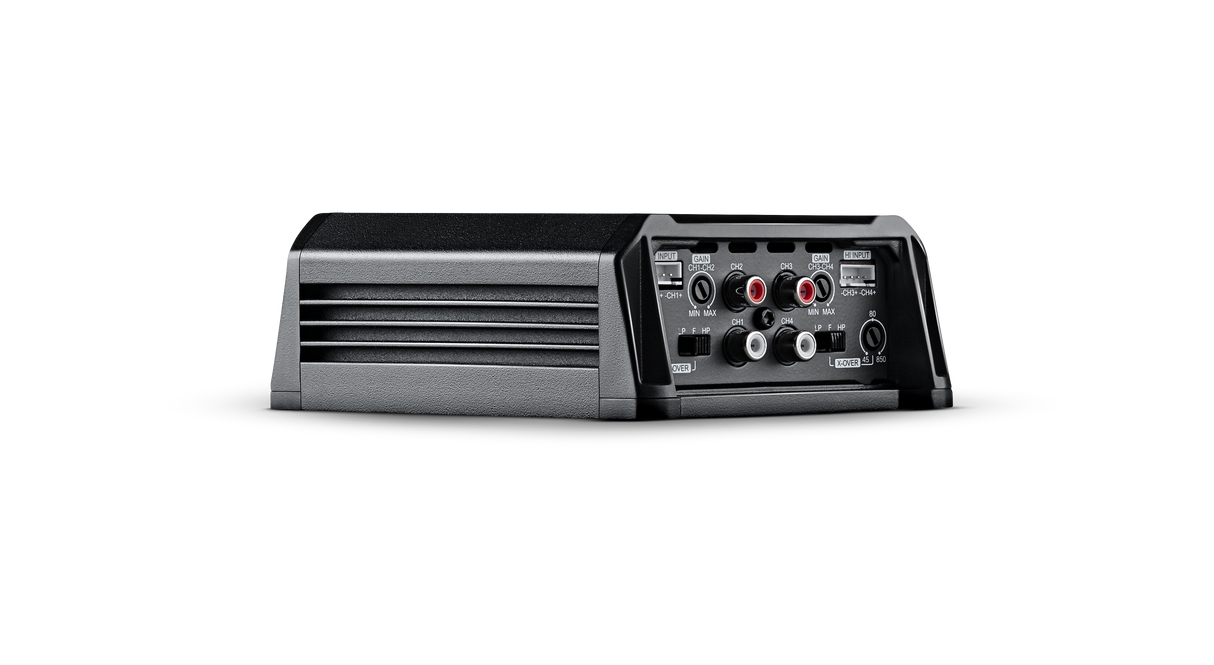

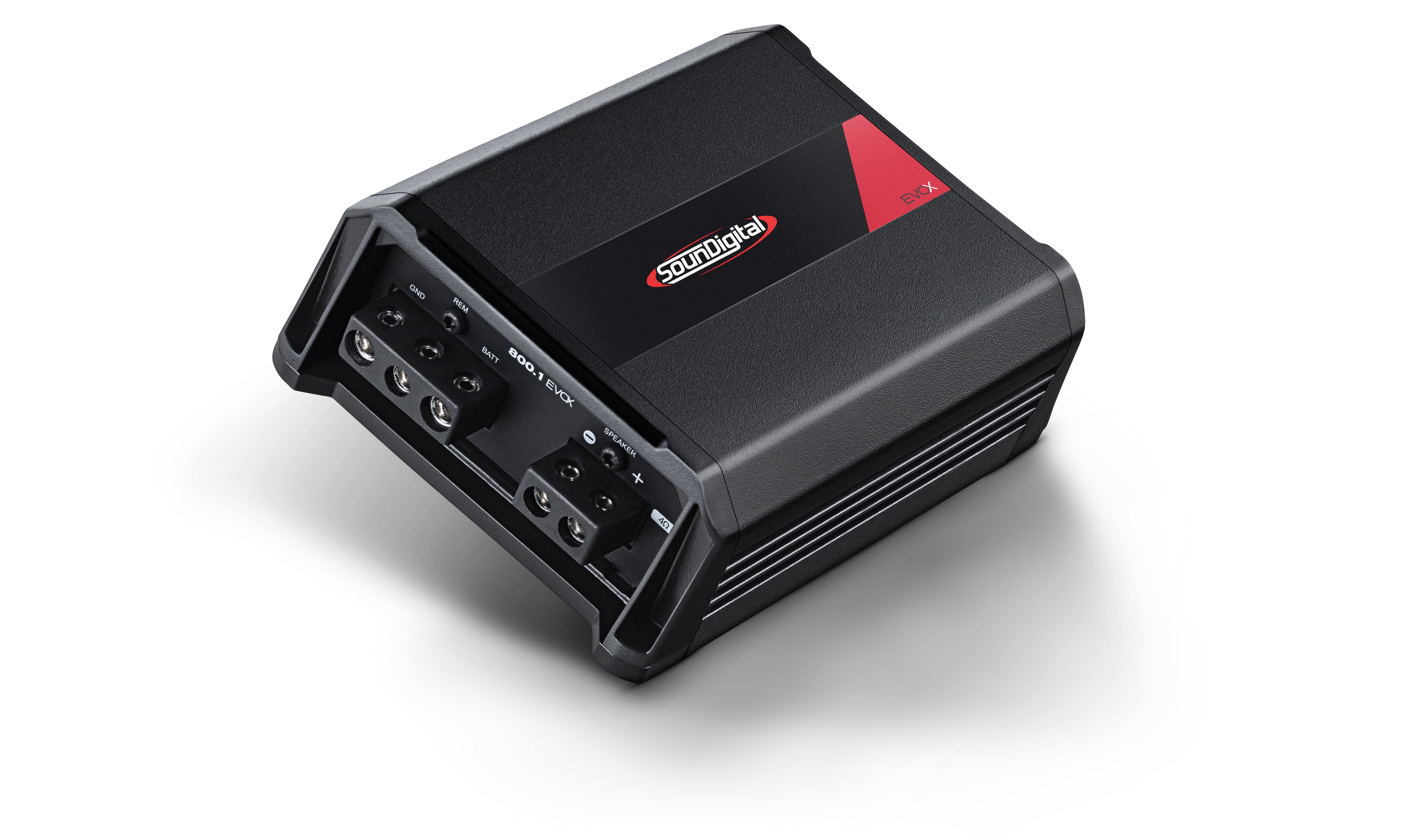

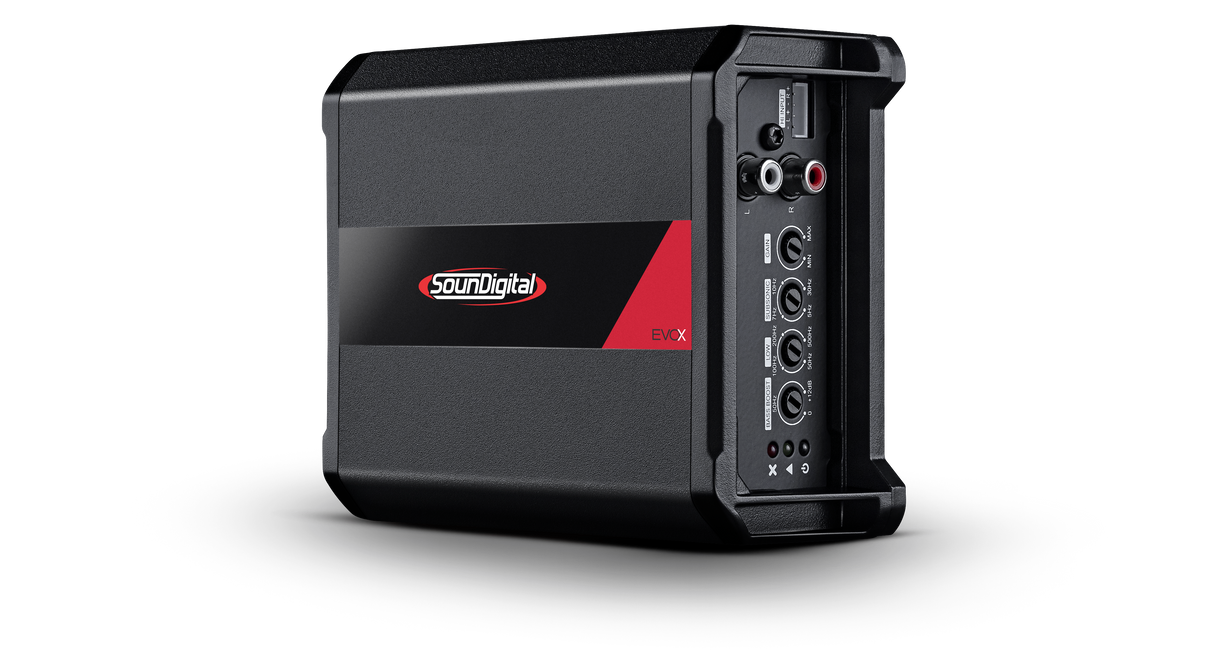

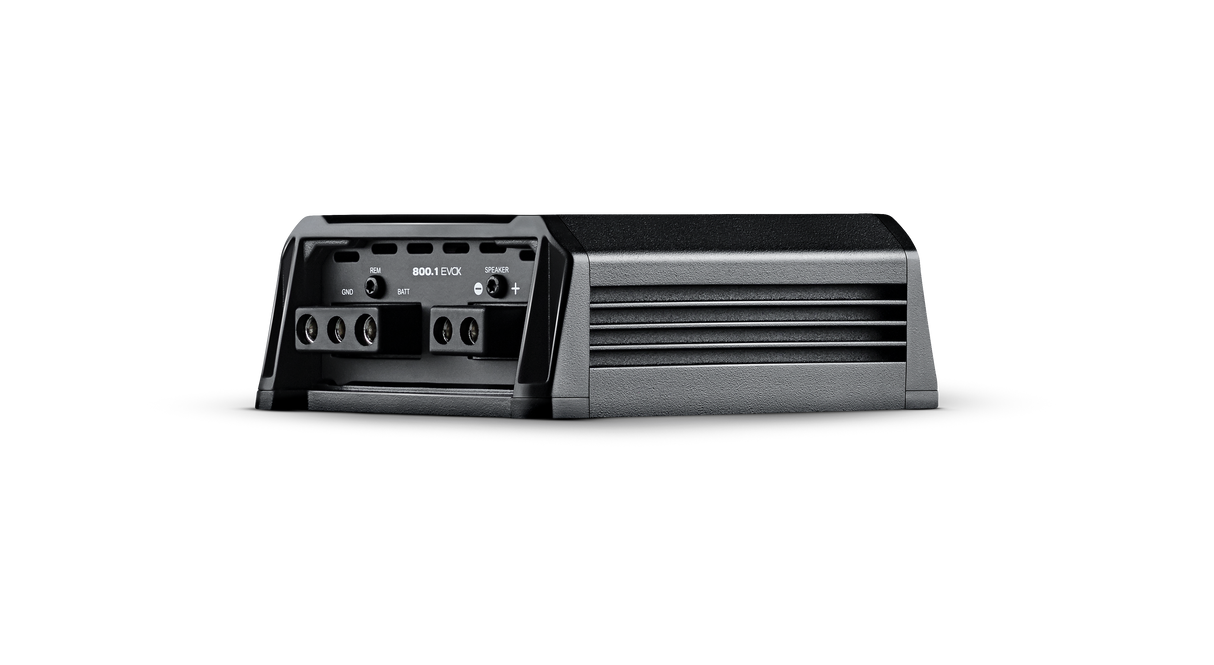

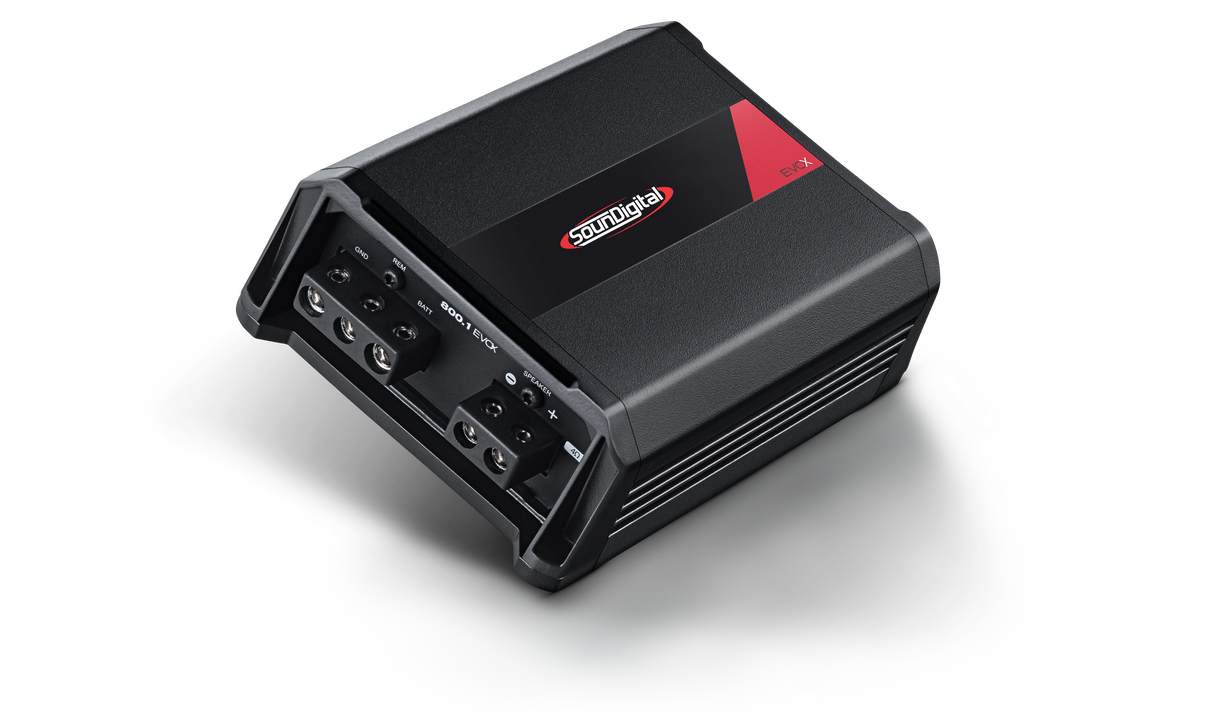

SounDigital 800.1 EVOX 4 Ohms

The latest technology and highest quality components in a compact design. The unique RTGP system ensures greater thermal efficiency and robustness.

€399.00 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The EVO X series introduces the latest technology in a compact design with top-quality components. From innovative technology, SounDigital has introduced something to car audio amplifiers that had not yet been explored. Thermal coupling through the RTGP system. The exclusive RTGP system (Thermal Recovery for Power Generation) ensures SounDigital products greater thermal efficiency and robustness with increased stability.

Technical data

Power @ 12.6V @ 4Ω: 1 X 800 WRMS
Power @ 12.6V @ 2Ω: N/A
Power @ 12.6V @ 1Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 892 WRMS
Power @ 14.4V @ 2Ω: N/A
Power @ 14.4V @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 38 A
Current Draw (Max): 74 A
Recommended Fuse (Music): 40 A
Total Efficiency: 80%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 5.8 x 4.4 x 2.0 in
Product Dimensions: 14.8 x 11.3 x 5.1 cm

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
