SounDigital

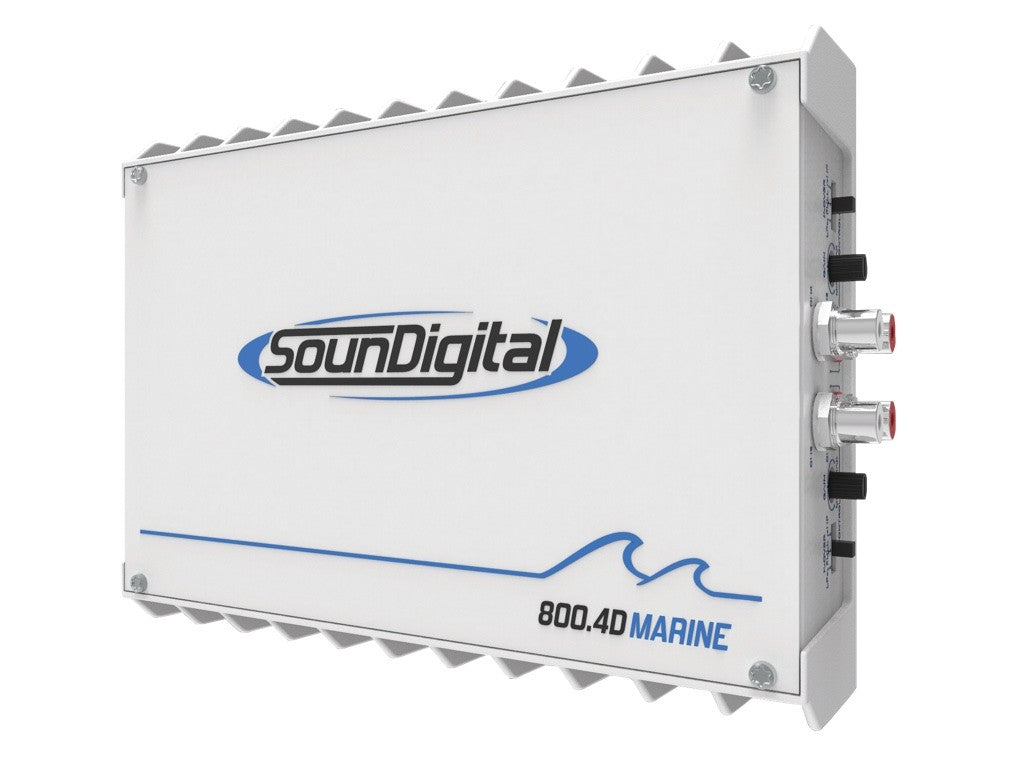

SounDigital 800.4D MARINE 2ohms

The new Evo series, with high-resolution sound and outstanding performance, ensures a perfect audio experience. The improved design with integrated crossover and advanced cooling provides stability and clear, uninterrupted sound.

€360.63 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

THE NEW EVO SERIES is here to stay and has all the resources to create the perfect sound. Quality, efficiency, stability, built-in crossover and innovative design.

The Evo series is the first to have Hi-fi (high fidelity) performance even at the highest power rates with THD (total harmonic distortion) of less than 0.025%. It also has a patented harmonic alignment processing that puts it above any similar product on the world market.

Now with a linear power supply with over 90% efficiency, it can produce solid and longer bass sounds with minimal consumption. In standby mode, it can consume up to 5 times less than other products on the market.

The intelligent "twin source" system allows two dual power supplies to work simultaneously, ensuring that your product maintains power when you need it most. In addition, they were designed with 4 times the safety reserve of competing products. With such high efficiency, it was possible to eliminate external coolers, which previously generated annoying noise, which is appreciated by those looking for the best sound quality. Now it has only one internal cooler, which turns on only in extreme conditions.

Soundigital has taken care of every detail and eliminated the EMI interference that previously limited the use of AM and FM radio. Now you can listen to your favorite radio station without interference.

For those who really love sub-bass, the Evo series has a larger capacity than other similar products, which guarantees the preservation of bass sounds in your favorite tracks.

It has precise cone control with impressive linearity, which makes this improvement very clear in the mid-range frequencies, widely used in "Trio Elétrico" systems, improving tone and attack aggressiveness.

The protection system has become even better. This is due to an oversized intelligent system that senses and works around.

Specifications

4 channel marine grade amplifier

Power @ 12.6V @ 1Ω: 4 x 200 W RMS
Power @ 12.6V @ 2Ω: 4 x 110 W RMS
Power @ 12.6V @ 4Ω: 4 x 61 W RMS
Bridge Power @ 12.6V @ 2Ω: 2 x 400 W RMS
Bridge Power @ 12.6V @ 4Ω: 2 x 220 W RMS
Power @ 14.4V @ 1Ω: 4 x 261 W RMS
Power @ 14.4V @ 2Ω: 4 x 144 W RMS
Power @ 14.4V @ 4Ω: 4 x 79 W RMS
Bridge Power @ 14.4V @ 2Ω: 2 x 522 W RMS
Bridge Power @ 14.4V @ 4Ω: 2 x 287 W RMS

Operating Voltage: 9V - 16V
Consumption in Musical Program: 39A
Maximum Power Consumption: 78A
Recommended Fuse: 40A
THD + N - (rated power): 0.22%
THD + N - (50% of rated power): 0.022%
THD + N - (10% of rated power): 0.031%
Damping Factor: 200
SNR: 88dB
Frequency Response: 5Hz - 20Hz
Input Sensitivity: 0.5V to 6V
High pass filter: 80Hz
Low pass filter: 80Hz
Dimensions: L = 21.3cm A = 17.4cm P = 4.6cm
Weight: 1.1 kg

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
