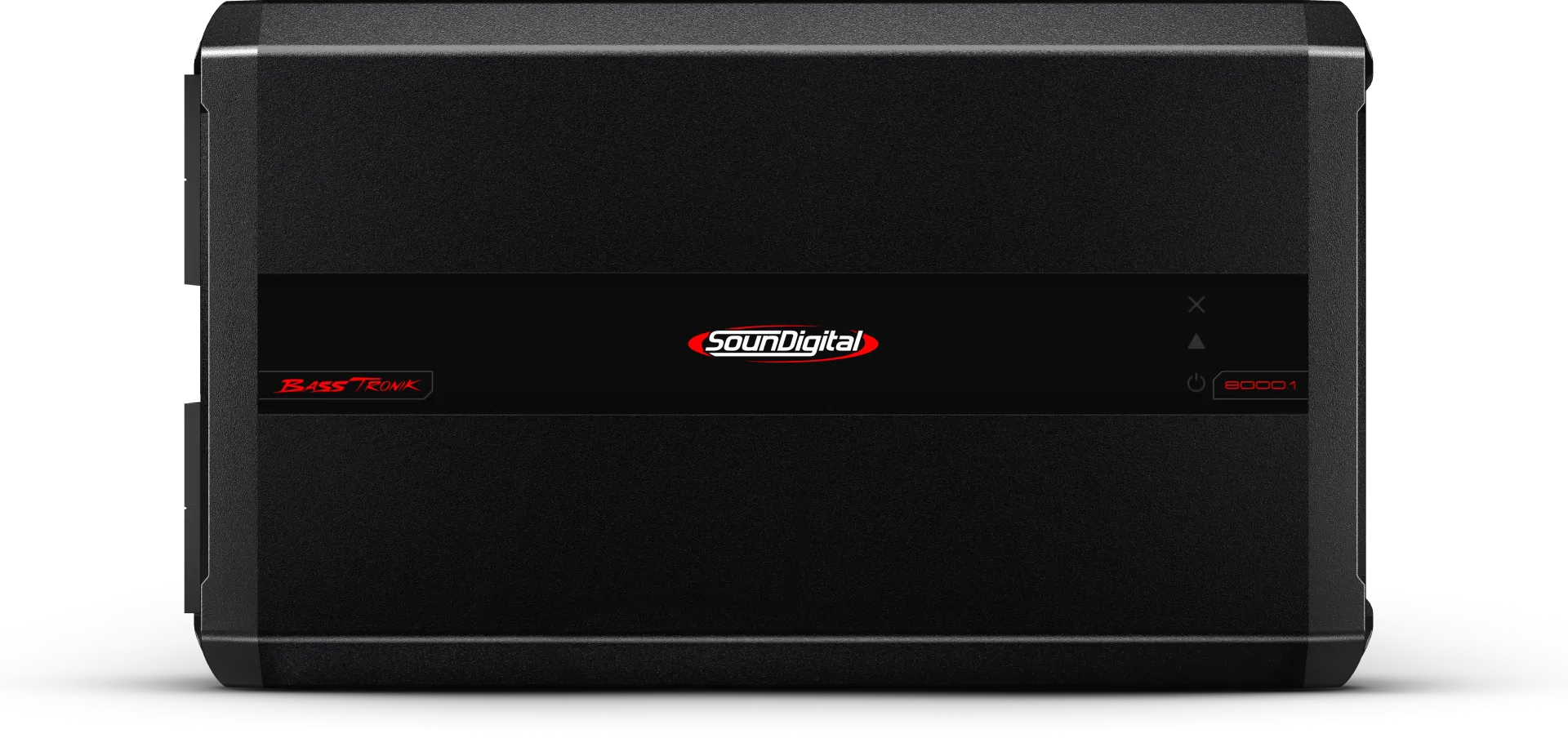

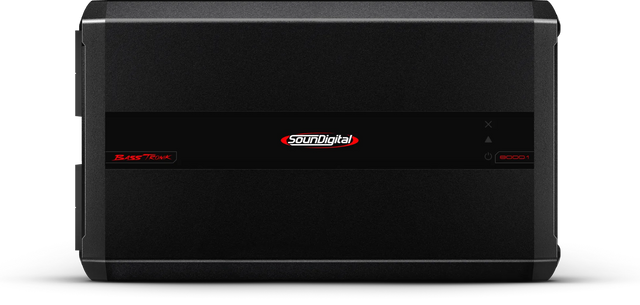

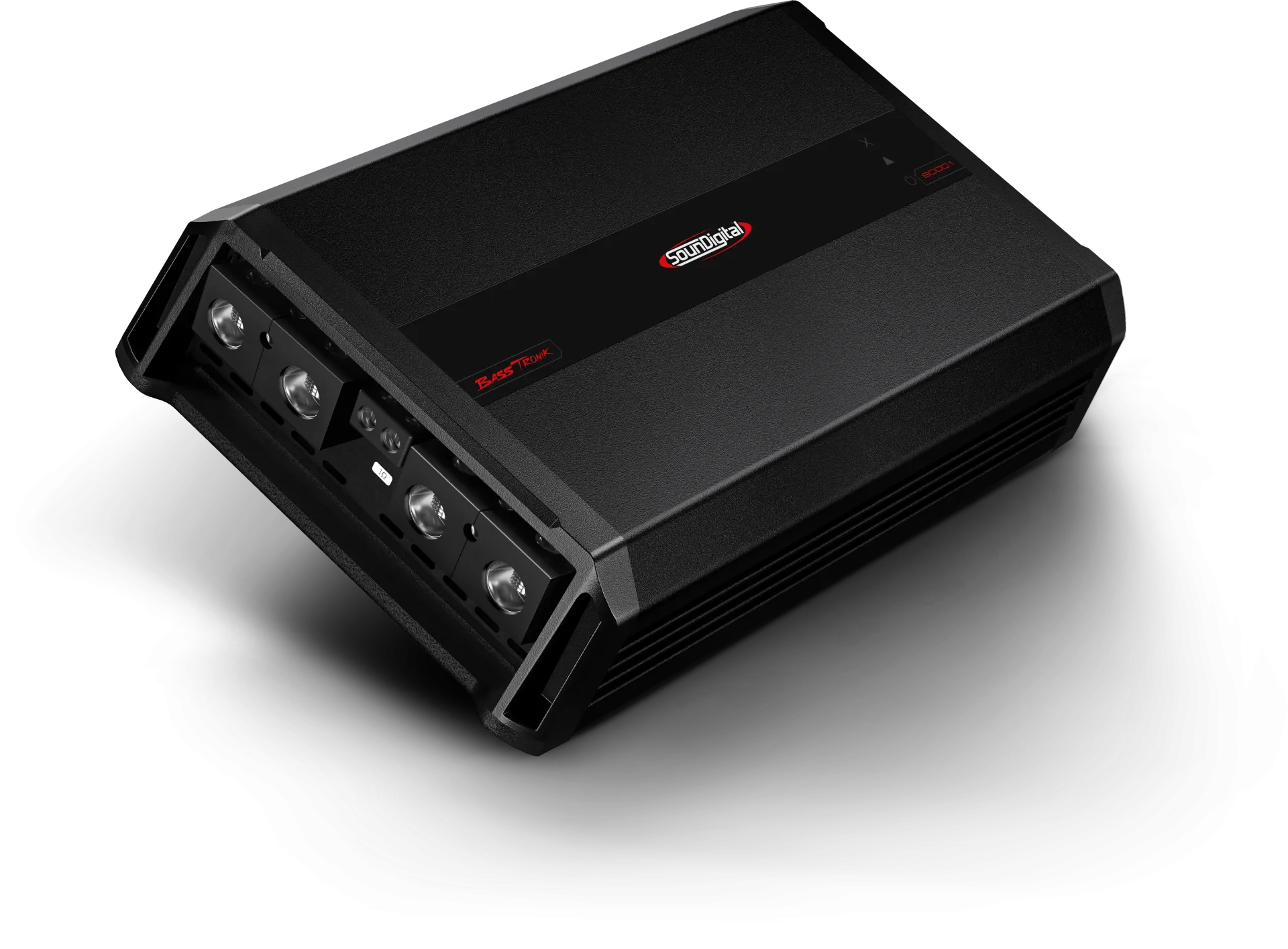

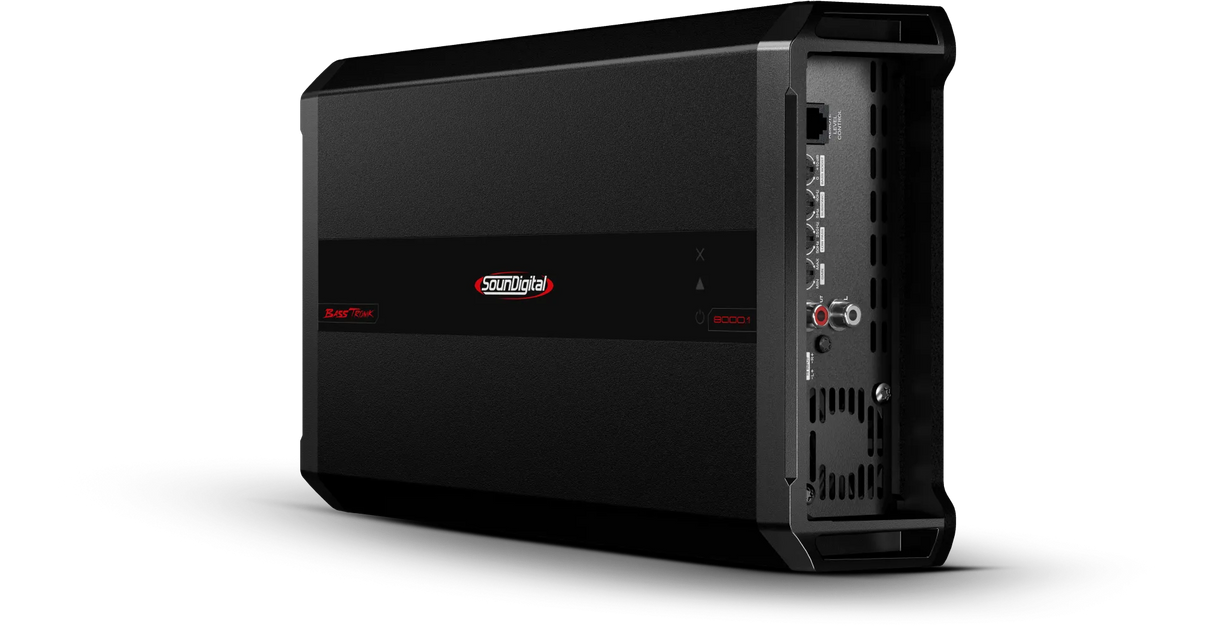

SounDigital 8000.1 BASSTRONIK - 1 Ohm

The Basstronik series is designed for more powerful and direct bass reproduction.
€999.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

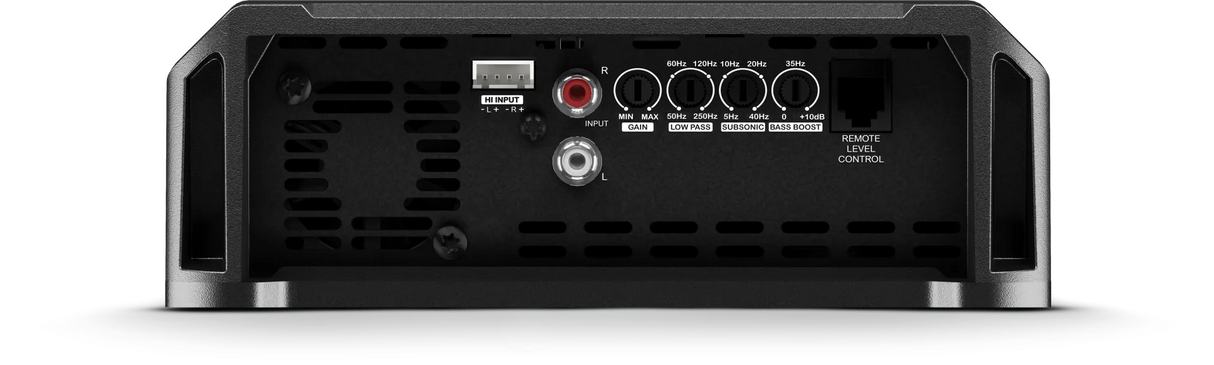

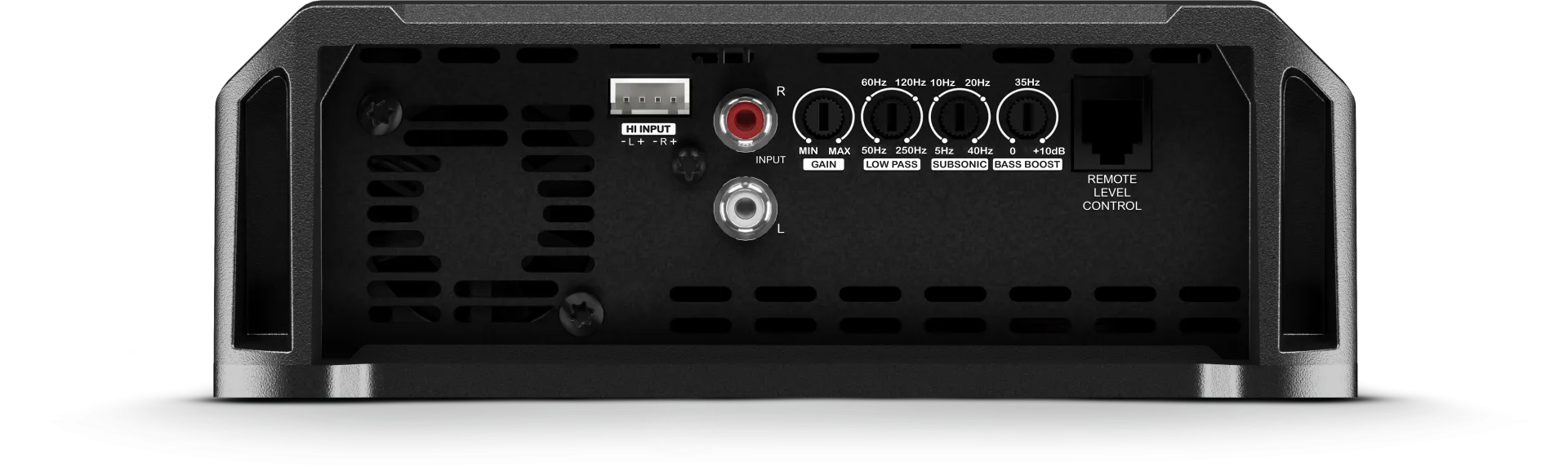

The new series features, among other things, a fixed adjustable low-pass and subsonic filter, which significantly simplifies the control of the bass range crossover frequency.

With the bypass button, the amplifier can still be used for large speaker systems in full-range operation.

SounDigital amplifiers offer high power in a compact space, are easy to install, simple to use, and suitable for any location. These amplifiers are not susceptible to heat problems; a well-thought-out cooling system and extremely high efficiency prevent overheating during music playback.

Technical data

Power @ 4Ω: 1 X 3800 WRMS
Power @ 2Ω: 1 X 5300 WRMS
Power @ 1Ω: 1 X 8000 WRMS

Frequency Response (-3dB):
5Hz ~ 250Hz

Subsonic Filter:
5Hz ~ 40Hz

Low Pass Filter (12dB/octave):
50Hz ~ 250Hz

Bass Boost:
0dB ~ 10dB @ 35Hz

Operating Voltage:
10V ~ 16V

Signal-Noise Ratio:
91.7dB

Current Draw (Music):
399.3A

Current Draw (Max):
798.6A

Total Efficiency:
79.5%

Damping Factor:
2000

Recommended Fuse (Music):
2x200A

Recommended Battery:
450Ah

Width:
310.1mm / 12.2 in

Length:
180.6mm / 7.1 in
