SounDigital  |  Bar code: 7898644525323

SounDigital SD1600.1 EVO 5.0 - 1 ohm

Compact, modern amplifier with 1600W power. Patented technologies ensure cleaner sound and better performance

€279.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

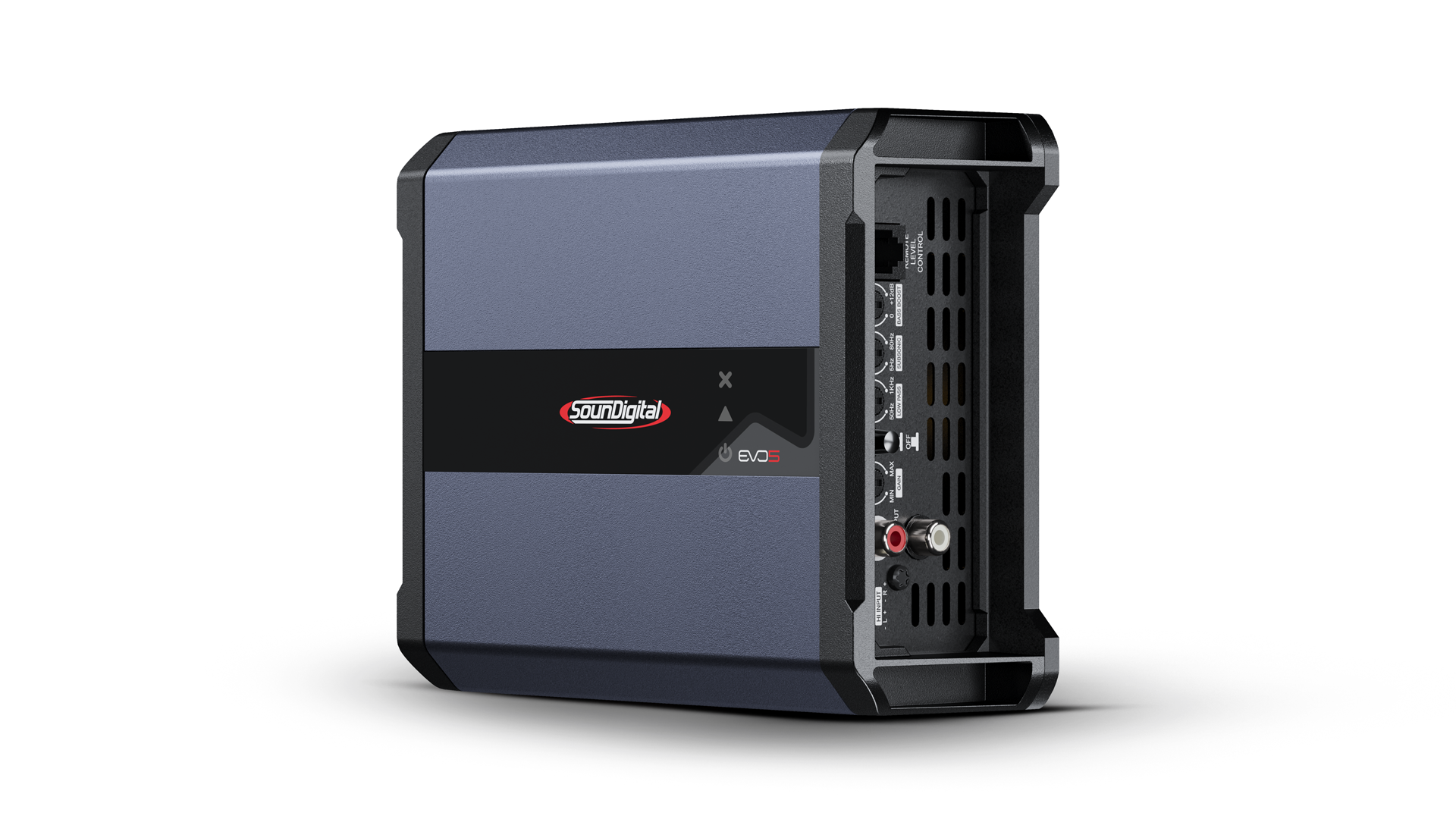

The 1600.1 EVO 5 is a compact, modern amplifier that delivers 1600W RMS power through 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more authentic, while also ensuring better performance and efficiency for the most ambitious projects.

Specifications

Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 75A
2Ω: 71A
4Ω: 69.4A

Current Draw (Max):

1Ω: 149A
2Ω: 143A
4Ω: 138.8A

Total Efficiency:

1Ω: 85%
2Ω: 89%
4Ω: 91.5%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

80A

Recommended Battery:

80Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.13 Kg.
