SoundQubed S1-2250

Improved mono car amplifier with efficient heat dissipation and a robust circuit for a long service life. High-quality Class D design ensures cool operation and maintains low distortion

€360.63 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Following in the footsteps of our most popular mono amplifier, the S1-2250.1 monoblock car amplifier features even more heat dissipation and improved circuitry than its predecessor. Extended thermal mitigation and a robust printed circuit board help keep overall operating temperature low to prevent internal damage.

The high-quality Class D amplifier design keeps your amplifier cool, guarantees low total harmonic distortion rates, and prevents its high power output from harming your vehicle. To enjoy the full power this amplifier has to offer, you will need an upgraded electrical supply system.

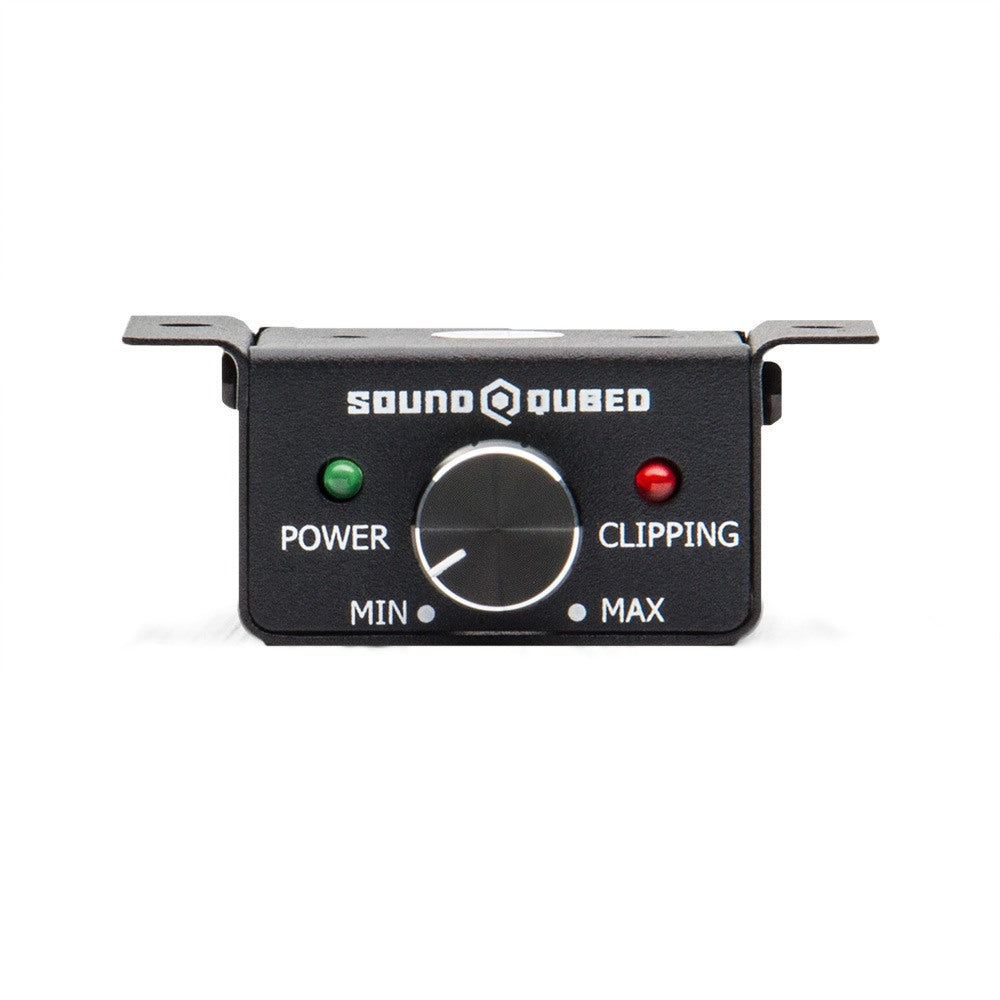

To ensure a long life for your new amplifier, a remote gain knob is included with the S1-2250.1. An LED indicator warns instantly of the presence of distortion signals, which can quickly burn or decouple your subwoofer's voice coils, as well as create bubbles in your form.

Technical data

Class: Class D
Channels: 1 Channel
Working Voltage: 8.5 V - 16 V
Maximum Amperage:225 Amps
Power @ 4 Ohm 14.4V800 Watts RMS
Power @ 2 Ohm 14.4V1300 Watts RMS
Power @ 1 Ohm 14.4V2300 Watts RMS
Frequency Response:10 - 200 Hz
S/N Ratio: Greater than 80
Damping Factor: Greater than 100
Input Sensitivity: 5 V - 0.15 V
Subsonic Filter: 10 Hz - 50 Hz
Low-Pass Filter: 20 Hz - 200 Hz
Dimensions mm (LxWxH):497 x 199 x 55mm.
