Stageline PSUB-418AK, active bass speaker

The PAK-400 series is suitable for general use, featuring advanced technology and individual sound tuning to meet a variety of requirements.
€1,249.79 EUR

Stageline PSUB-418AK, active bass speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The amplifier system is a combination of Class D woofers and Class A/B tweeters

  • Power: 600 W
  • Frequency band: 35-150 Hz
  • SPL: 97 dB/W/m.
  • Bass-Reflex system.

DESCRIPTION

PAK-400 Series
The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the tweeter. With practice-oriented presets, it is easy to find the perfect sound and with the high-pass filter to be activated as required at 75 Hz, this series can easily be matched to subwoofer systems like the PSUB-418AK.

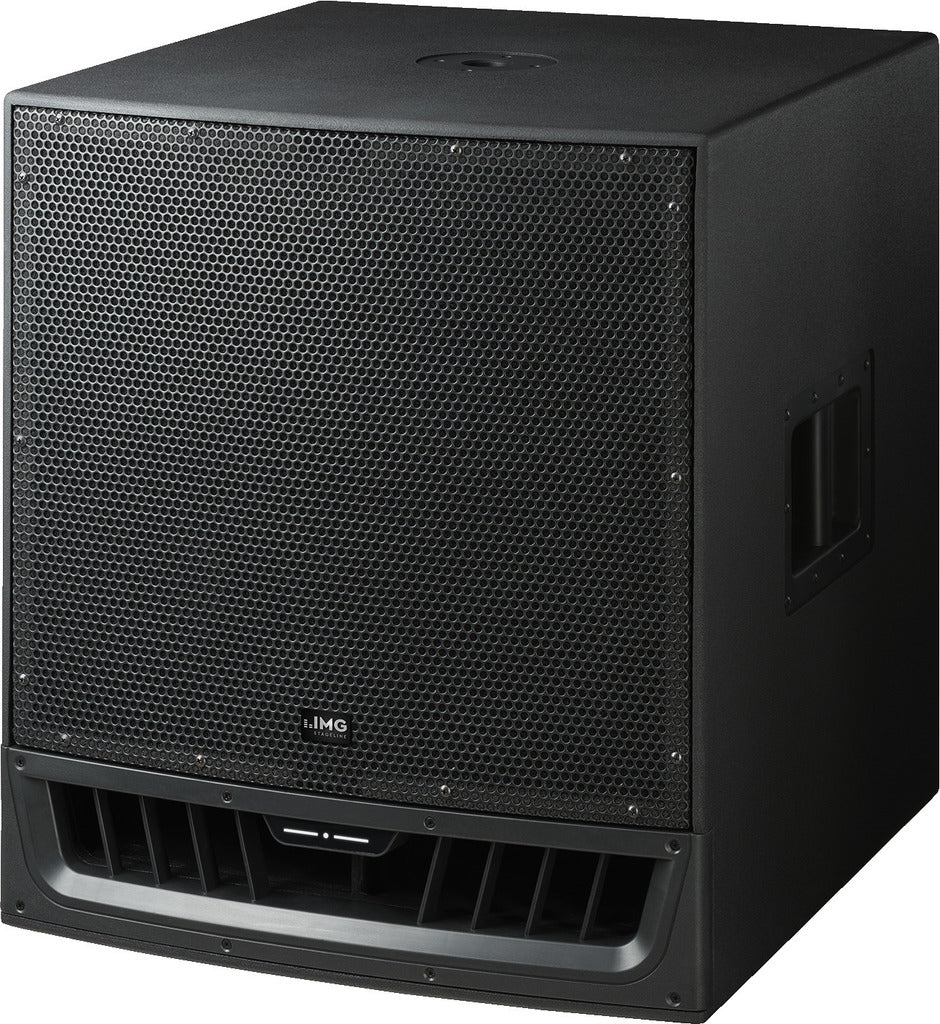

Active power PA subwoofer, 1,000 W
  • Compact and lightweight 46 cm (18") subwoofer with class D amplifier
  • Cabinet made of birch plywood with stand sleeve, carrying handles and castors
  • Bass-reflex system with sound pressure at nominal power: 127 dB

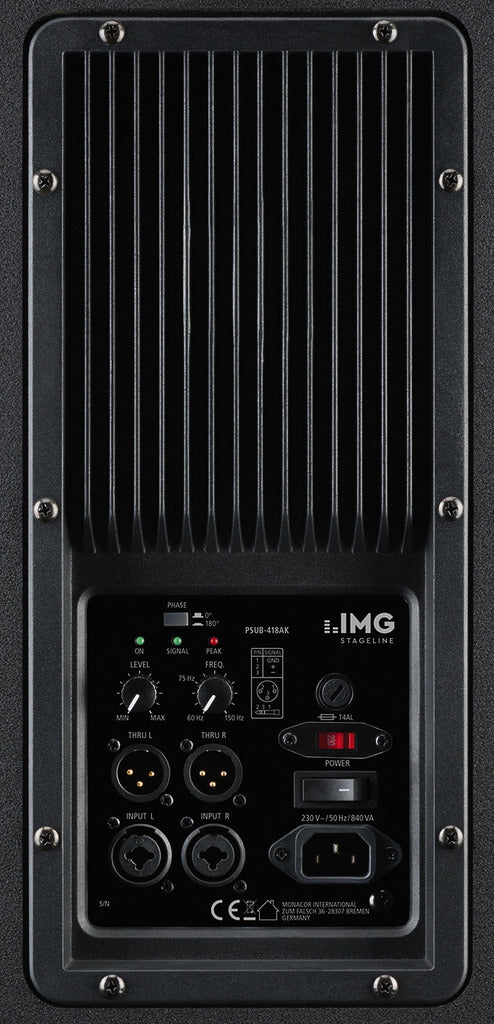

  • Adjustable crossover frequency: 60-150 Hz, gain control, phase reversal switch
  • Balanced inputs: comb. XLR/6.3 mm and parallel XLR outputs
  • LED indicators for power, signal and peak/clip
  • Stand sleeve, carrying handles, rubber feet
  • Supplied with castors
TASTENWELT 06/2015
"The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs.”


TECHNICAL DATA

SPECIFICATIONS

TECHNICAL SPECIFICATIONS PSUB-418AK

PSUB-418AK
Active/passive active
Transmission technology cable
Total output power 1,000W
Power rating (RMS) 600 W
Frequency range 35-150 Hz
Input signal 1.5 V/55 kΩ
System bass-reflex
Bass speaker 46 cm (18") bass speaker
Number of speakers 1
Speaker size 46 cm (18")
SPL 97 dB/W/m
Max. rated SPL 127 dB
Housing material birch plywood
Colour black
Mounting device stand sleeve
Admission ambient temperature 0-40 °C
Power supply ˜ 230 V/50 Hz/840 VA
Dimensions 560 x 660 x 600 mm

(w/o castors)
Width 560 mm
Height 660 mm
Depth 600 mm
Weight 38 kg
Inputs comb. XLR/6.3 mm input (L/R)
Outputs XLR: Par. out (L/R)
Packing dimensions (W x H x L) 0.68 x 0.74 x 0.83 m
Gross weight 44.4 kg
Even weight 38 kg

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
