Teltonika QuWireless QuSpot, Antenna for Teltonika RUTX11 router

Antenna "QuSpot omni LTE" for Teltonika RUTX11 router.
€165.00 EUR

Teltonika QuWireless QuSpot, Antenna for Teltonika RUTX11 router - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Antenna "QuSpot omni LTE" for Teltonika RUTX11 router. The antenna is a perfect solution for mobile and stationary devices such as industrial facilities, video surveillance systems, Wi-Fi hotspots, etc.

  • Bluetooth support.
  • IP67 durability standard.
  • Materials: ABS plastic, aluminum, PTFE.
  • Resistance: 50 Ω.

VIDEO

DESCRIPTION

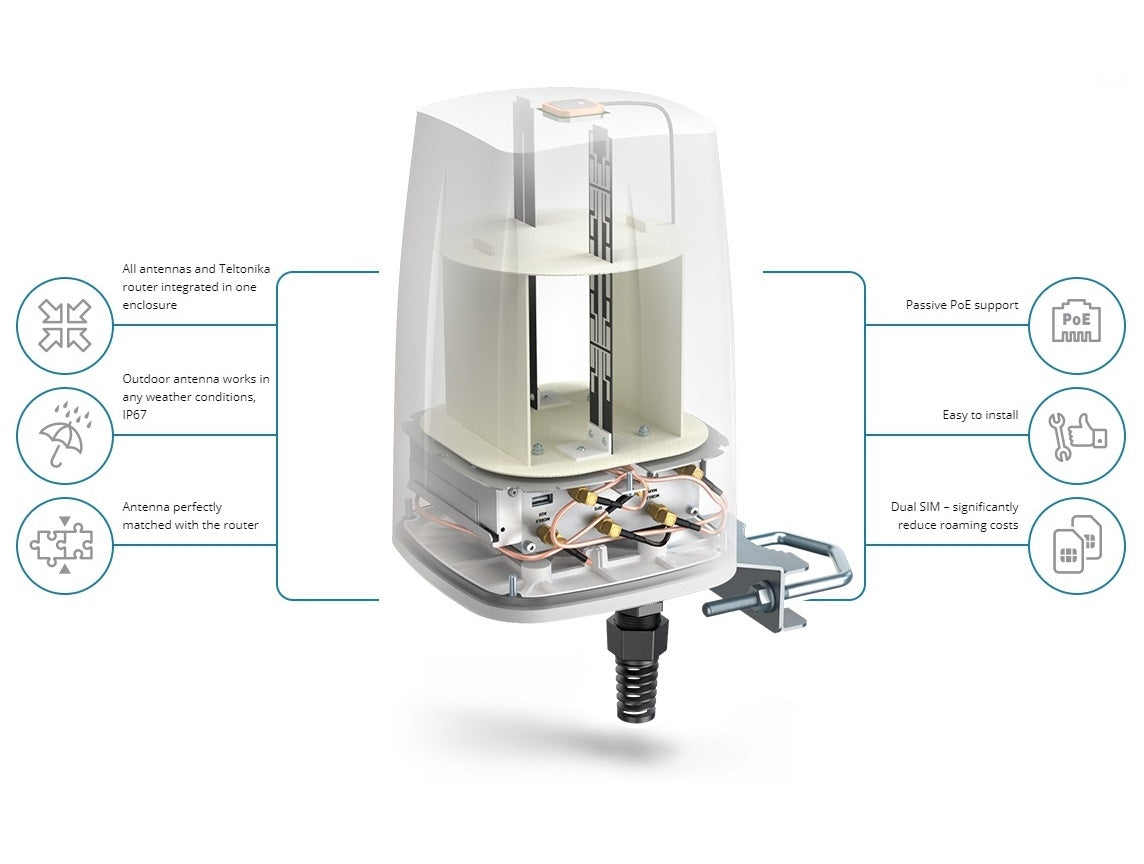

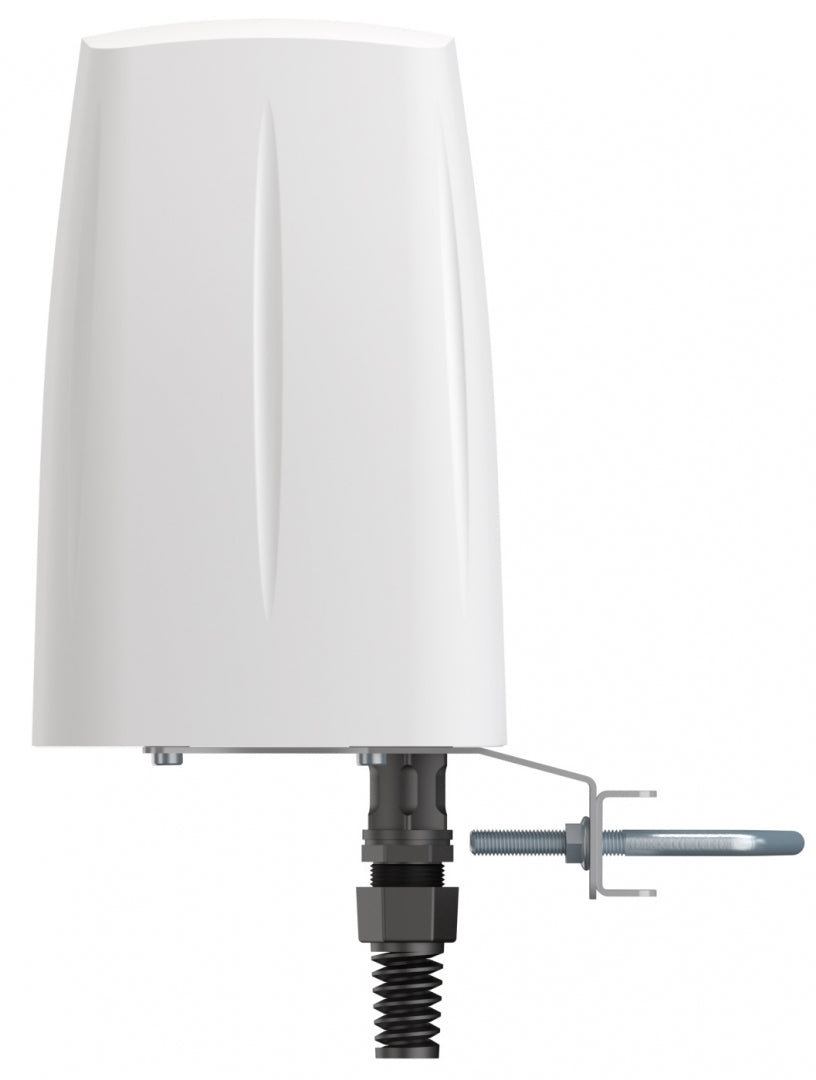

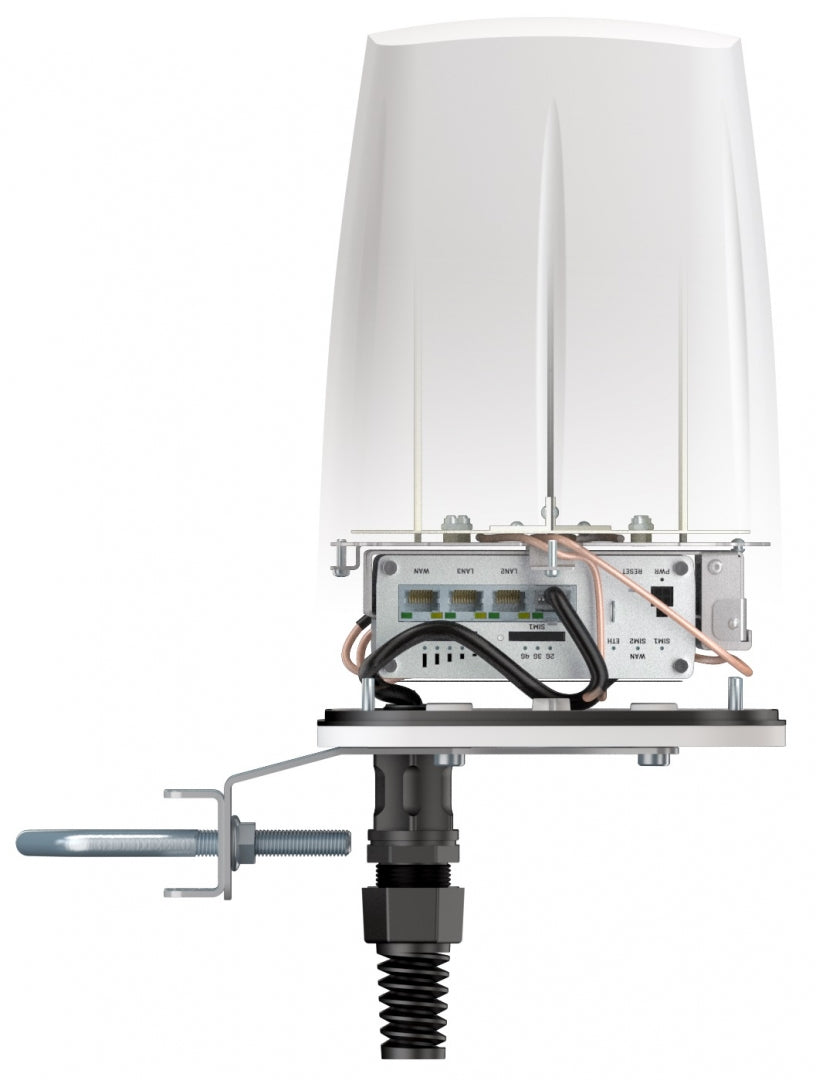

QuSpot omni LTE antenna for Teltonika RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

quspot-for-rutx11
quspot-for-rutx11

TECHNICAL DATA

Specifications

LTE Specifications:
• Frequency:
* 0.694-0.96 GHz;
* 1.7 - 2.2 GHz;
* 2.2 - 2.7 GHz;
Gain:
* 2 dBi;
* 2 dBi;
* 4 dBi;
• VSWR:
* <1.70, max <2.00;
* <1.60, max <2.00;
* <1.60, max <2.00;
• Beamwidth:
* 360°/35° +/- 5°;
* 360°/35° +/- 5°;
* 360°/35° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Wi-Fi Specifications:
• Frequency:
* 2.40-2.50 GHz;
* 4.70 - 6.00 GHz;
Gain:
* 6 dBi;
* 7 dBi;
• VSWR:
* <1.70, max <2.00;
* <1.70, max <2.00;
• Beamwidth:
* 360°/25° +/- 5°;
* 360°/25° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Mechanical Specifications:
• Materials: ABS, aluminum, PTFE;
• Ingress Protection: IP67;
• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inches);
• Weight: 1.5 kg (3.31 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).

User Manual / User Manual.
