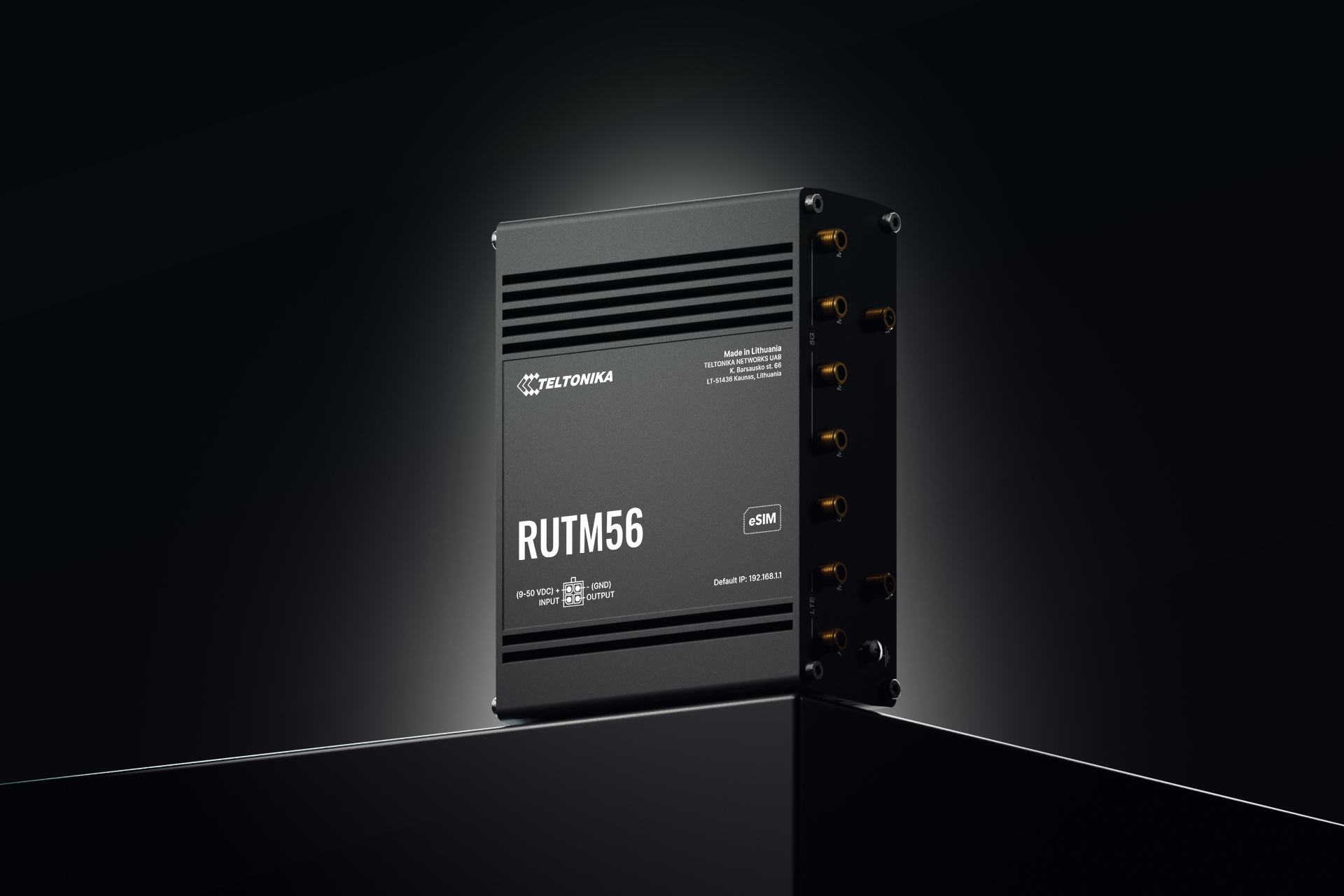

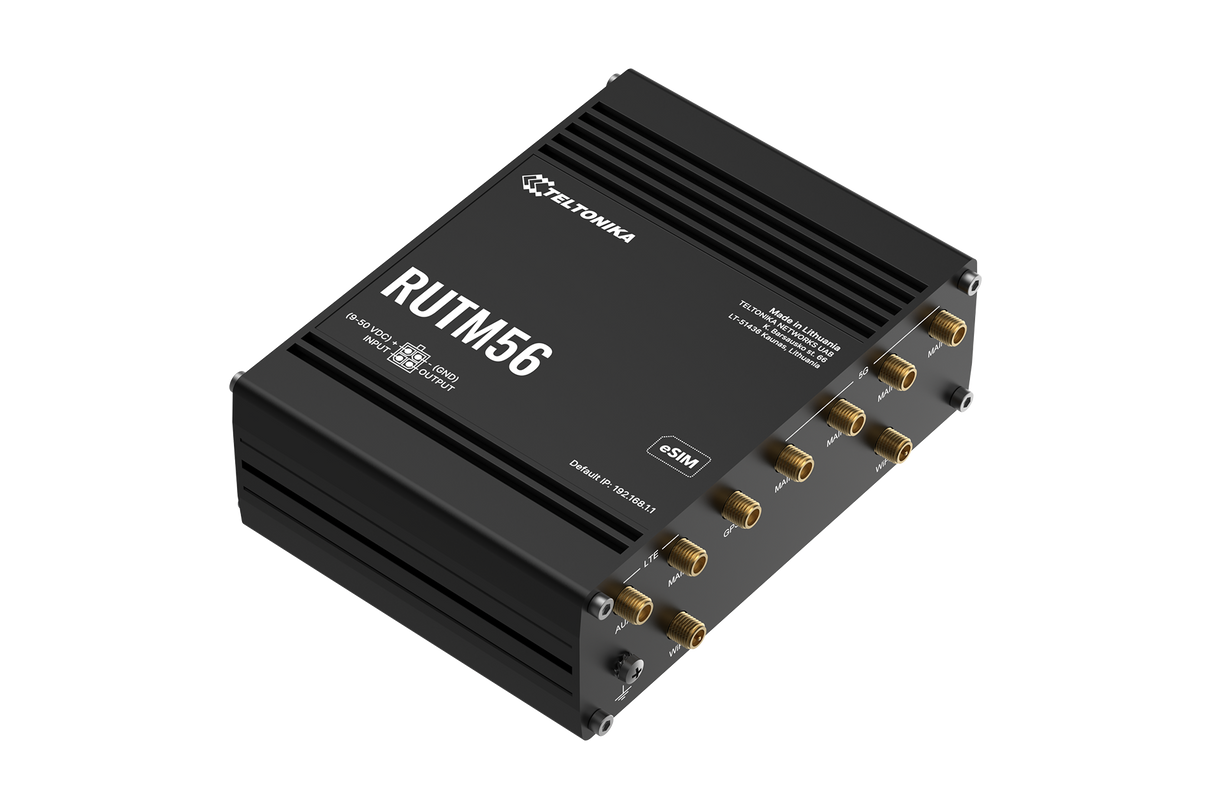

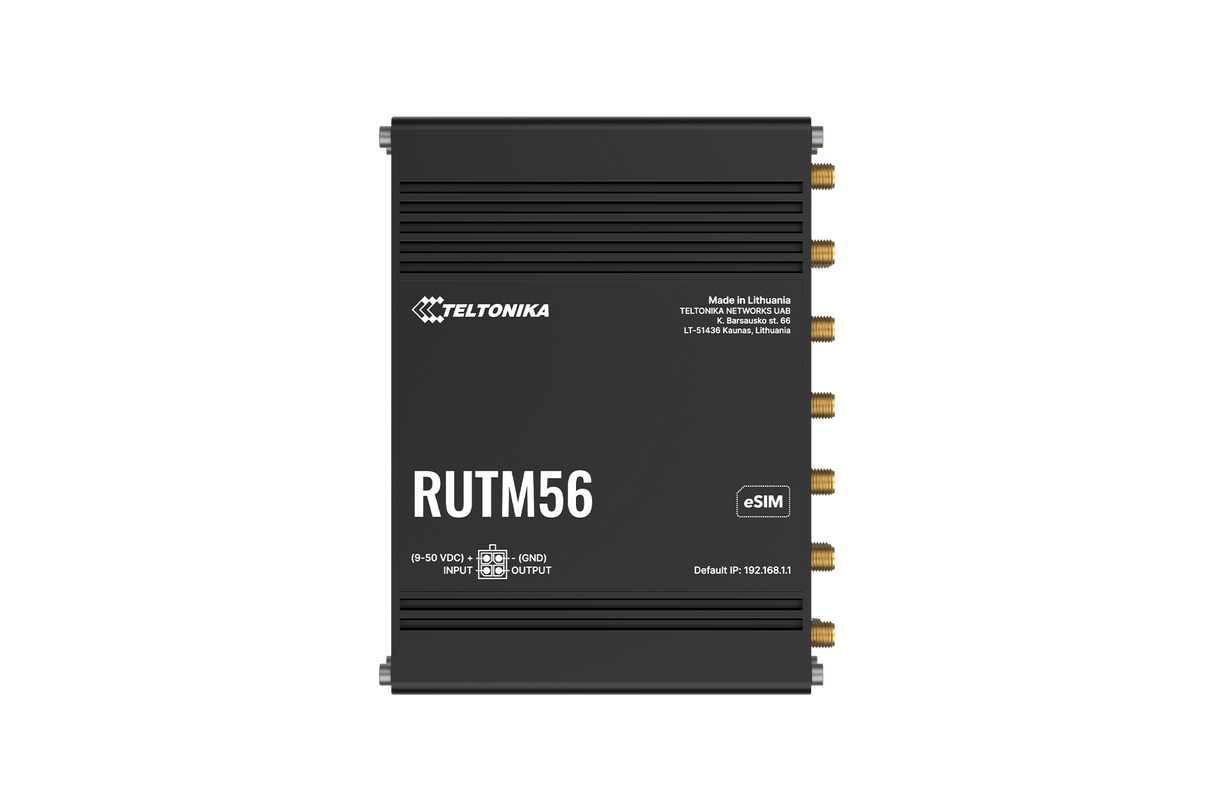

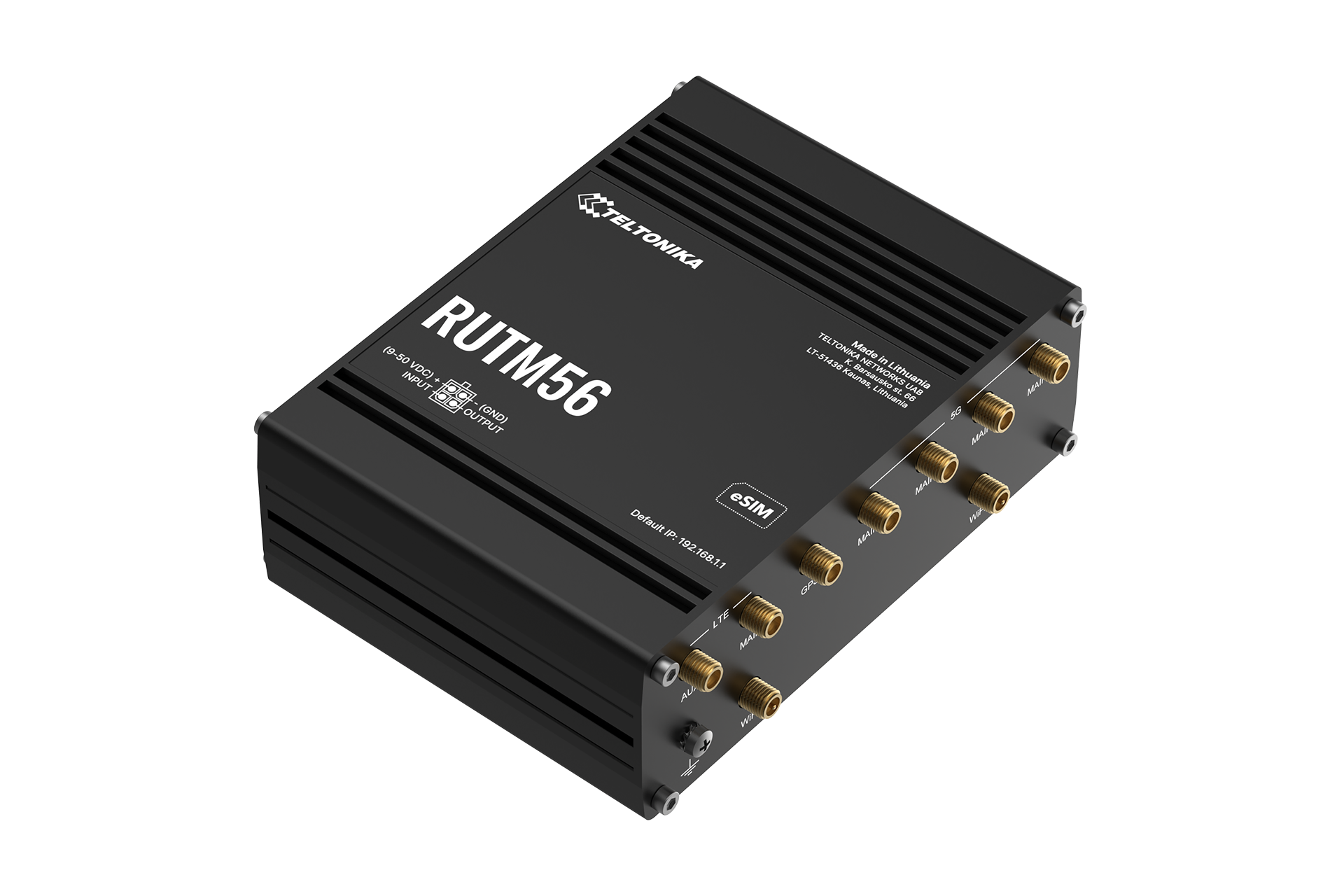

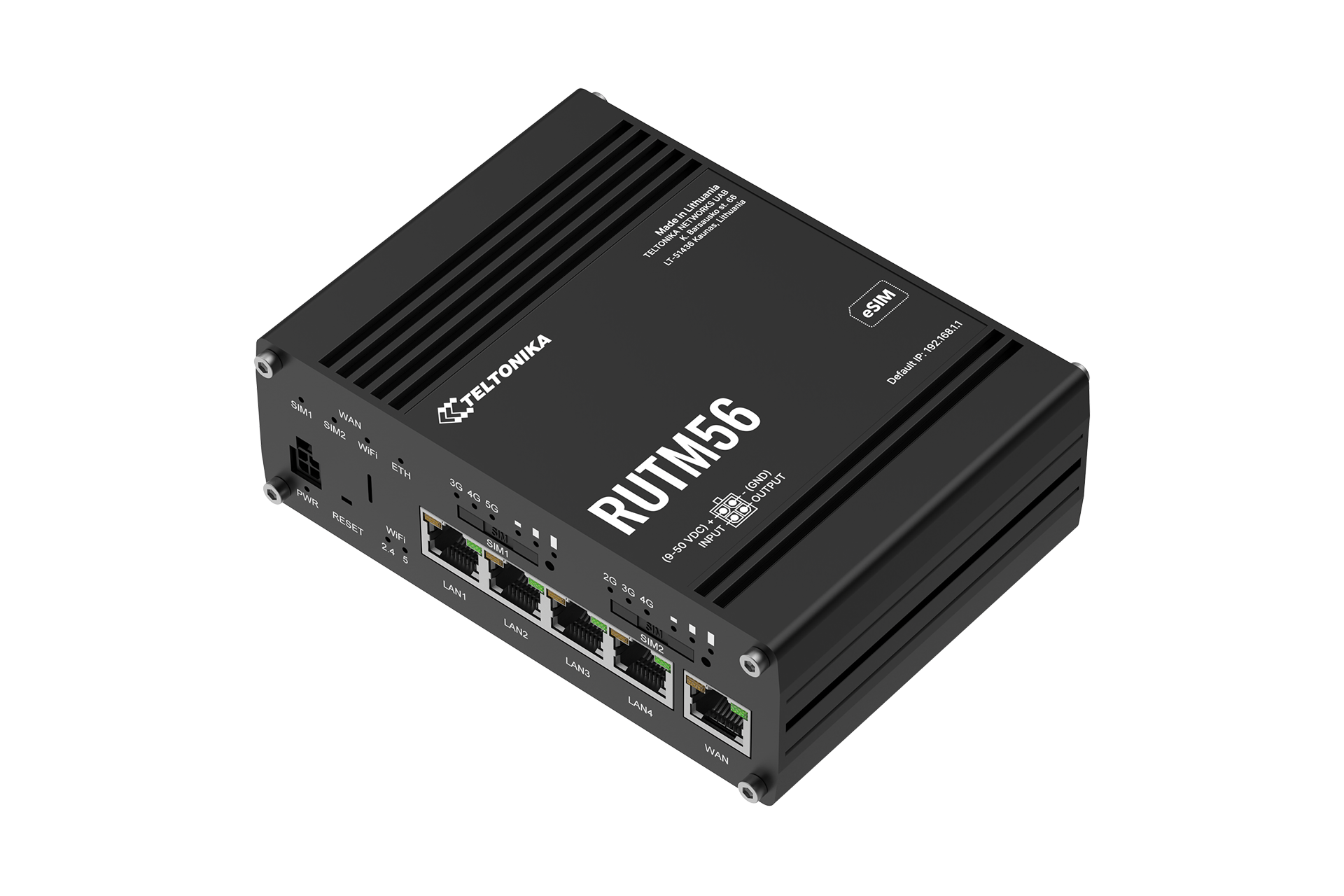

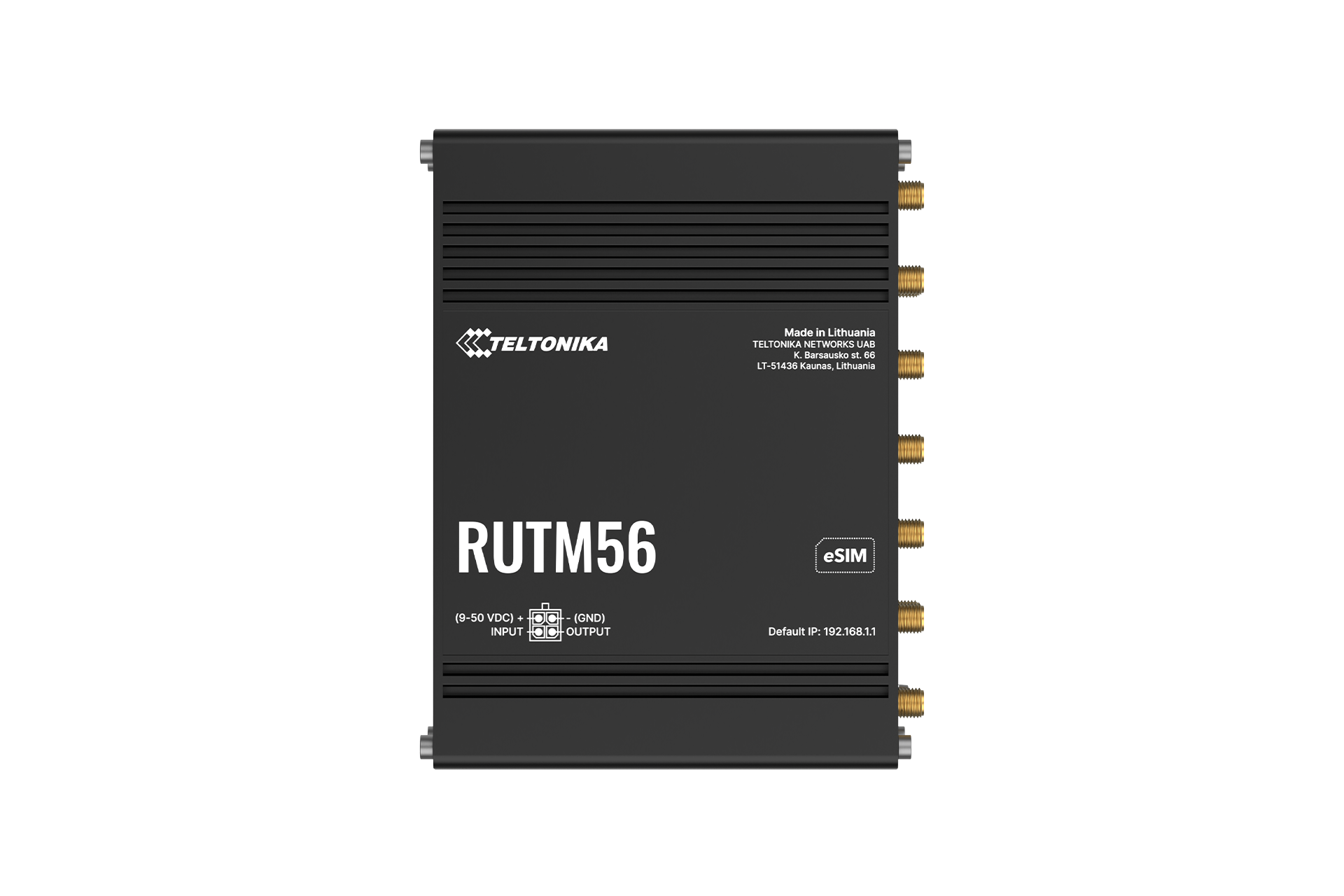

Teltonika RUTM56, dviejų modemų 5G pramoninis maršrutizatorius

INFORMACIJA

Teltonika  RUTM56 - yra ateities poreikius atliepiantis dviejų modemų maršrutizatorius, sukurtas sujungti senos ir naujos kartos tinklus. Su 5G ir 4G Cat 4 modemais, jis užtikrina nepertraukiamą veikimą, esant poreikiui prisijungdamas prie 3G ir 2G tinklų. RUTM56 užtikrina didelės spartos, nepertraukiamą ryšį su dviejų SIM ir eSIM palaikymu. Apkrovos balansavimas, Wi-Fi 5 ir penki gigabitinio eterneto prievadai optimizuoja našumą, o RutOS su pramoniniais protokolais ir daugybe VPN pasirinkimų supaprastina IoT sprendimų diegimus. Šis vienas produktas leidžia greitai įdiegti ryšį, išvengiant ilgų konfigūracijų ir rizikų, susijusių su kelių tinklo įrenginių reikalaujančiais sprendimais.

Procesorius:    MediaTek Dual-Core 880 MHz (MIPS1004Kc)
Atmintis:    256 MB RAM, 256 MB NAND
Ethernet:    5× Gigabit RJ45 (1×WAN + 4×LAN)
Wi-Fi:  802.11ac (Wi-Fi 5), iki 867 Mbps, MU-MIMO
SIM:  2× fizinės SIM + eSIM palaikymas
GNSS:  GPS, GLONASS, Galileo, BeiDou, QZSS

TECHNINIAI DUOMENYS

Mobile
Mobile module
Modem 1: 5G Sub-6 GHz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO) 900/550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO)/UL Cat 18 200Mbps; 3G DL 42Mbps UL 5.76Mbps

Modem 2: 4G (LTE) Cat 4 DL 150Mbps UL 50Mbps; 3G DL 21Mbps UL 5.76Mbps; 2G DL 236.8kbps UL 236.8kbps

3GPP Release
Modem 1: Release 16

Modem 2: Release 9

eSIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch
Allows dual-modem functionality with independent SIM switching for each modem. The SIM switch automatically transitions between the physical SIM and eSIM based on conditions such as weak signal, data limits, roaming, and network issues. Both physical SIMs can operate simultaneously, with switching restricted to each modem's SIM and eSIM (For full failover functionality from 5G to 2G, two SIM cards are required.)

Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list
Operator block/allow list (by country or separate operators)

Multiple PDN
Possibility to use different PDNs for multiple network access and services

Band management
Band lock, Used band status display

SIM idle protection service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN
Auto APN

Bridge
Direct connection (bridge) between mobile ISP and device on LAN

Passthrough
Router assigns its mobile WAN IP address to another device on LAN

Framed routing
Framed routing: support an IP network behind 5G UE

Wireless
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

WiFi security
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID/ESSID
SSID stealth mode and access control based on MAC address

Wi-Fi users
Up to 150 simultaneous connections

Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter
Allowlist, blocklist

Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information

TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet
WAN
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

LAN
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall
Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page
View all your Firewall statistics, rules, and rule counters

Port management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology
Visual representation of your network, showing which devices are connected to which other devices

Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS
Supported >77 service providers, others can be configured manually

DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing
Balance Internet traffic over multiple WAN connections

SSHFS
Possibility to mount remote file system via SSH protocol

VRF support
Initial virtual routing and forwarding (VRF) support

Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history

Port Mirroring
Mirroring network traffic on Ethernet ports for monitoring and analysis

Security
802.1x
Port-based network access control client

Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN
Port and tag-based VLAN separation

Mobile quota control
Custom data limits for SIM card

WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control
Flexible access control of SSH, Web interface, CLI and Telnet

TPM
Identification and authentication module, TPM 2.0 standard

Certificate Manager
Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE
GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

DMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP
SSTP client instance support

ZeroTier
ZeroTier VPN client support

WireGuard
WireGuard VPN client and server support

Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale
Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA
Supported modes
Client, Server

Supported connection types
TCP

MODBUS
Supported modes
Server, Client

Supported connection types
TCP

Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
Protocol
HTTP(S), MQTT, Azure MQTT

Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modes
DNP3 Station, DNP3 Outstation

Supported connection
TCP

DLMS/COSEM
DLMS Support
DLMS - standard protocol for utility meter data exchange

Supported modes
Client

Supported connection types
TCP

API
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

FOTA
Firmware update from server, automatic notification

SSH
SSH (v1, v2)

SMS
SMS status, SMS configuration

Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

Email
Receive email message status alerts of various services

TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT
MQTT Broker, MQTT publisher

SNMP
SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC
Management API over HTTP/HTTPS

MODBUS
MODBUS TCP status/control

RMS
Teltonika Remote Management System (RMS)

IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity - Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

RAM
256 MB, DDR3

FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA
Update FW

RMS
Update FW/configuration for multiple devices at once

Keep settings
Update FW without losing current configuration

Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)

Supported languages
Busybox shell, Lua, C, C++

Development tools
SDK package with build environment provided

GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Package Manager
The Package Manager is a service used to install additional software on the device

Location Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS

NMEA
NMEA 0183

NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software
Supported server software TAVL, RMS

Geofencing
Configurable multiple geofence zones

Input / Output
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high

Output
1 x Digital Output, Open collector output, max output 50 V, 300 mA

Events
Email, RMS, SMS

I/O juggler
Allows to set certain I/O conditions to initiate event

Power
Connector
4-pin industrial DC power socket

Input voltage range
9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

PoE (passive)
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

Power consumption
Idle: < 4.5 W, Max: < 12.5 W

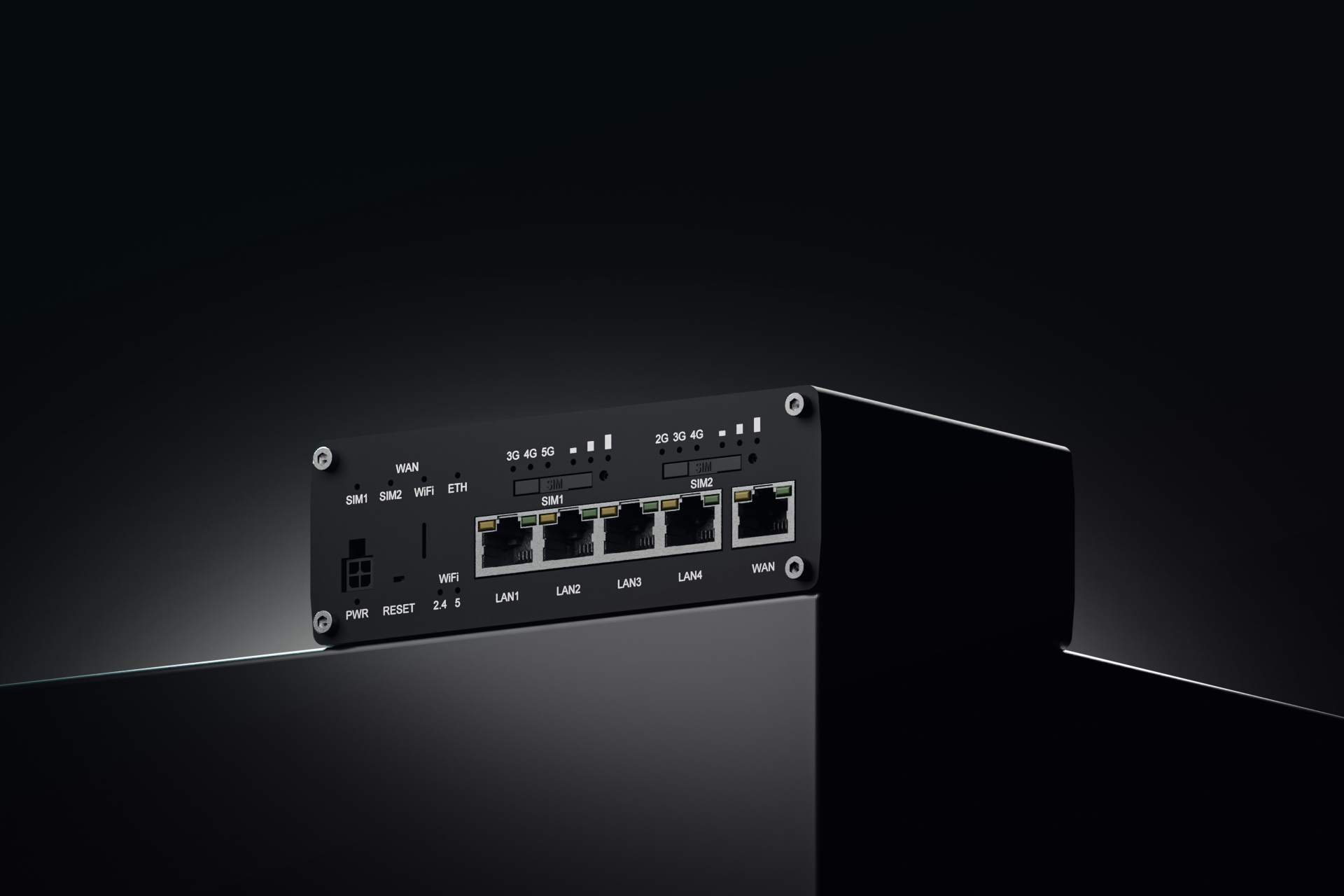

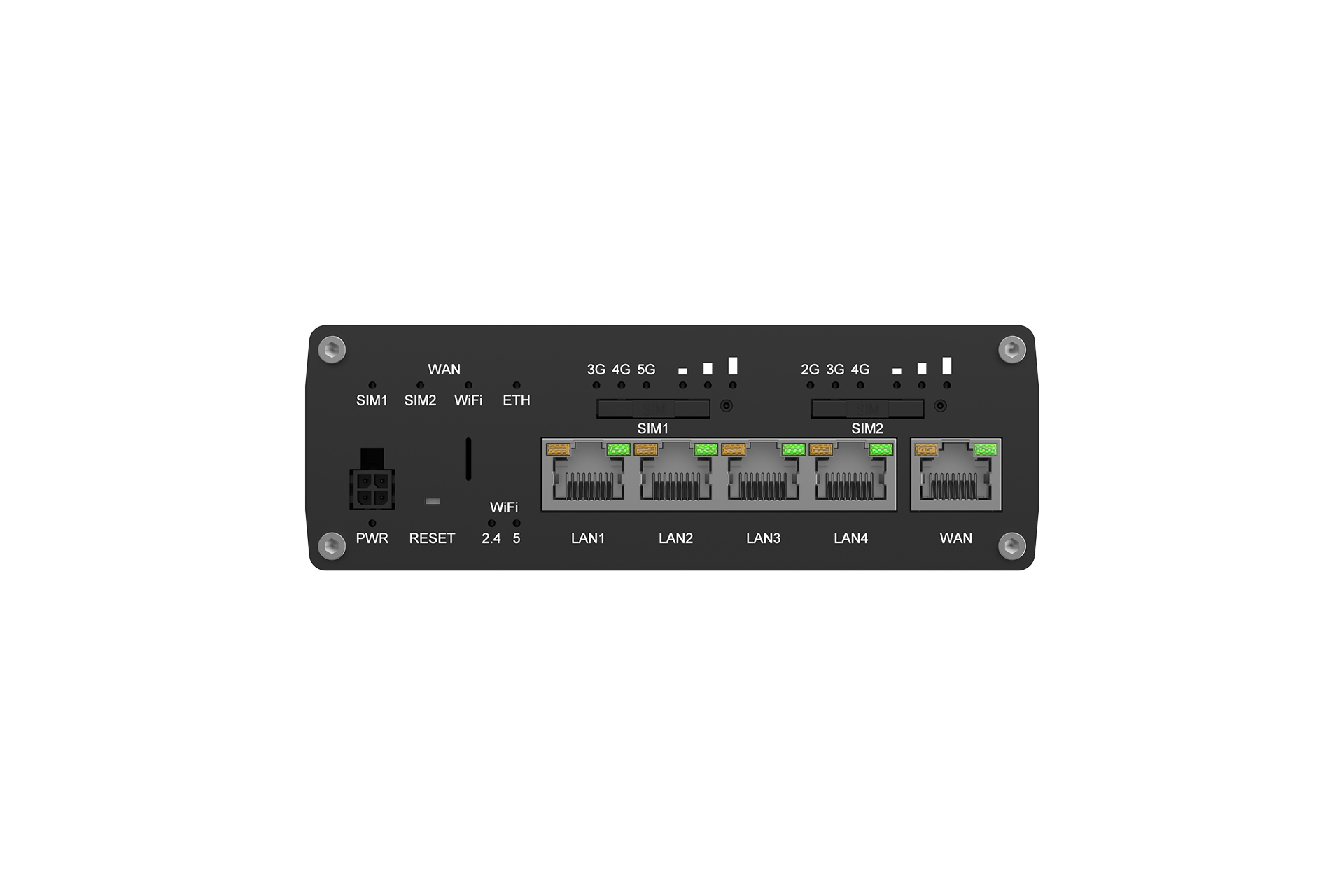

Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps

I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector

Status LEDs
4 x WAN type, 6 x Mobile connection type, 6 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi

SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V

Power
1 x 4-pin power connector

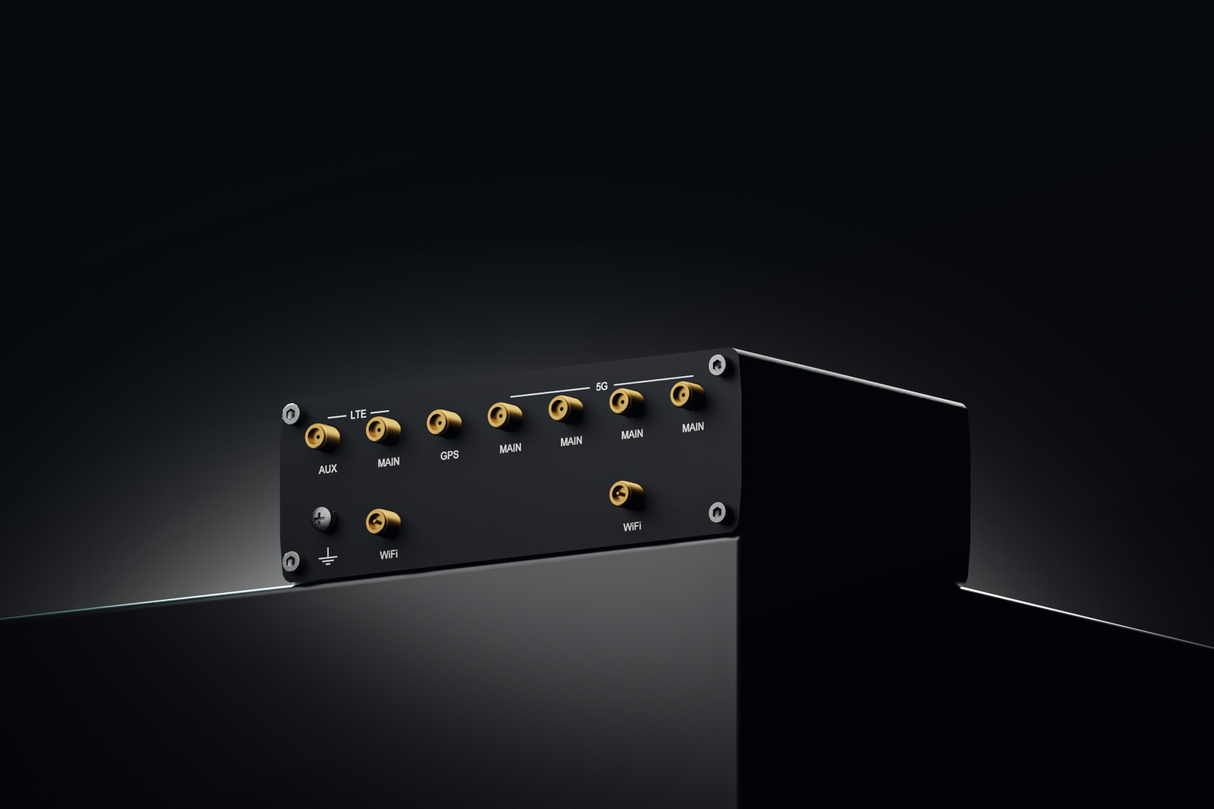

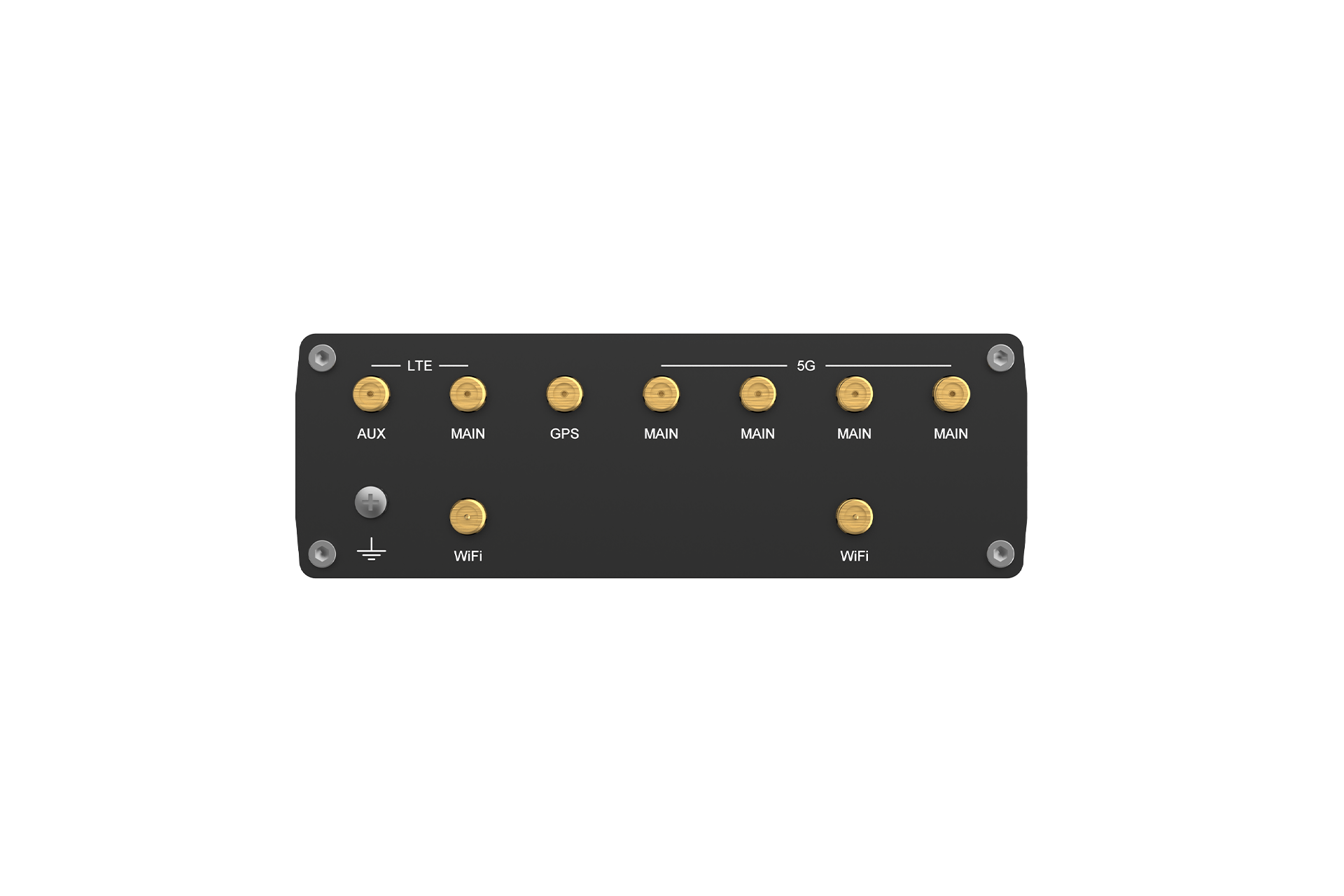

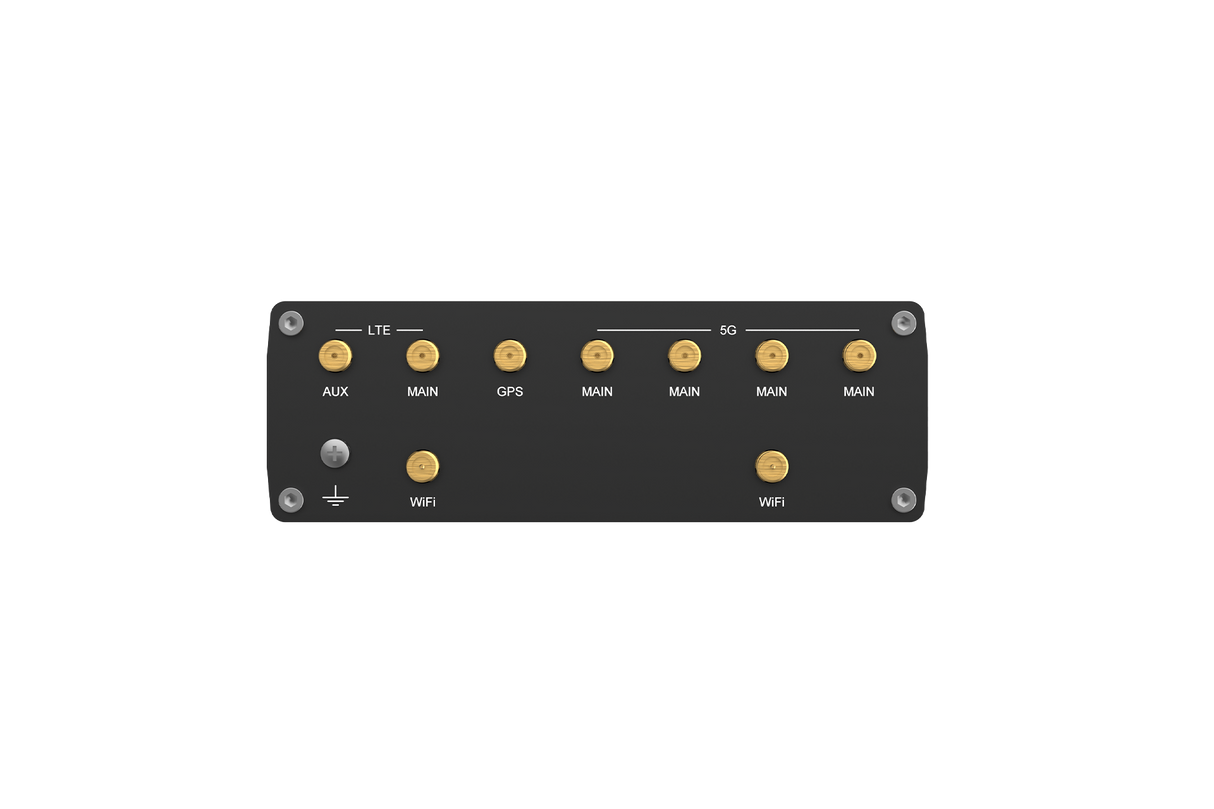

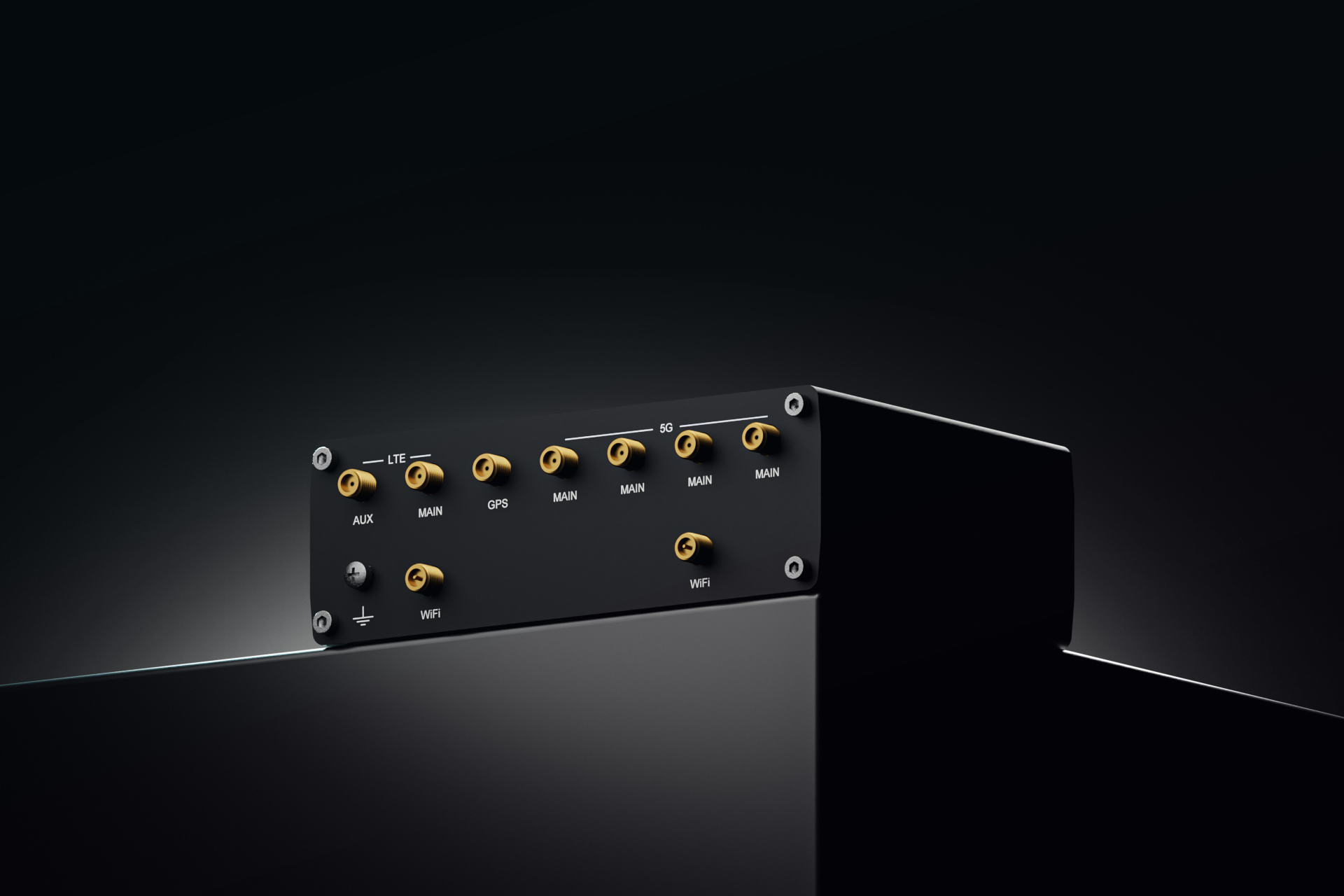

Antennas
6 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS

Reset
Reboot/User default reset/Factory reset button

Other
1 x Grounding screw

Physical Specification
Casing material
Anodized aluminum housing and panels

Dimensions (W x H x D)
132 x 44.2 x 95 mm

Weight
515 g

Mounting options
DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature
-40 °C to 75 °C

Operating humidity
10% to 90% non-condensing

Ingress Protection Rating
IP30

Regulatory & Type Approvals
Regulatory
CE, UKCA, EAC, EUCRF, WEEE
